BONNET GROUP - TD2-G615502

Kioti TRACTOR | DK Series | DK5010

Diagram for BONNET GROUP - TD2-G615502
  • 1

    ASSY BONNET dnr v

    • Part No. T5710-51012
    • Applied Dates Up to 2017-02-14
    • *multiple options for # 1
    • 1 shown on diagram
    $884.99
  • 1

    BONNET ASS’Y

    • Part No. T5710-51013
    • Compatibility New Replaces Old
    • *multiple options for # 1
    • 1 shown on diagram
    $0.00
  • 1

    TRK BONNET ASSY dnr v

    • Part No. T5710-51014
    • Compatibility New Replaces Old
    • Applied Dates 2017-07-01 to 2019-12-08
    • Serial No. TR8000035 to VR8000143
    • *multiple options for # 1
    • 1 shown on diagram
    $884.99
  • 2

    BONNET REINFORCED PLATE, FR dnr v

    • Part No. T5710-51022
    • Applied Dates 2014-09-13 to 2014-10-29
    • Serial No. PR8000001 to PR8000042
    • *multiple options for # 2
    • 1 shown on diagram
    $89.99
  • 2

    PLATE, BONNET REINFMT-FR

    • Part No. T5710-51023
    • Applied Dates 2014-10-30 to 2015-05-02
    • Serial No. PR8000043 and up
    • *multiple options for # 2
    • 1 shown on diagram
    $0.00
  • 2

    BONNET REINFORCED PLATE, FR dnr v

    • Part No. T5710-51024
    • Compatibility Interchangeable
    • Applied Dates 2015-05-03 and up
    • Serial No. RR8000001 to WR8000028
    • *multiple options for # 2
    • 1 shown on diagram
    $144.99
  • 3

    BOLT, FLANGE

    • Part No. 01754-50614
    • M6XP1.0
    • 2 shown on diagram
    $0.73
  • 4 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 3 shown on diagram
    $1.79
  • 5

    SIDE GRILL, LH dnr v

    • Part No. T5718-51031
    • Applied Dates 2014-08-04 to 2015-02-28
    • T3.0
    • *multiple options for # 5
    • 1 shown on diagram
    $79.99
  • 5

    SIDEGRILL,LH

    • Part No. T5718-51032
    • Compatibility Interchangeable
    • Applied Dates 2015-03-01 and up
    • Serial No. RR8000001 to WR8000028
    • T3.0
    • *multiple options for # 5
    • 1 shown on diagram
    $79.99
  • 6

    SIDE GRILL, RH dnr v

    • Part No. T5718-51041
    • Applied Dates 2014-08-04 to 2015-02-28
    • T3.0
    • *multiple options for # 6
    • 1 shown on diagram
    $79.99
  • 6

    SIDEGRILL,RH

    • Part No. T5718-51042
    • Compatibility Interchangeable
    • Applied Dates 2015-03-01 and up
    • Serial No. RR8000001 to WR8000028
    • T3.0
    • *multiple options for # 6
    • 1 shown on diagram
    $79.99
  • 7

    COVER, FRONT GRILL

    • Part No. T5715-51131
    • Applied Dates Up to 2014-09-12
    • 1 shown on diagram
    $28.99
  • 8

    SCREW

    • Part No. T5710-51181
    • Applied Dates Up to 2014-09-12
    • M5 X 10
    • 16 shown on diagram
    $0.29

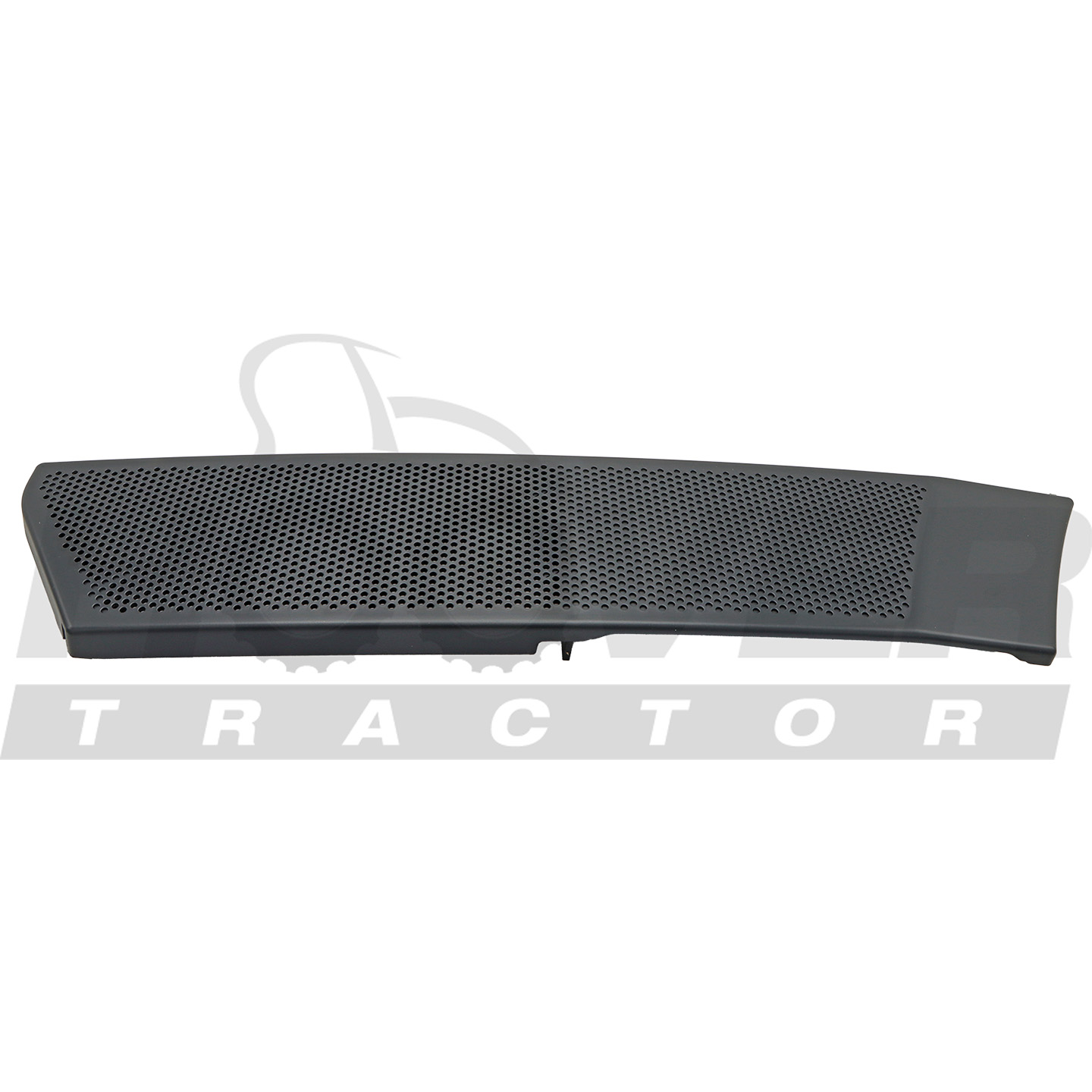

  • 9 SIDE GRILL, LH,LWR

    SIDE GRILL, LH,LWR

    • Part No. T5710-51053
    • Applied Dates 2014-09-13 and up
    • T3.0
    • 1 shown on diagram
    $53.99
  • 10

    SIDE GRILL, RH,LWR

    • Part No. T5710-51063
    • Applied Dates 2014-09-13 and up
    • T3.0
    • 1 shown on diagram
    $52.99
  • 11

    BOLT, FLANGE

    • Part No. 01754-50614
    • M6XP1.0
    • 4 shown on diagram
    $0.73
  • 12

    SCREW

    • Part No. T5710-51181
    • M5 X 10
    • 2 shown on diagram
    $0.29
  • 13

    GRILL, FRONT, Replaced by T5710-51072

    • Part No. T5710-51071
    • 1 shown on diagram
    $93.64
  • 14

    SCREW

    • Part No. T5710-51181
    • M5 X 10
    • 10 shown on diagram
    $0.29

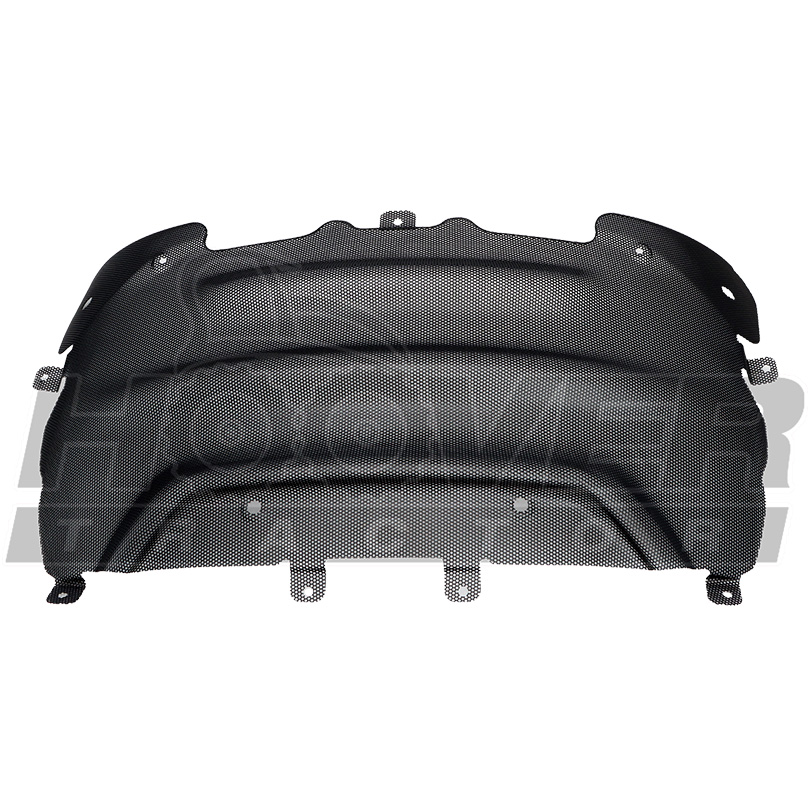

  • 15 GRILLE, BONNET METAL, Replaced by T5710-51081BB

    GRILLE, BONNET METAL, Replaced by T5710-51081BB

    • Part No. T5710-51081
    • Applied Dates Up to 2014-09-12
    • T0.8
    • 1 shown on diagram
    $244.99
  • 16

    SCREW

    • Part No. 38430-1827-1
    • Applied Dates Up to 2014-09-12
    • 9 shown on diagram
    $0.46
  • 17 NUT, FLANGE

    NUT, FLANGE

    • Part No. 02761-50060
    • M6XP1.0
    • 3 shown on diagram
    $0.67
  • 18

    BEGEL, EMBLEM

    • Part No. T5710-51092
    • Applied Dates Up to 2014-09-12
    • 1 shown on diagram
    $31.99
  • 19

    SCREW

    • Part No. T5710-51181
    • M5 X 10
    • 2 shown on diagram
    $0.29
  • 20 EMBLEM

    EMBLEM

    • Part No. T2185-51462
    • 1 shown on diagram
    $29.99
  • 21 Rubber Plate

    Rubber Plate

    • Part No. 82KC-0641
    • Applied Dates Up to 2014-09-12
    • 2 shown on diagram
    $1.19
  • 22 Plate, Fixed

    Plate, Fixed

    • Part No. T4620-50701
    • 1.75Xø16
    • 2 shown on diagram
    $1.39
  • 23

    RUBBER, Replaced by T5710-51102

    • Part No. T5710-51101
    • *multiple options for # 23
    • 1 shown on diagram
    $0.00
  • 23

    RUBBER

    • Part No. T5710-51102
    • Compatibility New Replaces Old
    • Applied Dates 2014-10-30 and up
    • Serial No. PR8000043 to WR8000028
    • *multiple options for # 23
    • 1 shown on diagram
    $39.99
  • 24

    SPONGE dnr v

    • Part No. T5710-51161
    • Applied Dates 2014-08-04 to 2014-11-06
    • Serial No. Up to PR8000042
    • *multiple options for # 24
    • 1 shown on diagram
    $65.99
  • 24

    SPONGE dnr v, Replaced by TD26-1144A

    • Part No. T5710-51162
    • Compatibility New Replaces Old
    • Applied Dates 2014-11-07 to 2019-12-15
    • Serial No. PR8000043 to VR8000154
    • *multiple options for # 24
    • 1 shown on diagram
    $0.00
  • 24

    SPONGE, BONNET

    • Part No. TD26-1144A
    • Compatibility Interchangeable
    • Applied Dates 2019-12-16 and up
    • Serial No. VR8000155 to WR8000028
    • *multiple options for # 24
    • 1 shown on diagram
    $19.99
  • 25 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 1 shown on diagram
    $1.79
  • 26

    SCREW

    • Part No. 38430-1827-1
    • 4 shown on diagram
    $0.46
  • 27

    COVER, FRONT GRILL

    • Part No. T5715-51141
    • Applied Dates Up to 2014-09-12
    • 1 shown on diagram
    $6.99
  • 28 COVER, FRONT GRILL

    COVER, FRONT GRILL

    • Part No. T5715-51151
    • Applied Dates Up to 2014-09-12
    • 1 shown on diagram
    $7.49
  • 29

    SCREW

    • Part No. 38430-1827-1
    • 2 shown on diagram
    $0.46
  • 30

    BONNET dnr v, Replaced by T5755-51072

    • Part No. T5755-51071
    • Applied Dates 2014-09-13 to 2017-10-31
    • Serial No. PR8000001 to TR8000064
    • *multiple options for # 30
    • 1 shown on diagram
    $0.00
  • 30

    FRONTGRILLTOTALASSY v

    • Part No. T5755-51072
    • Compatibility New Replaces Old
    • Applied Dates 2017-11-01 and up
    • Serial No. TR8000065 to WR8000028
    • *multiple options for # 30
    • 1 shown on diagram
    $369.99
  • 31

    PLATE,HEAT

    • Part No. T4665-50382
    • Applied Dates 2014-09-13 to 2014-09-23
    • 2 shown on diagram
    $62.99
  • 32 SPONGE, 4

    SPONGE, 4

    • Part No. T5855-50542
    • ?95X60, T20
    • 2 shown on diagram
    $3.99
