SEAT GROUP - TD2-G661002

Kioti TRACTOR | DK Series | DK5010

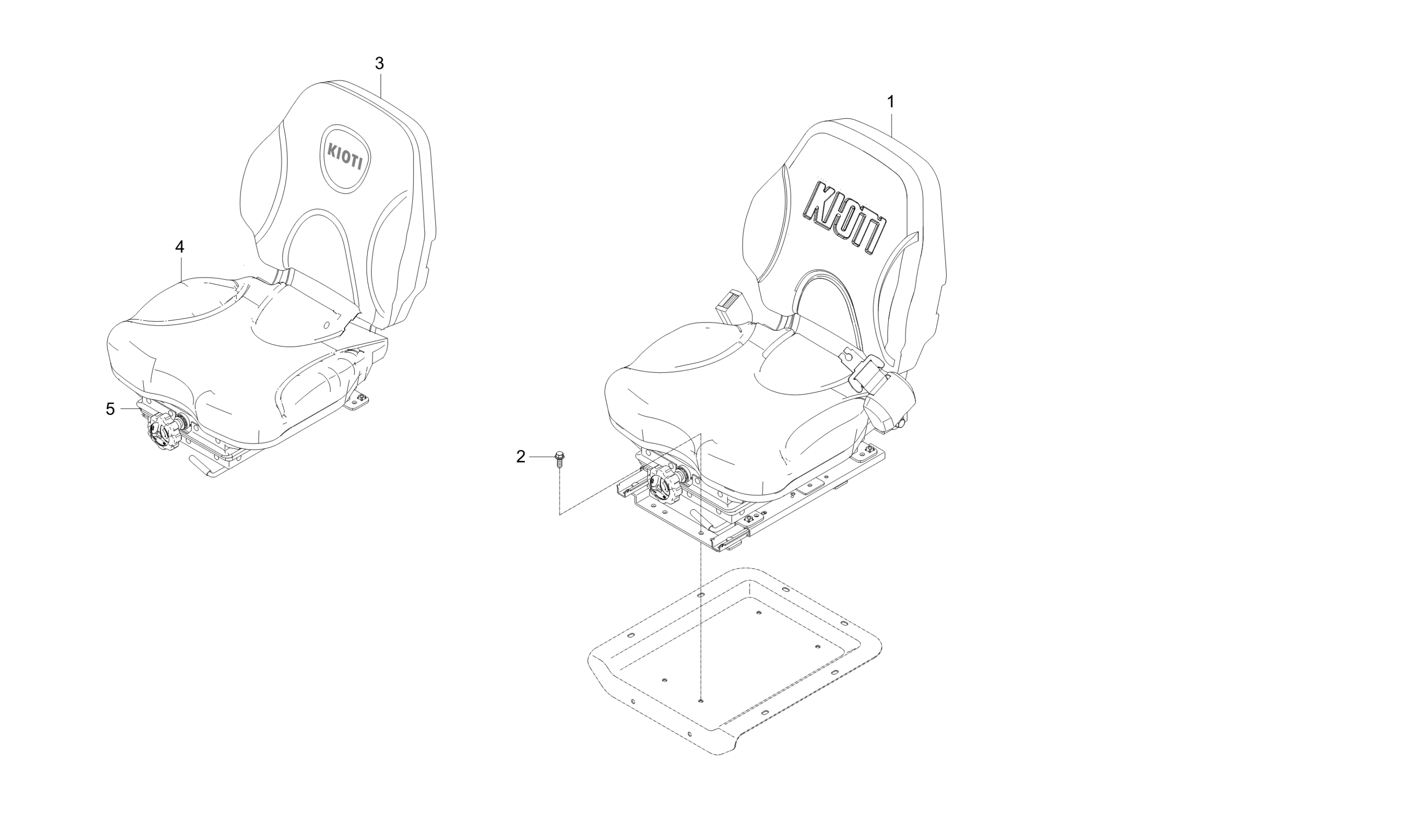

Diagram for SEAT GROUP - TD2-G661002
  • 1

    SEAT ASSY dnr v, Replaced by T5715-52412

    • Part No. T5715-52411
    • *multiple options for # 1
    • 1 shown on diagram
    $0.00
  • 1

    ASSY, SEAT v

    • Part No. T5715-52412
    • Compatibility New Replaces Old
    • Applied Dates 2018-02-23 to 2019-07-11
    • Serial No. UR8000001 to VR8000078
    • *multiple options for # 1
    • 1 shown on diagram
    $1,929.99
  • 2 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 4 shown on diagram
    $1.79
  • 3 BACK PAD ASSY

    BACK PAD ASSY

    • Part No. T5715-52411001
    • 1 shown on diagram
    $339.99
  • 4 CUSHION PAD ASSY

    CUSHION PAD ASSY

    • Part No. T5715-52411002
    • 1 shown on diagram
    $339.99
  • 5

    SUSPENSION ASSY

    • Part No. T5715-52411004
    • 1 shown on diagram
    $1,014.99
