SEAT GROUP - TD2-G661010 - VR8000079 and up

Kioti TRACTOR | DK Series | DK5010

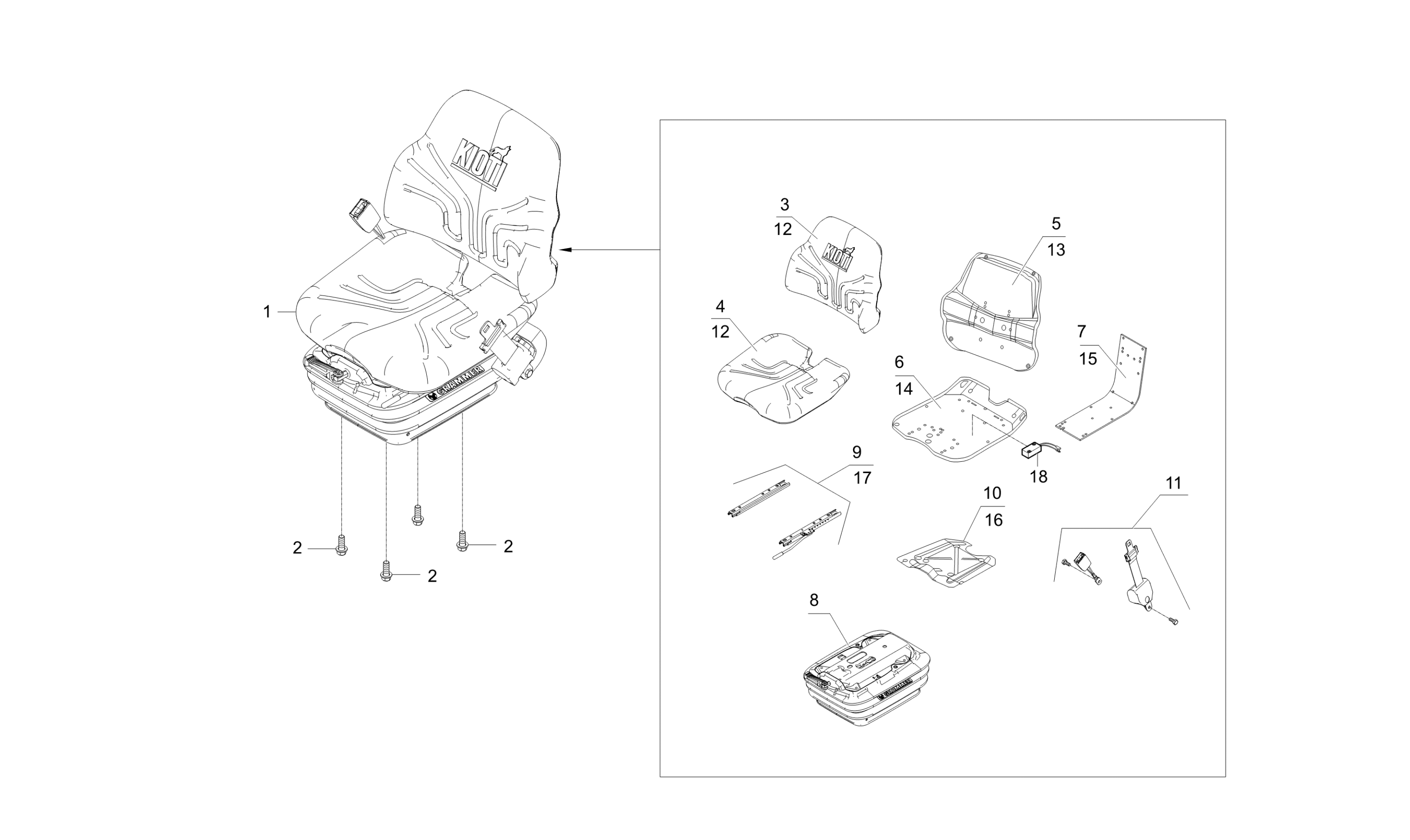

Diagram for SEAT GROUP - TD2-G661010 - VR8000079 and up
  • 1

    SEAT

    • Part No. TC26-1718A
    • Serial No. Up to XR8000180
    • *multiple options for # 1
    • 1 shown on diagram
    $1,714.99
  • 1

    ASSY SEAT

    • Part No. TC26-1718B
    • Compatibility New Replaces Old
    • *multiple options for # 1
    • 1 shown on diagram
    $0.00
  • 1

    ASSY SEAT v

    • Part No. TC26-1718C
    • Compatibility New Replaces Old
    • Serial No. XR8000181 and up
    • *multiple options for # 1
    • 1 shown on diagram
    $1,714.99
  • 2 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 4 shown on diagram
    $1.79
  • 3

    CUSHION, BACK-CPL v

    • Part No. TC26-1769A
    • *multiple options for # 3
    • 1 shown on diagram
    $744.99
  • 3 CUSHION, BACK-CPL dnr v

    CUSHION, BACK-CPL dnr v

    • Part No. TC26-1769B
    • Compatibility New Replaces Old
    • *multiple options for # 3
    • 1 shown on diagram
    $479.99
  • 4 CUSHION-SEAT CPL

    CUSHION-SEAT CPL

    • Part No. TC26-1772A
    • 1 shown on diagram
    $449.99
  • 5

    SEAT, BACK-CPL

    • Part No. TC26-1773A
    • 1 shown on diagram
    $279.99
  • 6

    SEAT-PAN CPL

    • Part No. TC26-1774A
    • *multiple options for # 6
    • 1 shown on diagram
    $379.99
  • 6

    SEAT PAN CPL v

    • Part No. TC26-1774B
    • Compatibility New Replaces Old
    • *multiple options for # 6
    • 1 shown on diagram
    $379.99
  • 7

    SEAT, BACK-CPL

    • Part No. TC26-1776A
    • 1 shown on diagram
    $539.99
  • 8

    SUSPENSION-MSG283 CPL

    • Part No. TC26-1778A
    • 1 shown on diagram
    $1,799.99
  • 9

    RAIL, SLIDE-CPL

    • Part No. TC26-1780A
    • 1 shown on diagram
    $459.99
  • 10

    SWITCH-SEAT CPL

    • Part No. TC26-1781A
    • 1 shown on diagram
    $369.99
  • 11

    BELT, SEAT-CPL

    • Part No. TC26-1784A
    • 1 shown on diagram
    $359.99
  • 12

    FASTENER EA=6 PCS BACKREST CUSHION CPL

    • Part No. TC26-1786A
    • 1 shown on diagram
    $25.99
  • 13

    FASTENER SET=4 BACKREST CPL

    • Part No. TC26-1787A
    • 1 shown on diagram
    $57.99
  • 14

    FASTENER-SEAT PAN CPL

    • Part No. TC26-1788A
    • 1 shown on diagram
    $154.99
  • 15

    FASTENER-BACKREST CPL

    • Part No. TC26-1789A
    • 1 shown on diagram
    $79.99
  • 16

    FASTENER-SEAT SWITCH CPL

    • Part No. TC26-1790A
    • 1 shown on diagram
    $99.99
  • 17

    FASTENER-SLIDE RAIL CPL

    • Part No. TC26-1792A
    • 1 shown on diagram
    $169.99
  • 18

    SWITCH-SAET

    • Part No. TC26-1834A
    • 1 shown on diagram
    $199.99
