INSTRUMENT PANEL FRAME GROUP - TD2-G653002

Kioti TRACTOR | DK Series | DK5010

Diagram for INSTRUMENT PANEL FRAME GROUP - TD2-G653002
  • 1

    ASSY COLUMN

    • Part No. T5715-80814
    • *multiple options for # 1
    • 1 shown on diagram
    $224.99
  • 1

    COLUMN ASSY

    • Part No. T5715-80815
    • Compatibility Call for compatibility
    • *multiple options for # 1
    • 1 shown on diagram
    $224.99

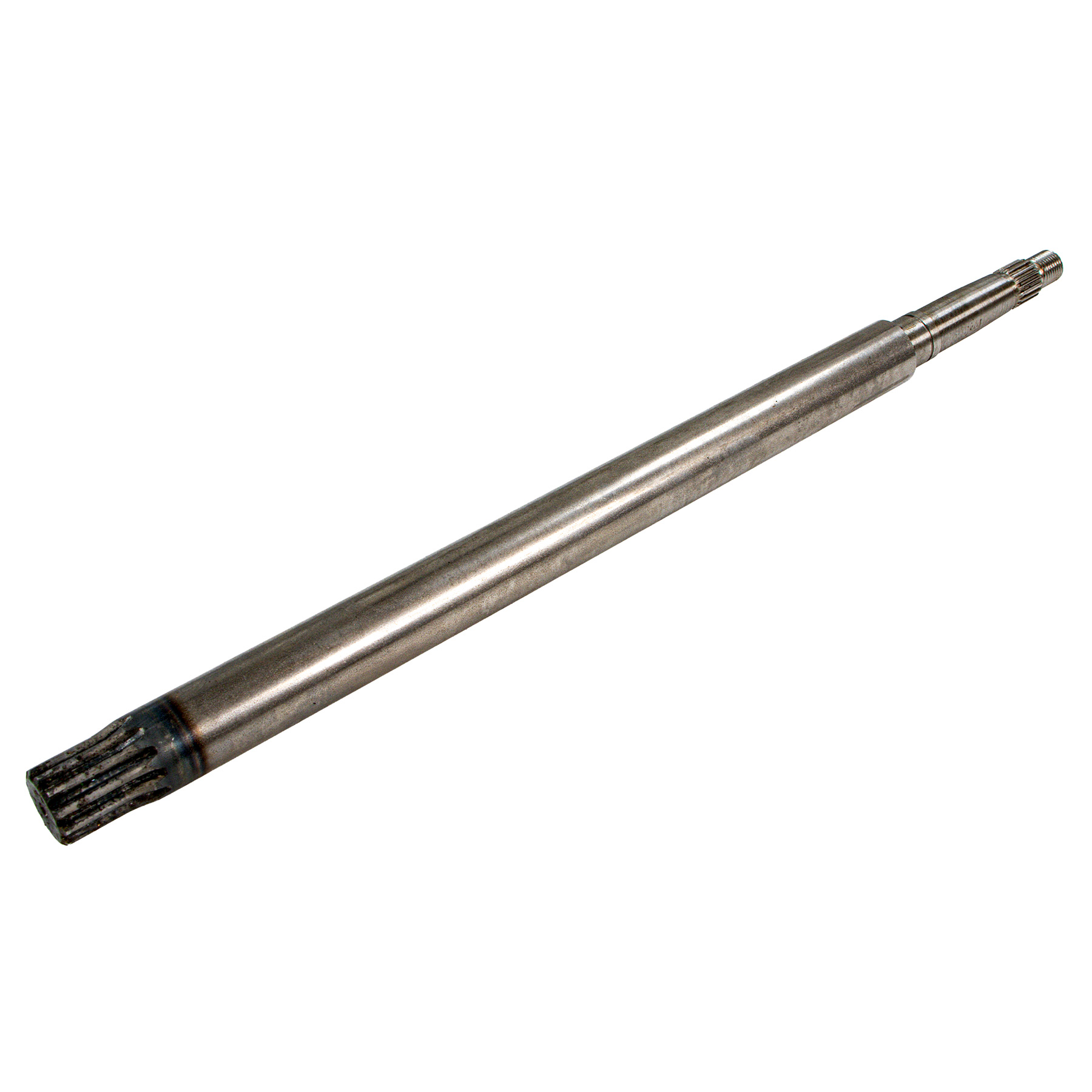

  • 2 SHAFT,STEERING

    SHAFT,STEERING

    • Part No. T2350-66101
    • 1 shown on diagram
    $97.99
  • 3 RUBBER CUSHION

    RUBBER CUSHION

    • Part No. T4260-50100
    • Applied Dates 2019-08-12 and up
    • L3503, D4351
    • 1 shown on diagram
    $9.49
  • 4 BEARING,BALL 17x35x10

    BEARING,BALL 17x35x10

    • Part No. 08111-06003
    • DIA17
    • 1 shown on diagram
    $11.99
  • 5 CIR-CLIP

    CIR-CLIP

    • Part No. 04612-00170
    • DIA17
    • 1 shown on diagram
    $0.98
  • 6 CIR CLIP, INTERNAL

    CIR CLIP, INTERNAL

    • Part No. 04611-00350
    • DIA35
    • 2 shown on diagram
    $1.39
  • 7 SEAL,OIL

    SEAL,OIL

    • Part No. T2440-16351
    • 1 shown on diagram
    $5.99
  • 8

    LEVER, TILT

    • Part No. T5710-80841
    • 1 shown on diagram
    $41.99
  • 9

    BOLT, HOLDER

    • Part No. T5710-80852
    • 1 shown on diagram
    $29.99
  • 10

    BOLT

    • Part No. T5710-80871
    • Applied Dates 2014-08-23 and up
    • M8XP1.25
    • 1 shown on diagram
    $4.49
  • 11 Flat Washer M8

    Flat Washer M8

    • Part No. 04015-50080
    • M8
    • 1 shown on diagram
    $1.09
  • 12 Nut M8 P1.25

    Nut M8 P1.25

    • Part No. 02156-50080
    • M8XP1.25
    • 4 shown on diagram
    $0.85
  • 13

    GRIP, DARK BLUE

    • Part No. T2185-71241
    • 1 shown on diagram
    $4.49
  • 14

    BOLT

    • Part No. T5710-80861
    • Applied Dates 2014-08-23 and up
    • M8XP1.25
    • 1 shown on diagram
    $2.49
  • 15 WASHER

    WASHER

    • Part No. T5715-80691
    • T2.0
    • 1 shown on diagram
    $17.99
