RANGE SHIFT LEVER GROUP - TD2-G641002

Kioti TRACTOR | DK Series | DK5010

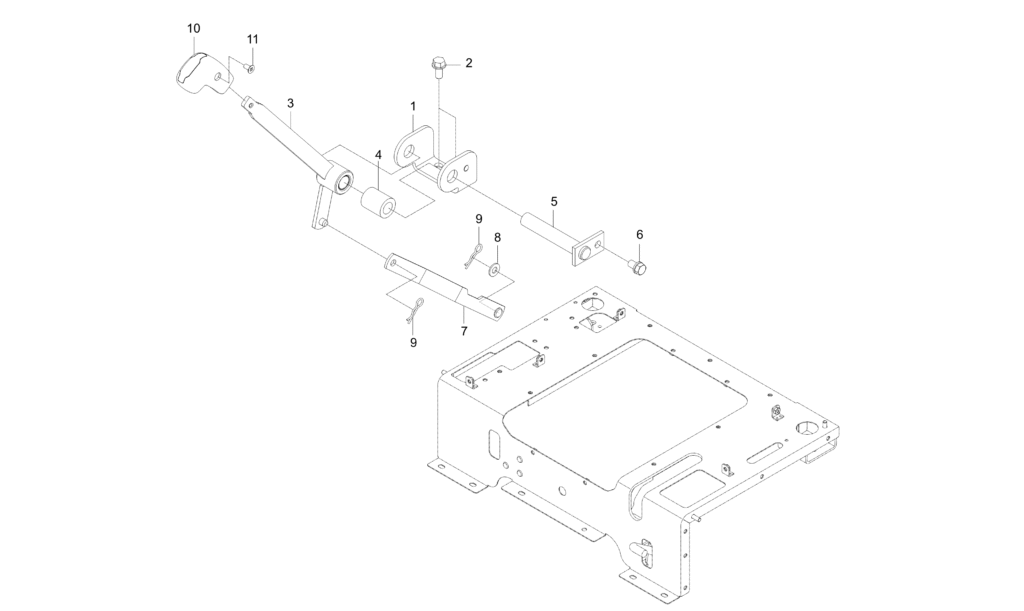

Diagram for RANGE SHIFT LEVER GROUP - TD2-G641002
  • 1

    BRACKET

    • Part No. T5710-53412
    • T4.5
    • 1 shown on diagram
    $15.99
  • 2 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 2 shown on diagram
    $1.79
  • 3

    LEVER, ADJUSTING v

    • Part No. T5710-53434
    • 1 shown on diagram
    $64.99
  • 4

    BUSHING

    • Part No. T5715-53471
    • OD28,ID16.5
    • 1 shown on diagram
    $4.99
  • 5

    SHAFT v

    • Part No. T4835-66532
    • 1 shown on diagram
    $13.99
  • 6

    Bolt With Washer, M8 P1.25 x 14mm

    • Part No. 01123-50814
    • M8XP1.25
    • 1 shown on diagram
    $2.49
  • 7 ROD

    ROD

    • Part No. T5715-53571
    • 1 shown on diagram
    $9.99
  • 8 Flat Washer M8

    Flat Washer M8

    • Part No. 04012-50080
    • M8
    • 1 shown on diagram
    $0.67
  • 9

    PIN, SNAP

    • Part No. 05515-50800
    • DIA8
    • 2 shown on diagram
    $1.29
  • 10

    GRIP

    • Part No. T5710-53471
    • 1 shown on diagram
    $19.99
  • 11 SCREW

    SCREW

    • Part No. 03056-50510
    • M5XP0.8
    • 1 shown on diagram
    $0.62
