FRONT AXLE FRAME GROUP - CK25M-T500A

Kioti TRACTOR | CK Series | CK25

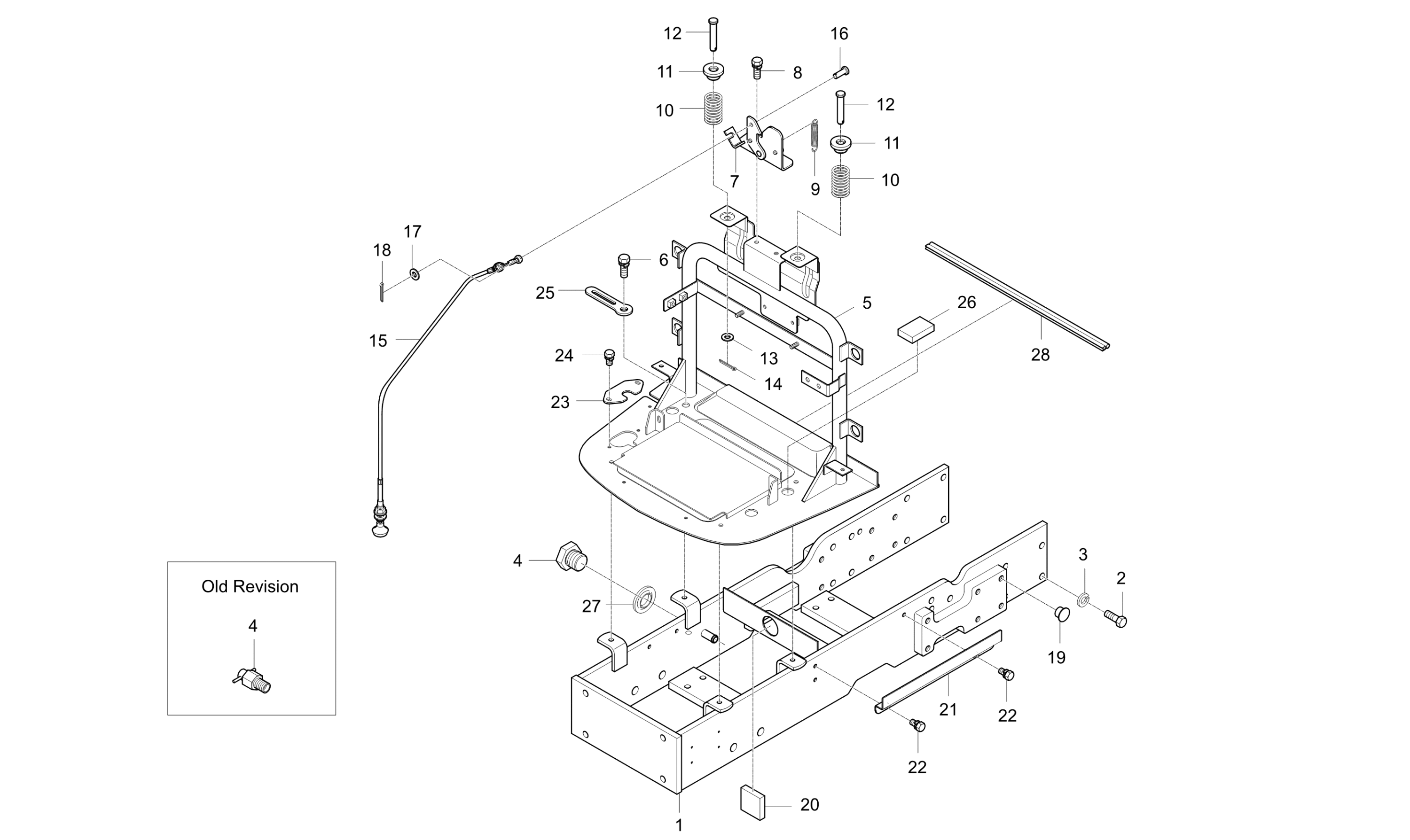

Diagram for FRONT AXLE FRAME GROUP - CK25M-T500A
  • 1

    FRAME, FRONT AXLE

    • Part No. T2185-50013
    • Applied Dates 2004-03-31 to 2005-01-17
    • Serial No. D70100001 to E70100080
    • * multiple options for #1
    • 1 shown on diagram
    $734.99
  • 1

    FRAME,FRONT AXLE

    • Part No. T2185-50014
    • Compatibility No interchange
    • Applied Dates 2005-01-18 to 2006-06-06
    • Serial No. E70100081 to F70100460
    • * multiple options for #1
    • 1 shown on diagram
    $774.99
  • 1

    FRAME,FRONT AXLE dnr v

    • Part No. T2185-50015
    • Compatibility Interchngable
    • Applied Dates 2006-06-07 to 2006-11-29
    • Serial No. F70100461 to F70100660
    • * multiple options for #1
    • 1 shown on diagram
    $499.99
  • 1

    FRAME, FRONT AXLE v

    • Part No. T2185-50016
    • Compatibility Interchngable
    • Applied Dates 2006-11-30 to 2007-02-15
    • Serial No. F70100661 to G70100040
    • * multiple options for #1
    • 1 shown on diagram
    $1,129.99
  • 2

    BOLT v

    • Part No. 01176-51235
    • 16 shown on diagram
    $3.49
  • 3 M12 Spring Washer (04512-50120)

    M12 Spring Washer (04512-50120)

    • Part No. 04512-50120
    • M12
    • 16 shown on diagram
    $0.95
  • 4

    COCK, DRAIN

    • Part No. 76KD-0121-2
    • Applied Dates Up to 2005-06-09
    • Serial No. Up to E70100170
    • * multiple options for #4
    • 1 shown on diagram
    $43.99
  • 4

    PLUG

    • Part No. 06311-45030
    • Compatibility New repl old
    • Applied Dates 2005-06-10 to 2007-02-10
    • Serial No. E70100171 to G70100040
    • * multiple options for #4
    • 1 shown on diagram
    $6.99
  • 5

    SUPPORT, RADIATOR v

    • Part No. T2185-50202
    • Applied Dates 2003-11-24 to 2004-06-23
    • Serial No. 370100001 to D70100154
    • * multiple options for #5
    • 1 shown on diagram
    $249.99
  • 5

    SUPPORT, RADIATOR dnr v

    • Part No. T2185-50203
    • Compatibility New repl old
    • Applied Dates 2004-06-24 to 2007-02-15
    • Serial No. D70100155 to G70100040
    • * multiple options for #5
    • 1 shown on diagram
    $289.99
  • 6 Bolt With Washer, M8 P1.25 x 22mm

    Bolt With Washer, M8 P1.25 x 22mm

    • Part No. 01123-50822
    • M8XP1.25
    • 4 shown on diagram
    $2.49
  • 7

    CATCH ASSY v

    • Part No. T4682-50681
    • Applied Dates Up to 2004-12-01
    • * multiple options for #7
    • 1 shown on diagram
    $27.99
  • 7

    CATCH ASS`Y

    • Part No. T4682-50682
    • Compatibility Interchngable
    • Applied Dates 2004-12-02 to 2007-02-10
    • Serial No. E70100001 to G70100040
    • * multiple options for #7
    • 1 shown on diagram
    $27.99
  • 8 Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    • Part No. 01123-50816
    • M8XP1.25
    • 2 shown on diagram
    $1.09
  • 9

    FRICTION SPRING

    • Part No. 57781-5121-1
    • DIA1.2
    • 1 shown on diagram
    $3.49
  • 10

    SPRING

    • Part No. T4682-50351
    • 2 shown on diagram
    $4.99
  • 11

    RUBBER, CUSHION

    • Part No. T4682-50361
    • 2 shown on diagram
    $1.99
  • 12 Pin, Joint M10x55mm

    Pin, Joint M10x55mm

    • Part No. 05122-51055
    • DIA10XL55
    • 2 shown on diagram
    $3.99
  • 13 Flat Washer M10

    Flat Washer M10

    • Part No. 04013-50100
    • M10
    • 2 shown on diagram
    $0.73
  • 14 Pin, Split

    Pin, Split

    • Part No. 05511-50320
    • DIA2.7XL20
    • 2 shown on diagram
    $0.46
  • 15 Bonnet Cable ( Open )

    Bonnet Cable ( Open )

    • Part No. T2185-50692
    • 1 shown on diagram
    $53.99
  • 16

    Pin, Joint M6x14mm

    • Part No. 05122-50614
    • 1 shown on diagram
    $2.49
  • 17

    Flat Washer M6

    • Part No. 04014-50060
    • 1 shown on diagram
    $0.67
  • 18

    Split Pin (05511-51615)

    • Part No. 05511-51615
    • DIA1.4XL15
    • 1 shown on diagram
    $0.56
  • 19

    PLUG

    • Part No. 32210-2758-1
    • M12
    • 12 shown on diagram
    $1.59
  • 20

    SPONGE

    • Part No. T2350-50021
    • 1 shown on diagram
    $6.49
  • 21

    GUIDE, HARNESS

    • Part No. T2185-50051
    • Applied Dates Up to 2007-04-09
    • T2.3
    • 1 shown on diagram
    $23.99
  • 22 Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    • Part No. 01123-50816
    • Applied Dates Up to 2007-07-27
    • M8XP1.25
    • 2 shown on diagram
    $1.09
  • 23

    PLATE, GUIDE

    • Part No. T2185-50441
    • T2.3
    • 1 shown on diagram
    $6.49
  • 24

    WASHER BOLT v

    • Part No. 01025-50616
    • M6*P1
    • 2 shown on diagram
    $2.49
  • 25

    CLAMP

    • Part No. 37150-3447-1
    • T0.5
    • 1 shown on diagram
    $4.99
  • 26

    SPONGE

    • Part No. T2350-37551
    • 2 shown on diagram
    $2.49
  • 27

    WASHER, SEAL

    • Part No. 04717-01700
    • Applied Dates 2005-06-10 and up
    • 1 shown on diagram
    $3.49
  • 28

    RUBBER

    • Part No. T2185-50091
    • Applied Dates 2006-06-07 and up
    • 1 shown on diagram
    $9.99
