BEVEL PINION SHAFT GROUP - CK30M-T530A

Kioti TRACTOR | CK Series | CK25

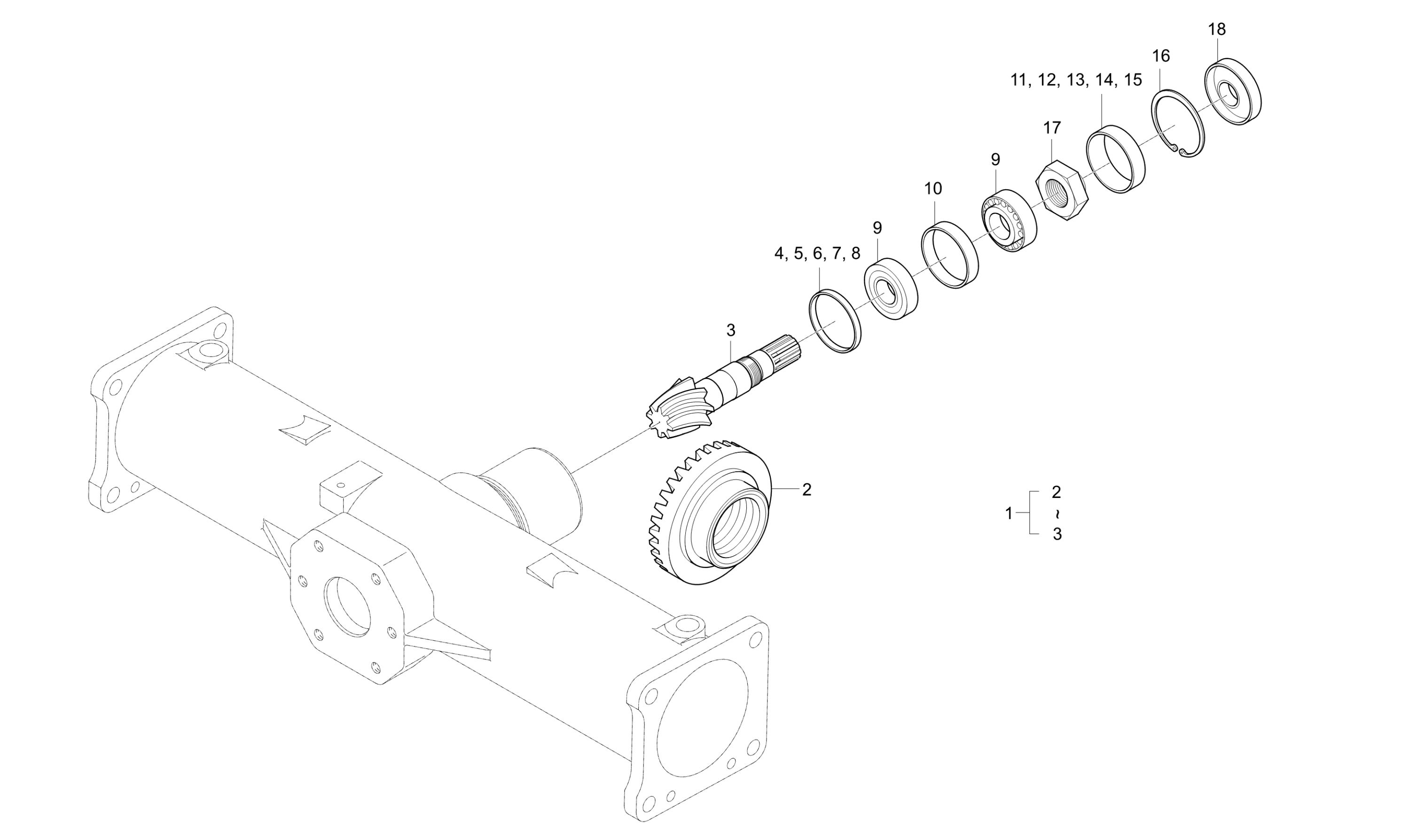

Diagram for BEVEL PINION SHAFT GROUP - CK30M-T530A
  • 1

    ASS’Y,SPRIAL BEVEL GEAR dnr v

    • Part No. T2185-43201
    • Applied Dates 2004-01-05 to 2008-05-29
    • 1 shown on diagram
    $394.99
  • 2

    SPIRAL BEVEL GEAR 21t, Replaced by T2185-43312

    • Part No. T2185-43311
    • Applied Dates 2004-01-05 to 2008-05-29
    • 1 shown on diagram
    $199.99
  • 3

    SHAFT,9 BEVEL PINION v replaced by T2185-43212

    • Part No. T2185-43211
    • Applied Dates 2004-01-05 to 2008-05-29
    • 1 shown on diagram
    $194.99
  • 4 COLLAR1,ADJUST

    COLLAR1,ADJUST

    • Part No. T2185-42451
    • DIA73*T3.0 W2.8
    • 1 shown on diagram
    $23.99
  • 5 COLLAR1,ADJUST

    COLLAR1,ADJUST

    • Part No. T2185-42461
    • DIA73*T3.0 W2.9
    • 1 shown on diagram
    $23.99
  • 6 COLLAR1,ADJUST

    COLLAR1,ADJUST

    • Part No. T2185-42471
    • DIA73*T3.0 W3.0
    • 1 shown on diagram
    $23.99
  • 7 COLLAR1,ADJUST

    COLLAR1,ADJUST

    • Part No. T2185-42481
    • DIA73*T3.0 W3.1
    • 1 shown on diagram
    $23.99
  • 8 COLLAR1,ADJUST

    COLLAR1,ADJUST

    • Part No. T2185-42491
    • DIA73*T3.0 W3.2
    • 1 shown on diagram
    $23.99
  • 9 BEARING,TAPER ROLLER

    BEARING,TAPER ROLLER

    • Part No. 08711-30306
    • #30306
    • 2 shown on diagram
    $47.99
  • 10 SPACER

    SPACER

    • Part No. T2185-42751
    • DIA73*T3.0
    • 1 shown on diagram
    $26.99
  • 11 COLLAR2,ADJUST obs v

    COLLAR2,ADJUST obs v

    • Part No. T2185-42761
    • DIA73*T3.0 W5.8
    • 1 shown on diagram
    $27.99
  • 12

    COLLAR2,ADJUST

    • Part No. T2185-42771
    • DIA73*T3.0 W5.9
    • 1 shown on diagram
    $23.99
  • 13 COLLAR2,ADJUST

    COLLAR2,ADJUST

    • Part No. T2185-42781
    • DIA73*T3.0 W6.0
    • 1 shown on diagram
    $23.99
  • 14 COLLAR2,ADJUST

    COLLAR2,ADJUST

    • Part No. T2185-42791
    • DIA73*T3.0 W6.1
    • 1 shown on diagram
    $23.99
  • 15 COLLAR2,ADJUST

    COLLAR2,ADJUST

    • Part No. T2185-42801
    • DIA73*T3.0 W6.2
    • 1 shown on diagram
    $23.99
  • 16 RING,SNAP

    RING,SNAP

    • Part No. 04611-00720
    • DIA72
    • 1 shown on diagram
    $7.99
  • 17 NUT, 28mm LOCK

    NUT, 28mm LOCK

    • Part No. T4620-21591
    • 1 shown on diagram
    $14.99
  • 18 Oil Seal 26x74x12

    Oil Seal 26x74x12

    • Part No. T2185-42291
    • 2 shown on diagram
    $14.99
