PROPER SHAFT GROUP - CK30M-T610A

Kioti TRACTOR | CK Series | CK25

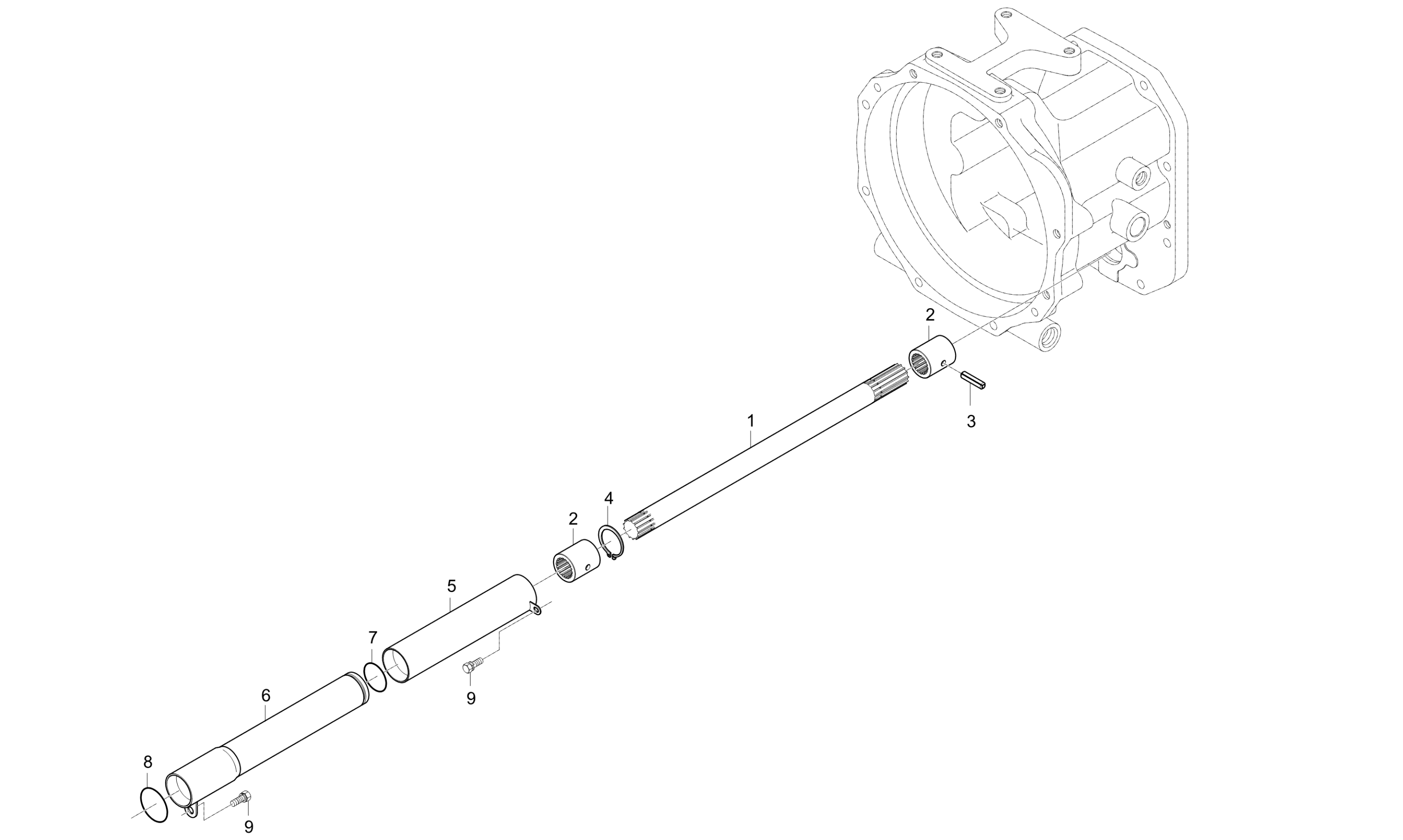

Diagram for PROPER SHAFT GROUP - CK30M-T610A
  • 1 SHAFT, PROPELLER 593 mm

    SHAFT, PROPELLER 593 mm

    • Part No. T2185-44581
    • 1 shown on diagram
    $149.99
  • 2 Coupling, 42.7 mm OD

    Coupling, 42.7 mm OD

    • Part No. T4620-44592
    • OD42.7*T1.6
    • 2 shown on diagram
    $39.99
  • 3 PIN, SPRING

    PIN, SPRING

    • Part No. 05411-00636
    • Applied Dates Up to 2005-02-14
    • * multiple options for #3
    • 1 shown on diagram
    $0.90
  • 3 PIN, SPRING

    PIN, SPRING

    • Part No. 05411-00635
    • Compatibility New repl old
    • Applied Dates 2005-02-15 and up
    • DIA6.4XL35
    • * multiple options for #3
    • 1 shown on diagram
    $0.96
  • 4 CIR-CLIP

    CIR-CLIP

    • Part No. 04612-00250
    • DIA25
    • 1 shown on diagram
    $1.09
  • 5

    COVER 1, PROPLER

    • Part No. T2350-44611
    • 1 shown on diagram
    $39.99
  • 6

    COVER 1, PROPELLER dnr v

    • Part No. T2350-44621
    • 1 shown on diagram
    $54.99
  • 7 O RING

    O RING

    • Part No. 04811-00420
    • DIA41.7
    • 1 shown on diagram
    $1.19
  • 8

    O-Ring

    • Part No. 04811-06350
    • DIA35.2
    • 1 shown on diagram
    $1.09
  • 9 Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    • Part No. 01123-50816
    • M8XP1.25
    • 2 shown on diagram
    $1.09
