DIFF GEAR SHAFT GROUP - CK30M-T540A

Kioti TRACTOR | CK Series | CK25

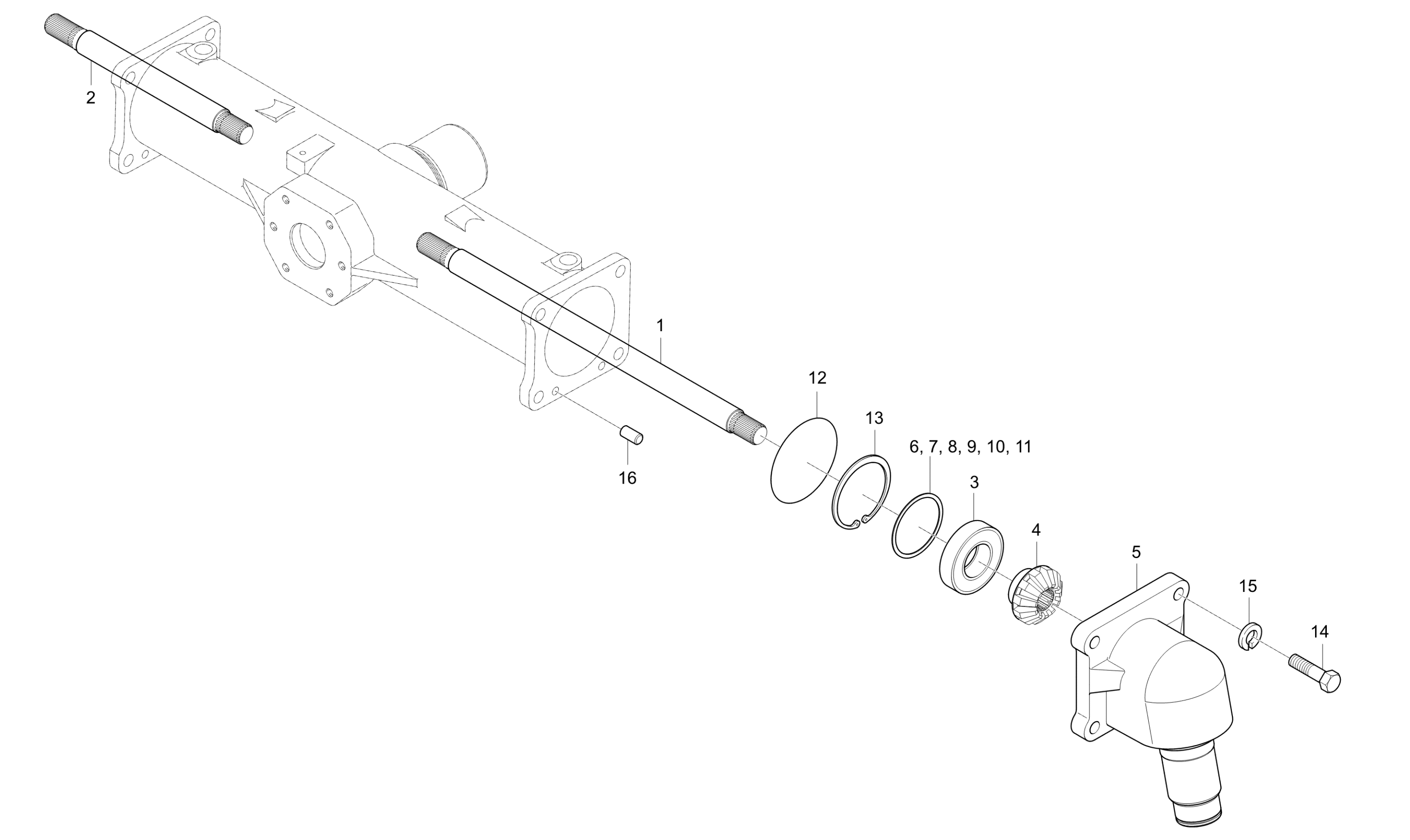

Diagram for DIFF GEAR SHAFT GROUP - CK30M-T540A
  • 1

    SHAFT,DIFF.GEAR(LH)

    • Part No. T2185-43812
    • Applied Dates 2004-02-17 and up
    • 1 shown on diagram
    $99.99
  • 2

    SHAFT,DIFF.GEAR(RH)

    • Part No. T2185-43822
    • Applied Dates 2004-02-17 and up
    • 1 shown on diagram
    $109.99
  • 3 Bearing 6207 35x72x17

    Bearing 6207 35x72x17

    • Part No. 08101-06207
    • DIA35
    • 2 shown on diagram
    $28.99
  • 4

    Gear, Bevel, 11 Tooth

    • Part No. T2185-43841
    • Applied Dates Up to 2007-02-01
    • * multiple options for #4
    • 2 shown on diagram
    $139.99
  • 4

    Gear, Beve, 11 Tooth, Use T2185-43841

    • Part No. T2185-43842
    • Compatibility Interchngable
    • Applied Dates 2007-02-02 and up
    • * multiple options for #4
    • 2 shown on diagram
    $139.99
  • 5

    CASE,BEVEL GEAR

    • Part No. T2185-43442
    • Applied Dates 2004-01-07 and up
    • 2 shown on diagram
    $474.99
  • 6

    SHIM 0.4

    • Part No. T4520-42371
    • T0.4
    • 2 shown on diagram
    $4.99

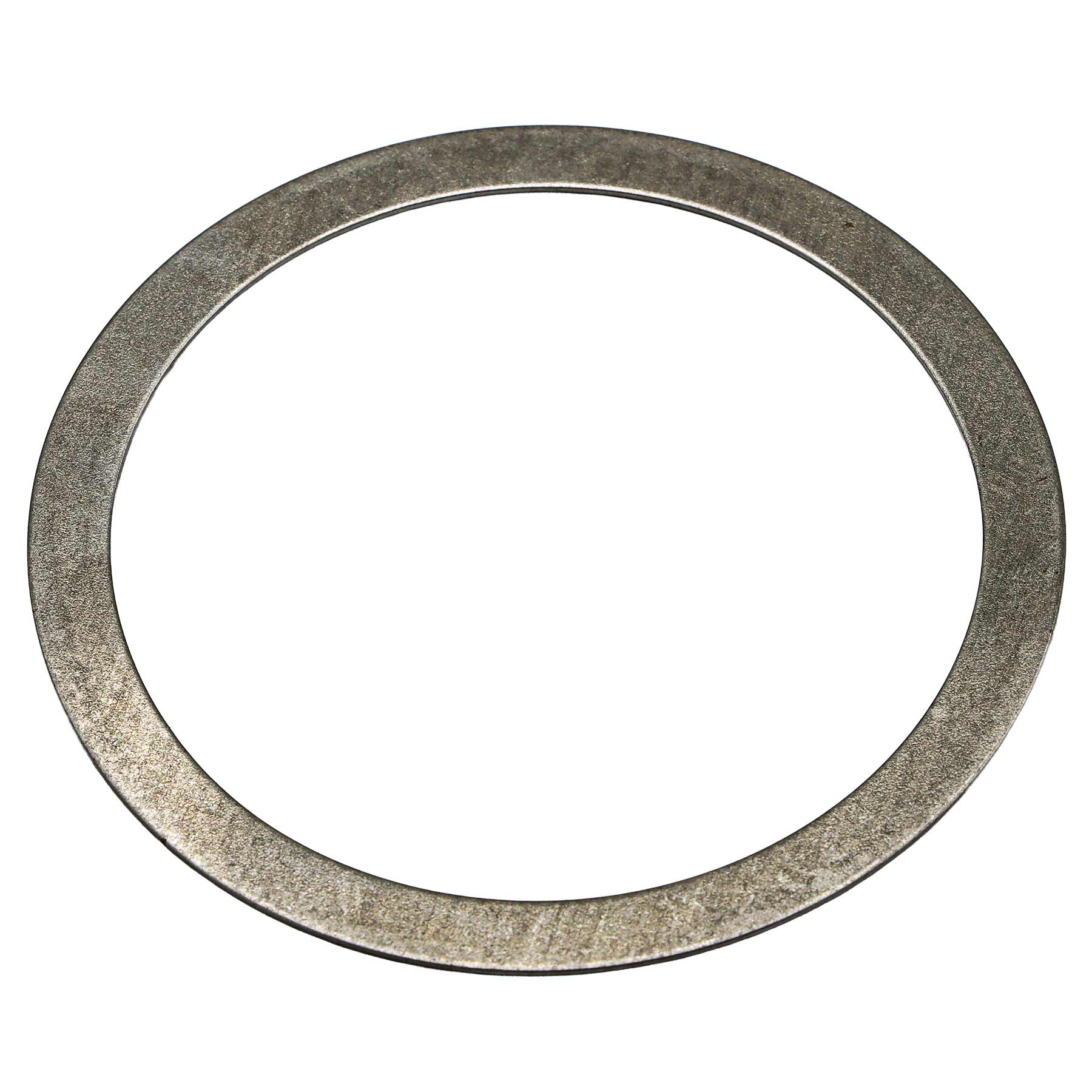

  • 7 SHIM, 0.6

    SHIM, 0.6

    • Part No. T2185-43861
    • 2 shown on diagram
    $2.49
  • 8

    SHIM, 0.8 dnr v

    • Part No. T2185-43871
    • 2 shown on diagram
    $3.99
  • 9

    SHIM, 1.0 dnr v

    • Part No. T2185-43881
    • 2 shown on diagram
    $3.99
  • 10 SHIM, 1.2

    SHIM, 1.2

    • Part No. T2185-43891
    • 2 shown on diagram
    $3.99
  • 11

    SHIM, 1.4

    • Part No. T2185-43901
    • 2 shown on diagram
    $0.00
  • 12 O RING

    O RING

    • Part No. 04811-51050
    • 2 shown on diagram
    $1.89
  • 13 RING,SNAP

    RING,SNAP

    • Part No. 04611-00720
    • DIA72
    • 2 shown on diagram
    $7.99
  • 14

    Hex Head Cap Screw M14 P1.5×40

    • Part No. 01173-51440
    • M14XP1.5
    • 8 shown on diagram
    $3.49
  • 15

    M14 Spring Lock Washer 04512-50140

    • Part No. 04512-50140
    • M14
    • 8 shown on diagram
    $0.90
  • 16

    PIN, STRAIGHT

    • Part No. 05012-01020
    • DIA10XL20
    • 4 shown on diagram
    $1.79
