FRONT AXLE BRACKET GROUP - CK30M-T600A

Kioti TRACTOR | CK Series | CK25

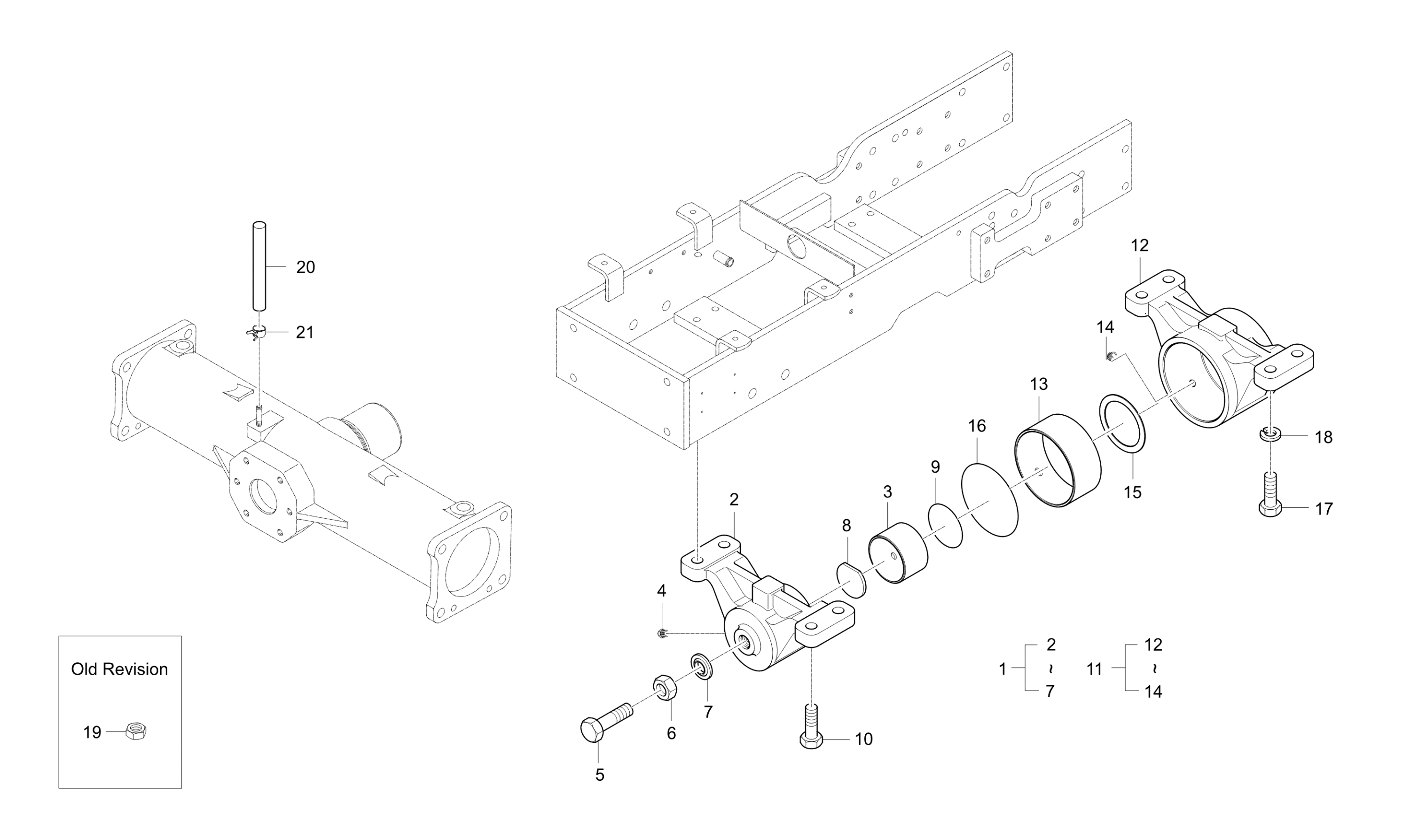

Diagram for FRONT AXLE BRACKET GROUP - CK30M-T600A
  • 1

    Front Bracket Assembly

    • Part No. T2185-41601
    • * multiple options for #1
    • 1 shown on diagram
    $179.99
  • 1

    Bracket Assy, Front, Replaced by T2185-41601

    • Part No. T2185-41602
    • Compatibility New repl old
    • Applied Dates 2015-08-01 and up
    • * multiple options for #1
    • 1 shown on diagram
    $0.00
  • 2

    Bracket, Front, Replaced by T2185-41601

    • Part No. T2185-41611
    • 1 shown on diagram
    $139.99
  • 3

    BUSH DX

    • Part No. T4520-43601
    • 50-40DX
    • 1 shown on diagram
    $52.99
  • 4 Grease Zerk, Brass 1/8″ BSPT

    Grease Zerk, Brass 1/8″ BSPT

    • Part No. 06613-10010
    • PT1/8
    • 1 shown on diagram
    $3.49
  • 5

    BOLT v

    • Part No. 38630-4476-1
    • DIA16
    • 1 shown on diagram
    $7.99
  • 6

    NUT

    • Part No. 02172-50160
    • M16*P1.5
    • 1 shown on diagram
    $1.29
  • 7

    WASHER SEAL 38440-4475-1

    • Part No. 38440-4475-1
    • 1 shown on diagram
    $4.99
  • 8

    COLLAR

    • Part No. 38440-4467-3
    • 1 shown on diagram
    $5.99
  • 9

    O RING

    • Part No. 04811-00490
    • 1 shown on diagram
    $1.29
  • 10

    BOLT v

    • Part No. 01176-51235
    • Applied Dates 2007-01-01 to 2008-04-16
    • * multiple options for #10
    • 4 shown on diagram
    $3.49
  • 10

    BOLT v

    • Part No. 01177-51235
    • Compatibility Interchngable
    • Applied Dates 2011-04-01 to 2011-03-31
    • Serial No. H70100001 and up
    • M12XP1.25
    • * multiple options for #10
    • 4 shown on diagram
    $3.49
  • 11

    Rear Bracket Assembly

    • Part No. T2185-41631
    • * multiple options for #11
    • 1 shown on diagram
    $259.99
  • 11

    BRACKET ASSY, RR

    • Part No. T2185-41632
    • Compatibility New repl old
    • Applied Dates 2014-09-01 to 2015-06-30
    • * multiple options for #11
    • 1 shown on diagram
    $119.99
  • 11

    RR Bracket Assy,

    • Part No. T2185-41633
    • Compatibility New repl old
    • Applied Dates 2015-07-01 and up
    • * multiple options for #11
    • 1 shown on diagram
    $119.99
  • 12

    Bracket, Rear dnr

    • Part No. T2185-41621
    • 1 shown on diagram
    $199.99
  • 13

    BUSH,DX

    • Part No. T2185-41691
    • 1 shown on diagram
    $59.99
  • 14 Grease Zerk, Brass 1/8″ BSPT

    Grease Zerk, Brass 1/8″ BSPT

    • Part No. 06613-10010
    • Applied Dates Up to 2003-12-09
    • PT1/8
    • * multiple options for #14
    • 1 shown on diagram
    $3.49
  • 14 Grease Zerk 45� 1/8″ BSPT

    Grease Zerk 45� 1/8″ BSPT

    • Part No. 06613-20010
    • Compatibility New repl old
    • * multiple options for #14
    • 1 shown on diagram
    $4.49
  • 15

    Thrust Collar

    • Part No. T2185-44641
    • 1 shown on diagram
    $12.99
  • 16 O RING

    O RING

    • Part No. 04811-50850
    • 1 shown on diagram
    $1.69
  • 17

    BOLT v

    • Part No. 01177-51235
    • M12XP1.25
    • * multiple options for #17
    • 4 shown on diagram
    $3.49
  • 17

    BOLT v

    • Part No. 01177-51235
    • Compatibility Interchngable
    • M12XP1.25
    • * multiple options for #17
    • 2 shown on diagram
    $3.49
  • 18 M12 Spring Washer (04512-50120)

    M12 Spring Washer (04512-50120)

    • Part No. 04512-50120
    • M12
    • 2 shown on diagram
    $0.95
  • 19 NUT M12 P1.25

    NUT M12 P1.25

    • Part No. 02176-50120
    • M12XP1.25
    • 2 shown on diagram
    $1.49
  • 20

    HOSE, OVER FLOW

    • Part No. T2350-42171
    • 1 shown on diagram
    $9.49
  • 21

    CLIP, HOSE

    • Part No. 15301-7247-0
    • Applied Dates 2006-12-28 to 2008-12-04
    • Stan16#
    • * multiple options for #21
    • 1 shown on diagram
    $2.49
  • 21

    CLIP, TUBE

    • Part No. 14911-4275-1
    • Compatibility Call for compat
    • Applied Dates 2003-12-18 to 2014-08-31
    • Serial No. 370100001 and up
    • T0.8*#12
    • * multiple options for #21
    • 1 shown on diagram
    $1.49
