FRONT AXLE SUPPORT GROUP - CK30M-T510A

Kioti TRACTOR | CK Series | CK25

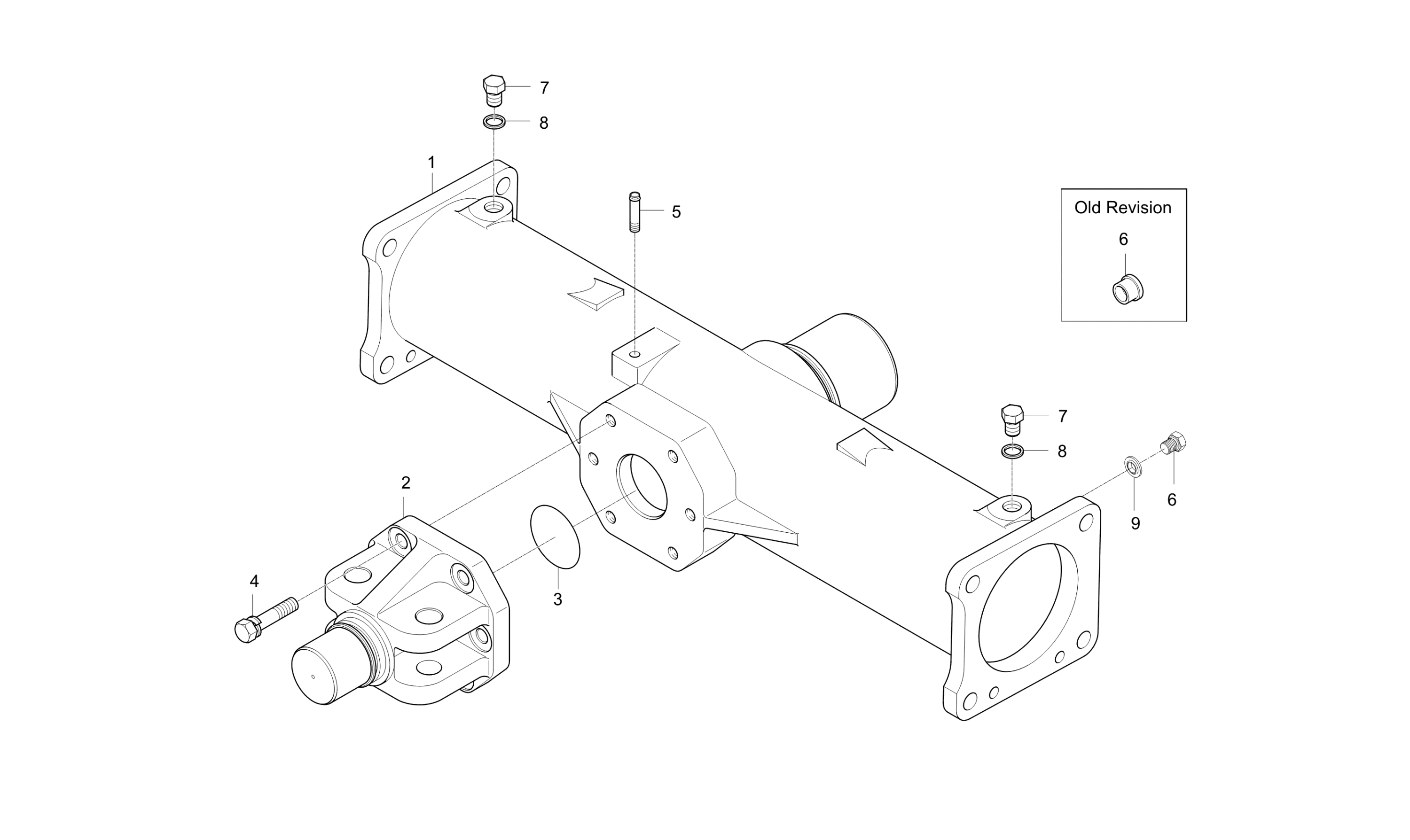

Diagram for FRONT AXLE SUPPORT GROUP - CK30M-T510A
  • 1

    SUPPORT, FRONT AXLE

    • Part No. T2185-42141
    • Applied Dates Up to 2005-04-06
    • * multiple options for #1
    • 1 shown on diagram
    $699.99
  • 1

    SUPPORT, FRONT AXLE

    • Part No. T2185-42142
    • Compatibility Interchngable
    • Applied Dates 2005-04-07 to 2007-01-31
    • * multiple options for #1
    • 1 shown on diagram
    $494.99
  • 1

    TRK SUPPORT, FRONT AXLE obs v

    • Part No. T2185-42143
    • Compatibility Interchngable
    • Applied Dates 2007-02-01 and up
    • * multiple options for #1
    • 1 shown on diagram
    $1,024.99
  • 2

    PIN, CENTER v

    • Part No. T2630-41653
    • Applied Dates Up to 2005-04-06
    • * multiple options for #2
    • 1 shown on diagram
    $134.99
  • 2

    PIN CENTER

    • Part No. T2630-41654
    • Compatibility New repl old
    • Applied Dates 2005-04-07 and up
    • * multiple options for #2
    • 1 shown on diagram
    $254.99
  • 3

    O RING

    • Part No. 04811-00490
    • 1 shown on diagram
    $1.29
  • 4

    WASHER BOLT M12 P1.25 x35

    • Part No. 01133-51235
    • M12XP1.25
    • 6 shown on diagram
    $4.49
  • 5

    CONNECTOR, AIR BREATHER

    • Part No. T2630-42161
    • 1 shown on diagram
    $4.99
  • 6

    GAUGE OIL

    • Part No. T4680-14211
    • Applied Dates Up to 2007-01-31
    • * multiple options for #6
    • 1 shown on diagram
    $28.99
  • 6 Plug M10 P1.25

    Plug M10 P1.25

    • Part No. 06331-45010
    • Compatibility Interchngable
    • Applied Dates 2007-02-01 and up
    • M10XP1.25
    • * multiple options for #6
    • 1 shown on diagram
    $4.49
  • 7

    PLUG, OIL DRAIN v

    • Part No. 34150-1426-1
    • Applied Dates 2007-02-01 and up
    • DIA30X34
    • 1 shown on diagram
    $6.99
  • 8 WASHER,SEAL

    WASHER,SEAL

    • Part No. 04717-02150
    • Applied Dates 2007-02-01 and up
    • PS1/2
    • 1 shown on diagram
    $2.49
  • 9 WASHER, SEAL M10

    WASHER, SEAL M10

    • Part No. 04717-01000
    • Applied Dates 2007-02-01 and up
    • M10
    • 1 shown on diagram
    $1.99
