FRONT AXLE CASE GROUP - CK30M-T550A

Kioti TRACTOR | CK Series | CK25

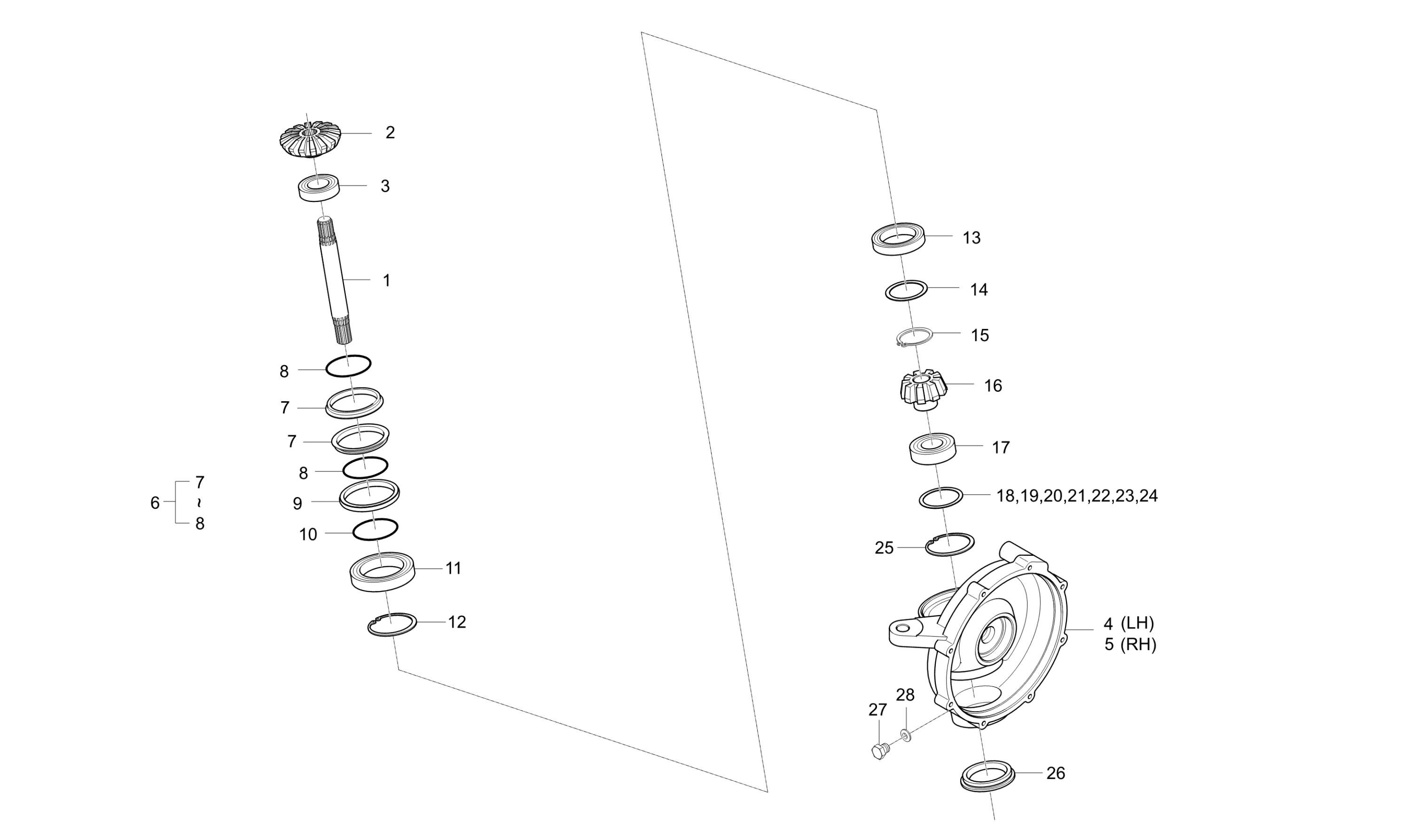

Diagram for FRONT AXLE CASE GROUP - CK30M-T550A
  • 1

    SHAFT,BEVEL GEAR

    • Part No. T2185-43462
    • Applied Dates 2004-02-17 and up
    • 2 shown on diagram
    $94.99
  • 2

    16t Bevel Gear, Replaced by T2185-43832

    • Part No. T2185-43831
    • Applied Dates Up to 2007-02-01
    • * multiple options for #2
    • 2 shown on diagram
    $0.00
  • 2

    Gear, Bevel, 16 Tooth

    • Part No. T2185-43832
    • Compatibility Interchngable
    • Applied Dates 2007-02-02 and up
    • * multiple options for #2
    • 2 shown on diagram
    $234.99
  • 3

    BEARING BALL

    • Part No. T2185-43851
    • 6007RSH2
    • 2 shown on diagram
    $68.99
  • 4

    Front Axle Case (LH)

    • Part No. T2185-43632
    • 1 shown on diagram
    $614.99
  • 5

    CASE, FRONT AXLE (RH)

    • Part No. T2185-43642
    • 1 shown on diagram
    $624.99
  • 6 Floating Seal Assy, 78mm ID

    Floating Seal Assy, 78mm ID

    • Part No. T4520-43652
    • 2 shown on diagram
    $82.99
  • 7

    RING, SEAL v (use T4520-43652)

    • Part No. T4520-43662
    • 2 shown on diagram
    $29.99
  • 8

    O RING v (use T4520-43652)

    • Part No. T4520-43672
    • 2 shown on diagram
    $4.49
  • 9

    HOUSING

    • Part No. T2185-43471
    • 2 shown on diagram
    $164.99

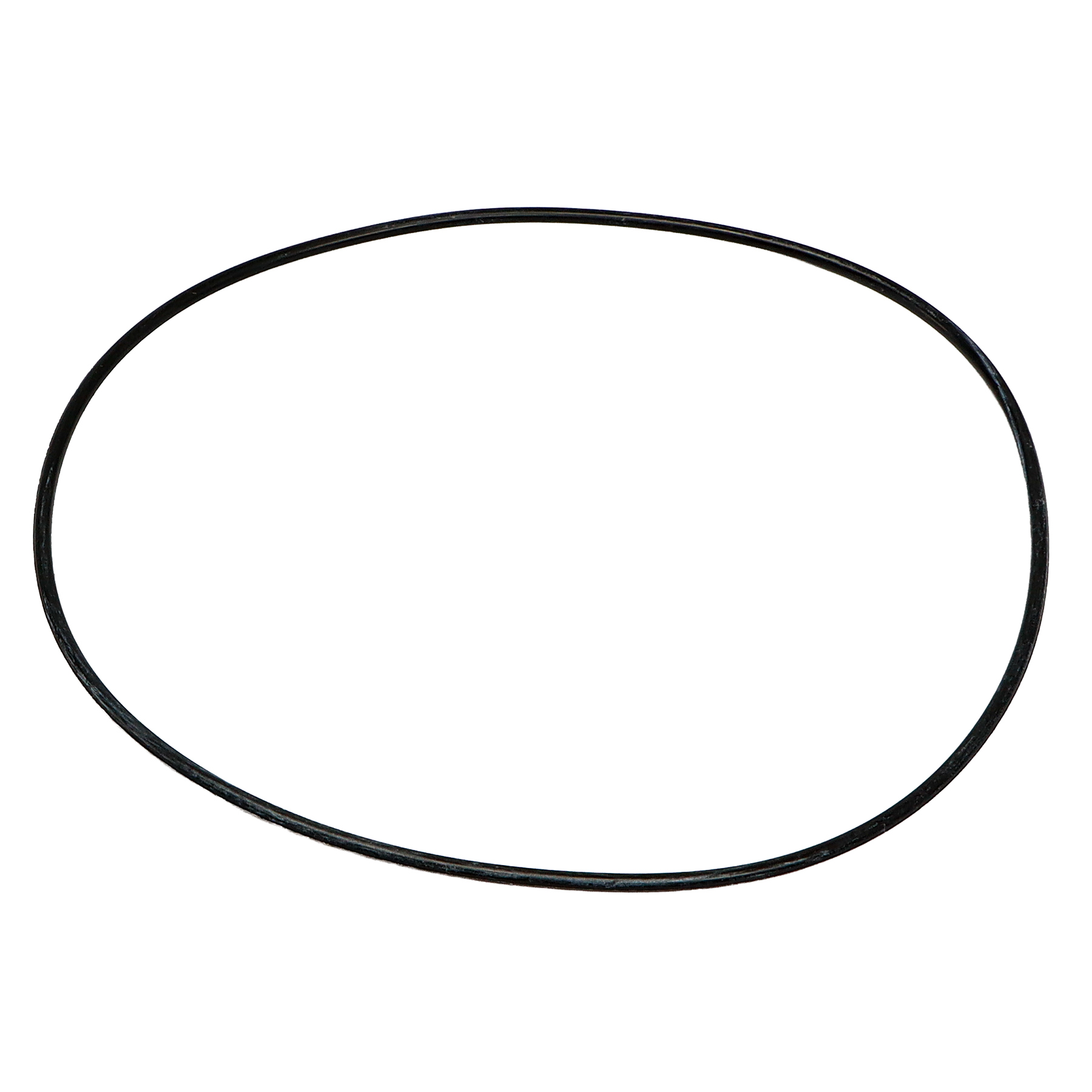

  • 10 O RING

    O RING

    • Part No. 04811-11100
    • 2 shown on diagram
    $1.89
  • 11 BEARING,BALL

    BEARING,BALL

    • Part No. 08101-06012
    • 2 shown on diagram
    $71.99
  • 12 RING,SNAP

    RING,SNAP

    • Part No. 04611-00800
    • DIA80
    • 2 shown on diagram
    $9.49
  • 13 BEARING,BALL 50x80x16

    BEARING,BALL 50x80x16

    • Part No. 08101-06010
    • #6010
    • 2 shown on diagram
    $49.99
  • 14

    SPACER,FRONT AXLE

    • Part No. T2185-43691
    • 2 shown on diagram
    $9.49
  • 15

    SNAP RING

    • Part No. 04612-00500
    • 2 shown on diagram
    $3.49
  • 16

    Gear, Bevel, 11 Tooth, Replaced by T2185-43651

    • Part No. T2185-43651
    • Applied Dates Up to 2007-02-01
    • * multiple options for #16
    • 2 shown on diagram
    $0.00
  • 16

    Gear, Bevel, 11 Tooth

    • Part No. T2185-43652
    • Compatibility Interchngable
    • Applied Dates 2007-02-02 and up
    • * multiple options for #16
    • 2 shown on diagram
    $244.99
  • 17 Bearing 6207 35x72x17

    Bearing 6207 35x72x17

    • Part No. 08101-06207
    • DIA35
    • 2 shown on diagram
    $28.99
  • 18

    SHIM, 1.0 dnr v

    • Part No. T2185-43881
    • 2 shown on diagram
    $3.99
  • 19 SHIM, 1.2

    SHIM, 1.2

    • Part No. T2185-43891
    • 2 shown on diagram
    $3.99
  • 20

    SHIM, 1.4

    • Part No. T2185-43901
    • 2 shown on diagram
    $0.00
  • 21

    SHIM1.6

    • Part No. T2185-42361
    • 2 shown on diagram
    $5.49
  • 22

    SHIM1.8

    • Part No. T2185-42371
    • 2 shown on diagram
    $4.99
  • 23

    SHIM2.0

    • Part No. T2185-42381
    • 2 shown on diagram
    $6.99
  • 24

    Shim, 2.2

    • Part No. T2185-42391
    • 2 shown on diagram
    $7.99
  • 25 RING,SNAP

    RING,SNAP

    • Part No. 04611-00720
    • DIA72
    • 2 shown on diagram
    $7.99
  • 26 Plug

    Plug

    • Part No. T2185-43541
    • 2 shown on diagram
    $16.99
  • 27 PLUG M10XP1.25

    PLUG M10XP1.25

    • Part No. 06331-35010
    • M10XP1.25
    • 2 shown on diagram
    $4.49
  • 28 WASHER, SEAL M10

    WASHER, SEAL M10

    • Part No. 04717-01000
    • M10
    • 2 shown on diagram
    $1.99
