WATER PUMP GROUP - EA4-G163001

Kioti TRACTOR | CK Series | CK25

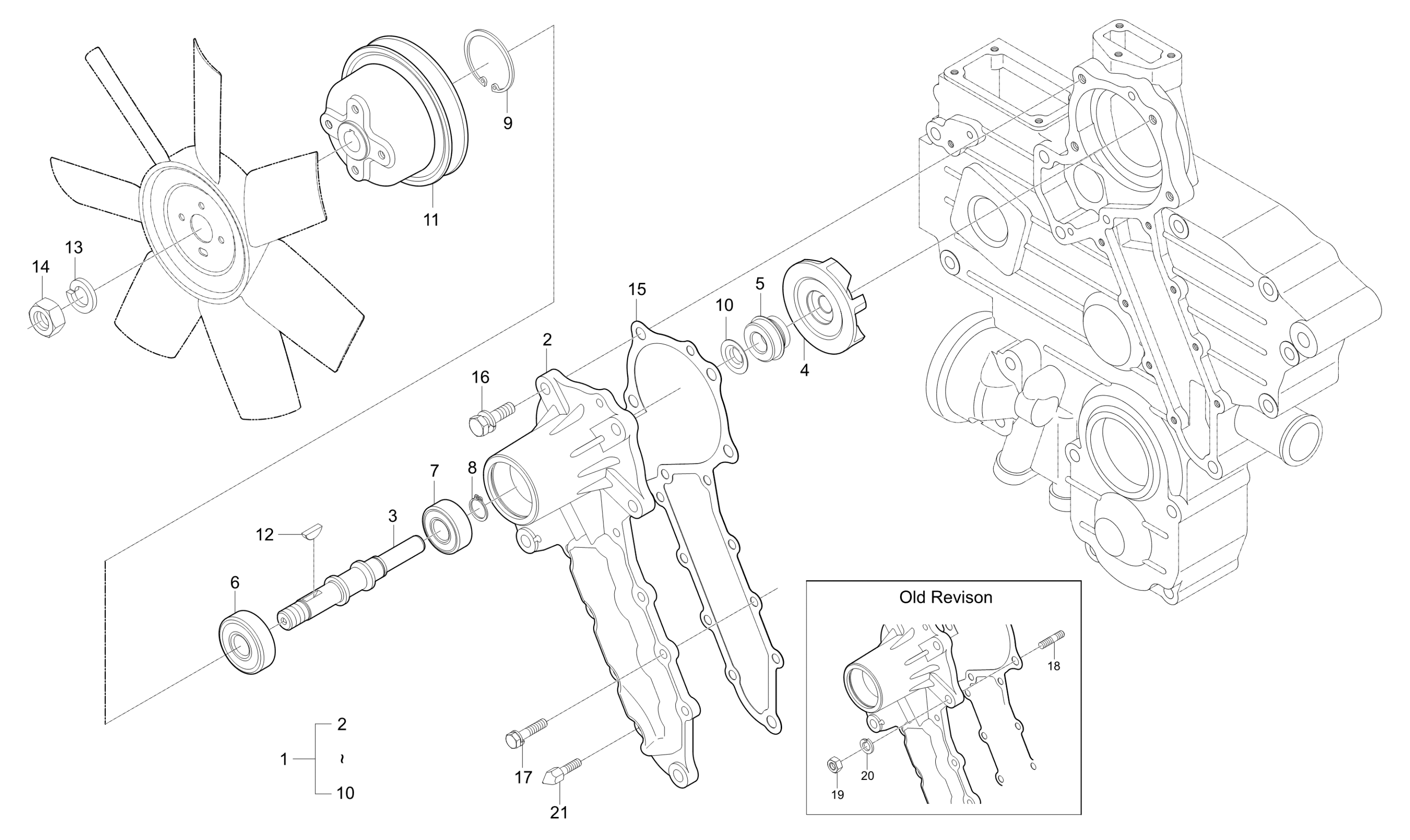

Diagram for WATER PUMP GROUP - EA4-G163001
  • 1 WATER PUMP ASSEMBLY

    WATER PUMP ASSEMBLY

    • Part No. E5900-73032
    • 1 shown on diagram
    $374.99
  • 2

    BODY,WATER PUMP v

    • Part No. E5900-73412
    • 1 shown on diagram
    $134.99
  • 3

    PUMP, WATER-SHAFT obs v

    • Part No. 15321-7348-1
    • DIA22*135
    • 1 shown on diagram
    $109.99
  • 4

    IMPELLAR

    • Part No. E5500-73512
    • 1 shown on diagram
    $22.99
  • 5

    SEAL SET

    • Part No. 15121-7305-7
    • * multiple options for #5
    • 1 shown on diagram
    $41.99
  • 5

    MECHANICAL SEAL ASSY v

    • Part No. E5800-73052
    • Compatibility No interchange
    • * multiple options for #5
    • 1 shown on diagram
    $39.99
  • 6

    BEARING,BALL

    • Part No. 08143-06302
    • #6302UUC3
    • 1 shown on diagram
    $31.99
  • 7

    BEARING,BALL

    • Part No. 08143-06202
    • #6202UUC3
    • 1 shown on diagram
    $26.99
  • 8

    CIR CLIP, EXTERNAL

    • Part No. 04612-00150
    • DIA15
    • 1 shown on diagram
    $0.73
  • 9 SNAP RING

    SNAP RING

    • Part No. 04611-00420
    • 1 shown on diagram
    $1.99
  • 10

    SLINGER

    • Part No. 10231-7362-1
    • T0.6*30*30
    • 1 shown on diagram
    $2.49
  • 11

    FAN PULLEY dnr v

    • Part No. 15321-7425-2
    • * multiple options for #11
    • 1 shown on diagram
    $0.00
  • 11

    PULLEY, COOLING FAN dnr v

    • Part No. E5500-74252
    • Compatibility Call for compat
    • * multiple options for #11
    • 1 shown on diagram
    $219.99
  • 12

    woodruff_key obs v

    • Part No. 05811-00416
    • DIA18*9
    • 1 shown on diagram
    $2.49
  • 13

    M14 Spring Lock Washer 04512-50140

    • Part No. 04512-50140
    • M14
    • 1 shown on diagram
    $0.90
  • 14 NUT

    NUT

    • Part No. 02076-50140
    • M14XP1.5
    • 1 shown on diagram
    $1.79
  • 15

    GASKET, PUMP

    • Part No. 15521-7343-1
    • T0.5*290*180
    • * multiple options for #15
    • 1 shown on diagram
    $6.99
  • 15

    GASKET

    • Part No. E5500-73432
    • Compatibility New repl old
    • t0.5
    • * multiple options for #15
    • 1 shown on diagram
    $14.99
  • 16 Bolt With Washer, M8 P1.25 x 28mm

    Bolt With Washer, M8 P1.25 x 28mm

    • Part No. 01123-50828
    • 2 shown on diagram
    $2.49
  • 17

    BOLT w- WASHER

    • Part No. 01023-50618
    • M6XP1.0
    • 8 shown on diagram
    $1.79
  • 18

    STUD

    • Part No. 01518-50822
    • 2 shown on diagram
    $3.99
  • 19 Nut M8 P1.25

    Nut M8 P1.25

    • Part No. 02156-50080
    • M8XP1.25
    • 2 shown on diagram
    $0.85
  • 20 Spring Lock Washer M8

    Spring Lock Washer M8

    • Part No. 04512-50080
    • M08
    • 2 shown on diagram
    $0.61
