FUEL CAMSHAFT GROUP - TD1300E-E140

Kioti TRACTOR | CK Series | CK25

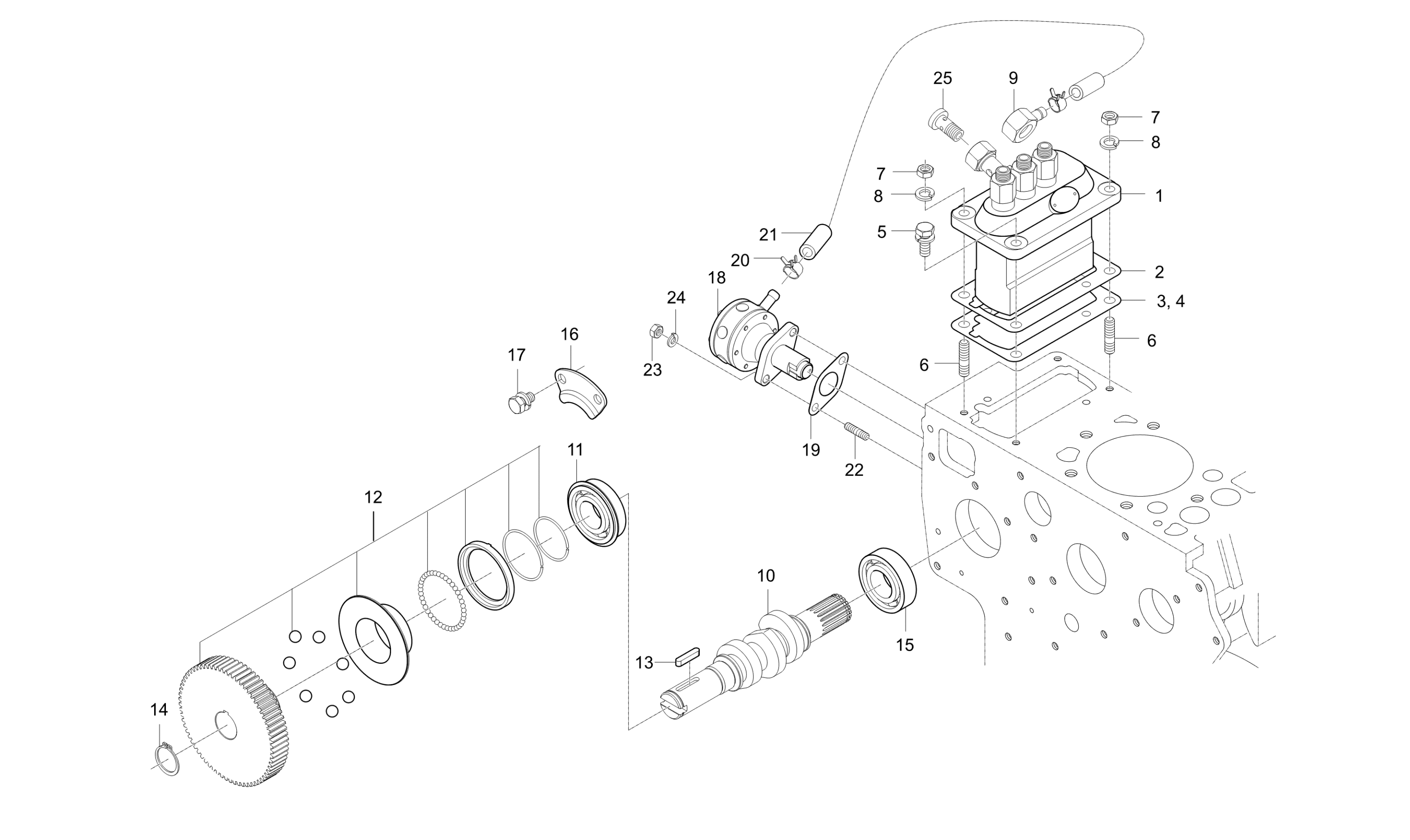

Diagram for FUEL CAMSHAFT GROUP - TD1300E-E140
  • 1

    333..ASSY PUMP,INJECTION v

    • Part No. 15321-5101-3
    • Applied Dates Up to 2006-10-03
    • * multiple options for #1
    • 1 shown on diagram
    $1,074.99
  • 1

    ASSY PUMP,INJECTION v

    • Part No. E5500-51012
    • Compatibility New repl old
    • Applied Dates 2006-10-04 to 2007-05-07
    • * multiple options for #1
    • 1 shown on diagram
    $1,474.99
  • 1

    ASSY PUMP,INJECTION v

    • Part No. E5500-51013
    • Compatibility New repl old
    • Applied Dates 2007-05-08 to 2007-05-22
    • * multiple options for #1
    • 1 shown on diagram
    $899.99
  • 1

    ASSY PUMP,INJECTION v

    • Part No. E5500-51014
    • Compatibility Interchngable
    • Applied Dates 2007-05-23 to 2008-11-27
    • * multiple options for #1
    • 1 shown on diagram
    $1,299.99
  • 1

    ASSY, INJECTION PUMP v

    • Part No. E5500-51015
    • Compatibility New repl old
    • Applied Dates 2008-11-28 and up
    • * multiple options for #1
    • 1 shown on diagram
    $1,854.99
  • 2 injection Pump Shim .20mm (E5500-52112)

    injection Pump Shim .20mm (E5500-52112)

    • Part No. E5500-52112
    • T0.15*80*103
    • 99 shown on diagram
    $5.49
  • 3

    SHIM, INJECTION PUMP .30mm v

    • Part No. E5500-52122
    • T0.3
    • 99 shown on diagram
    $3.99
  • 4 SHIM 3, INJECTION PUMP .25mm

    SHIM 3, INJECTION PUMP .25mm

    • Part No. E5800-52111
    • 99 shown on diagram
    $6.99
  • 5 Bolt With Washer, M8 P1.25 x 22mm

    Bolt With Washer, M8 P1.25 x 22mm

    • Part No. 01123-50822
    • M8XP1.25
    • 2 shown on diagram
    $2.49
  • 6 STUD

    STUD

    • Part No. 01513-50822
    • M8XP1.25
    • 2 shown on diagram
    $3.99
  • 7 Nut M8 P1.25

    Nut M8 P1.25

    • Part No. 02156-50080
    • M8XP1.25
    • 2 shown on diagram
    $0.85
  • 8 Spring Lock Washer M8

    Spring Lock Washer M8

    • Part No. 04512-50080
    • M08
    • 2 shown on diagram
    $0.61
  • 9

    JOINT, FUEL PIPE

    • Part No. E6500-42412
    • Applied Dates 2003-12-03 and up
    • 1 shown on diagram
    $26.99
  • 10

    SHAFT,FUEL CAM

    • Part No. E5500-16173
    • 1 shown on diagram
    $994.99
  • 11

    BEARING,BALL

    • Part No. 08153-06205
    • #6205NRC3
    • 1 shown on diagram
    $26.99
  • 12

    ASS’Y GOVERNOR SLEEVE v

    • Part No. E6200-A0020
    • * multiple options for #12
    • 1 shown on diagram
    $329.99
  • 12

    GOVERNOR SLEEVE ASS’Y obs v

    • Part No. E6200-A0021
    • Compatibility New repl old
    • * multiple options for #12
    • 1 shown on diagram
    $299.99
  • 13

    KEY 7x7x29

    • Part No. 05712-00525
    • 7*7*29
    • 1 shown on diagram
    $5.99
  • 14

    SNAP RING

    • Part No. 04612-00240
    • 1 shown on diagram
    $0.98
  • 15

    BEARING,BALL

    • Part No. 08103-06205
    • 6205C3
    • 1 shown on diagram
    $19.99
  • 16

    FUEL CAMSHAFT STOPPER v

    • Part No. 15221-1632-1
    • T2.5*62*35
    • 1 shown on diagram
    $3.99
  • 17

    Bolt With Washer, M8 P1.25 x 14mm

    • Part No. 01123-50814
    • M8XP1.25
    • 2 shown on diagram
    $2.49
  • 18

    Fuel Pump Assembly Replaced by E5775-52032 (15381-5203-0)

    • Part No. 15381-5203-0
    • Applied Dates Up to 2009-03-22
    • 1 shown on diagram
    $61.99
  • 19

    GASKET dnr v

    • Part No. 15241-5214-1
    • Applied Dates Up to 2006-08-25
    • T0.5
    • * multiple options for #19
    • 1 shown on diagram
    $0.99
  • 19 Gasket, Fuel Pump

    Gasket, Fuel Pump

    • Part No. E6200-52142
    • Compatibility New repl old
    • Applied Dates 2006-08-26 and up
    • t0.5
    • * multiple options for #19
    • 1 shown on diagram
    $3.49
  • 20

    CLIP, TUBE

    • Part No. 14911-4275-1
    • T0.8*#12
    • 2 shown on diagram
    $1.49
  • 21

    TUBE, FUEL obs v

    • Part No. 15471-4211-1
    • Applied Dates Up to 2008-04-17
    • * multiple options for #21
    • 1 shown on diagram
    $5.99
  • 21

    HOSE 1, FUEL

    • Part No. 15371-4217-0
    • Compatibility Interchngable
    • Applied Dates 2008-04-18 and up
    • * multiple options for #21
    • 1 shown on diagram
    $5.99
  • 22

    STUD

    • Part No. 01513-50618
    • M6*1.0
    • 2 shown on diagram
    $3.49
  • 23 NUT

    NUT

    • Part No. 02056-50060
    • M6XP1.0
    • 2 shown on diagram
    $0.49
  • 24 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50060
    • M06
    • 2 shown on diagram
    $0.61
  • 25

    EYE BOLT

    • Part No. E5629-24401
    • Applied Dates 2004-03-05 to 2007-05-07
    • 1 shown on diagram
    $15.99
