GOVERNOR GROUP - TD1300LX-E170

Kioti TRACTOR | CK Series | CK25

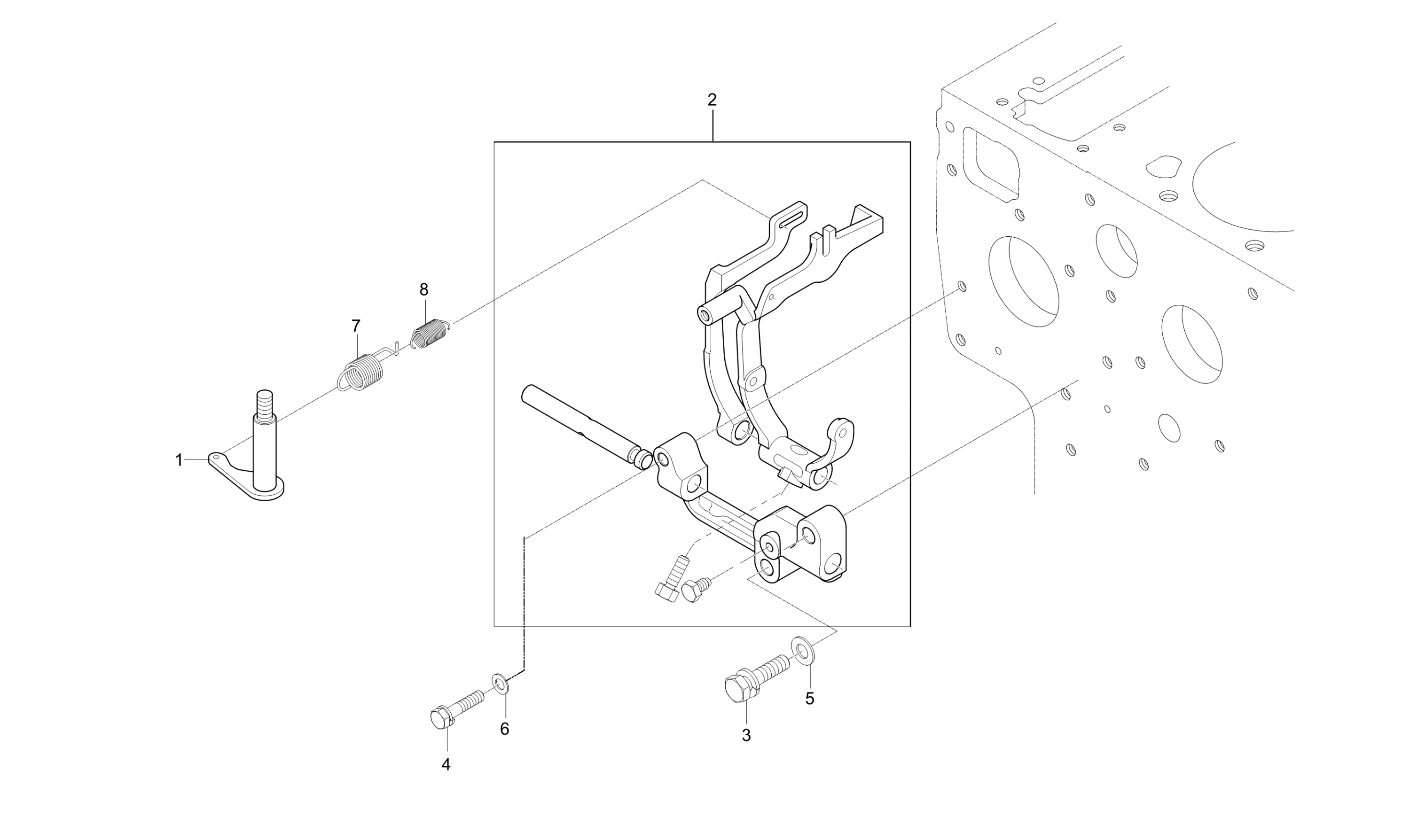

Diagram for GOVERNOR GROUP - TD1300LX-E170
  • 1

    ASSY LEVER,GOVERNOR v

    • Part No. E5850-56021
    • 1 shown on diagram
    $28.99
  • 2

    FORK LEVER ASS’Y

    • Part No. E5505-56051
    • 1 shown on diagram
    $269.99
  • 3

    Bolt With Washer, M8 P1.25 x 32mm

    • Part No. 01123-50832
    • HEX12*43
    • 2 shown on diagram
    $2.49
  • 4

    BOLT, WASHER

    • Part No. 01023-50628
    • HEX10*38
    • 1 shown on diagram
    $1.49
  • 5 Flat Washer M8

    Flat Washer M8

    • Part No. 04012-50080
    • M8
    • 2 shown on diagram
    $0.67
  • 6 Flat Washer M6

    Flat Washer M6

    • Part No. 04012-50060
    • M6
    • 1 shown on diagram
    $0.67
  • 7 SPRING 1, GOVERNOR

    SPRING 1, GOVERNOR

    • Part No. 15521-5641-2
    • DIA1.0
    • 1 shown on diagram
    $2.49
  • 8 GOVERNOR SPRING 2 (15521-5642-1)

    GOVERNOR SPRING 2 (15521-5642-1)

    • Part No. 15521-5642-1
    • DIA0.6
    • 1 shown on diagram
    $2.49
