CYLINDER HEAD COVER GROUP - TD1300E-E090

Kioti TRACTOR | CK Series | CK25

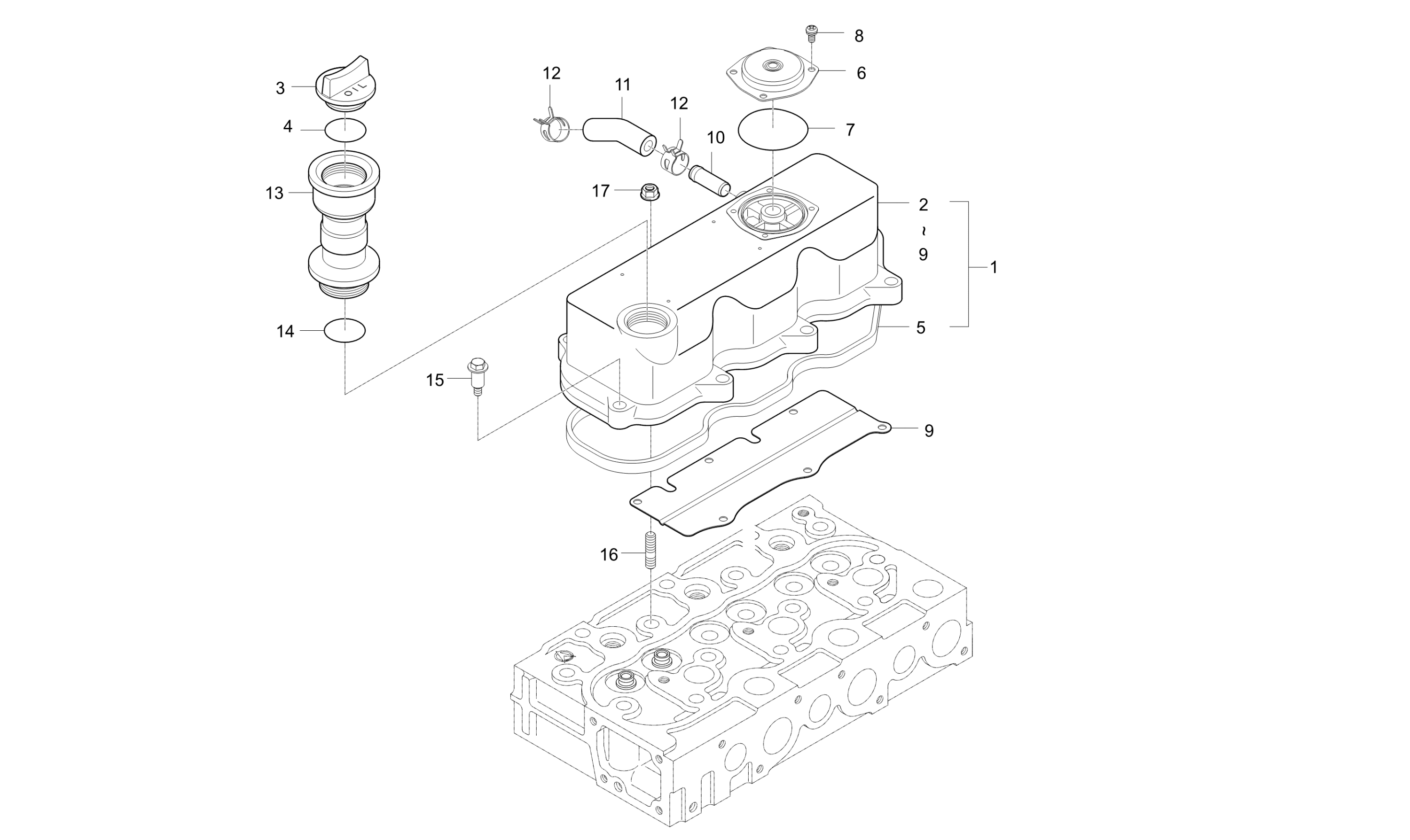

Diagram for CYLINDER HEAD COVER GROUP - TD1300E-E090
  • 1

    ASS’Y CYLINDER HEAD COVER v

    • Part No. E5850-14502
    • Applied Dates 2003-10-13 to 2007-04-08
    • 1 shown on diagram
    $139.99
  • 2

    CYLINDER HEAD COVER v

    • Part No. E5850-14512
    • Applied Dates 2003-10-13 and up
    • 1 shown on diagram
    $109.99
  • 3 PLUG, OIL FILLER, Replaced by EH11-0008A

    PLUG, OIL FILLER, Replaced by EH11-0008A

    • Part No. E5500-33142
    • 1 shown on diagram
    $15.99
  • 4 O Ring 29.4mm (04811-50300)

    O Ring 29.4mm (04811-50300)

    • Part No. 04811-50300
    • DIA29.4
    • 1 shown on diagram
    $1.29
  • 5

    HEAD COVER GASKET (for 8 bolt valve covers), Replaced by E5850-14522

    • Part No. E5850-14521
    • Applied Dates 2003-10-13 and up
    • 1 shown on diagram
    $0.00
  • 6

    COVER, VALVE

    • Part No. E6510-14532
    • Applied Dates 2003-10-13 and up
    • 1 shown on diagram
    $9.99
  • 7

    O RING

    • Part No. E6510-14671
    • Applied Dates 2003-10-13 and up
    • 1 shown on diagram
    $3.49
  • 8

    SCREW, WASHER

    • Part No. 03024-50510
    • Applied Dates 2003-10-13 and up
    • M5XP0.8
    • 4 shown on diagram
    $0.68
  • 9

    OIL PROTECTOR

    • Part No. E5850-14561
    • Applied Dates 2003-10-13 and up
    • 1 shown on diagram
    $9.99
  • 10

    CONNECTOR, AIR BREATHER v

    • Part No. E6510-05551
    • Applied Dates 2003-10-13 to 2007-04-01
    • 1 shown on diagram
    $3.99
  • 11

    AIR BREATHER

    • Part No. E5500-05512
    • Applied Dates 2003-10-13 and up
    • 1 shown on diagram
    $21.99
  • 12

    CLAMP, HOSE

    • Part No. 09318-88180
    • Applied Dates 2003-10-13 and up
    • DIA18
    • 2 shown on diagram
    $2.49
  • 13

    PLANGE,OIL INLET

    • Part No. C7910-18213
    • Applied Dates 2003-12-03 and up
    • 1 shown on diagram
    $35.99
  • 14 O Ring 29.4mm (04811-50300)

    O Ring 29.4mm (04811-50300)

    • Part No. 04811-50300
    • Applied Dates 2003-12-03 and up
    • DIA29.4
    • 1 shown on diagram
    $1.29
  • 15

    BOLT, CYLINDER HEAD COVER v

    • Part No. E6510-33661
    • Applied Dates 2004-01-27 to 2005-03-03
    • 5 shown on diagram
    $5.99
  • 16

    STUD, CYLINDER HEAD COVER

    • Part No. E5500-33671
    • Applied Dates 2004-01-27 and up
    • 3 shown on diagram
    $14.99
  • 17

    NUT, FLANGE

    • Part No. E5500-35681
    • Applied Dates 2004-01-27 and up
    • HEX10,M6*1.0
    • 3 shown on diagram
    $1.79
