ENGINE STOP LEVER GROUP - TD1300DY-160

Kioti TRACTOR | CK Series | CK25

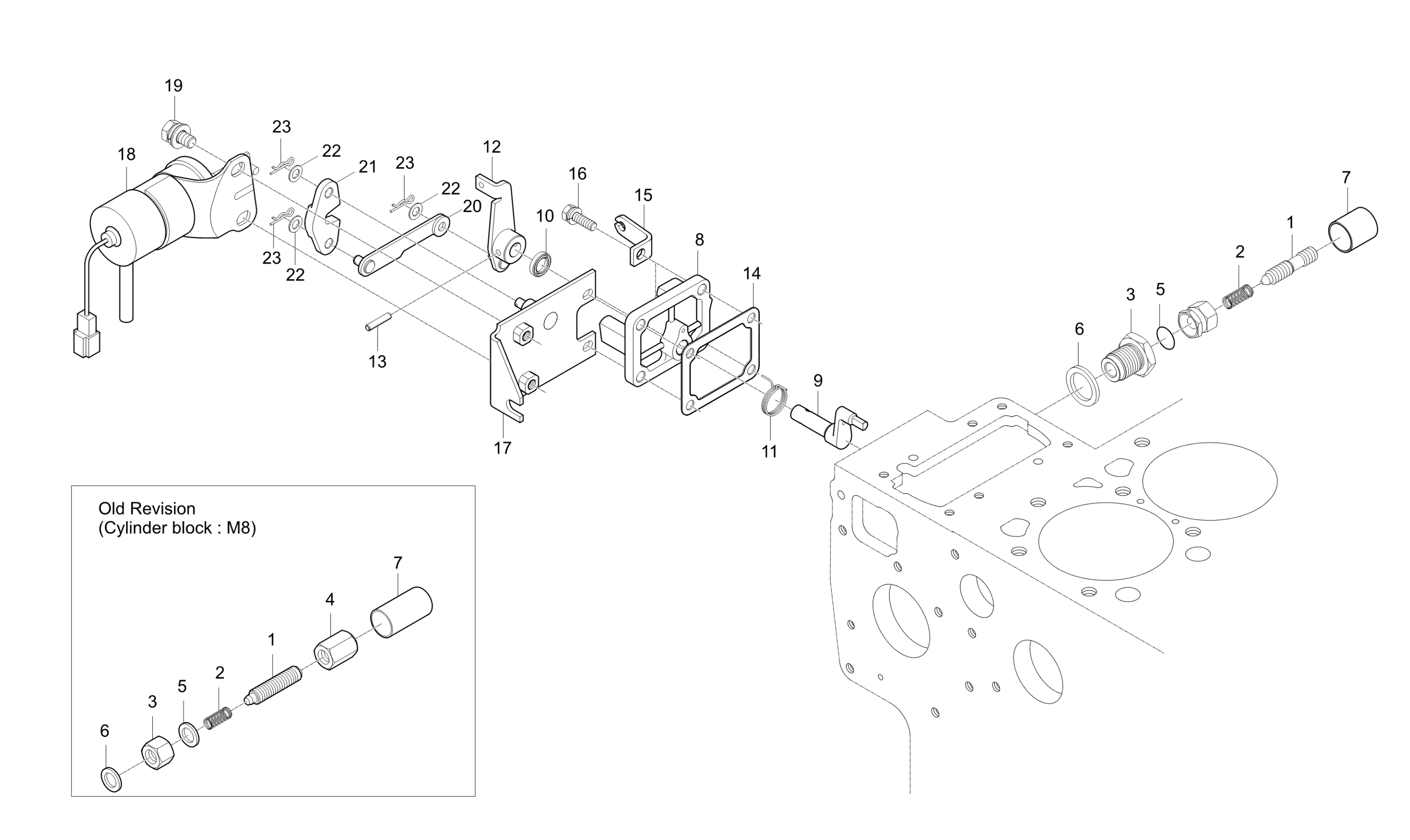

Diagram for ENGINE STOP LEVER GROUP - TD1300DY-160
  • 1

    BOLT, ADJUSTING

    • Part No. 15521-5425-1
    • Applied Dates Up to 2005-01-18
    • Serial No. Up to D70100194
    • DIA10*43,M8*1.0
    • * multiple options for #1
    • 1 shown on diagram
    $5.99
  • 1

    IDEL ADJUSTING BOLT dnr v

    • Part No. E5850-54251
    • Compatibility Call for compat
    • Applied Dates 2005-01-19 to 2008-11-27
    • Serial No. E70100001 and up
    • * multiple options for #1
    • 1 shown on diagram
    $5.99
  • 2

    SPRING v

    • Part No. 15521-5426-1
    • DIA0.5
    • 1 shown on diagram
    $1.49
  • 3

    NUT,FIXING obs v

    • Part No. 15401-9201-1
    • Applied Dates Up to 2005-01-18
    • Serial No. Up to D70100194
    • HEX13*15,M8*1.0
    • * multiple options for #3
    • 1 shown on diagram
    $6.49
  • 3

    NUT

    • Part No. E5850-92011
    • Compatibility Call for compat
    • Applied Dates 2005-01-19 and up
    • Serial No. E70100001 and up
    • * multiple options for #3
    • 1 shown on diagram
    $13.99
  • 4

    CAP NUT

    • Part No. 15521-9233-1
    • Applied Dates Up to 2005-01-18
    • HEX13*25,M8*1.0
    • 1 shown on diagram
    $8.99
  • 5

    O RING

    • Part No. 04811-00060
    • Applied Dates 2005-01-19 and up
    • 1 shown on diagram
    $0.68
  • 6 WASHER

    WASHER

    • Part No. 15021-3366-1
    • Applied Dates Up to 2005-01-18
    • Serial No. Up to D70100194
    • T1.5
    • * multiple options for #6
    • 2 shown on diagram
    $3.99
  • 6

    PACKING

    • Part No. 04724-00140
    • Compatibility Call for compat
    • Applied Dates 2005-01-19 and up
    • Serial No. E70100001 and up
    • Inner Diameter 14.1
    • * multiple options for #6
    • 1 shown on diagram
    $3.99
  • 7

    CAP

    • Part No. 15521-5427-1
    • Applied Dates Up to 2005-01-18
    • Serial No. Up to D70100194
    • DIA16*35,T0.5
    • * multiple options for #7
    • 1 shown on diagram
    $4.49
  • 7 CAP

    CAP

    • Part No. E5205-54271
    • Compatibility Call for compat
    • Applied Dates 2005-01-19 and up
    • Serial No. E70100001 and up
    • T0.5*60*60
    • * multiple options for #7
    • 1 shown on diagram
    $5.49
  • 8

    COVER,INJECTION PUMP

    • Part No. E6200-51654
    • 1 shown on diagram
    $24.99
  • 9

    LEVER SHAFT

    • Part No. E6200-57743
    • 1 shown on diagram
    $14.99
  • 10

    SEAL, OIL

    • Part No. 15471-5798-1
    • 1 shown on diagram
    $7.99
  • 11 SPRING

    SPRING

    • Part No. E6200-57922
    • 1 shown on diagram
    $4.49
  • 12

    LEVER,ENGINE STOP

    • Part No. E6200-57731
    • 1 shown on diagram
    $24.99
  • 13 PIN, SPRING

    PIN, SPRING

    • Part No. 05411-00420
    • DIA4.4XL20
    • 1 shown on diagram
    $0.68
  • 14

    GASKET dnr v

    • Part No. 15221-5166-1
    • Applied Dates Up to 2006-08-25
    • T1*72*57
    • 1 shown on diagram
    $2.49
  • 15

    CLIP,WIRE

    • Part No. E6306-57481
    • Applied Dates 2004-02-19 and up
    • T=3.0
    • 1 shown on diagram
    $2.99
  • 16

    BOLT, WASHER

    • Part No. 01023-50620
    • Applied Dates 2001-11-02 to 2008-11-27
    • M6XP1.0
    • 4 shown on diagram
    $1.39
  • 17

    SOLENOID SUPPORT

    • Part No. E5800-60111
    • 1 shown on diagram
    $14.99
  • 18 Engine Stop Solenoid

    Engine Stop Solenoid

    • Part No. E5753-60015
    • Applied Dates 2003-12-10 and up
    • 1 shown on diagram
    $159.99
  • 19 Bolt With Washers, M8 P1.25 x 16mm (01125-50816)

    Bolt With Washers, M8 P1.25 x 16mm (01125-50816)

    • Part No. 01125-50816
    • M8XP1.25
    • 2 shown on diagram
    $2.49
  • 20

    LEVER 1,STOP obs v

    • Part No. T4240-32642
    • 1 shown on diagram
    $8.99
  • 21

    LEVER 2, STOP

    • Part No. 15471-6016-2
    • 1 shown on diagram
    $6.49
  • 22 Flat Washer M6

    Flat Washer M6

    • Part No. 04012-50060
    • M6
    • 3 shown on diagram
    $0.67
  • 23

    PIN, SNAP

    • Part No. 05525-50600
    • DIA6
    • 3 shown on diagram
    $1.19
