CYLINDER HEAD GROUP - TD1300E-E030

Kioti TRACTOR | CK Series | CK25

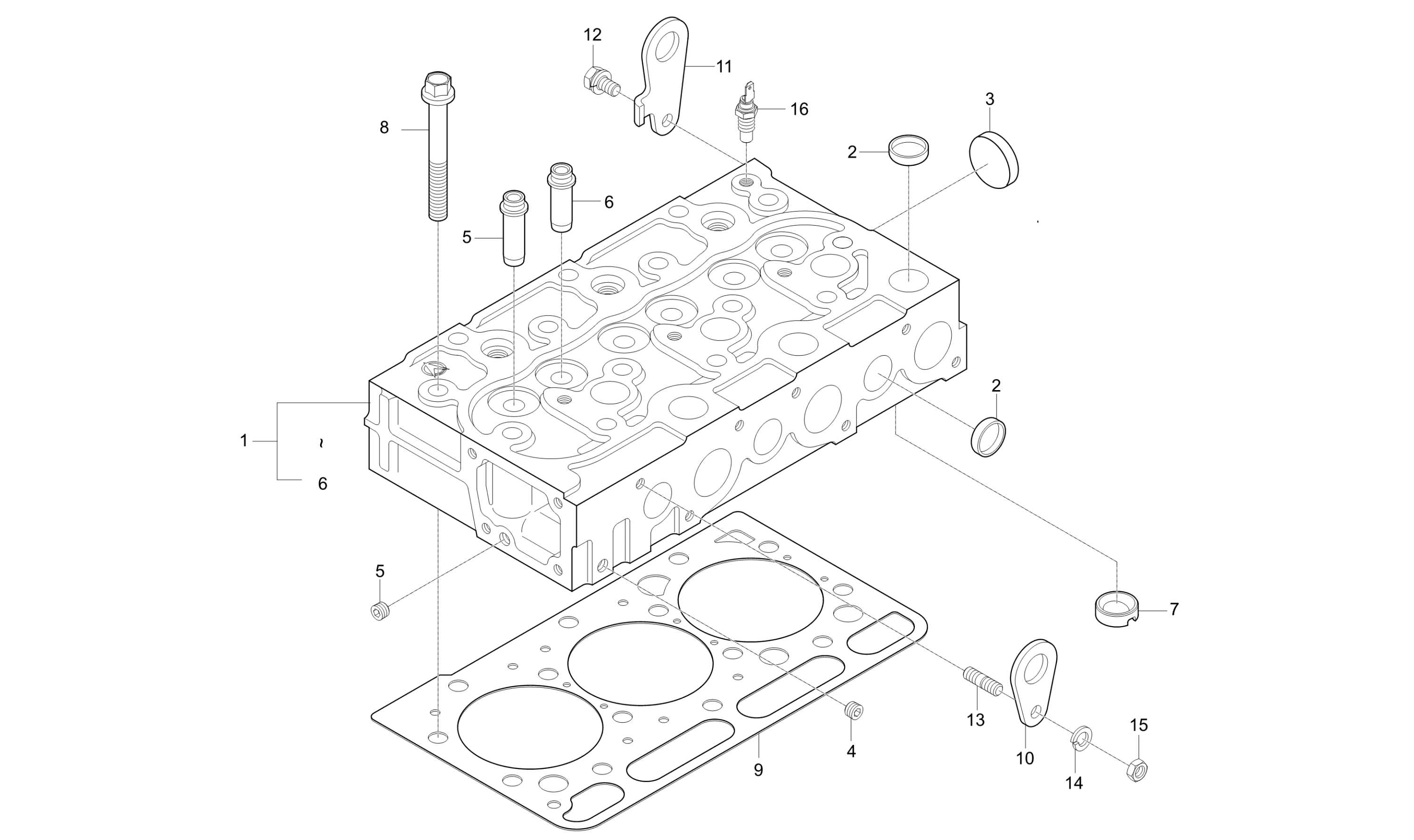

Diagram for CYLINDER HEAD GROUP - TD1300E-E030
  • 1

    CYLINDER HEAD ASSY v

    • Part No. E5500-03048
    • Applied Dates 2004-01-27 to 2004-11-28
    • Serial No. Up to E70100080
    • * multiple options for #1
    • 1 shown on diagram
    $1,364.99
  • 1

    CYLINDER HEAD ASSEMBLY v

    • Part No. E5500-03049
    • Compatibility Call for compat
    • Applied Dates 2004-11-29 to 2006-12-04
    • Serial No. E70100081 to F70100560
    • * multiple options for #1
    • 1 shown on diagram
    $3,159.99
  • 1

    ASSY HEAD,CYLINDER v

    • Part No. E5500-0304A
    • Compatibility Call for compat
    • Applied Dates 2006-12-05 and up
    • Serial No. F70100561 and up
    • * multiple options for #1
    • 1 shown on diagram
    $1,749.99
  • 2 CAP SEALING

    CAP SEALING

    • Part No. 15221-0337-3
    • T1.6*40*40
    • 9 shown on diagram
    $3.49
  • 3

    CAP SEALING 35mm

    • Part No. 15221-0349-3
    • T1.6*60*60
    • 1 shown on diagram
    $4.49
  • 4 PLUG, Replaced by E5900-96022

    PLUG, Replaced by E5900-96022

    • Part No. E5900-96021
    • Applied Dates 2004-01-12 and up
    • 2 shown on diagram
    $4.99
  • 5

    OBS GUIDE, INLET VALVE obs v

    • Part No. E6301-13581
    • Applied Dates 1999-07-20 to 2006-07-11
    • DIA20*53
    • 3 shown on diagram
    $12.99
  • 6

    GUIDE, EXHAUST VALVE v

    • Part No. E6301-13561
    • Applied Dates 1999-07-20 to 2006-07-11
    • DIA20*53
    • 3 shown on diagram
    $13.99
  • 7

    COMBUSTION CHAMBER

    • Part No. E5500-03143
    • Applied Dates 2001-06-04 and up
    • 3 shown on diagram
    $149.99

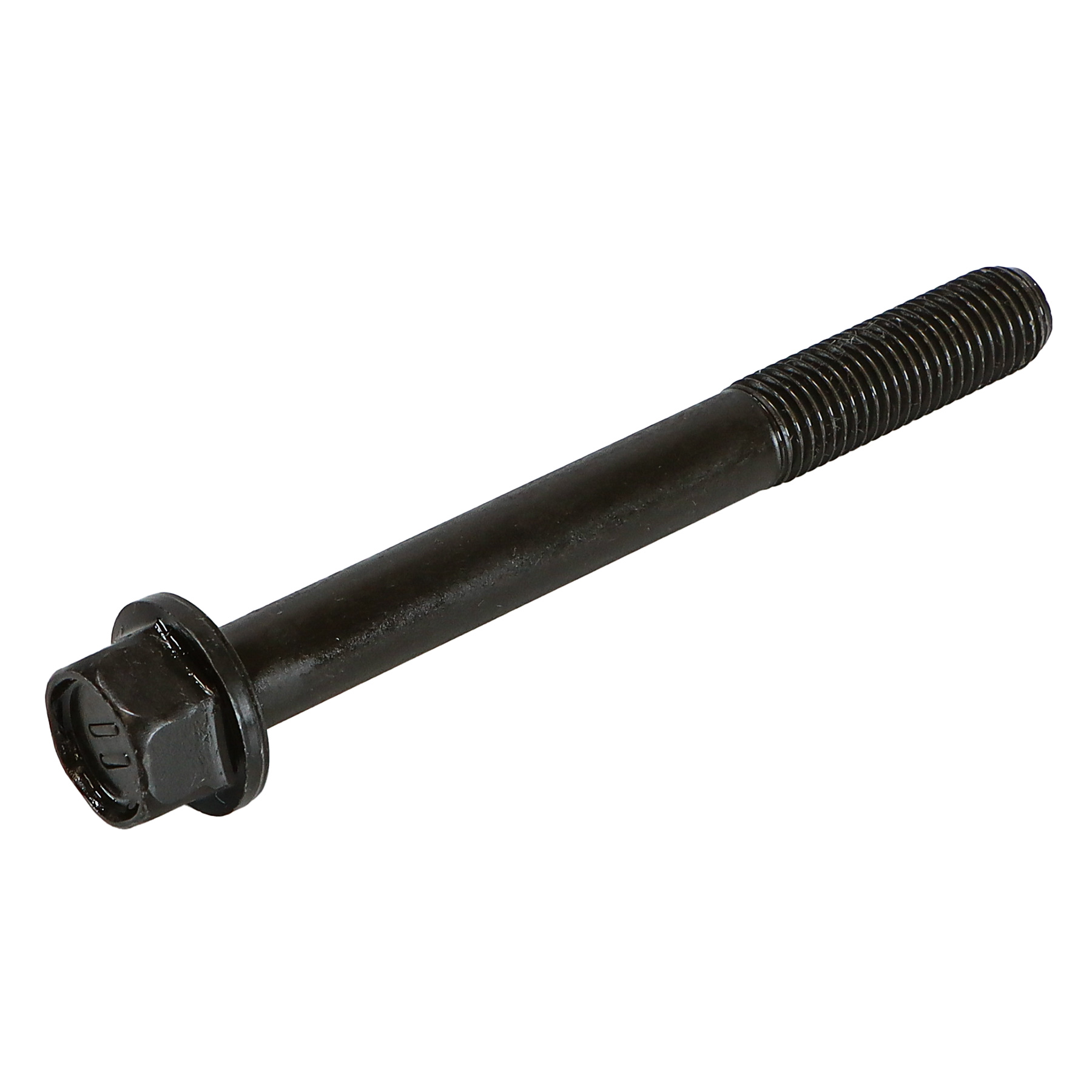

  • 8 BOLT HEAD

    BOLT HEAD

    • Part No. E5500-03452
    • Applied Dates 2000-05-04 and up
    • 14 shown on diagram
    $8.99
  • 9

    OBS GUIDE, INLET VALVE obs v

    • Part No. E5500-03315
    • Applied Dates 2003-11-27 and up
    • 1 shown on diagram
    $12.99
  • 10

    Engine Hook (15221-0175-1)

    • Part No. 15221-0175-1
    • Applied Dates 2001-12-21 and up
    • T4*40*64
    • 1 shown on diagram
    $3.99
  • 11

    HOLDER, ENGINE

    • Part No. E6305-01751
    • Applied Dates 2001-12-21 and up
    • 1 shown on diagram
    $4.99
  • 12 Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    • Part No. 01123-50816
    • M8XP1.25
    • 1 shown on diagram
    $1.09
  • 13 STUD

    STUD

    • Part No. 01513-50822
    • Applied Dates 2001-08-30 and up
    • M8XP1.25
    • 1 shown on diagram
    $3.99
  • 14 Nut M8 P1.25

    Nut M8 P1.25

    • Part No. 02156-50080
    • M8XP1.25
    • 1 shown on diagram
    $0.85
  • 15 Spring Lock Washer M8

    Spring Lock Washer M8

    • Part No. 04512-50080
    • M08
    • 1 shown on diagram
    $0.61
  • 16

    Temp Sender Assembly (E5205-32832)

    • Part No. E5205-32832
    • Applied Dates 2004-02-04 and up
    • 1 shown on diagram
    $81.99
