NOZZLE HOLDER GROUP - TD1400-120

Kioti TRACTOR | CK Series | CK25

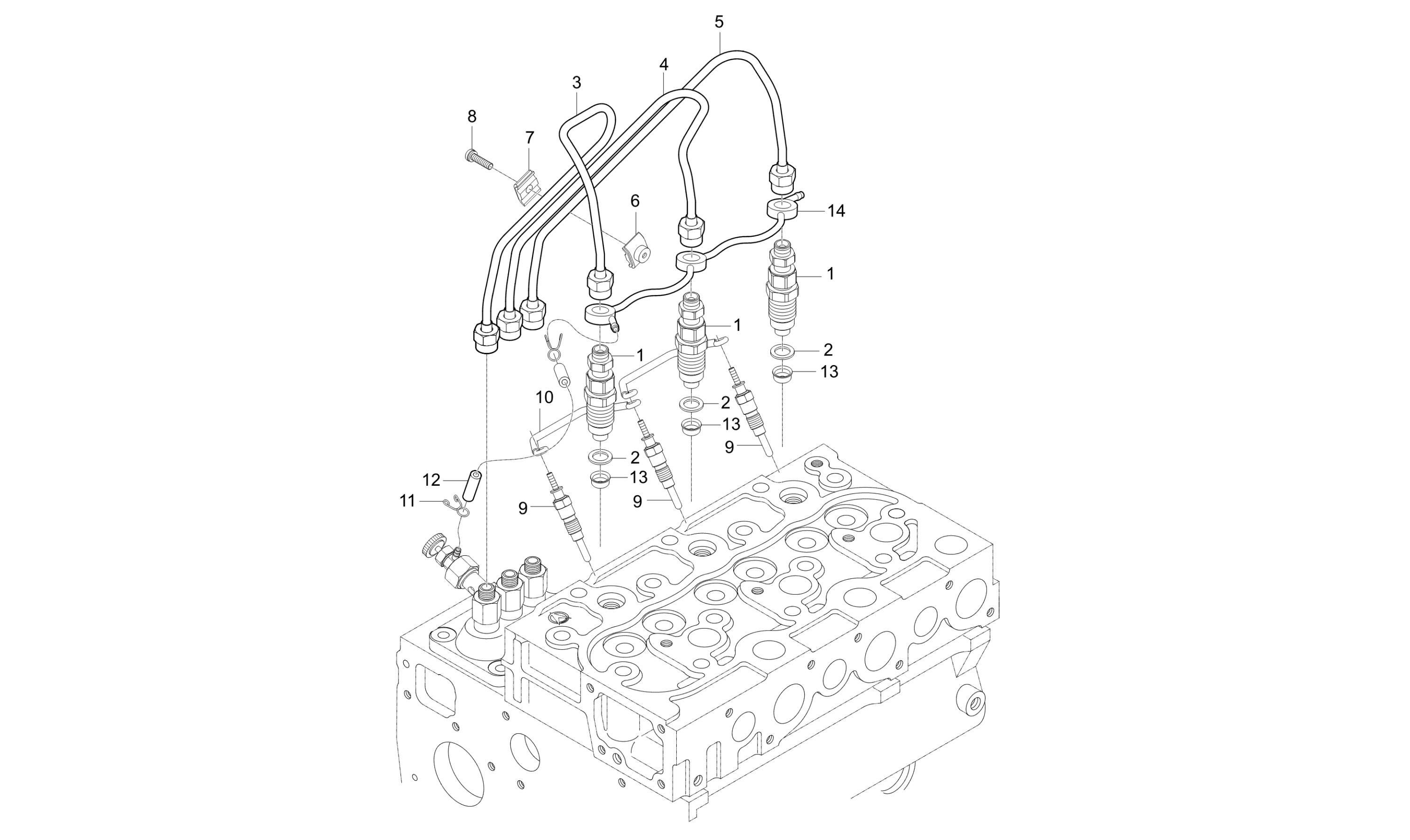

Diagram for NOZZLE HOLDER GROUP - TD1400-120
  • 1

    ASSY, NOZZLE HOLDER dnr v

    • Part No. E6300-53004
    • Applied Dates 2003-01-16 to 2007-05-31
    • * multiple options for #1
    • 3 shown on diagram
    $149.99
  • 1

    NOZZLE HOLDER ASSY v

    • Part No. E6300-53005
    • Compatibility New repl old
    • Applied Dates 2007-06-01 and up
    • * multiple options for #1
    • 3 shown on diagram
    $274.99
  • 2 Copper Washer 11.5×17.6

    Copper Washer 11.5×17.6

    • Part No. E6300-53621
    • Applied Dates 2000-05-04 and up
    • 3 shown on diagram
    $2.99
  • 3

    TUBE 1, INJECTION v

    • Part No. E5500-53714
    • Applied Dates 2000-05-04 and up
    • 1 shown on diagram
    $51.99
  • 4

    TUBE 2, INJECTION

    • Part No. E5500-53724
    • Applied Dates 2000-05-04 and up
    • 1 shown on diagram
    $51.99

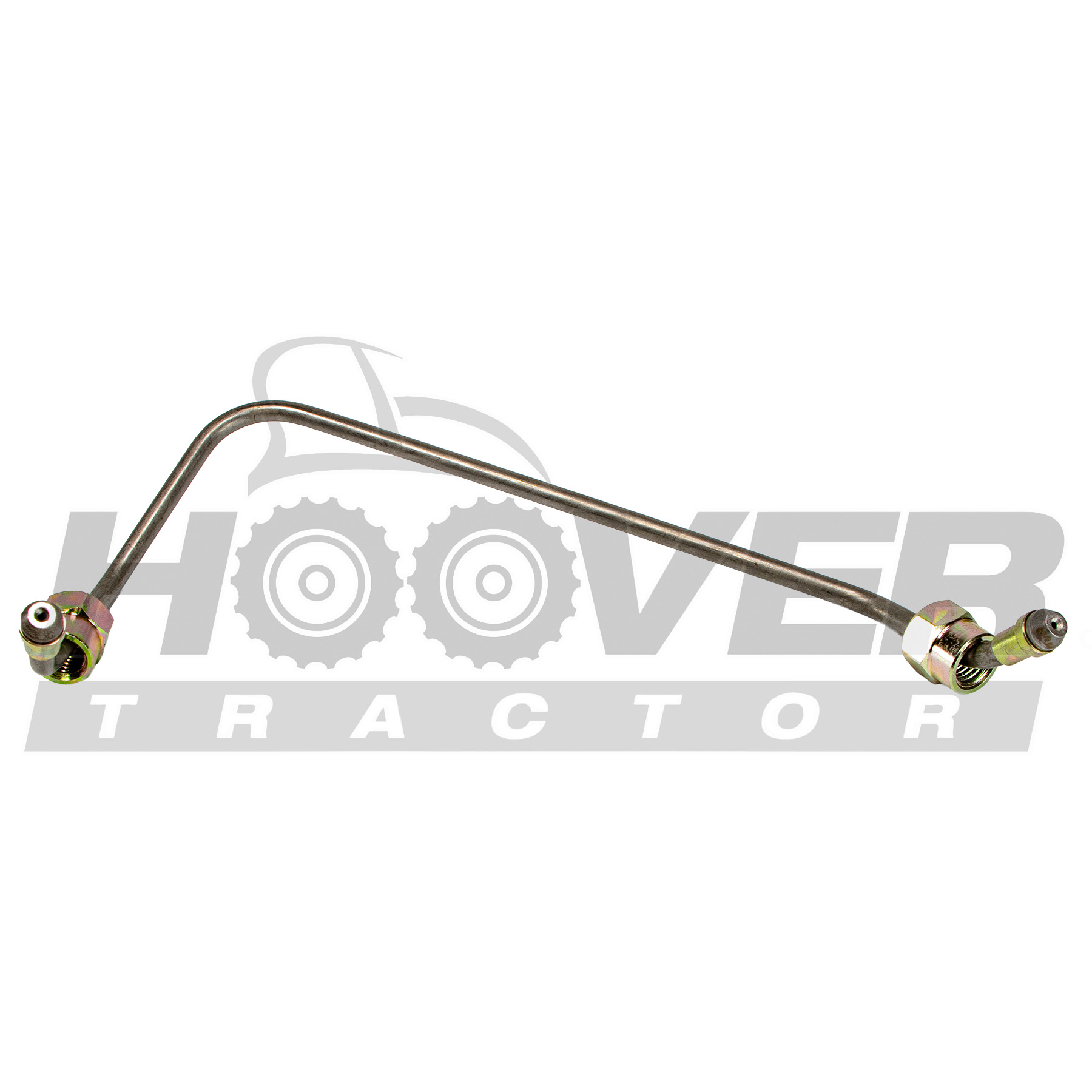

  • 5 TUBE 3, INJECTION v

    TUBE 3, INJECTION v

    • Part No. E5500-53734
    • Applied Dates 2000-05-04 and up
    • 1 shown on diagram
    $54.99
  • 6

    CLAMP 1, TUBE

    • Part No. 15121-5385-2
    • 2 shown on diagram
    $9.49
  • 7

    HOLDER, TUBE

    • Part No. T4815-67371
    • Applied Dates 2000-04-28 and up
    • 2 shown on diagram
    $7.49
  • 8

    SCREW, WASHER (03024-50520)

    • Part No. 03024-50520
    • DIA10*28
    • 2 shown on diagram
    $0.85
  • 9

    GLOW PLUG V, Replaced by E6303-65511

    • Part No. E6301-65512
    • Applied Dates 2003-04-26 and up
    • * multiple options for #9
    • 3 shown on diagram
    $44.33
  • 9 Glow Plug

    Glow Plug

    • Part No. E6303-65511
    • Compatibility Interchngable
    • * multiple options for #9
    • 3 shown on diagram
    $52.99
  • 10

    CORD, GLOW PLUG

    • Part No. 15401-6556-1
    • 2 shown on diagram
    $9.49
  • 11

    Hose Clamp (14971-4275-1)

    • Part No. 14971-4275-1
    • Applied Dates 2000-06-26 and up
    • DIA1.0*ID7.8
    • 2 shown on diagram
    $1.59
  • 12

    FUEL TUBE v

    • Part No. 09661-40300
    • Applied Dates 2000-06-26 and up
    • 1 shown on diagram
    $6.99
  • 13 Seal, Heat Shield

    Seal, Heat Shield

    • Part No. E6300-53651
    • Applied Dates 2000-05-04 and up
    • T0.8
    • 3 shown on diagram
    $4.49

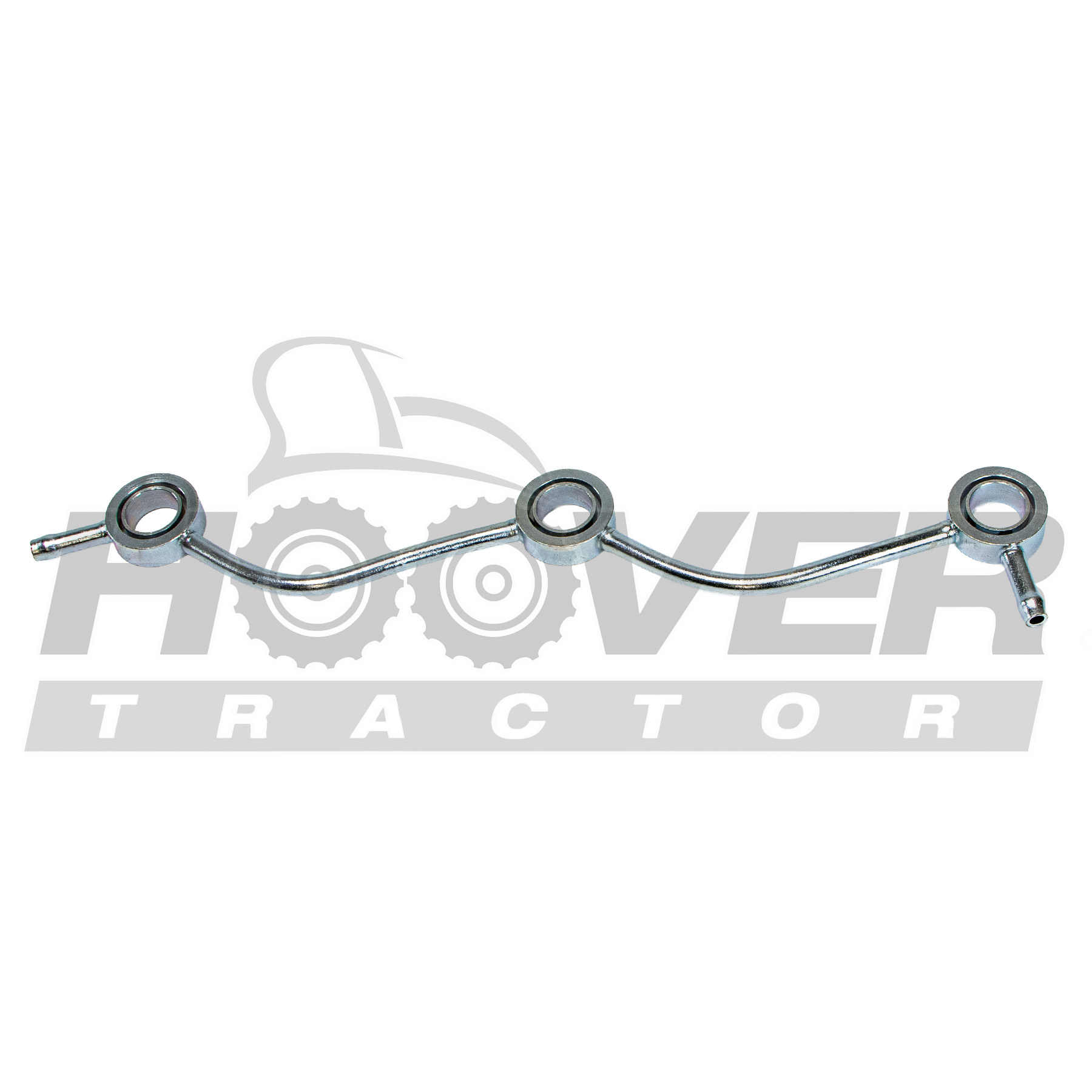

  • 14 HOSE, OVER FLOW

    HOSE, OVER FLOW

    • Part No. E5500-42501
    • Applied Dates 2000-05-04 and up
    • 1 shown on diagram
    $68.99
