TRANSMISSION CASE GROUP - T2555-G220

Kioti TRACTOR | CS Series | CS2410 (MY5100001 to NY5100240)

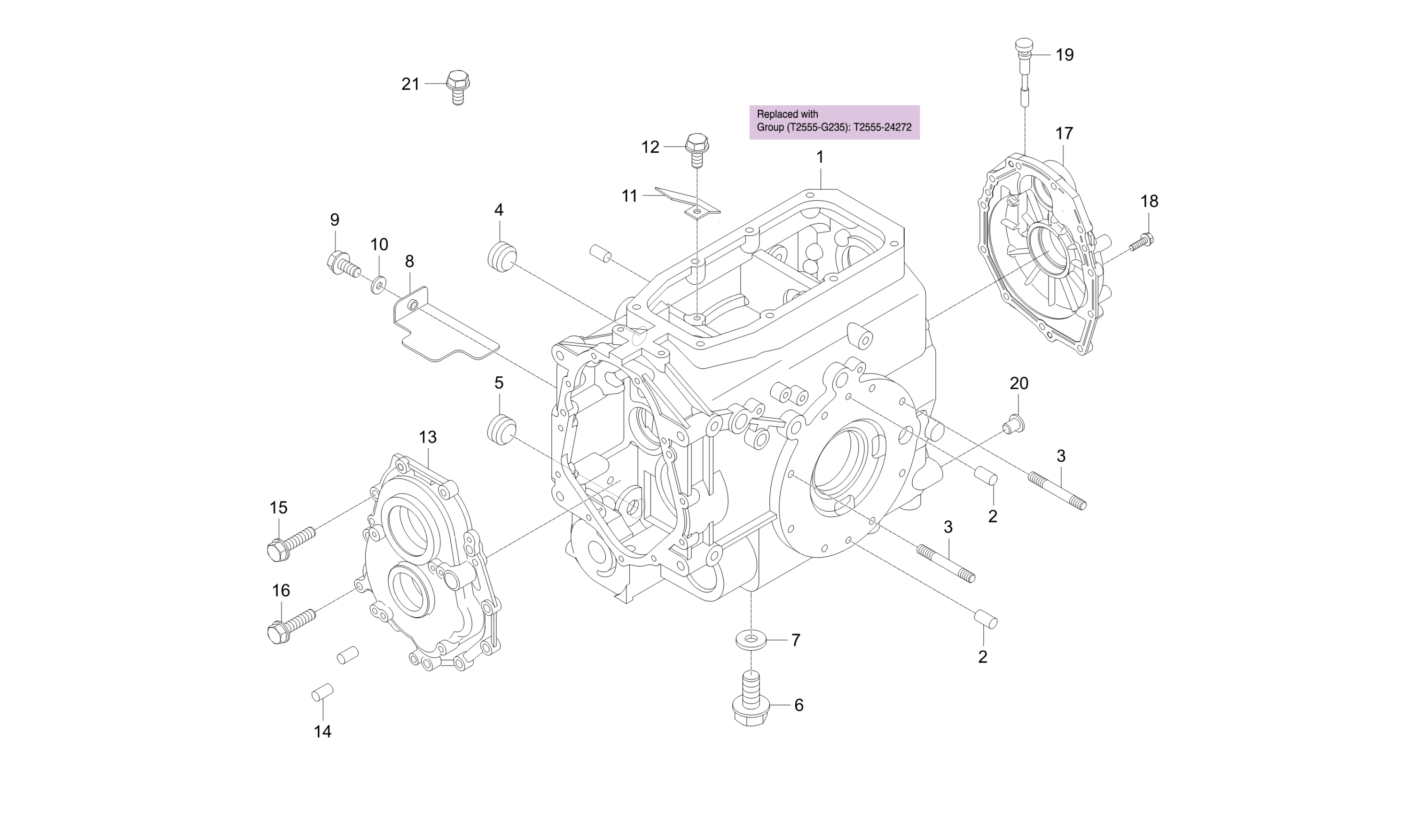

Diagram for TRANSMISSION CASE GROUP - T2555-G220
  • 1

    TRK TRANSMISSION CASE dnr v

    • Part No. T2555-21111
    • * multiple options for #1
    • 1 shown on diagram
    $1,294.99
  • 1

    CASE,T/M dnr v

    • Part No. T2555-21112
    • Compatibility New repl old
    • * multiple options for #1
    • 1 shown on diagram
    $1,329.99
  • 1

    MISSION CASE

    • Part No. T2555-21113
    • Compatibility Call for compat
    • * multiple options for #1
    • 1 shown on diagram
    $879.99
  • 1

    MISSION CASE

    • Part No. T2555-21114
    • Compatibility Call for compat
    • * multiple options for #1
    • 1 shown on diagram
    $944.99
  • 1

    MISSION CASE v

    • Part No. T2555-21115
    • Compatibility Interchngable
    • * multiple options for #1
    • 1 shown on diagram
    $1,329.99
  • 2

    PIN, STRAIHGT

    • Part No. 05012-00822
    • DIA8XL22
    • 8 shown on diagram
    $1.59
  • 3

    STUD

    • Part No. 01517-51040
    • 2 shown on diagram
    $4.49
  • 4

    PLUG(1/4)

    • Part No. T2555-22611
    • 1 shown on diagram
    $2.99
  • 5

    PLUG(1/2)

    • Part No. T2555-22621
    • 1 shown on diagram
    $4.99
  • 6 PLUG M16 P 1.25

    PLUG M16 P 1.25

    • Part No. 06331-45016
    • M16P1.5
    • 1 shown on diagram
    $3.99
  • 7 WASHER, SEAL

    WASHER, SEAL

    • Part No. 04717-01600
    • 1 shown on diagram
    $1.99
  • 8

    BRACKET

    • Part No. T2555-25111
    • 1 shown on diagram
    $11.99
  • 9 FLANGE BOLT, HEX HEAD M8

    FLANGE BOLT, HEX HEAD M8

    • Part No. 01754-50820
    • M8XP1.25
    • 1 shown on diagram
    $1.19
  • 10 WASHER, SEAL

    WASHER, SEAL

    • Part No. 04717-00800
    • M8
    • 1 shown on diagram
    $2.49
  • 11

    BRACKET

    • Part No. T2555-25121
    • 1 shown on diagram
    $6.99
  • 12 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50812
    • M8XP1.25
    • 1 shown on diagram
    $1.79
  • 13

    COVER,FRONT

    • Part No. T2555-21121
    • 1 shown on diagram
    $214.99
  • 14 PIN, PARALLEL

    PIN, PARALLEL

    • Part No. 05012-00818
    • DIA8XL18
    • 2 shown on diagram
    $1.59
  • 15 Bolt With Washer, M8 P1.25 x 22mm

    Bolt With Washer, M8 P1.25 x 22mm

    • Part No. 01123-50822
    • M8XP1.25
    • 10 shown on diagram
    $2.49
  • 16 BOLT v

    BOLT v

    • Part No. 01754-50835
    • M8XP1.25
    • 1 shown on diagram
    $1.89
  • 17

    COVER, PTO dnr v

    • Part No. T2555-21131
    • * multiple options for #17
    • 1 shown on diagram
    $189.99
  • 17

    COVER, PTO v

    • Part No. T2555-21132
    • Compatibility Interchngable
    • * multiple options for #17
    • 1 shown on diagram
    $199.99
  • 18 BOLT, FLANGE, M8 P1.25

    BOLT, FLANGE, M8 P1.25

    • Part No. 01754-50825
    • M8XP1.25
    • 11 shown on diagram
    $2.49
  • 19

    GAUGE

    • Part No. T2555-25211
    • 1 shown on diagram
    $19.99
  • 20

    PLUG

    • Part No. 32210-2758-1
    • M12
    • 2 shown on diagram
    $1.59
  • 21 BOLT, FLANGE, M8 P1.25

    BOLT, FLANGE, M8 P1.25

    • Part No. 01754-50825
    • M8XP1.25
    • 10 shown on diagram
    $2.49
