REAR AXLE GROUP - T2555-G265

Kioti TRACTOR | CS Series | CS2410 (MY5100001 to NY5100240)

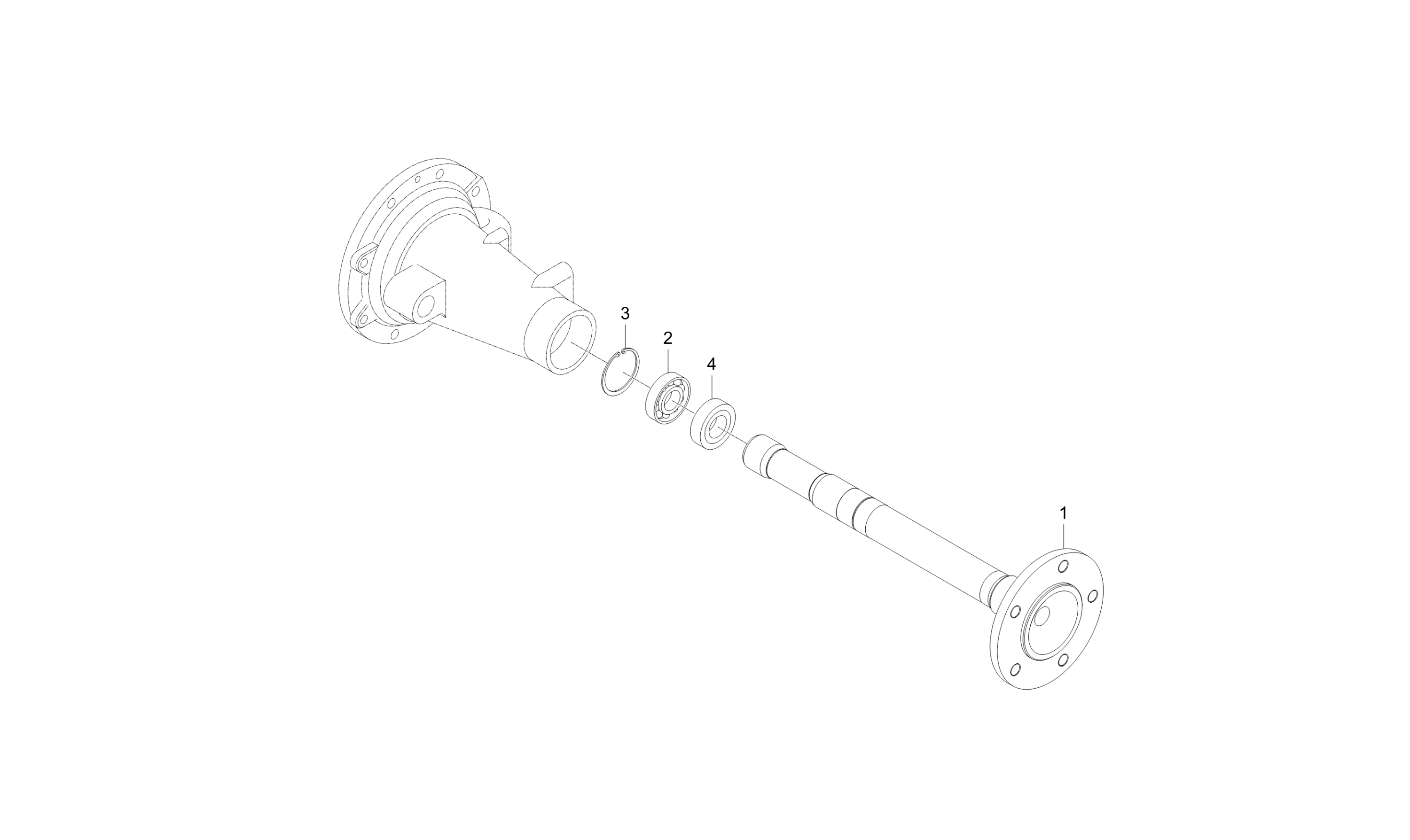

Diagram for REAR AXLE GROUP - T2555-G265
  • 1

    WHEEL SHAFT

    • Part No. T2555-27711
    • * multiple options for #1
    • 2 shown on diagram
    $334.99
  • 1

    AXLE, REAR

    • Part No. T2555-27712
    • Compatibility Interchngable
    • Applied Dates 2019-01-01 and up
    • Serial No. VY5100001 and up
    • * multiple options for #1
    • 2 shown on diagram
    $334.99

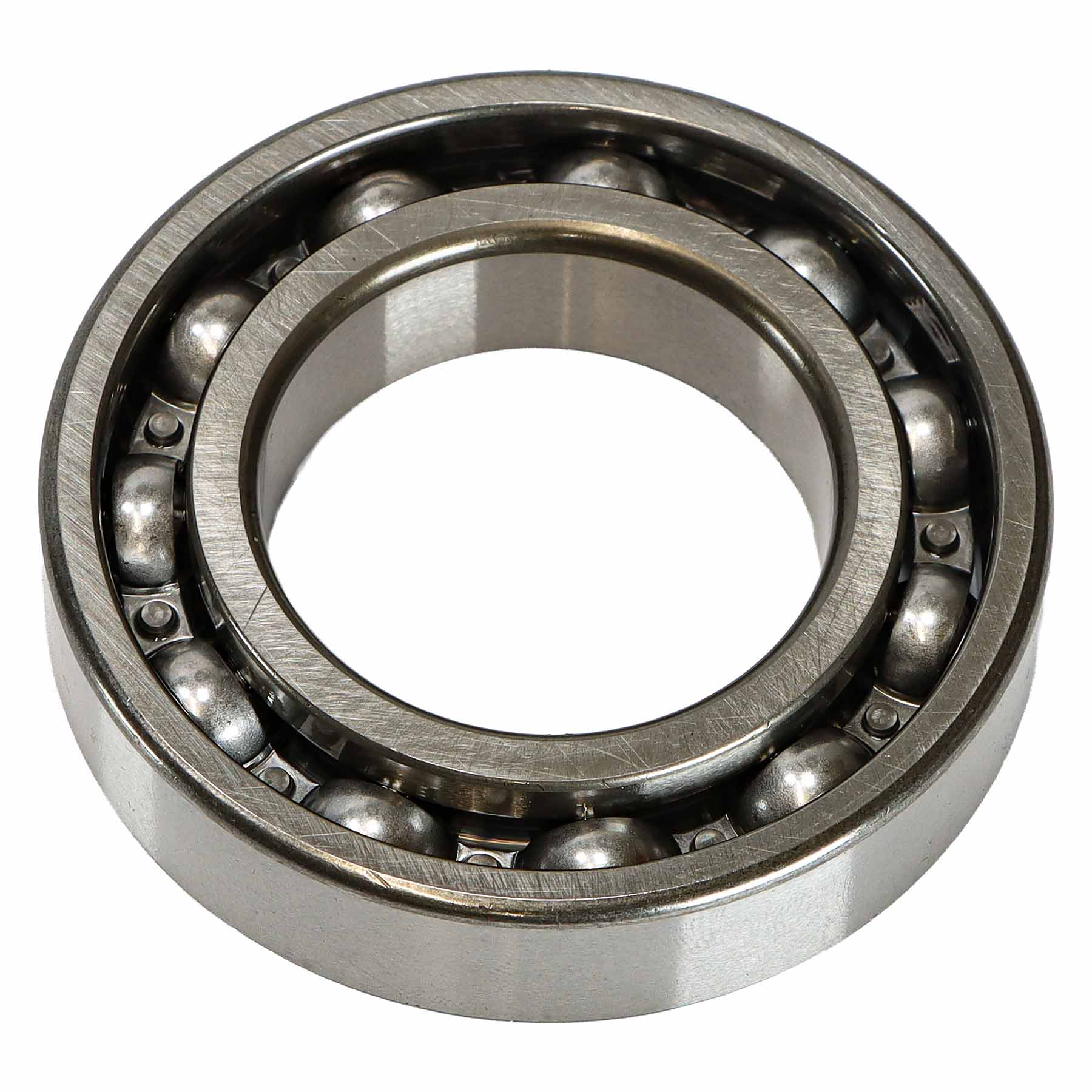

  • 2 BALL BEARING

    BALL BEARING

    • Part No. T2555-06007
    • #6007, GMB CHINA
    • 4 shown on diagram
    $23.99
  • 3 CIR CLIP, EXTERNAL

    CIR CLIP, EXTERNAL

    • Part No. 04612-00350
    • DIA35
    • 2 shown on diagram
    $1.89
  • 4 OIL SEAL

    OIL SEAL

    • Part No. T2555-29121
    • 2 shown on diagram
    $32.99
