4WD DRIVE GROUP - T2555-G270

Kioti TRACTOR | CS Series | CS2410 (MY5100001 to NY5100240)

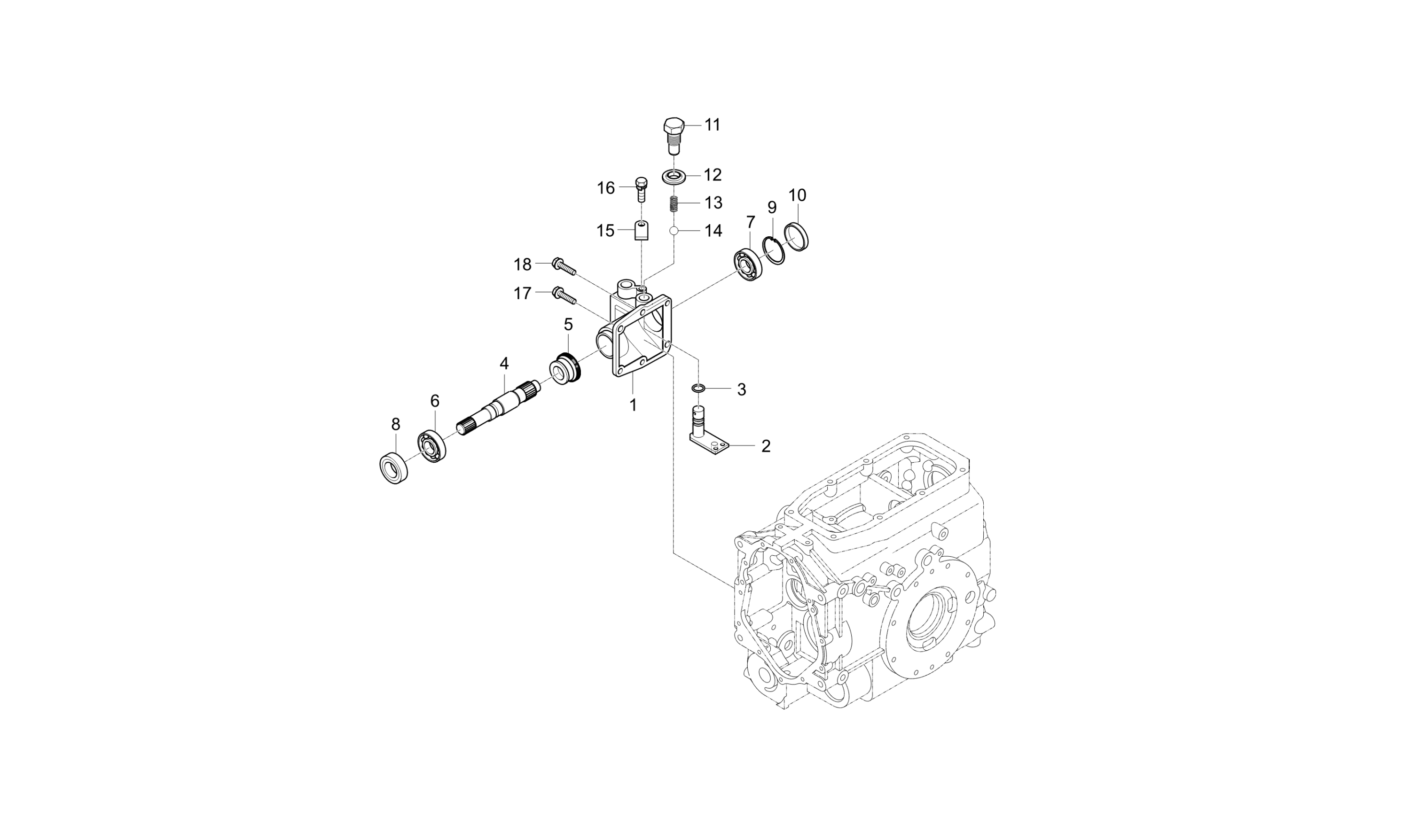

Diagram for 4WD DRIVE GROUP - T2555-G270
  • 1

    CASE

    • Part No. T2555-23111
    • 1 shown on diagram
    $184.99
  • 2

    ARM, SHIFT(FRONT)

    • Part No. T2555-23261
    • 1 shown on diagram
    $49.99
  • 3 O RING

    O RING

    • Part No. 04811-00140
    • 1 shown on diagram
    $0.90
  • 4

    DRIVE SHAFT

    • Part No. T2555-23271
    • 1 shown on diagram
    $84.99
  • 5

    SLIDING GEAR

    • Part No. T2555-23251
    • 1 shown on diagram
    $79.99
  • 6 BALL BEARING 25x47x12

    BALL BEARING 25x47x12

    • Part No. 08101-06005
    • DIA25
    • 1 shown on diagram
    $16.99
  • 7

    BEARING,BALL

    • Part No. 08101-06303
    • #6303
    • 1 shown on diagram
    $17.99

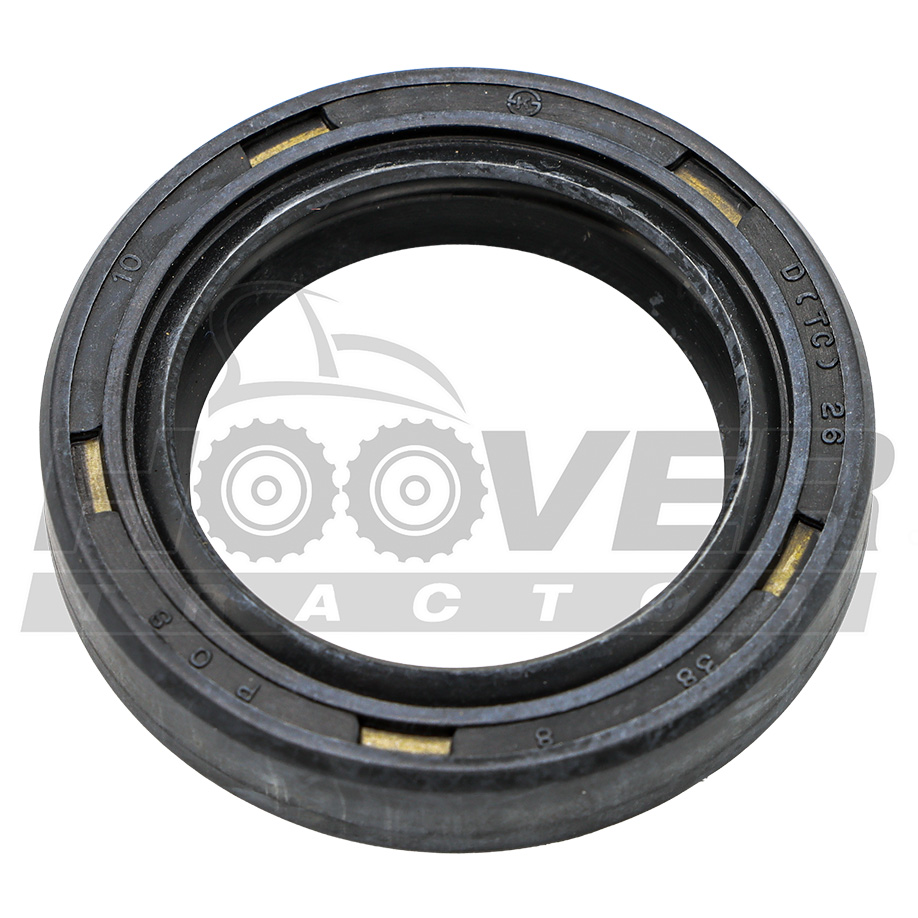

  • 8 SEAL, OIL 25x38x8

    SEAL, OIL 25x38x8

    • Part No. 09500-25388
    • 1 shown on diagram
    $5.99
  • 9

    RING,SNAP

    • Part No. 04611-00470
    • DIA47
    • 1 shown on diagram
    $2.99

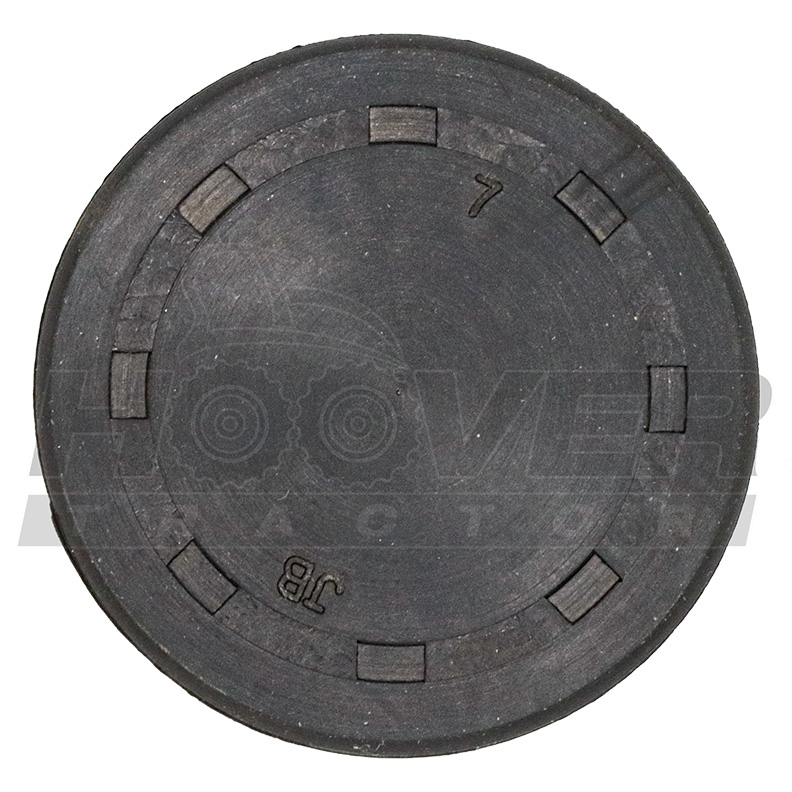

  • 10 SEAL COVER

    SEAL COVER

    • Part No. T2555-23281
    • 1 shown on diagram
    $9.99
  • 11

    BOLT

    • Part No. T2555-23311
    • 1 shown on diagram
    $15.99
  • 12 WASHER, SEAL

    WASHER, SEAL

    • Part No. 04717-01600
    • 1 shown on diagram
    $1.99
  • 13 Friction Spring

    Friction Spring

    • Part No. T2555-22281
    • 1 shown on diagram
    $2.99
  • 14

    BALL

    • Part No. 07715-00803
    • 1 shown on diagram
    $1.29
  • 15

    STOPPER

    • Part No. T2555-23331
    • 1 shown on diagram
    $5.49
  • 16 Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    • Part No. 01123-50816
    • M8XP1.25
    • 1 shown on diagram
    $1.09
  • 17 BOLT, FLANGE, M8 P1.25

    BOLT, FLANGE, M8 P1.25

    • Part No. 01754-50825
    • M8XP1.25
    • 5 shown on diagram
    $2.49
  • 18 BOLT v

    BOLT v

    • Part No. 01754-50835
    • M8XP1.25
    • 1 shown on diagram
    $1.89
