ASSY,HST GROUP - T2555-G610

Kioti TRACTOR | CS Series | CS2410 (MY5100001 to NY5100240)

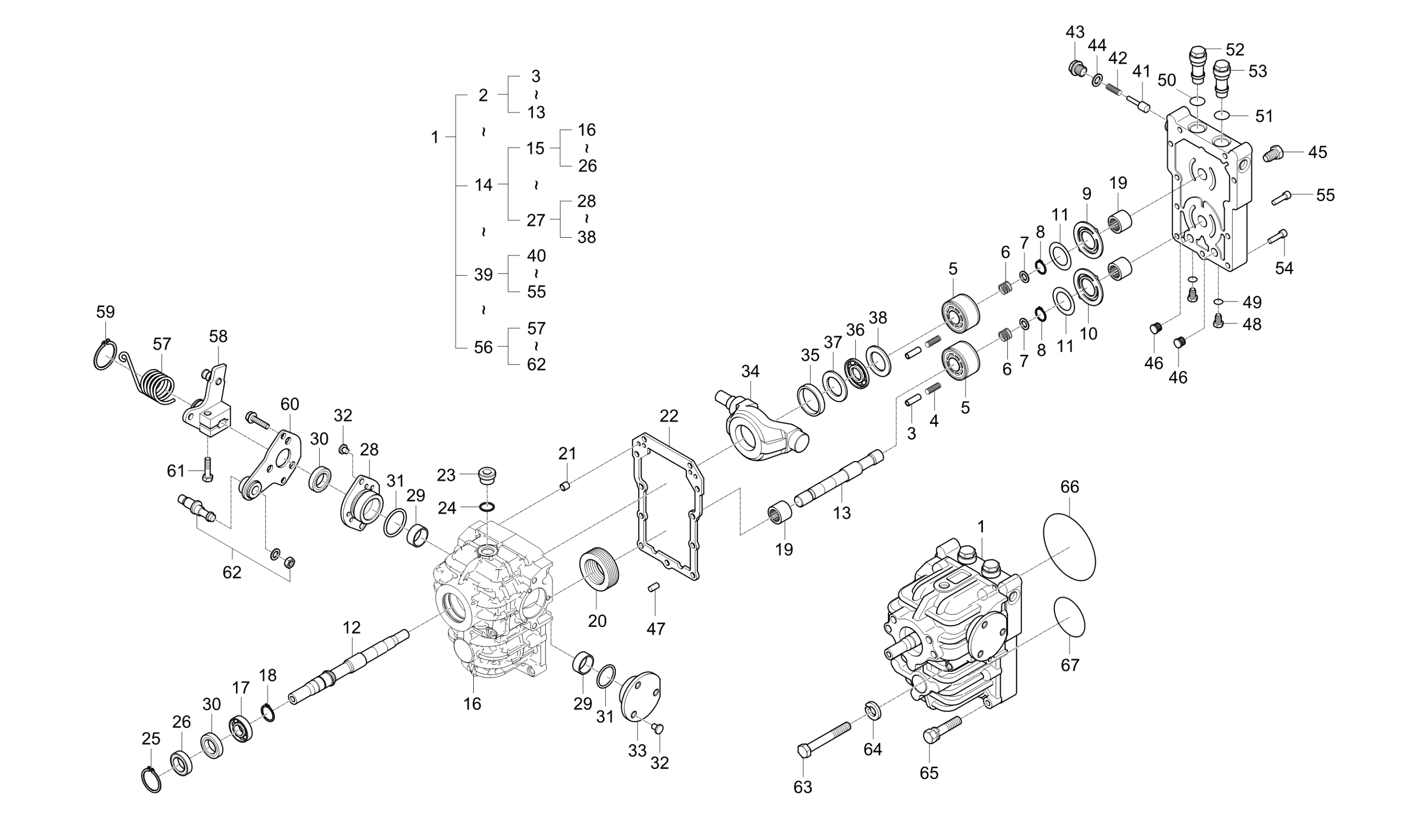

Diagram for ASSY,HST GROUP - T2555-G610
  • 1

    HST ASSEMBLY

    • Part No. T2555-30011
    • * multiple options for #1
    • 1 shown on diagram
    $2,629.99
  • 1

    HST Assembly, Replaced by T2555-30014

    • Part No. T2555-30012
    • Compatibility No interchange
    • Applied Dates 2013-06-01 and up
    • Serial No. NY5100071 and up
    • * multiple options for #1
    • 1 shown on diagram
    $0.00
  • 1

    TRK – HST Assembly

    • Part No. T2555-30013
    • Compatibility Interchngable
    • Applied Dates 2019-01-01 and up
    • Serial No. VY5100001 and up
    • * multiple options for #1
    • 1 shown on diagram
    $4,129.99
  • 1

    TRK – HST ASSEMBLY

    • Part No. T2555-30014
    • Compatibility Interchngable
    • * multiple options for #1
    • 1 shown on diagram
    $3,774.99
  • 2

    Rotary Part

    • Part No. 0011-1
    • 1 shown on diagram
    $0.00
  • 3

    PISTON

    • Part No. H011-500-A
    • 14 shown on diagram
    $0.00
  • 4

    Friction Spring

    • Part No. 0011-1-1-02
    • 14 shown on diagram
    $0.00
  • 5

    CYLINDER BLOCK

    • Part No. H011-200-A
    • 2 shown on diagram
    $0.00
  • 6

    Friction Spring

    • Part No. 0011-1-1-04
    • 2 shown on diagram
    $0.00
  • 7

    Spring Seat

    • Part No. 0011-1-1-05
    • 2 shown on diagram
    $0.00
  • 8

    Snap Ring

    • Part No. 0011-1-1-06
    • DIA24(IRTW)
    • 2 shown on diagram
    $0.00
  • 9

    VALVE PLATE

    • Part No. H011-203-A
    • 1 shown on diagram
    $289.99
  • 10

    VALVE PLATE

    • Part No. H011-204-A
    • 1 shown on diagram
    $289.99
  • 11

    Shim

    • Part No. 0011-1-1-08
    • 14 shown on diagram
    $0.00
  • 12

    SHAFT

    • Part No. H011-205-A
    • 1 shown on diagram
    $0.00
  • 13

    SHAFT

    • Part No. H011-206-A
    • 1 shown on diagram
    $0.00
  • 14

    Casing Part

    • Part No. 0011-2
    • 1 shown on diagram
    $0.00
  • 15

    Main Casing Ass’y

    • Part No. 0011-2-2
    • 1 shown on diagram
    $0.00
  • 16

    MAIN CASING

    • Part No. H011-507-A
    • 1 shown on diagram
    $0.00
  • 17

    Ball Bearing Obs V

    • Part No. 0011-2-2-02
    • #6204
    • 1 shown on diagram
    $61.99
  • 18

    Snap Ring, Replaced by K11-008

    • Part No. 0011-2-2-03
    • DIA20 (shaft)
    • 1 shown on diagram
    $0.00
  • 19

    Needle Bearing

    • Part No. 0011-2-2-04
    • HK1816
    • 3 shown on diagram
    $0.00
  • 20

    Thrust Ball Bearing

    • Part No. 0011-2-2-05
    • 1 shown on diagram
    $194.99
  • 21

    Pin

    • Part No. 0011-2-2-06
    • DIA6x14
    • 2 shown on diagram
    $0.00
  • 22

    Gasket

    • Part No. 0011-2-2-07
    • 1 shown on diagram
    $58.99
  • 23

    Plug

    • Part No. 0011-2-2-08
    • PF 3/8
    • 1 shown on diagram
    $0.00
  • 24

    O Ring

    • Part No. 0011-2-2-09
    • BP 14
    • 1 shown on diagram
    $0.00
  • 25

    Snap Ring, Replaced by K11-019

    • Part No. 0011-2-2-10
    • DIA47 (hole)
    • 2 shown on diagram
    $0.00
  • 26

    Bearing Cover, Replaced by H011-210-A

    • Part No. 0011-2-3-01
    • 1 shown on diagram
    $0.00
  • 27

    Swash Cover Ass’y

    • Part No. 0011-2-1
    • 1 shown on diagram
    $0.00
  • 28

    COVER(A)

    • Part No. H011-503-C
    • 1 shown on diagram
    $199.99
  • 29

    Ball Bearing, Replaced by K01-031

    • Part No. 0011-2-1-02
    • OD30 X ID34 X L15
    • 2 shown on diagram
    $0.00
  • 30

    Oil Seal

    • Part No. 0011-2-1-03
    • OD20 X ID35 X L6
    • * multiple options for #30
    • 2 shown on diagram
    $0.00
  • 30 OIL SEAL 20x35x6 (blue), Replaced by K04-028

    OIL SEAL 20x35x6 (blue), Replaced by K04-028

    • Part No. 300024
    • Compatibility Interchngable
    • OD20X ID35x6L
    • * multiple options for #30
    • 2 shown on diagram
    $0.00
  • 31 O-Ring Obs V

    O-Ring Obs V

    • Part No. 0011-2-1-04
    • BP 41
    • 3 shown on diagram
    $13.99
  • 32

    Lench Bolt

    • Part No. 0011-2-1-05
    • M6x12L
    • 6 shown on diagram
    $0.00
  • 33

    Cover B

    • Part No. 0011-2-1-06
    • 1 shown on diagram
    $0.00
  • 34

    Swash Plate(P)

    • Part No. 0011-2-1-07
    • 1 shown on diagram
    $0.00
  • 35

    Hush DU

    • Part No. 0011-2-1-08
    • 1 shown on diagram
    $0.00
  • 36

    Thrust Ball Bearing

    • Part No. 0011-2-1-09
    • 1 shown on diagram
    $129.99
  • 37

    B-R Plate A

    • Part No. 0011-2-1-10
    • 1 shown on diagram
    $129.99
  • 38

    B-R Plate B

    • Part No. 0011-2-1-11
    • 1 shown on diagram
    $129.99
  • 39

    VALVE BLOCK

    • Part No. 0011-3
    • 1 shown on diagram
    $0.00
  • 40

    VALVE BLOCK

    • Part No. 0011-3-1-01
    • 1 shown on diagram
    $0.00
  • 41

    CHECK v

    • Part No. 0011-3-1-02
    • 1 shown on diagram
    $59.99
  • 42

    FRICTION SPRING v

    • Part No. 0011-3-1-03
    • 1 shown on diagram
    $8.49
  • 43

    Plug, Replaced by H011-213

    • Part No. 0011-3-1-04
    • PF 1/4
    • 1 shown on diagram
    $35.99
  • 44

    O RING

    • Part No. 0011-3-1-05
    • BP 11
    • 1 shown on diagram
    $1.79
  • 45

    PLUG

    • Part No. 0011-3-1-06
    • 1 shown on diagram
    $0.00
  • 46

    ASSY,CHECK VALVE

    • Part No. 0011-3-1-08
    • 2 shown on diagram
    $89.99
  • 47

    PIN

    • Part No. 0011-3-1-09
    • DIA4x10L
    • 2 shown on diagram
    $0.00
  • 48

    PLUG

    • Part No. 0011-3-1-10
    • PF 1/8
    • 2 shown on diagram
    $0.00
  • 49

    O RING

    • Part No. 0011-3-1-11
    • BP 8
    • 2 shown on diagram
    $0.00
  • 50

    O Ring

    • Part No. 0011-3-1-12
    • G70
    • 1 shown on diagram
    $0.00
  • 51

    O RING

    • Part No. 0011-3-1-13
    • G55
    • 1 shown on diagram
    $0.00
  • 52

    ASSY, RELIEF VALVE

    • Part No. 0011-3-1-14
    • 215k,PORT TYPE
    • 1 shown on diagram
    $309.99
  • 53

    ASSY, RELIEF VALVE

    • Part No. 0011-3-1-15
    • 215k,PORT TYPE
    • 1 shown on diagram
    $309.99
  • 54

    LENCH BOLT

    • Part No. 0011-3-1-16
    • M8x40L
    • 5 shown on diagram
    $15.99
  • 55

    LENCH BOLT

    • Part No. 0011-3-1-17
    • M8x35L
    • 2 shown on diagram
    $15.99
  • 56

    LEVER v

    • Part No. 0011-4
    • 1 shown on diagram
    $274.99
  • 57

    SPRING

    • Part No. 0011-4-1-01
    • 1 shown on diagram
    $11.99
  • 58

    ASSY,LEVER KIT

    • Part No. 0011-4-1-02
    • 1 shown on diagram
    $0.00
  • 59

    Snap Ring, Replaced by K11-009

    • Part No. 0011-4-1-03
    • DIA30 (axis)
    • 1 shown on diagram
    $0.00
  • 60

    Lever Guide, Replaced By 0011-4

    • Part No. 0011-4-1-04
    • 1 shown on diagram
    $0.00
  • 61

    Lench Bolt, Replaced By 0011-4

    • Part No. 0011-4-1-05
    • M10x40L
    • 1 shown on diagram
    $1.69
  • 62

    Lench Bolt, Replaced by 0011-4

    • Part No. 0011-4-1-06
    • M8x20L
    • 1 shown on diagram
    $1.19
  • 63

    BOLT

    • Part No. T2555-30121
    • M8
    • 2 shown on diagram
    $6.49
  • 64 Spring Lock Washer M8

    Spring Lock Washer M8

    • Part No. 04512-50080
    • M08
    • 2 shown on diagram
    $0.61
  • 65

    Bolt With Washer, M8 P1.25 x 65mm

    • Part No. 01123-50865
    • M8XP1.25
    • 2 shown on diagram
    $3.49
  • 66

    O RING

    • Part No. T8105-85080
    • 1 shown on diagram
    $9.99
  • 67 O RING

    O RING

    • Part No. 04811-50500
    • 1 shown on diagram
    $1.29
