HI-LOW GEAR GROUP - T2555-G225

Kioti TRACTOR | CS Series | CS2410 (MY5100001 to NY5100240)

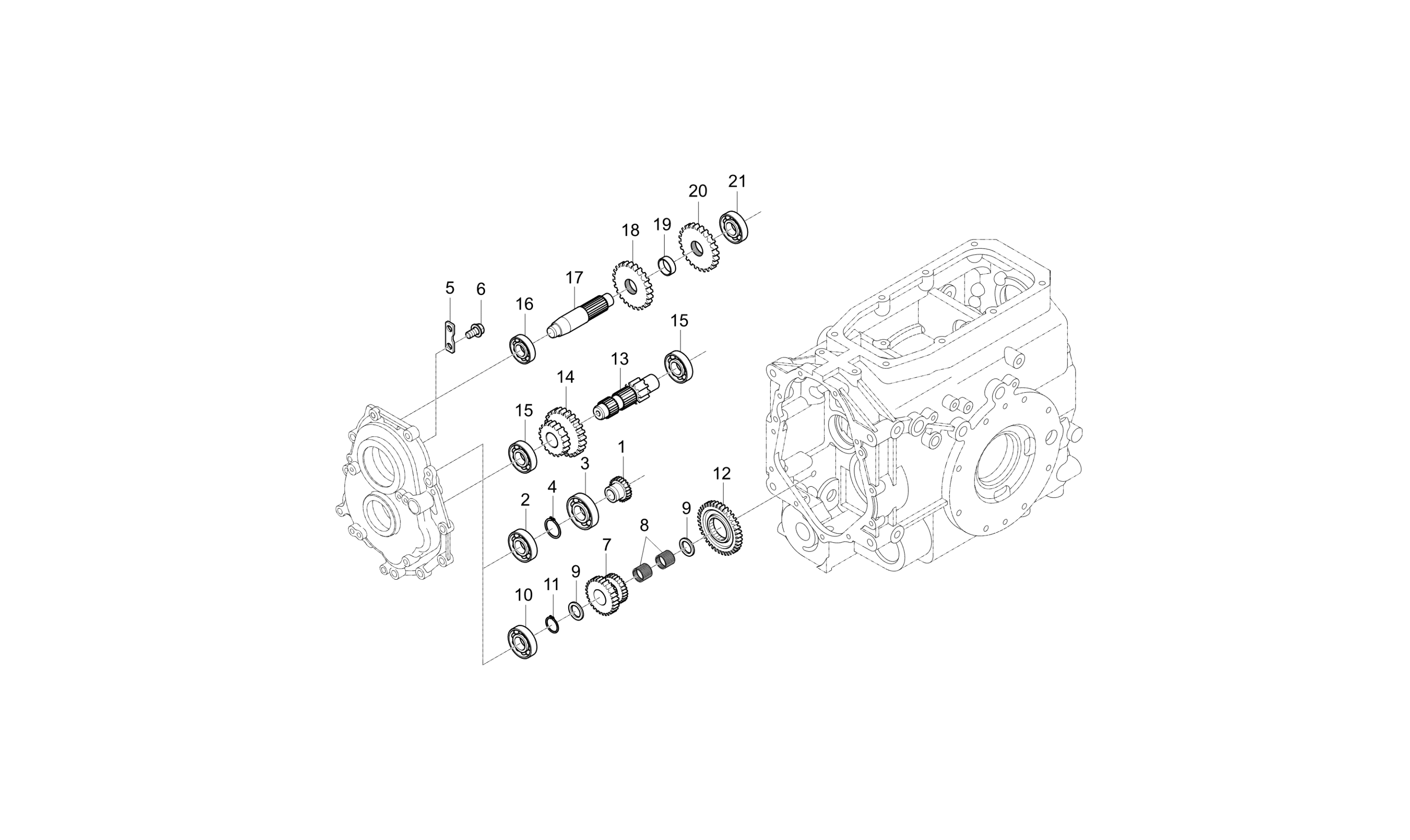

Diagram for HI-LOW GEAR GROUP - T2555-G225
  • 1

    GEAR

    • Part No. T2555-22211
    • 1 shown on diagram
    $61.99
  • 2

    BALL BEARING

    • Part No. T2555-06006
    • #6006, GMB CHINA
    • 1 shown on diagram
    $15.99
  • 3

    BALL BEARING

    • Part No. T2555-06206
    • #6206, GMB CHINA
    • 1 shown on diagram
    $19.99
  • 4 Snap Ring 30mm

    Snap Ring 30mm

    • Part No. 04612-00300
    • DIA30
    • 1 shown on diagram
    $1.59
  • 5

    STOPPER

    • Part No. T2555-22221
    • 1 shown on diagram
    $2.99
  • 6 Bolt With Washer, M8 P1.25 x 20mm

    Bolt With Washer, M8 P1.25 x 20mm

    • Part No. 01123-50820
    • M8XP1.25
    • 2 shown on diagram
    $2.49
  • 7

    GEAR,COUNTER

    • Part No. T2555-22231
    • 1 shown on diagram
    $129.99
  • 8

    BEARING, NIDDLE

    • Part No. T2555-53025
    • 25x30x25, GMB CHINA
    • 2 shown on diagram
    $21.99
  • 9

    COLLAR, THRUST

    • Part No. T2555-25311
    • 2 shown on diagram
    $9.99
  • 10 Bearing 25x52x15

    Bearing 25x52x15

    • Part No. 08101-06205
    • DIA25
    • 1 shown on diagram
    $17.99
  • 11 CIR-CLIP

    CIR-CLIP

    • Part No. 04612-00250
    • DIA25
    • 1 shown on diagram
    $1.09
  • 12

    GEAR

    • Part No. T2555-22321
    • 1 shown on diagram
    $85.99
  • 13

    SHAFT,COUNTER

    • Part No. T2555-22311
    • 1 shown on diagram
    $99.99
  • 14

    SLIDING GEAR

    • Part No. T2555-22241
    • 1 shown on diagram
    $109.99
  • 15

    Ball Bearing

    • Part No. T2555-06205
    • #6205, GMB CHINA
    • 2 shown on diagram
    $14.99
  • 16

    BALL BEARING

    • Part No. T2555-06004
    • #6004, GMB CHINA
    • 1 shown on diagram
    $12.99
  • 17

    SHAFT,COUNTER

    • Part No. T2555-23221
    • 1 shown on diagram
    $65.99
  • 18

    GEAR

    • Part No. T2555-23211
    • 1 shown on diagram
    $74.99
  • 19

    COLLAR

    • Part No. T2555-23231
    • 1 shown on diagram
    $9.49
  • 20

    GEAR

    • Part No. T2555-23241
    • 1 shown on diagram
    $86.99
  • 21

    Ball Bearing

    • Part No. T2555-06304
    • #6304, GMB CHINA
    • 1 shown on diagram
    $15.99
