4WD JOINT GROUP - T2555-G355

Kioti TRACTOR | CS Series | CS2410 (MY5100001 to NY5100240)

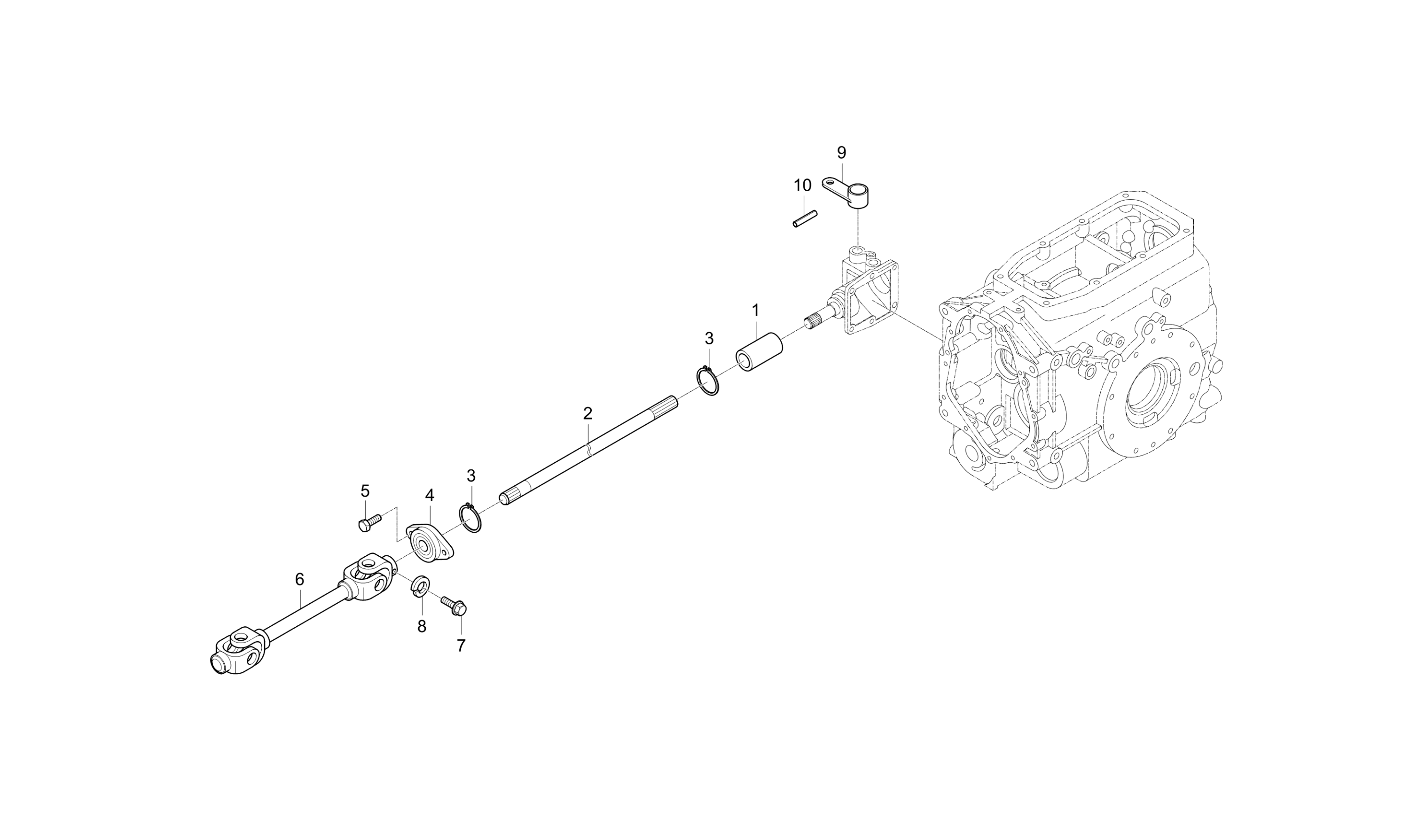

Diagram for 4WD JOINT GROUP - T2555-G355

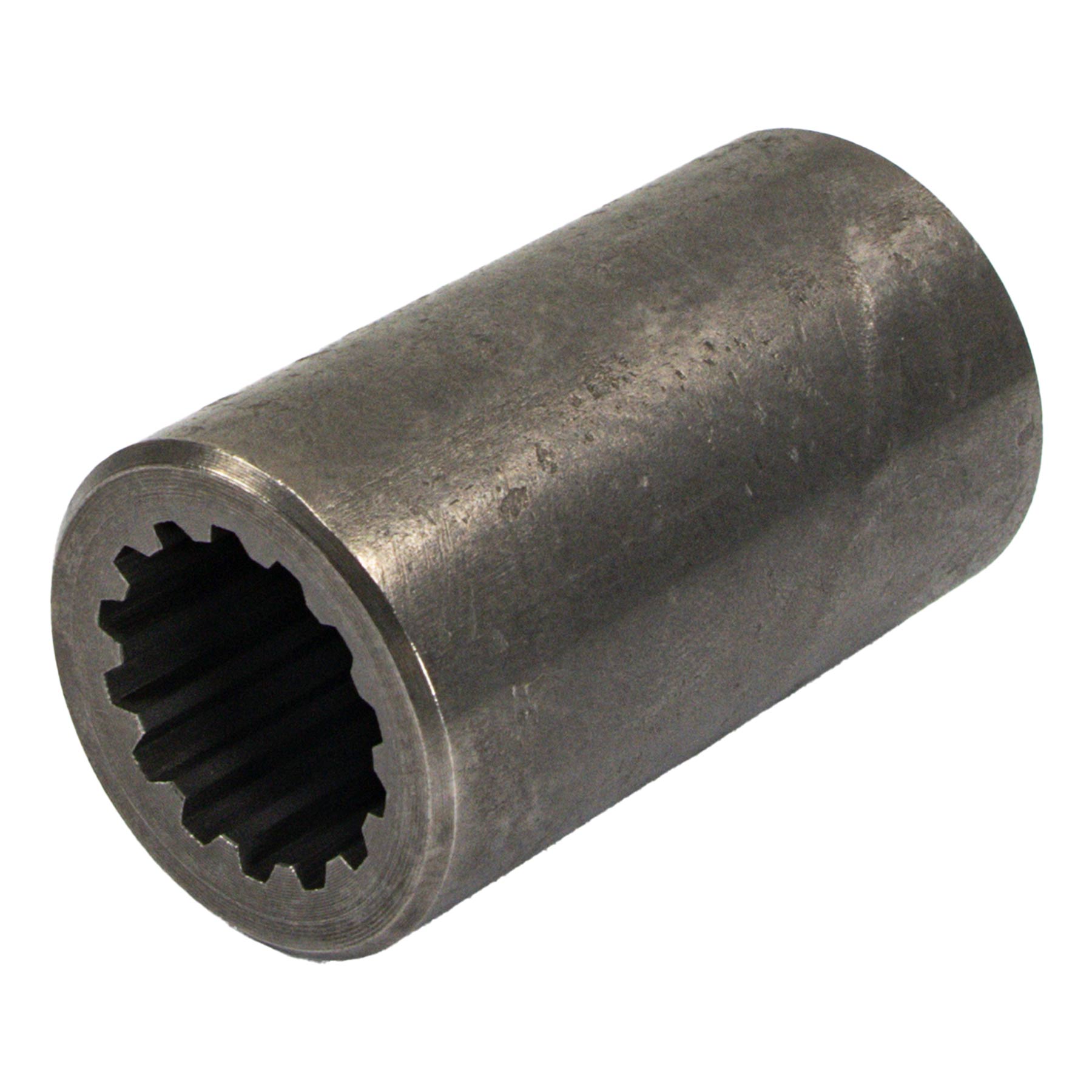

  • 1 COUPLING

    COUPLING

    • Part No. T2555-44551
    • 1 shown on diagram
    $39.99
  • 2

    SHAFT,PROPELLER

    • Part No. T2555-44572
    • 1 shown on diagram
    $109.99

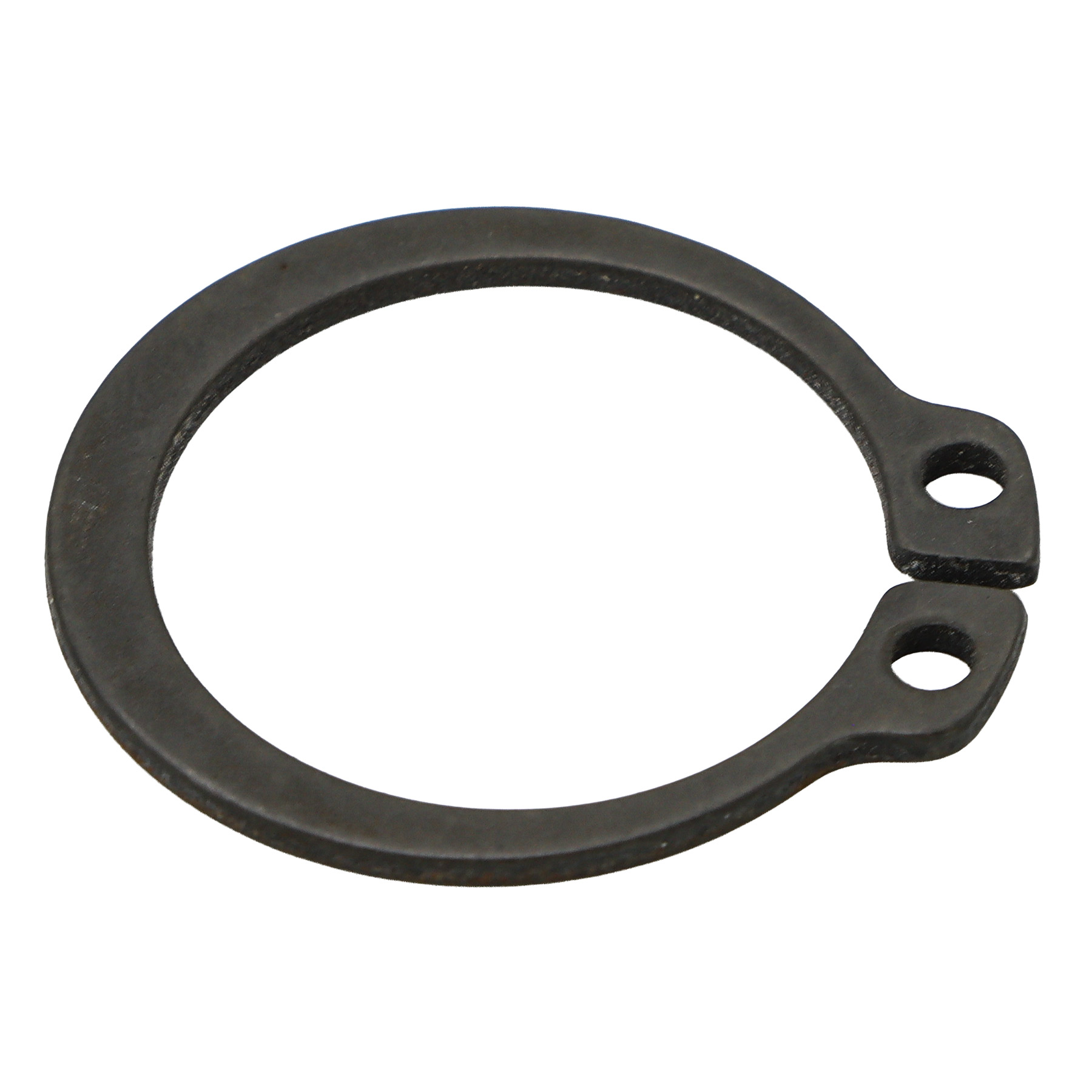

  • 3 Snap Ring (04612-00200)

    Snap Ring (04612-00200)

    • Part No. 04612-00200
    • DIA20
    • 2 shown on diagram
    $1.09
  • 4

    UNIT, BALL BEARING

    • Part No. T2555-44581
    • CSFB 204 LLU
    • 1 shown on diagram
    $144.99
  • 5 Bolt With Washer, M8 P1.25 x 25mm

    Bolt With Washer, M8 P1.25 x 25mm

    • Part No. 01123-50825
    • M8XP1.25
    • * multiple options for #5
    • 2 shown on diagram
    $1.99
  • 5 Bolt With Washer, M8 P1.25 x 28mm

    Bolt With Washer, M8 P1.25 x 28mm

    • Part No. 01123-50828
    • Compatibility Interchngable
    • * multiple options for #5
    • 2 shown on diagram
    $2.49
  • 6

    JOINT v

    • Part No. T2555-44511
    • * multiple options for #6
    • 1 shown on diagram
    $364.99
  • 6 JOINT v

    JOINT v

    • Part No. T2555-44512
    • Compatibility Interchngable
    • * multiple options for #6
    • 1 shown on diagram
    $419.99
  • 7 BOLT, HOLDER

    BOLT, HOLDER

    • Part No. T2555-44591
    • M8
    • 1 shown on diagram
    $2.49
  • 8 Spring Lock Washer M8

    Spring Lock Washer M8

    • Part No. 04512-50080
    • M08
    • 1 shown on diagram
    $0.61
  • 9

    ARM, 4WD

    • Part No. T2555-44761
    • 1 shown on diagram
    $16.99
  • 10

    PIN, SPRING

    • Part No. 05411-00632
    • DIA6.4XL32
    • 1 shown on diagram
    $0.90
