REAR DIFFERENTIAL SYSTEM GROUP - T2555-G260

Kioti TRACTOR | CS Series | CS2410 (MY5100001 to NY5100240)

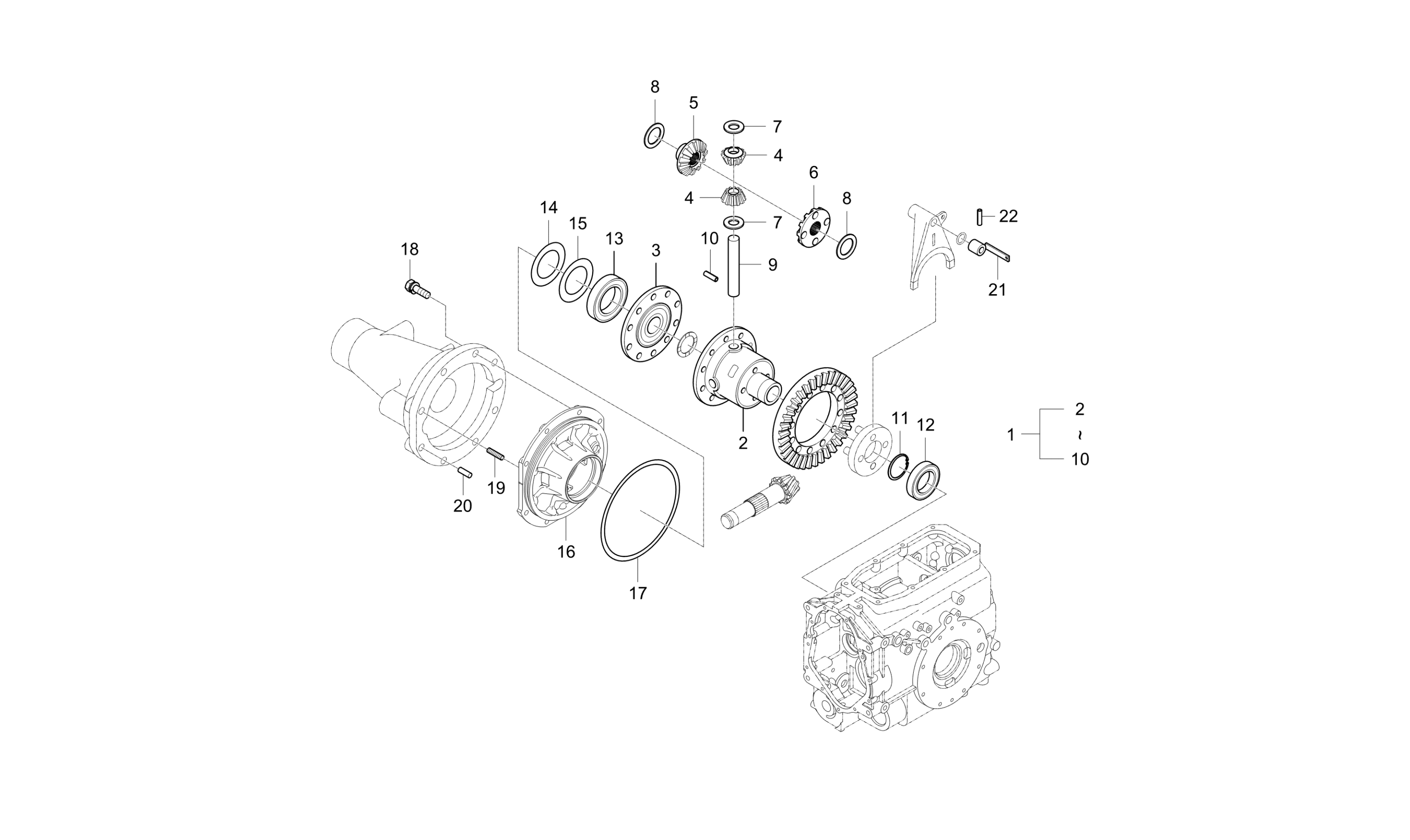

Diagram for REAR DIFFERENTIAL SYSTEM GROUP - T2555-G260
  • 1

    REAR DIFFERENTIAL ASSEMBLY

    • Part No. T2555-27101
    • 1 shown on diagram
    $839.99
  • 2

    CASE,REAR DIFF

    • Part No. T2555-27211
    • 1 shown on diagram
    $209.99
  • 3

    COVER,DIFFERENTIAL CASE

    • Part No. T2555-27231
    • 1 shown on diagram
    $84.99
  • 4

    PINION

    • Part No. T2555-27241
    • 2 shown on diagram
    $49.99
  • 5

    GEAR,DIFF. SIDE

    • Part No. T2555-27281
    • 1 shown on diagram
    $61.99
  • 6

    GEAR,DIFF. SIDE

    • Part No. T2555-27271
    • 1 shown on diagram
    $114.99
  • 7

    WASHER

    • Part No. T2555-27251
    • 2 shown on diagram
    $9.99
  • 8

    WASHER,THRUST

    • Part No. T2555-27291
    • 2 shown on diagram
    $14.99
  • 9

    SHAFT,PINION

    • Part No. T2555-27331
    • 1 shown on diagram
    $32.99
  • 10

    PIN, DOWEL

    • Part No. 05012-00525
    • 1 shown on diagram
    $2.49
  • 11

    SNAP RING

    • Part No. 04612-00500
    • 1 shown on diagram
    $3.49
  • 12 BEARING,BALL 50x80x16

    BEARING,BALL 50x80x16

    • Part No. 08101-06010
    • #6010
    • 1 shown on diagram
    $49.99
  • 13 BEARING,BALL

    BEARING,BALL

    • Part No. 08101-06012
    • 1 shown on diagram
    $71.99
  • 14

    SHIM 0.10

    • Part No. T2555-27411
    • 1 shown on diagram
    $4.49
  • 15

    SHIM 0.20

    • Part No. T2555-27421
    • 1 shown on diagram
    $4.49
  • 16

    WINNOW BEARING HOLDER

    • Part No. T2555-27351
    • * multiple options for #16
    • 1 shown on diagram
    $139.99
  • 16

    WINNOW BEARING HOLDER

    • Part No. T2555-27352
    • Compatibility Call for compat
    • * multiple options for #16
    • 1 shown on diagram
    $159.99
  • 17

    O RING

    • Part No. T2555-27361
    • G210
    • 1 shown on diagram
    $29.99
  • 18 BOLT, WASHER

    BOLT, WASHER

    • Part No. 01133-51030
    • M10XP1.25
    • 8 shown on diagram
    $2.99
  • 19

    STUD

    • Part No. 01517-51040
    • 2 shown on diagram
    $4.49
  • 20 PIN, PARALLEL

    PIN, PARALLEL

    • Part No. 05012-00818
    • DIA8XL18
    • 2 shown on diagram
    $1.59
  • 21

    LEVER, DIFFLOCK

    • Part No. T2555-26591
    • 1 shown on diagram
    $19.99
  • 22

    PIN, SPRING

    • Part No. 05411-00632
    • DIA6.4XL32
    • 1 shown on diagram
    $0.90
