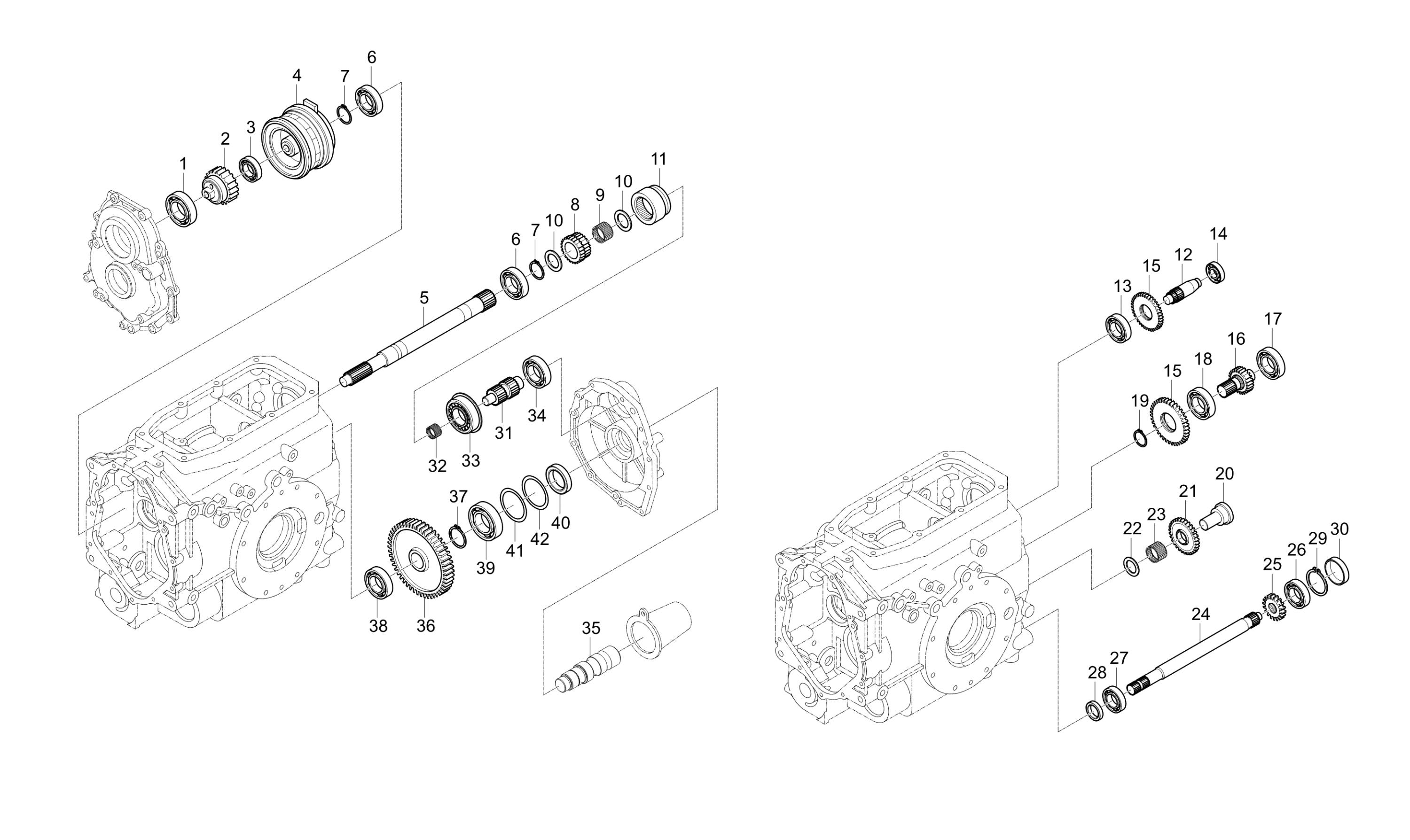

PTO GEAR GROUP - T2555-G235
Kioti TRACTOR | CS Series | CS2410 (MY5100001 to NY5100240)
-
BALL BEARING
- Part No. T2555-66206
- #6206Z, GMB CHINA
- 1 shown on diagram
$22.99 -
HUB, SPLINE
- Part No. T2555-24111
- 1 shown on diagram
$169.99 -
BALL BEARING
- Part No. T2555-06303
- #6303, GMB CHINA
- 1 shown on diagram
$13.99 -
CLUTCH ASSY
- Part No. T2555-24121
- 1 shown on diagram
$649.99 -
DRIVE SHAFT
- Part No. T2555-24151
- 1 shown on diagram
$144.99 -
Ball Bearing
- Part No. T2555-06205
- #6205, GMB CHINA
- 2 shown on diagram
$14.99 -
CIR-CLIP
- Part No. 04612-00250
- DIA25
- 2 shown on diagram
$1.09 -
GEAR,COUNTER
- Part No. T2555-24211
- 1 shown on diagram
$75.99 -
BEARING, NIDDLE
- Part No. T2555-53025
- 25x30x25, GMB CHINA
- 1 shown on diagram
$21.99 -
COLLAR, THRUST
- Part No. T2555-25311
- 2 shown on diagram
$9.99 -
SLIDING GEAR
- Part No. T2555-24161
- 1 shown on diagram
$134.99 -
DRIVE SHAFT
- Part No. T2555-24201
- 1 shown on diagram
$54.99 -
BALL BEARING
- Part No. T2555-06204
- #6204, GMB CHINA
- 1 shown on diagram
$12.99 -
BALL BEARING
- Part No. T2555-06203
- #6203, GMB CHINA
- 1 shown on diagram
$9.99 -
GEAR
- Part No. T2555-24221
- 2 shown on diagram
$81.99 -
SHAFT
- Part No. T2555-24231
- 1 shown on diagram
$129.99 -
BALL BEARING
- Part No. T2555-06305
- #6305, GMB CHINA
- 1 shown on diagram
$21.99 -
BALL BEARING
- Part No. T2555-56305
- #6305NR, GMB CHINA
- 1 shown on diagram
$24.99 -
CIR-CLIP
- Part No. 04612-00250
- DIA25
- 2 shown on diagram
$1.09 -
SHAFT GEAR,IDLE
- Part No. T2555-24251
- 1 shown on diagram
$44.99 -
SHAFT,COUNTER
- Part No. T2555-24241
- 1 shown on diagram
$62.99 -
COLLAR, THRUST
- Part No. T2555-25311
- 1 shown on diagram
$9.99 -
BEARING, NIDDLE
- Part No. T2555-53025
- 25x30x25, GMB CHINA
- 1 shown on diagram
$21.99 -
SHAFT,PTO OUTPUT
- Part No. T2555-24271
- * multiple options for #24
- 1 shown on diagram
$164.99 -
SHAFT,PTO OUTPUT
- Part No. T2555-24272
- Compatibility New repl old
- * multiple options for #24
- 1 shown on diagram
$164.99 -
GEAR
- Part No. T2555-24261
- 1 shown on diagram
$59.99 -
Ball Bearing
- Part No. T2555-06304
- #6304, GMB CHINA
- 1 shown on diagram
$15.99 -
BALL BEARING
- Part No. T2555-06006
- #6006, GMB CHINA
- 1 shown on diagram
$15.99 -
Oil Seal 28x48x8, Mid PTO CS2410
- Part No. T2555-24291
- 1 shown on diagram
$5.99 -
CIR-CLIP
- Part No. 04611-00520
- DIA52
- 1 shown on diagram
$2.49 -

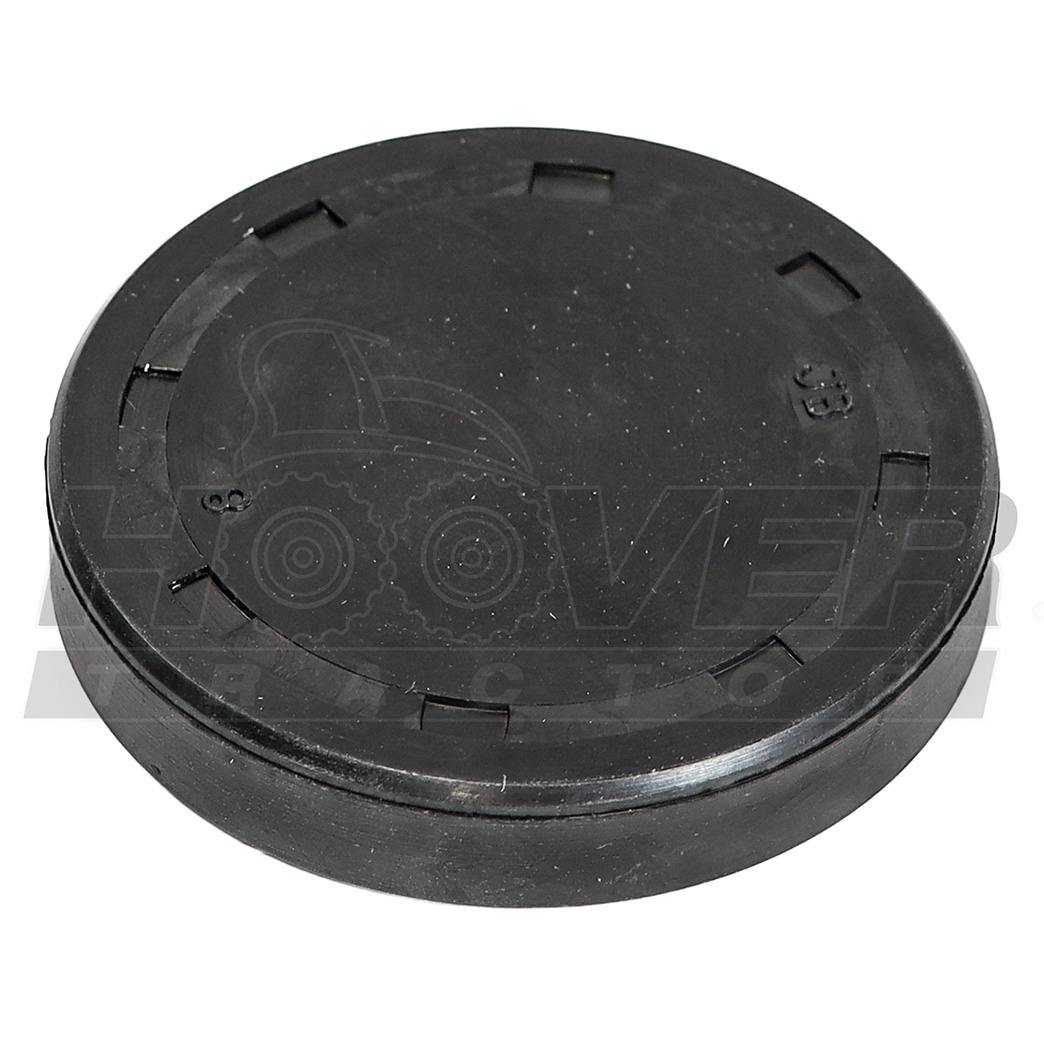

SEAL COVER
- Part No. T2555-24281
- 1 shown on diagram
$12.99 -
SHAFT
- Part No. T2555-24311
- * multiple options for #31
- 1 shown on diagram
$87.99 -
SHAFT
- Part No. T2555-24312
- Compatibility Interchngable
- * multiple options for #31
- 1 shown on diagram
$87.99 -
BEARING, NIDDLE v
- Part No. T2555-41913
- 15x19x13, GMB CHINA
- 1 shown on diagram
$13.99 -
BALL BEARING
- Part No. T2555-56206
- #6206NR, GMB CHINA
- 1 shown on diagram
$21.99 -
BALL BEARING
- Part No. T2555-06204
- #6204, GMB CHINA
- 1 shown on diagram
$12.99 -
SHAFT,PTO OUTPUT
- Part No. T2555-24331
- 1 shown on diagram
$94.99 -
GEAR
- Part No. T2555-24321
- * multiple options for #36
- 1 shown on diagram
$149.99 -
GEAR
- Part No. T2555-24322
- Compatibility Interchngable
- * multiple options for #36
- 1 shown on diagram
$149.99 -
Snap Ring 30mm
- Part No. 04612-00300
- DIA30
- 1 shown on diagram
$1.59 -
Ball Bearing
- Part No. T2555-06205
- #6205, GMB CHINA
- 1 shown on diagram
$14.99 -
BALL BEARING
- Part No. T2555-06206
- #6206, GMB CHINA
- 1 shown on diagram
$19.99 -
OIL SEAL
- Part No. T2555-29111
- 1 shown on diagram
$28.99 -
SHIM 0.10
- Part No. T2555-24411
- 1 shown on diagram
$9.99 -
SHIM 0.20
- Part No. T2555-24421
- 1 shown on diagram
$9.99
