MAIN SHAFT JOINT GROUP - T2555-G350

Kioti TRACTOR | CS Series | CS2410 (MY5100001 to NY5100240)

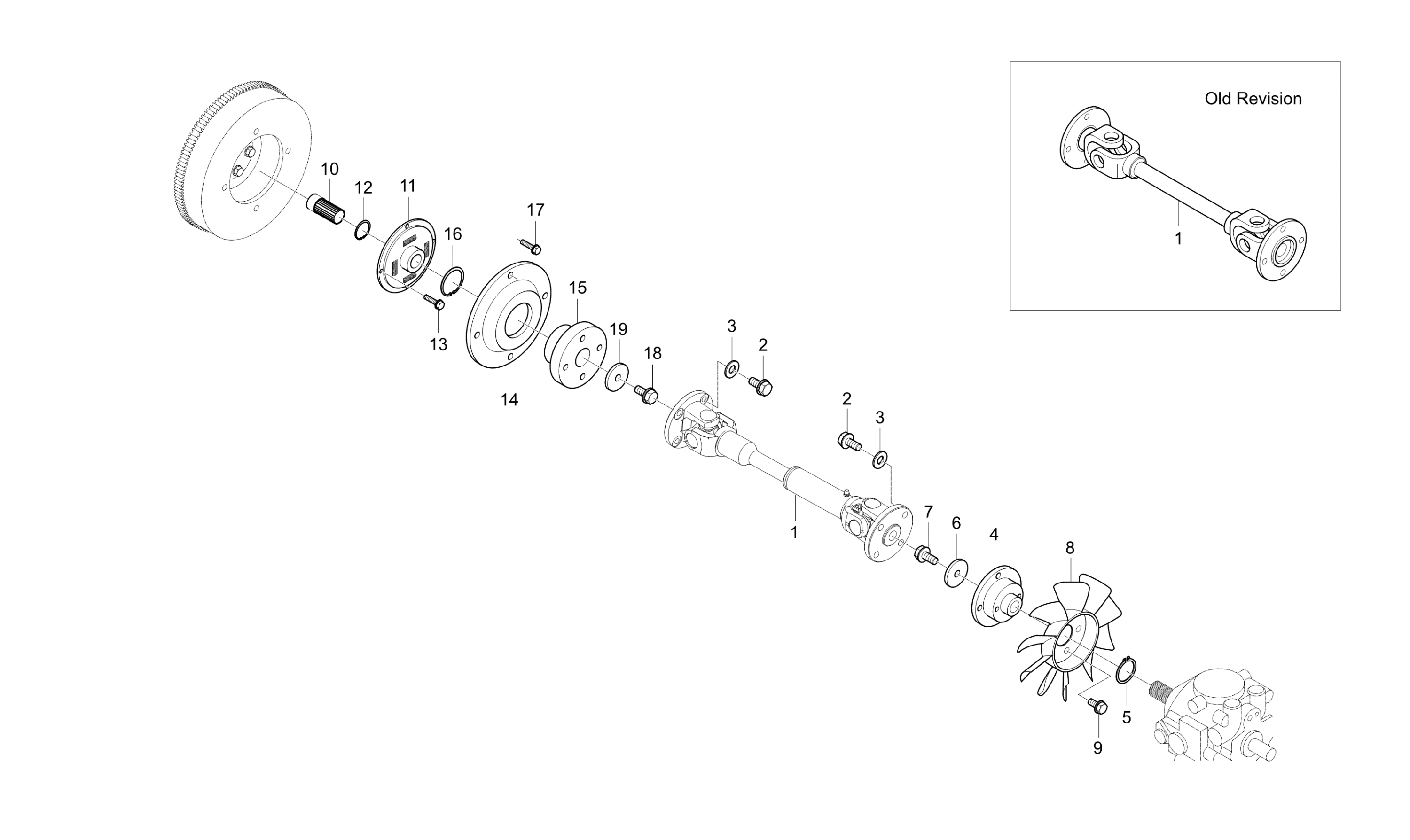

Diagram for MAIN SHAFT JOINT GROUP - T2555-G350
  • 1

    JOINT

    • Part No. T2555-14601
    • * multiple options for #1
    • 1 shown on diagram
    $619.99
  • 1

    JOINT dnr v

    • Part No. T2555-14602
    • Compatibility Interchngable
    • * multiple options for #1
    • 1 shown on diagram
    $489.99

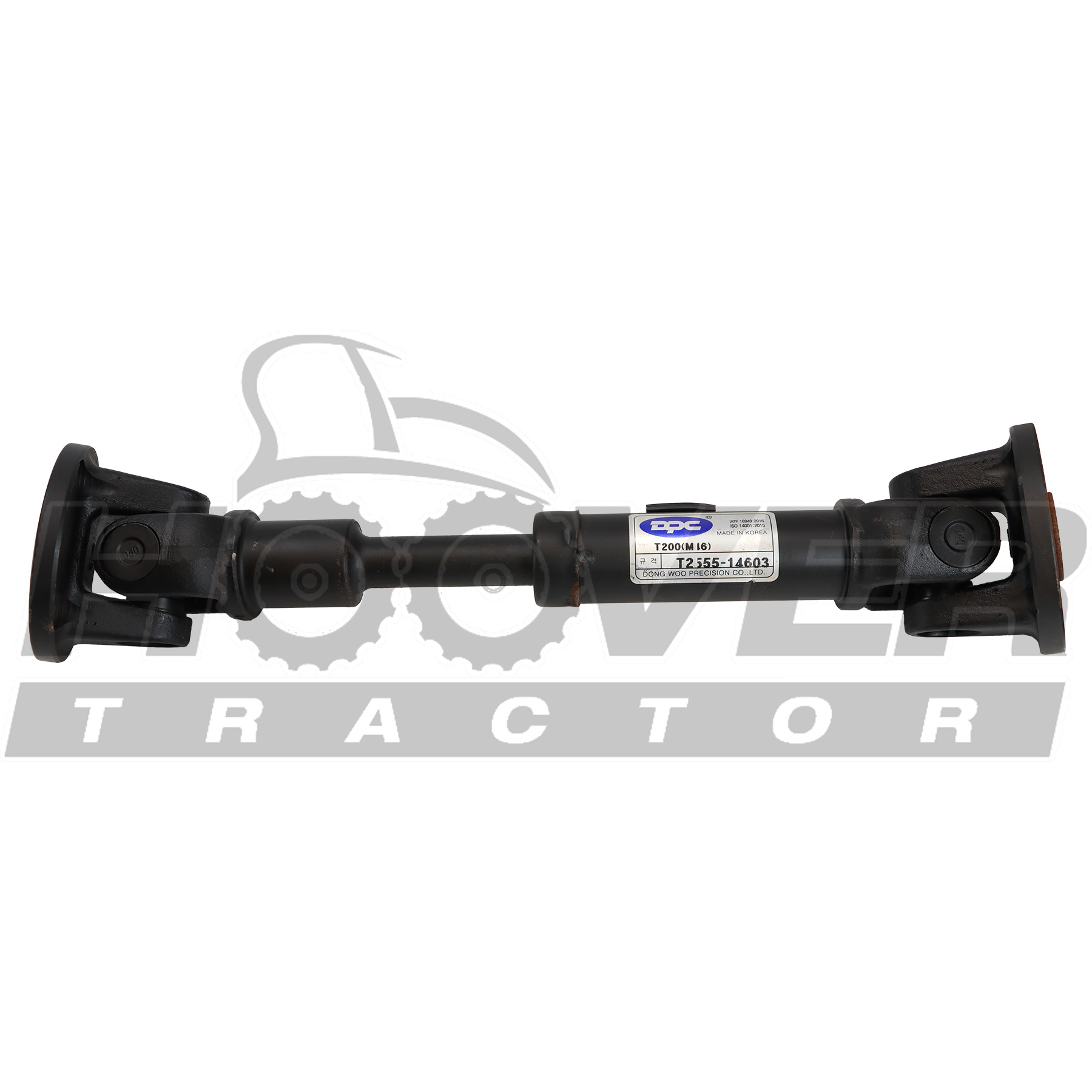

  • 1 JOINT v

    JOINT v

    • Part No. T2555-14603
    • Compatibility New repl old
    • * multiple options for #1
    • 1 shown on diagram
    $619.99
  • 2

    BOLT

    • Part No. 01156-50820
    • * multiple options for #2
    • 8 shown on diagram
    $1.79

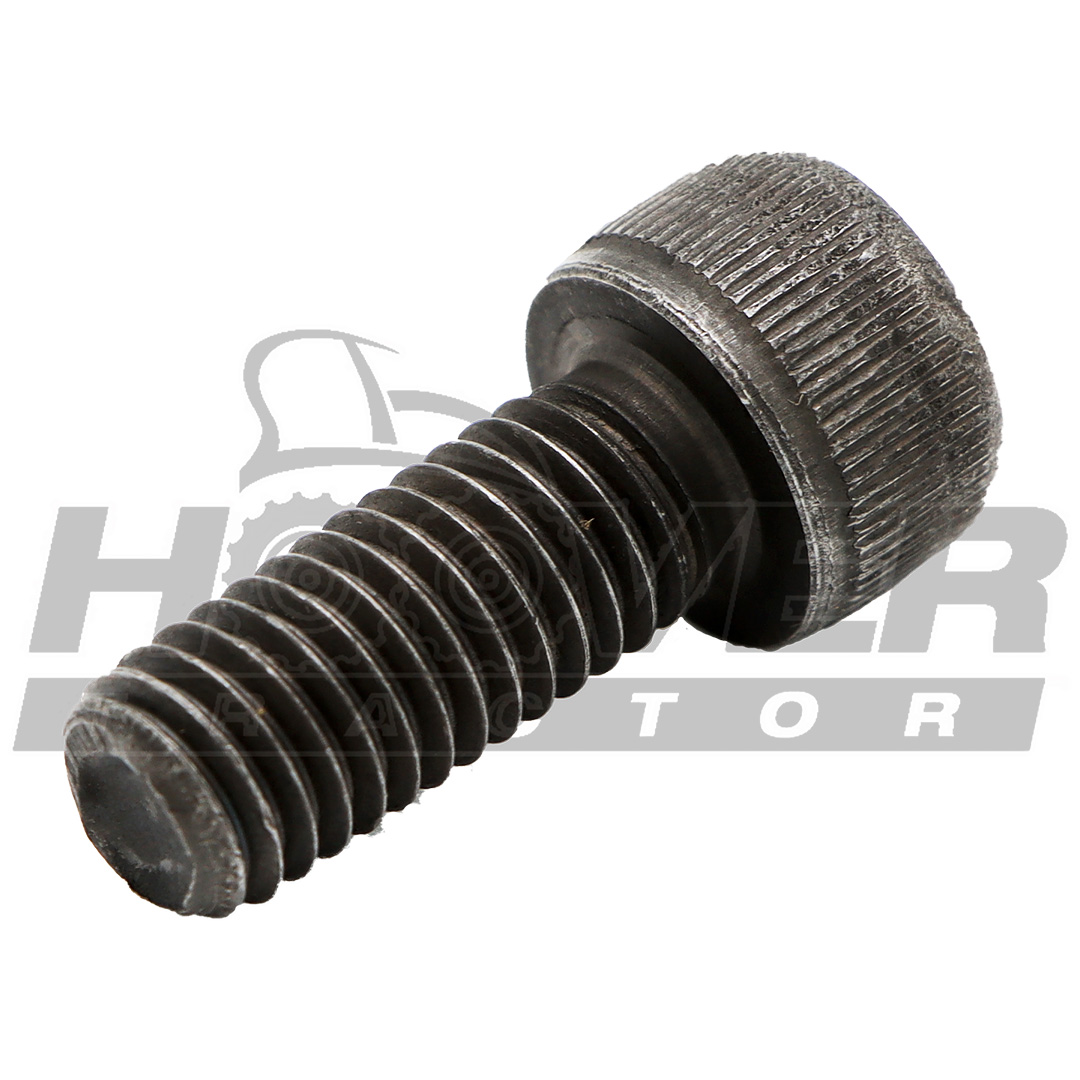

  • 2 BOLT, HEXAGON SOCKET

    BOLT, HEXAGON SOCKET

    • Part No. C7633-31391
    • Compatibility New repl old
    • M8*P1.25
    • * multiple options for #2
    • 8 shown on diagram
    $2.49
  • 3 Spring Lock Washer M8

    Spring Lock Washer M8

    • Part No. 04512-50080
    • M08
    • 8 shown on diagram
    $0.61

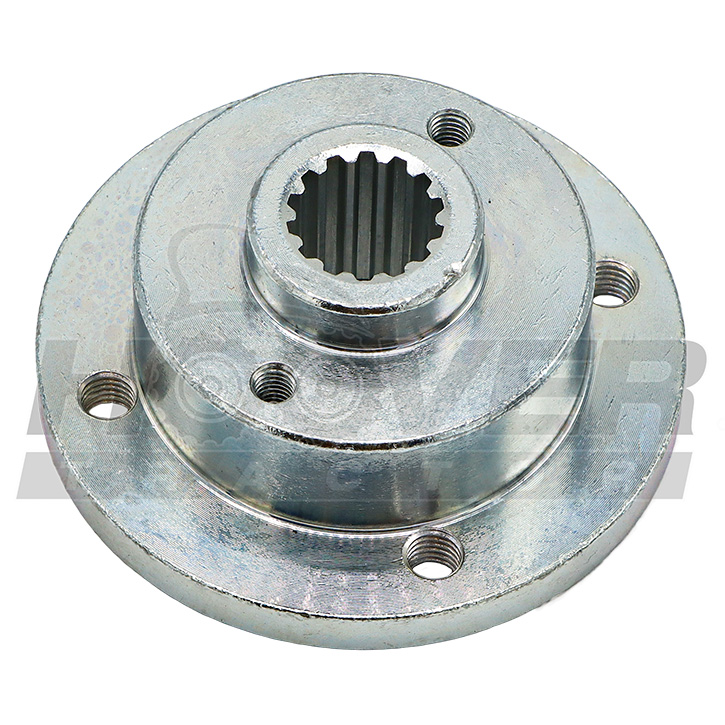

  • 4 JOINT HUB

    JOINT HUB

    • Part No. T2555-14671
    • 1 shown on diagram
    $134.99
  • 5

    PRING,SNAP

    • Part No. T2305-44261
    • * multiple options for #5
    • 1 shown on diagram
    $4.99
  • 5 Snap Ring (04612-00200)

    Snap Ring (04612-00200)

    • Part No. 04612-00200
    • Compatibility Call for compat
    • DIA20
    • * multiple options for #5
    • 1 shown on diagram
    $1.09
  • 6

    WASHER

    • Part No. T2555-14681
    • * multiple options for #6
    • 1 shown on diagram
    $1.89
  • 6

    WASHER

    • Part No. T2555-58571
    • Compatibility New repl old
    • * multiple options for #6
    • 1 shown on diagram
    $1.79
  • 7 Bolt With Washer, M8 P1.25 x 20mm

    Bolt With Washer, M8 P1.25 x 20mm

    • Part No. 01123-50820
    • M8XP1.25
    • 1 shown on diagram
    $2.49
  • 8

    COOLING FAN v, Replaced by T2555-30023

    • Part No. T2555-30022
    • * multiple options for #8
    • 1 shown on diagram
    $0.00
  • 8 Kioti CS HST Cooling Fan

    Kioti CS HST Cooling Fan

    • Part No. T2555-30023
    • Compatibility New repl old
    • * multiple options for #8
    • 1 shown on diagram
    $18.99

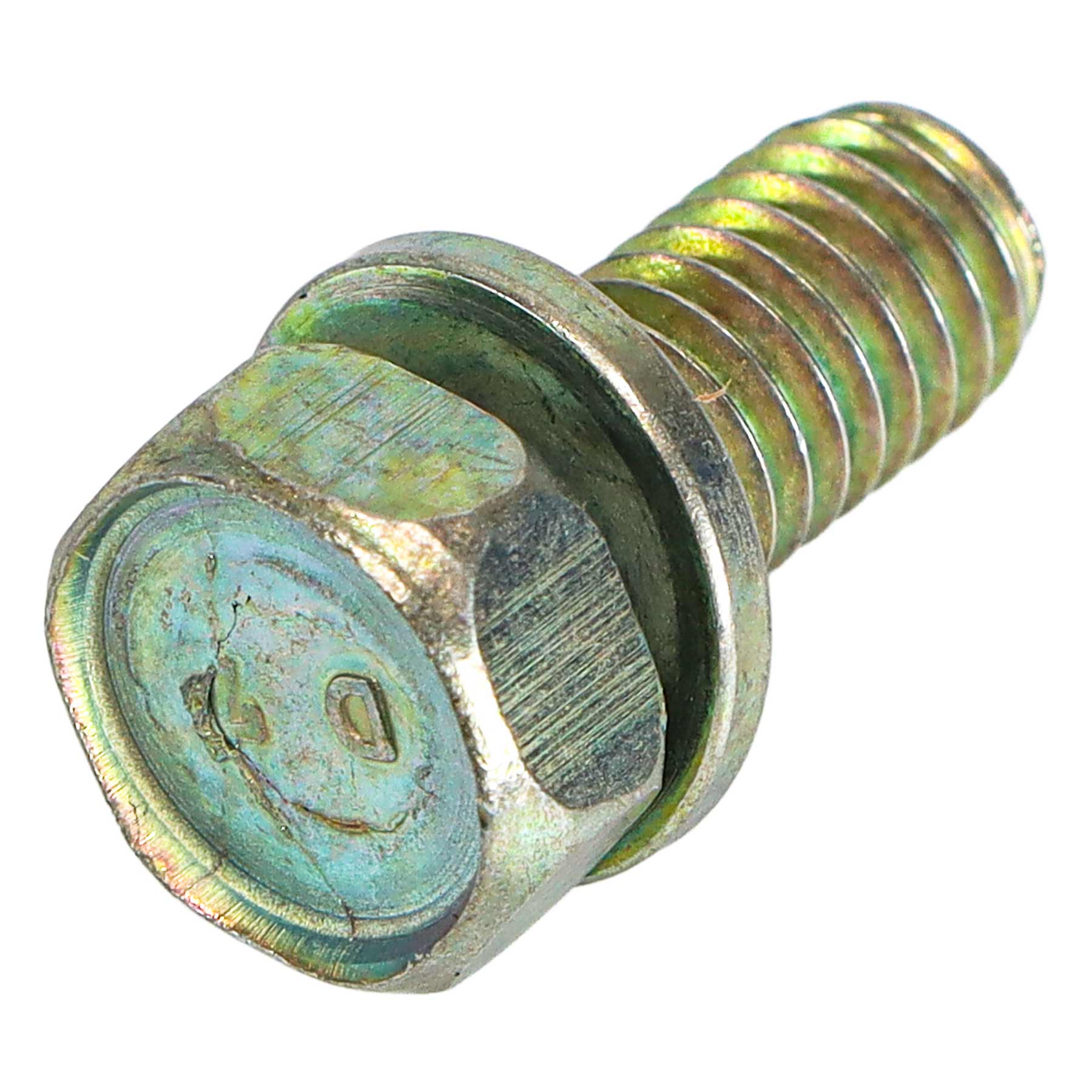

  • 9 BOLT, WASHER

    BOLT, WASHER

    • Part No. 01023-50614
    • M6P1.0
    • 2 shown on diagram
    $1.19

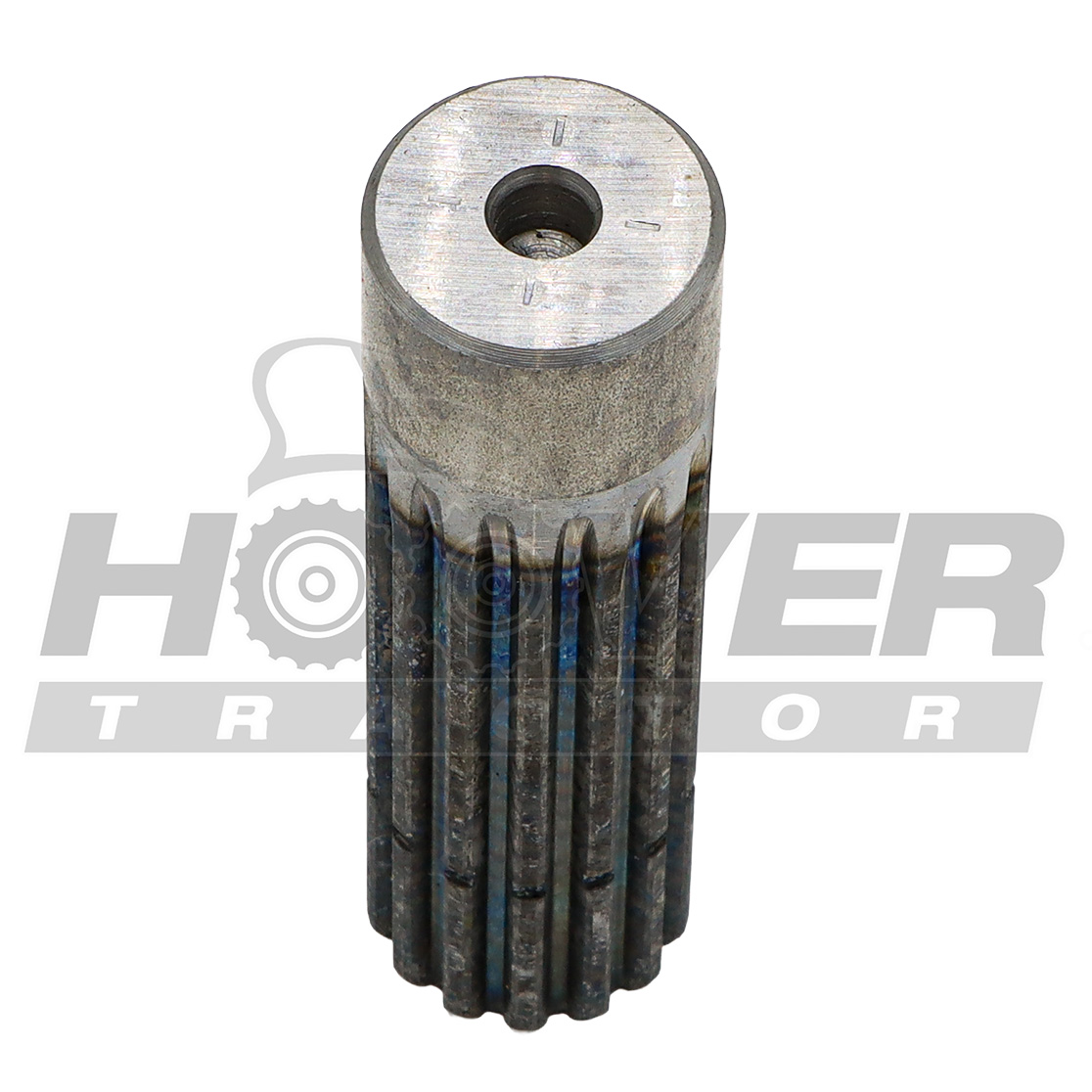

  • 10 SHAFT

    SHAFT

    • Part No. T2555-14611
    • 1 shown on diagram
    $34.99

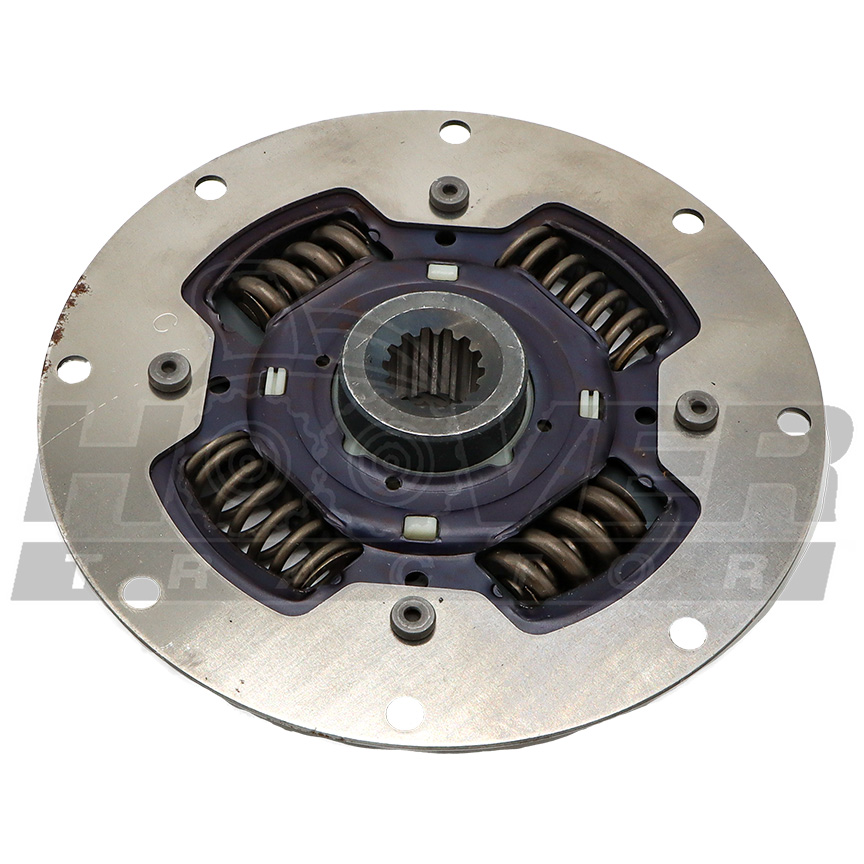

  • 11 ASSY,DEMPER

    ASSY,DEMPER

    • Part No. T2555-14501
    • 1 shown on diagram
    $169.99
  • 12 Snap Ring (04612-00200)

    Snap Ring (04612-00200)

    • Part No. 04612-00200
    • DIA20
    • 1 shown on diagram
    $1.09
  • 13

    LENCH BOLT

    • Part No. T2555-14511
    • 8 shown on diagram
    $0.85
  • 14

    JOINT HOLDER

    • Part No. T2555-14651
    • 1 shown on diagram
    $91.99

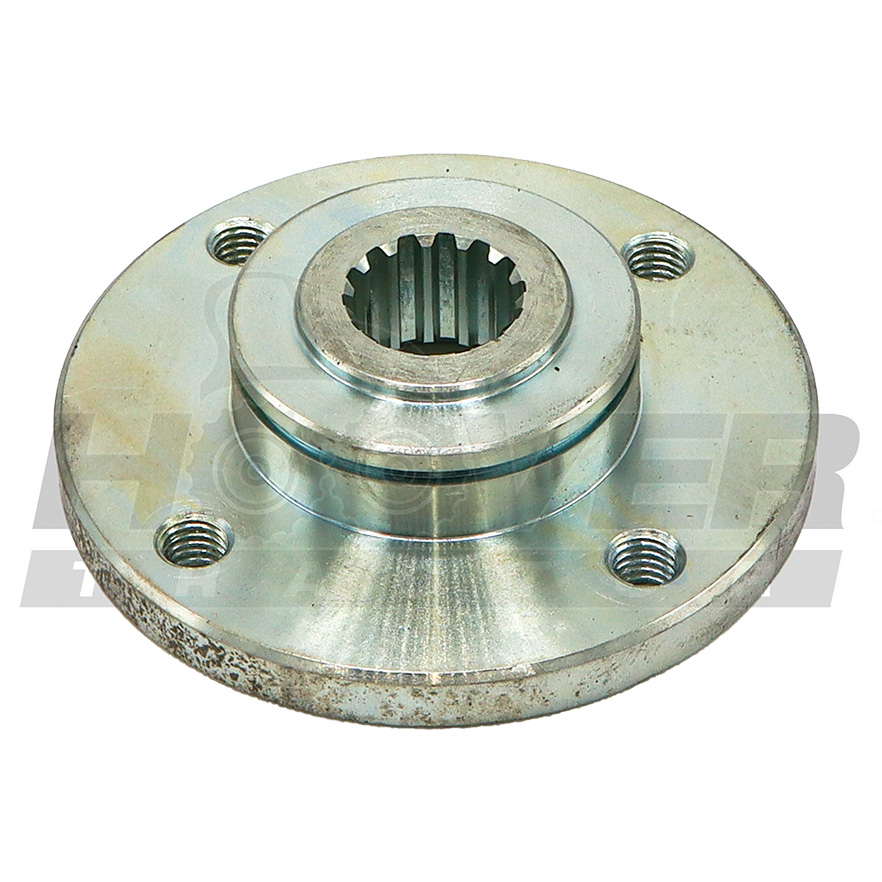

  • 15 JOINT HUB

    JOINT HUB

    • Part No. T2555-14661
    • 1 shown on diagram
    $69.99
  • 16 RING,SNAP

    RING,SNAP

    • Part No. 04612-00450
    • DIA45
    • 1 shown on diagram
    $2.99
  • 17 Bolt With Washer, M8 P1.25 x 20mm

    Bolt With Washer, M8 P1.25 x 20mm

    • Part No. 01123-50820
    • M8XP1.25
    • 4 shown on diagram
    $2.49
  • 18

    BOLT, UBS

    • Part No. T8105-75770
    • M8*P1.25
    • * multiple options for #18
    • 1 shown on diagram
    $4.99
  • 18 Bolt With Washer, M8 P1.25 x 25mm

    Bolt With Washer, M8 P1.25 x 25mm

    • Part No. 01123-50825
    • Compatibility Call for compat
    • M8XP1.25
    • * multiple options for #18
    • 1 shown on diagram
    $1.99
  • 19

    WASHER

    • Part No. T2555-14681
    • * multiple options for #19
    • 1 shown on diagram
    $1.89
  • 19

    WASHER

    • Part No. T2555-58571
    • Compatibility New repl old
    • * multiple options for #19
    • 1 shown on diagram
    $1.79
