RADIATOR GROUP - T2555-G400

Kioti TRACTOR | CS Series | CS2410 (MY5100001 to NY5100240)

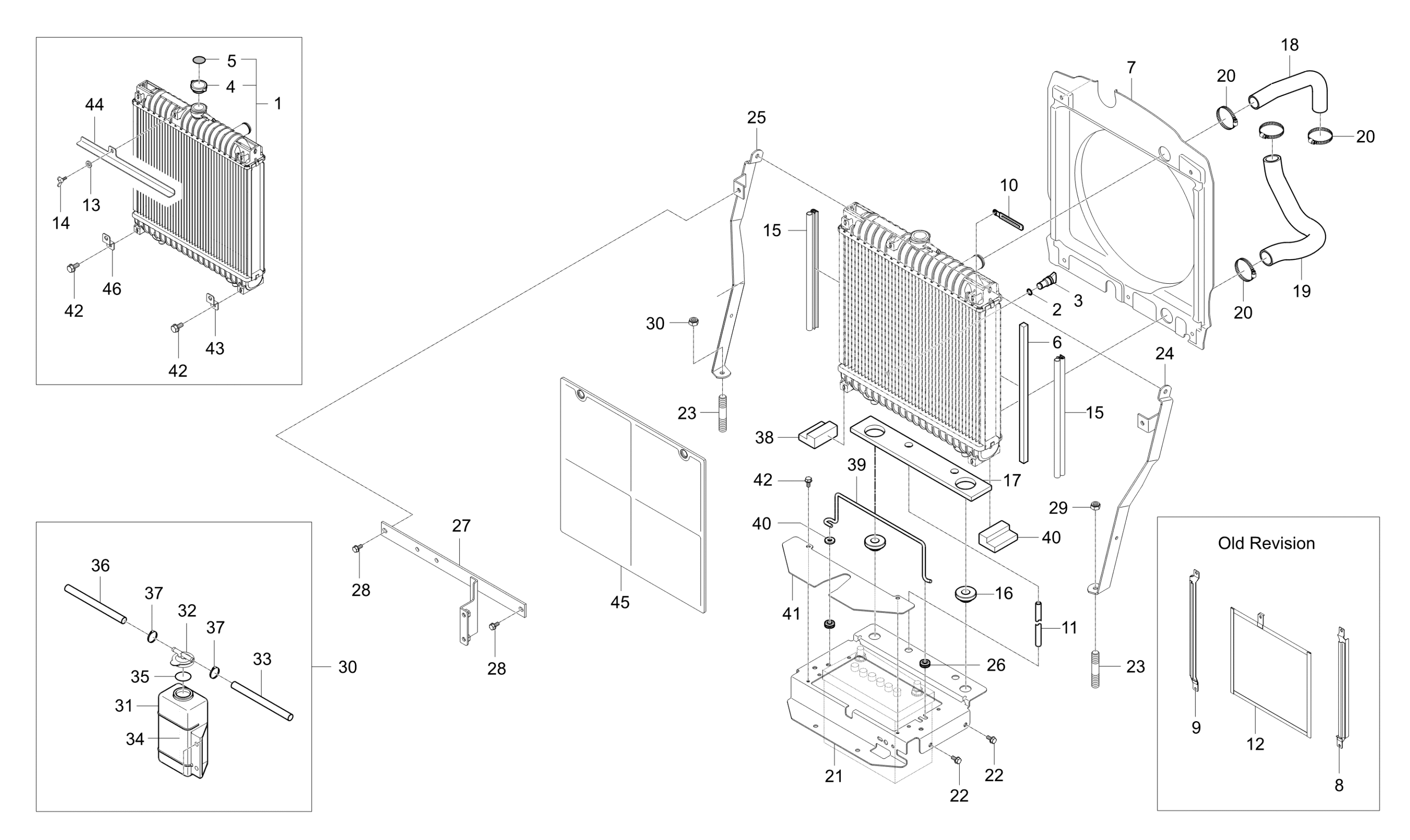

Diagram for RADIATOR GROUP - T2555-G400
  • 1 RADIATOR ASSY

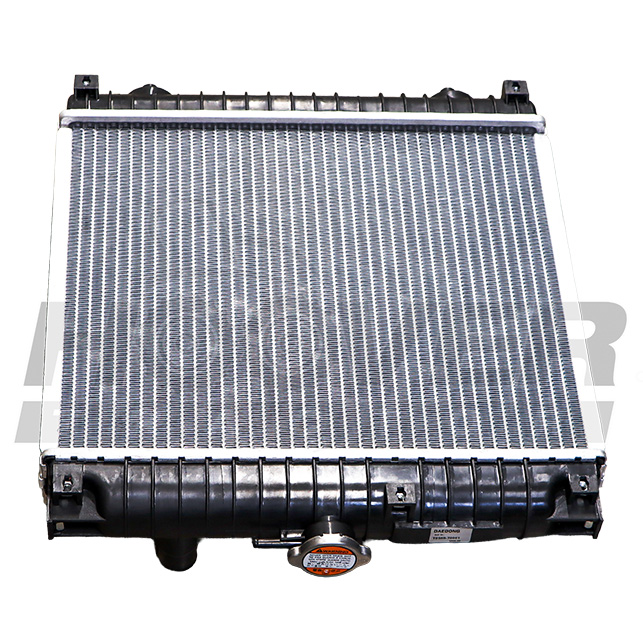

    RADIATOR ASSY

    • Part No. T2555-72061
    • 1 shown on diagram
    $499.99
  • 2

    O-RING

    • Part No. 45300030
    • 1 shown on diagram
    $1.19
  • 3

    NUT

    • Part No. 45700450
    • 1 shown on diagram
    $6.99
  • 4

    CAP ASSY v, Replaced by P15110900

    • Part No. 12101411
    • 1 shown on diagram
    $15.61
  • 5

    LABEL

    • Part No. 45118120
    • 1 shown on diagram
    $0.00
  • 6

    SPONGE

    • Part No. T2555-72061018
    • 4 shown on diagram
    $0.00
  • 7

    SHIRAOUD

    • Part No. T2555-72072
    • 1 shown on diagram
    $39.99
  • 8

    GUIDE,NET

    • Part No. T2555-72121
    • 1 shown on diagram
    $35.99
  • 9

    SCREEN GUIDE(RH)

    • Part No. T2555-72221
    • 1 shown on diagram
    $24.99
  • 10

    CLAMP

    • Part No. 37150-3447-1
    • T0.5
    • 2 shown on diagram
    $4.99
  • 11

    TUBE, VINYL

    • Part No. T2555-72782
    • 1 shown on diagram
    $3.49
  • 12

    NET, RADIATOR dnr v

    • Part No. T2555-17111
    • 1 shown on diagram
    $93.99
  • 13 Flat Washer M6

    Flat Washer M6

    • Part No. 04013-50060
    • M6
    • 1 shown on diagram
    $0.73
  • 14 BOLT,WING

    BOLT,WING

    • Part No. 01811-50615
    • 1 shown on diagram
    $2.49
  • 15

    RUBBER

    • Part No. T2555-50911
    • 2 shown on diagram
    $15.99
  • 16

    CUSHION

    • Part No. T4125-13561
    • 2 shown on diagram
    $5.99
  • 17

    SPONGE, 2

    • Part No. T2555-72552
    • * multiple options for #17
    • 1 shown on diagram
    $9.99
  • 17

    SPONGE, 2

    • Part No. T2555-72553
    • Compatibility New repl old
    • * multiple options for #17
    • 1 shown on diagram
    $9.99
  • 18

    TUBE, COOLING WATER UPR

    • Part No. T2555-72941
    • 1 shown on diagram
    $37.99
  • 19

    TUBE, COOLING WATER LWR

    • Part No. T2555-72951
    • 1 shown on diagram
    $36.99
  • 20

    CLMAP, HOSE

    • Part No. 09318-87040
    • 4 shown on diagram
    $4.49
  • 21

    PLATE, RADIATOR STAY

    • Part No. T2555-50231
    • * multiple options for #21
    • 1 shown on diagram
    $59.99
  • 21

    PLATE,RADIATOR STAY

    • Part No. T2555-50232
    • Compatibility Interchngable
    • * multiple options for #21
    • 1 shown on diagram
    $59.99
  • 21

    PLATE, RADIATOR SUPPORT

    • Part No. T2555-50233
    • Compatibility New repl old
    • * multiple options for #21
    • 1 shown on diagram
    $55.99
  • 21

    PLATE, RADIATOR SUPPORT

    • Part No. T2555-50234
    • Compatibility Interchngable
    • * multiple options for #21
    • 1 shown on diagram
    $83.99
  • 21

    PLATE, RADIATOR SUPPORT

    • Part No. T2555-50235
    • Compatibility Call for compat
    • * multiple options for #21
    • 1 shown on diagram
    $58.99
  • 21

    PLATE, RADIATOR SUPPORT

    • Part No. T2555-50236
    • Compatibility Interchngable
    • * multiple options for #21
    • 1 shown on diagram
    $59.99
  • 21

    PLATE, RADIATOR SUPPORT

    • Part No. T2555-50237
    • Compatibility New repl old
    • * multiple options for #21
    • 1 shown on diagram
    $59.99
  • 21

    Radiator Support Plate Replaced by T2555-50239CB

    • Part No. T2555-50238
    • Compatibility New repl old
    • * multiple options for #21
    • 1 shown on diagram
    $84.99
  • 21

    PLATE, RADIATOR SUPPORT

    • Part No. T2555-50239
    • Compatibility New repl old
    • * multiple options for #21
    • 1 shown on diagram
    $0.00
  • 22 FLANGE BOLT, HEX HEAD M8

    FLANGE BOLT, HEX HEAD M8

    • Part No. 01754-50820
    • M8XP1.25
    • 8 shown on diagram
    $1.19
  • 23 STUD

    STUD

    • Part No. 01513-50825
    • M8*P1.25
    • 2 shown on diagram
    $3.99
  • 24

    BRACKET LH, RADIATOR

    • Part No. T2555-50241
    • * multiple options for #24
    • 1 shown on diagram
    $23.99
  • 24

    BRACKET, RADIATOR SUPPORT-LH dnr v

    • Part No. T2555-50242
    • Compatibility Interchngable
    • * multiple options for #24
    • 1 shown on diagram
    $26.99
  • 24

    BRACKET LH, RADIATOR

    • Part No. T2555-50243
    • Compatibility New repl old
    • * multiple options for #24
    • 1 shown on diagram
    $32.99
  • 25

    BRACKET RH, RADIATOR

    • Part No. T2555-50251
    • * multiple options for #25
    • 1 shown on diagram
    $25.99
  • 25

    BRACKET RH, RADIATOR

    • Part No. T2555-50252
    • Compatibility Interchngable
    • * multiple options for #25
    • 1 shown on diagram
    $32.99
  • 25

    BRACKET RH, RADIATOR

    • Part No. T2555-50253
    • Compatibility New repl old
    • * multiple options for #25
    • 1 shown on diagram
    $32.99
  • 26 GROMMET

    GROMMET

    • Part No. T4682-50251
    • 2 shown on diagram
    $1.89
  • 27

    SUPPORT

    • Part No. T2555-50341
    • * multiple options for #27
    • 1 shown on diagram
    $39.99
  • 27

    SUPPORT

    • Part No. T2555-50342
    • Compatibility Interchngable
    • * multiple options for #27
    • 1 shown on diagram
    $28.99
  • 27

    SUPPORT

    • Part No. T2555-50343
    • Compatibility New repl old
    • * multiple options for #27
    • 1 shown on diagram
    $39.99
  • 28 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 2 shown on diagram
    $1.79
  • 29

    NUT

    • Part No. T2555-58731
    • 2 shown on diagram
    $1.89
  • 30

    RESERVOIR ASSY v

    • Part No. T2555-72732
    • * multiple options for #30
    • 1 shown on diagram
    $41.99
  • 30

    RESERVOIR ASSY dnr v

    • Part No. T2555-72733
    • Compatibility New repl old
    • * multiple options for #30
    • 1 shown on diagram
    $64.99
  • 30

    RESERVOIR ASSY v

    • Part No. T2555-72734
    • Compatibility Interchngable
    • * multiple options for #30
    • 1 shown on diagram
    $77.99
  • 30

    RESERVOIR ASSY

    • Part No. T2555-72735
    • Compatibility New repl old
    • * multiple options for #30
    • 1 shown on diagram
    $0.00
  • 31

    TANK, WATER dnr v

    • Part No. T2350-13611
    • 1 shown on diagram
    $37.99
  • 32

    CAP dnr v

    • Part No. 15531-7242-2
    • 1 shown on diagram
    $5.99
  • 33

    HOSE, OVER FLOW

    • Part No. T2555-72731003
    • 1 shown on diagram
    $29.99
  • 34

    TUBE, VINYL

    • Part No. T2555-72731004
    • 1 shown on diagram
    $5.99
  • 35

    PACKING

    • Part No. 15532-7243-2
    • 1 shown on diagram
    $3.49
  • 36

    Hose, 2 (T2350-13601006)

    • Part No. T2350-13601006
    • 1 shown on diagram
    $3.99
  • 37

    CLAMP, HOSE

    • Part No. 09318-88160
    • DIA16
    • 2 shown on diagram
    $1.29
  • 38

    SPONGE

    • Part No. T2555-72581
    • 2 shown on diagram
    $4.99
  • 39 ROD, BATTERY FIXING

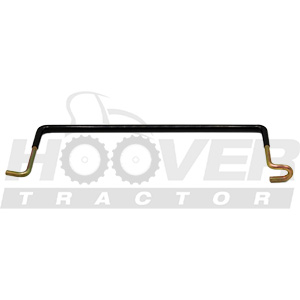

    ROD, BATTERY FIXING

    • Part No. T2555-50262
    • 1 shown on diagram
    $65.99
  • 40

    Flat Washer M8

    • Part No. 04014-50080
    • 1 shown on diagram
    $0.67
  • 41

    PLATE, BONNET BLOCK-LATCH dnr v

    • Part No. T2555-50361
    • 1 shown on diagram
    $16.99
  • 42 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50612
    • M6XP1.0
    • 10 shown on diagram
    $1.39
  • 43

    BRACKET, FIXING

    • Part No. TB26-0197A
    • T1.6
    • 1 shown on diagram
    $4.99
  • 44

    BRACKET, HOLDER-NET

    • Part No. TB26-0189B
    • T2.0
    • 1 shown on diagram
    $12.99
  • 45

    NET, 2 v

    • Part No. T5525-50475
    • 1 shown on diagram
    $85.99
  • 46

    BRACKET, FIXING

    • Part No. TB26-0197A
    • T1.6
    • * multiple options for #46
    • 1 shown on diagram
    $4.99
  • 46

    BRACKET, FIXING dnr v

    • Part No. TB26-0197B
    • Compatibility Interchngable
    • T1.6
    • * multiple options for #46
    • 1 shown on diagram
    $4.99
  • 47

    CLMAP, HOSE

    • Part No. 09318-88080
    • 2 shown on diagram
    $0.53
