FUEL TANK GROUP - T2555-G402

Kioti TRACTOR | CS Series | CS2410 (MY5100001 to NY5100240)

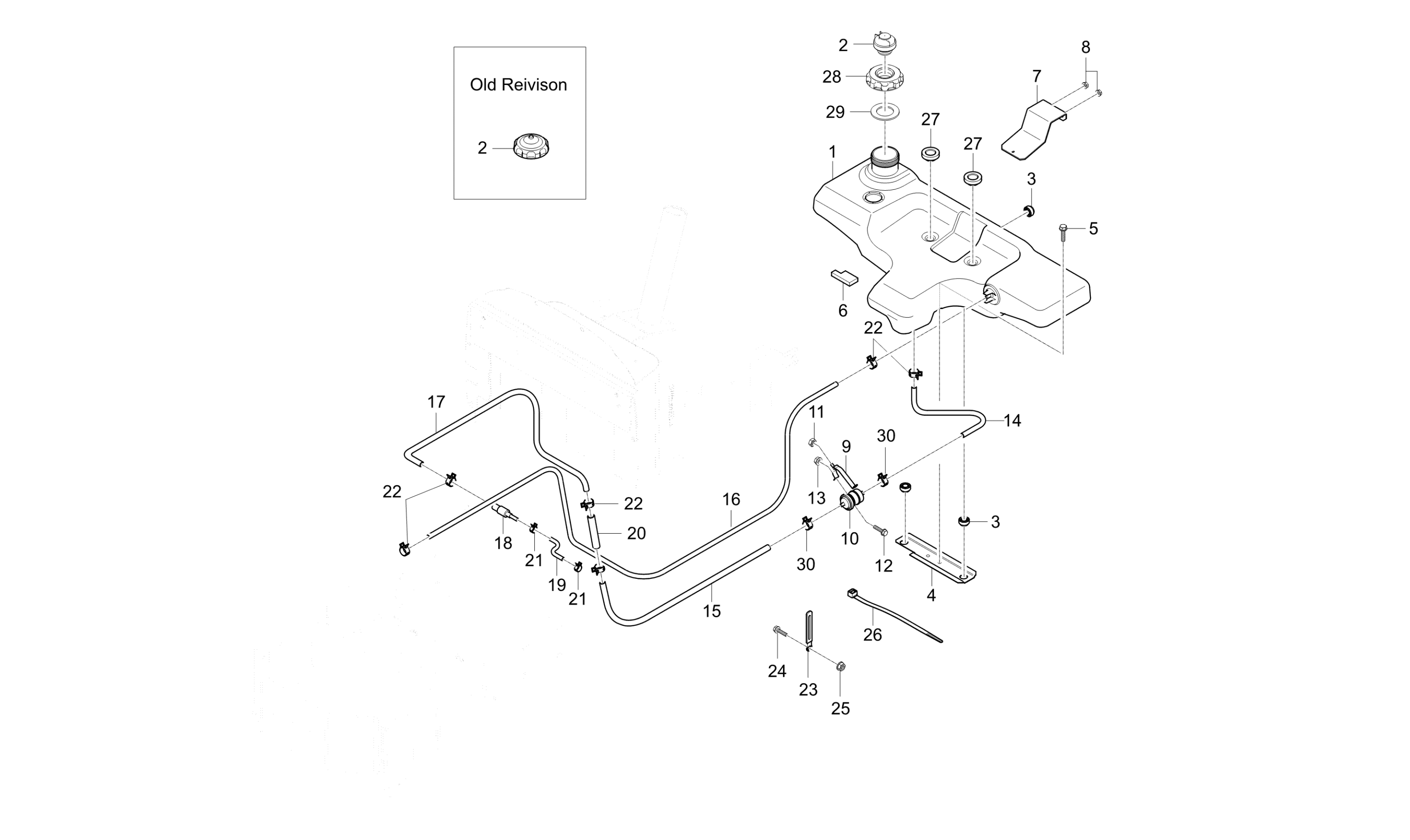

Diagram for FUEL TANK GROUP - T2555-G402
  • 1

    Fuel Tank

    • Part No. T2555-55021
    • 1 shown on diagram
    $529.99
  • 2

    ASS’Y, FUEL CAP, Replaced by T2555-55032

    • Part No. T2555-55031
    • * multiple options for #2
    • 1 shown on diagram
    $37.13

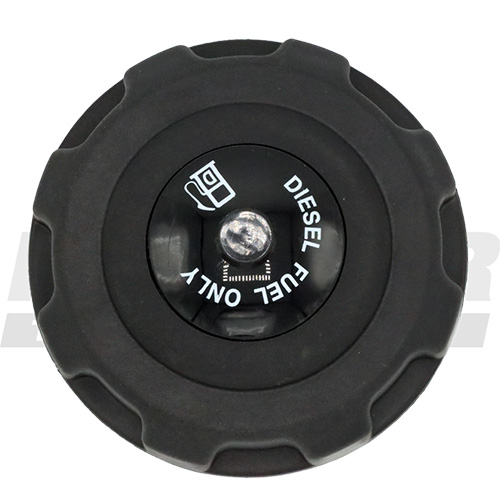

  • 2 ASSY, FUEL CAP v

    ASSY, FUEL CAP v

    • Part No. T2555-55032
    • Compatibility New repl old
    • * multiple options for #2
    • 1 shown on diagram
    $76.99
  • 2

    Fuel Cap, Replaced by T2611-54825

    • Part No. T2611-54824
    • Compatibility New repl old
    • * multiple options for #2
    • 1 shown on diagram
    $0.00
  • 2 Fuel Tank Cap

    Fuel Tank Cap

    • Part No. T2611-54825
    • Compatibility Interchngable
    • * multiple options for #2
    • 1 shown on diagram
    $43.99
  • 3 RUBBER, CUSHION

    RUBBER, CUSHION

    • Part No. T2555-55241
    • 3 shown on diagram
    $7.49
  • 4

    PLATE 2, FUEL TANK HOLDER

    • Part No. T2555-55051
    • 1 shown on diagram
    $17.99
  • 5 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 2 shown on diagram
    $1.79
  • 6

    RUBBER, CUSHION

    • Part No. T2555-55251
    • 1 shown on diagram
    $7.49
  • 7

    PLATE 1, FUEL TANK HOLDER

    • Part No. T2555-55041
    • * multiple options for #7
    • 1 shown on diagram
    $29.99
  • 7

    PLATE1, FUEL TANK HOLDER

    • Part No. T2555-55042
    • Compatibility New repl old
    • * multiple options for #7
    • 1 shown on diagram
    $34.99
  • 8 Kioti Flange Nut, M8 P1.25

    Kioti Flange Nut, M8 P1.25

    • Part No. 02751-50080
    • M8XP1.25
    • 2 shown on diagram
    $0.67
  • 9

    PLATE, FUEL FILTER

    • Part No. T2555-55232
    • 1 shown on diagram
    $6.99
  • 10 Fuel Filter, Kioti CS 10 Series

    Fuel Filter, Kioti CS 10 Series

    • Part No. T2555-55411
    • 1 shown on diagram
    $16.99
  • 11 NUT

    NUT

    • Part No. 02056-50060
    • M6XP1.0
    • 1 shown on diagram
    $0.49
  • 12 Bolt, M6 P1.0x25

    Bolt, M6 P1.0x25

    • Part No. 01053-50625
    • M6*P1.0
    • 1 shown on diagram
    $1.09
  • 13 NUT, FLANGE

    NUT, FLANGE

    • Part No. 02761-50060
    • M6XP1.0
    • 1 shown on diagram
    $0.67
  • 14

    HOSE, FUEL

    • Part No. T2555-55261
    • * multiple options for #14
    • 1 shown on diagram
    $19.99
  • 14

    HOSE, FUEL

    • Part No. T2555-55262
    • Compatibility Interchngable
    • * multiple options for #14
    • 1 shown on diagram
    $19.99
  • 15

    HOSE, FUEL

    • Part No. T2555-55271
    • * multiple options for #15
    • 1 shown on diagram
    $39.99
  • 15

    HOSE, FUEL

    • Part No. T2555-55272
    • Compatibility Interchngable
    • * multiple options for #15
    • 1 shown on diagram
    $32.99
  • 16

    HOSE, FUEL

    • Part No. T2555-55301
    • 1 shown on diagram
    $61.99
  • 17

    HOSE, FUEL

    • Part No. T2555-55281
    • * multiple options for #17
    • 1 shown on diagram
    $22.99
  • 17

    HOSE, FUEL

    • Part No. T2555-55282
    • Compatibility Interchngable
    • * multiple options for #17
    • 1 shown on diagram
    $24.99
  • 17

    HOSE, FUEL

    • Part No. T2555-55283
    • Compatibility Interchngable
    • * multiple options for #17
    • 1 shown on diagram
    $24.99
  • 18

    TUBE, CONNECTING

    • Part No. T2555-55191
    • 1 shown on diagram
    $1.99
  • 19

    HOSE, FUEL

    • Part No. T2555-55291
    • 1 shown on diagram
    $9.49
  • 20

    COLGATE TUBE

    • Part No. T2555-59211
    • 2 shown on diagram
    $0.99
  • 21

    CLMAP, HOSE

    • Part No. 09318-88080
    • 2 shown on diagram
    $0.53
  • 22

    CLIP, TUBE

    • Part No. 14911-4275-1
    • T0.8*#12
    • 6 shown on diagram
    $1.49
  • 23

    CLAMP,CORD

    • Part No. 37155-3447-1
    • 2 shown on diagram
    $4.99
  • 24 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 2 shown on diagram
    $1.79
  • 25 Kioti Flange Nut, M8 P1.25

    Kioti Flange Nut, M8 P1.25

    • Part No. 02751-50080
    • M8XP1.25
    • 2 shown on diagram
    $0.67
  • 26

    BAND, CORD

    • Part No. T2185-82561
    • L200
    • 3 shown on diagram
    $0.49
  • 27

    RUBBER, CUSHION

    • Part No. T2555-55211
    • 2 shown on diagram
    $9.99
  • 28 CASE, JOINT

    CASE, JOINT

    • Part No. TB26-0184A
    • 1 shown on diagram
    $19.99
  • 29 PLATE, RUBBER 55x82x3.3mm

    PLATE, RUBBER 55x82x3.3mm

    • Part No. TB26-0186A
    • 1 shown on diagram
    $7.49
  • 30

    CLIP, HOSE

    • Part No. 15301-7247-0
    • Stan16#
    • 2 shown on diagram
    $2.49
