3 POINT LINK GROUP - T2555-G430

Kioti TRACTOR | CS Series | CS2410 (MY5100001 to NY5100240)

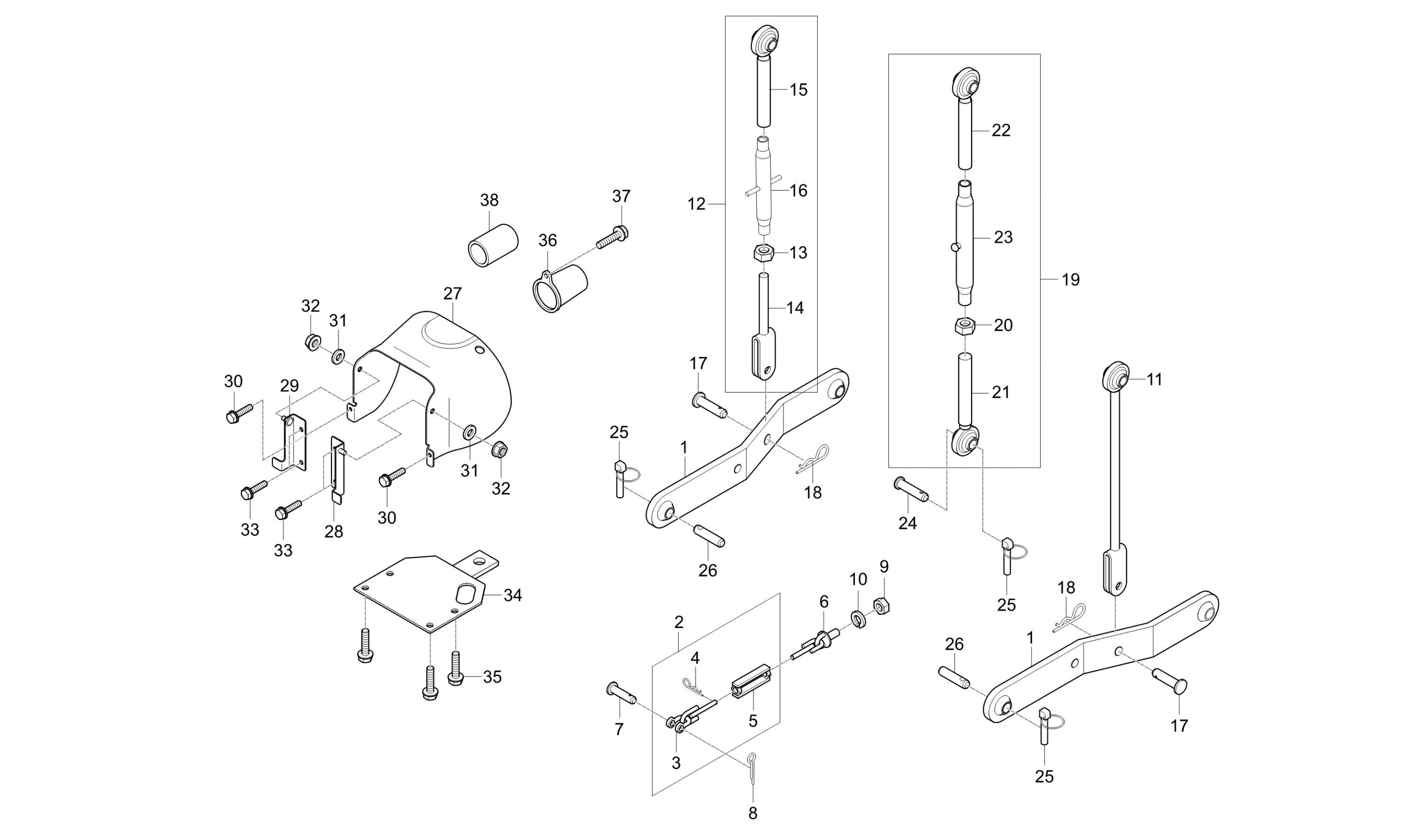

Diagram for 3 POINT LINK GROUP - T2555-G430
  • 1

    COMP. LINK, LOWER

    • Part No. T2555-93011
    • 2 shown on diagram
    $244.99
  • 2 CHECK-LINK ASSY

    CHECK-LINK ASSY

    • Part No. T2555-91001
    • 2 shown on diagram
    $79.99
  • 3

    CHECK LINK, 1 dnr v

    • Part No. T2555-91031
    • 2 shown on diagram
    $26.99
  • 4 PIN,SNAP

    PIN,SNAP

    • Part No. 05525-51200
    • 2 shown on diagram
    $1.29
  • 5

    TURNBUCKLE

    • Part No. T2555-91021
    • 2 shown on diagram
    $44.99
  • 6 CHECK LINK, 2

    CHECK LINK, 2

    • Part No. T2555-91041
    • 2 shown on diagram
    $55.99
  • 7

    Pin, Joint M10x25mm

    • Part No. 05122-51025
    • DIA10*25
    • 2 shown on diagram
    $2.99
  • 8

    Split Pin (05511-50325)

    • Part No. 05511-50325
    • 2 shown on diagram
    $0.68
  • 9 NUT

    NUT

    • Part No. 02176-50160
    • M16XP1.5
    • 2 shown on diagram
    $2.49
  • 10 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50160
    • M16
    • 2 shown on diagram
    $1.29
  • 11 LIFT ROD, LH

    LIFT ROD, LH

    • Part No. T2555-91311
    • 1 shown on diagram
    $129.99
  • 12 LIFT ROD ASSY, RH

    LIFT ROD ASSY, RH

    • Part No. T2555-91201
    • * multiple options for #12
    • 1 shown on diagram
    $154.99
  • 12

    ASSY ROD, LIFT obs v

    • Part No. TB26-0352A
    • Compatibility Interchngable
    • * multiple options for #12
    • 1 shown on diagram
    $174.99
  • 13 Nut M18 P1.50

    Nut M18 P1.50

    • Part No. 02176-50180
    • M18XP1.5
    • 1 shown on diagram
    $3.99
  • 14 ROD, LIFT, Replaced by TB36-0885CCB

    ROD, LIFT, Replaced by TB36-0885CCB

    • Part No. T2555-91131
    • 1 shown on diagram
    $139.99
  • 15 ROD, LIFT UPPER, M18 P1.50

    ROD, LIFT UPPER, M18 P1.50

    • Part No. T2555-91221
    • 1 shown on diagram
    $149.99
  • 16

    TURNBUCKLE

    • Part No. T2555-91241
    • * multiple options for #16
    • 1 shown on diagram
    $109.99
  • 16

    TURNBUCKLE

    • Part No. T2555-91642
    • Compatibility New repl old
    • * multiple options for #16
    • 1 shown on diagram
    $94.99
  • 17 PIN,HEAD 16×50

    PIN,HEAD 16×50

    • Part No. 05112-51650
    • 2 shown on diagram
    $7.99
  • 18

    PIN,SPLIT

    • Part No. 05511-50440
    • 2 shown on diagram
    $0.40
  • 19

    TOP LINK ASSY (10″ tube)

    • Part No. T2555-91701
    • * multiple options for #19
    • 1 shown on diagram
    $289.99
  • 19

    Top Link Assembly, Category 1

    • Part No. T2555-91702
    • Compatibility New repl old
    • * multiple options for #19
    • 1 shown on diagram
    $289.99
  • 20

    NUT

    • Part No. T2555-91791
    • 1 shown on diagram
    $39.99
  • 21

    ROD, TOP LINK-2 dnr v

    • Part No. T2555-91721
    • 1 shown on diagram
    $154.99
  • 22

    ROD 1, TOP LINK dnr v

    • Part No. T2555-91621
    • 1 shown on diagram
    $154.99
  • 23

    TURNBUCKLE dnr v

    • Part No. T2555-91641
    • 1 shown on diagram
    $124.99
  • 24

    PIN, CHECK LINK

    • Part No. T4520-91141
    • DIA19
    • 1 shown on diagram
    $15.99
  • 25 Hair Pin

    Hair Pin

    • Part No. 05515-51600
    • DIA16
    • 5 shown on diagram
    $2.99
  • 26

    PIN, LOWER LINK

    • Part No. T2555-93031
    • 2 shown on diagram
    $17.99
  • 27 COVER PTO SHIELD

    COVER PTO SHIELD

    • Part No. T2555-74052
    • 1 shown on diagram
    $77.99
  • 28

    BRACKET, PTO COVER dnr v

    • Part No. T2555-74061
    • 1 shown on diagram
    $11.99
  • 29

    BRACKET, PTO COVER dnr v

    • Part No. T2555-74071
    • 1 shown on diagram
    $11.99
  • 30

    RUBBER, CUSHION

    • Part No. T2555-55851
    • 2 shown on diagram
    $3.99
  • 31 Flat Washer M8

    Flat Washer M8

    • Part No. 04012-50080
    • M8
    • 2 shown on diagram
    $0.67
  • 32

    NUT

    • Part No. T2555-58731
    • 2 shown on diagram
    $1.89
  • 33 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 4 shown on diagram
    $1.79
  • 34

    HTICH

    • Part No. T2555-67181
    • 1 shown on diagram
    $134.99
  • 35

    WASHER BOLT

    • Part No. 01133-51230
    • M12XP1.25
    • 4 shown on diagram
    $5.49
  • 36 COVER, PTO

    COVER, PTO

    • Part No. T2555-74151
    • 1 shown on diagram
    $9.99
  • 37

    BOLT, PLANGE

    • Part No. 01754-50814
    • 1 shown on diagram
    $0.79
  • 38

    COVER, MID PTO

    • Part No. T2555-60991
    • 1 shown on diagram
    $11.99
  • 39

    ASSY LINK, CHECK

    • Part No. TB26-0404A
    • 2 shown on diagram
    $84.99
