MAIN FRAME GROUP - T2555-G420

Kioti TRACTOR | CS Series | CS2410 (MY5100001 to NY5100240)

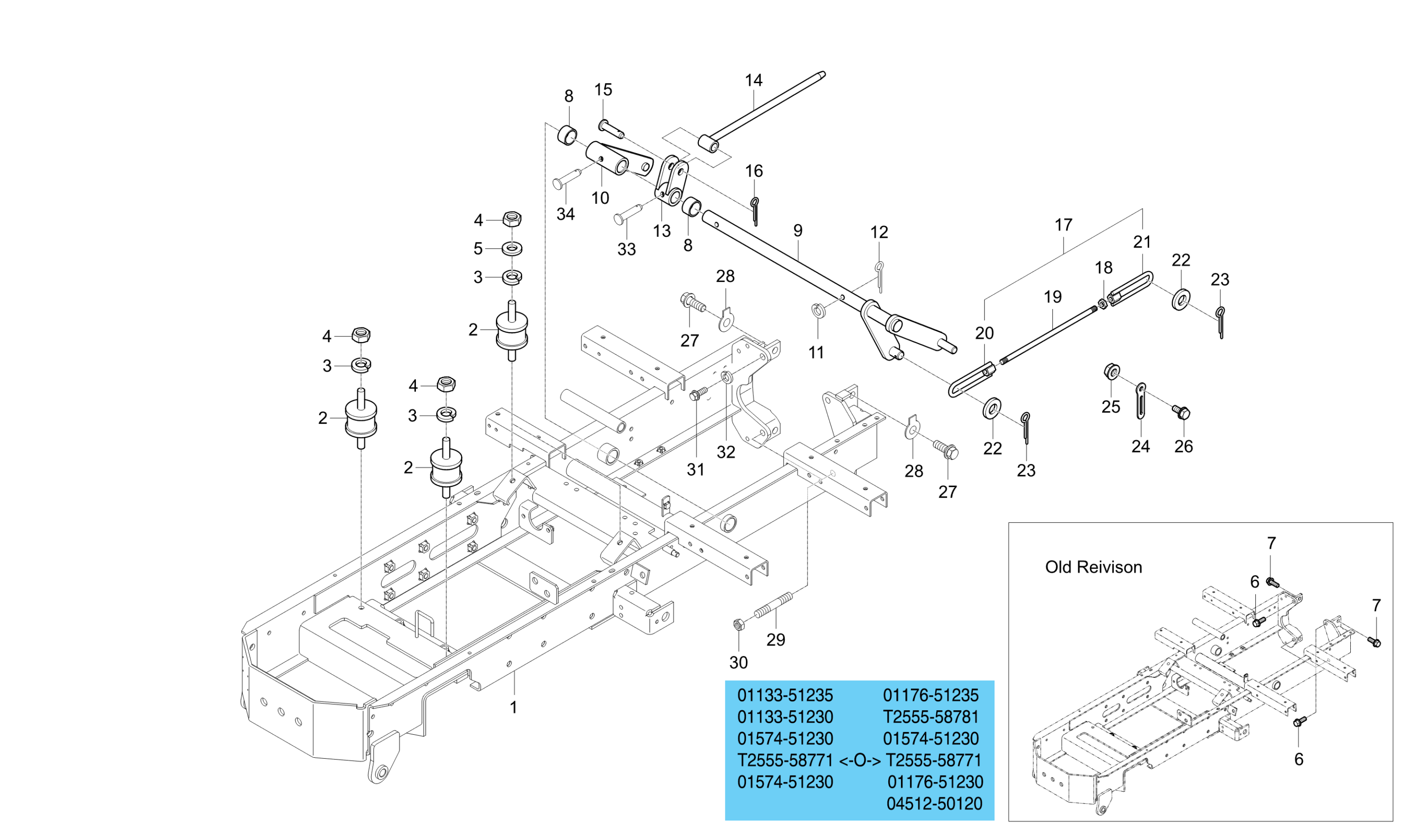

Diagram for MAIN FRAME GROUP - T2555-G420
  • 1

    MAINFRAME

    • Part No. T2555-50015
    • Serial No. Up to MY5100506
    • * multiple options for #1
    • 1 shown on diagram
    $924.99
  • 1

    MAIN FRAME

    • Part No. T2555-50016
    • Compatibility Interchngable
    • Serial No. MY5100507 to NY5100236
    • * multiple options for #1
    • 1 shown on diagram
    $0.00
  • 1

    TRK – FRAME MAIN v

    • Part No. T2555-50017
    • Compatibility No interchange
    • Serial No. NY5100237 to NY5100240
    • * multiple options for #1
    • 1 shown on diagram
    $1,239.99
  • 1

    TRK – MAIN FRAME v

    • Part No. T2555-50018
    • Compatibility Call for compat
    • Serial No. PY5100001 and up
    • * multiple options for #1
    • 1 shown on diagram
    $1,789.99
  • 1

    MAIN FRAME

    • Part No. T2555-50019
    • Compatibility New repl old
    • * multiple options for #1
    • 1 shown on diagram
    $0.00
  • 1

    MAIN FRAME

    • Part No. T2555-5001A
    • Compatibility Interchngable
    • * multiple options for #1
    • 1 shown on diagram
    $1,524.99
  • 1

    TRK – MAIN FRAME dnr v

    • Part No. T2555-5001B
    • Compatibility Call for compat
    • * multiple options for #1
    • 1 shown on diagram
    $2,064.99
  • 1

    FRAME, MAIN dnr v

    • Part No. T2555-5001C
    • Compatibility Interchngable
    • * multiple options for #1
    • 1 shown on diagram
    $2,064.99
  • 1

    FRAME, MAIN

    • Part No. T2555-5001D
    • Compatibility Call for compat
    • * multiple options for #1
    • 1 shown on diagram
    $0.00
  • 2

    INSULATION v

    • Part No. T2555-50033
    • 4 shown on diagram
    $54.99
  • 3 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50100
    • M10
    • 4 shown on diagram
    $0.79
  • 4

    NUT

    • Part No. 02118-50100
    • M10*P1.25
    • * multiple options for #4
    • 4 shown on diagram
    $0.85
  • 4

    NUT dnr V

    • Part No. 02076-50100
    • Compatibility New repl old
    • M10*P1.25
    • * multiple options for #4
    • 4 shown on diagram
    $0.40
  • 5

    Flat Washer M10

    • Part No. 04011-50100
    • M10
    • 2 shown on diagram
    $0.67
  • 6

    WASHER BOLT

    • Part No. 01133-51230
    • M12XP1.25
    • 4 shown on diagram
    $5.49
  • 7

    WASHER BOLT M12 P1.25 x35

    • Part No. 01133-51235
    • M12XP1.25
    • 4 shown on diagram
    $4.49
  • 8

    BUSHING

    • Part No. 08511-02520
    • MB2520DU
    • 2 shown on diagram
    $12.99
  • 9

    LIFT ARM, MOWER DECK dnr v

    • Part No. T2555-60811
    • 1 shown on diagram
    $139.99
  • 10

    Mower Deck-Lift Arm Replaced By T2555-60831BB

    • Part No. T2555-60831
    • 1 shown on diagram
    $63.99
  • 11 Spring Lock Washer M8

    Spring Lock Washer M8

    • Part No. 04512-50080
    • M08
    • 1 shown on diagram
    $0.61
  • 12 Pin, Split

    Pin, Split

    • Part No. 05511-50320
    • DIA2.7XL20
    • 1 shown on diagram
    $0.46
  • 13

    ARM, MOWER DECK dnr v

    • Part No. T2555-60581
    • 1 shown on diagram
    $49.99
  • 14

    ROD, MOWER DECK

    • Part No. T2555-60761
    • 1 shown on diagram
    $32.99
  • 15 PIN,HEAD 16×50

    PIN,HEAD 16×50

    • Part No. 05112-51650
    • 1 shown on diagram
    $7.99
  • 16

    PIN, SPLIT

    • Part No. 05511-50420
    • DIA4*20
    • 1 shown on diagram
    $0.56
  • 17

    LIFT ROD ASSY, MOWER DECK

    • Part No. T2555-60841
    • 1 shown on diagram
    $62.99
  • 18 Nut M10 P1.25

    Nut M10 P1.25

    • Part No. 02176-50100
    • M10XP1.25
    • 1 shown on diagram
    $0.98
  • 19

    ROD

    • Part No. T2555-60961
    • 1 shown on diagram
    $19.99
  • 20

    LIFT ROD, LH

    • Part No. T2555-60951
    • 1 shown on diagram
    $23.99
  • 21

    ROD, LIFT

    • Part No. T2555-60941
    • 1 shown on diagram
    $22.99
  • 22

    WASHER(PLATE)

    • Part No. T4620-49371
    • 2 shown on diagram
    $9.99
  • 23 PIN, SPLIT

    PIN, SPLIT

    • Part No. 05511-50435
    • DIA4
    • 2 shown on diagram
    $0.56
  • 24

    CLAMP,CORD

    • Part No. 37155-3447-1
    • 1 shown on diagram
    $4.99
  • 25

    NUT, FLANGE v

    • Part No. 02761-50080
    • 1 shown on diagram
    $0.56
  • 26 FLANGE BOLT, HEX HEAD M8

    FLANGE BOLT, HEX HEAD M8

    • Part No. 01754-50820
    • M8XP1.25
    • 1 shown on diagram
    $1.19
  • 27

    BOLT v

    • Part No. 01176-51235
    • 4 shown on diagram
    $3.49
  • 28

    WASHER

    • Part No. T2555-58781
    • 4 shown on diagram
    $2.49
  • 29

    STUD

    • Part No. 01574-51230
    • M12XP1.25
    • 4 shown on diagram
    $5.99
  • 30

    U-NUT

    • Part No. T2555-58771
    • 4 shown on diagram
    $3.49
  • 31

    BOLT v

    • Part No. 01176-51230
    • M12*1.25*30
    • 2 shown on diagram
    $4.99
  • 32 M12 Spring Washer (04512-50120)

    M12 Spring Washer (04512-50120)

    • Part No. 04512-50120
    • M12
    • 2 shown on diagram
    $0.95
  • 33 PIN, MOWER DECK

    PIN, MOWER DECK

    • Part No. T2555-91251
    • 1 shown on diagram
    $5.49
  • 34

    Pin, Joint M10x50mm, Replaced by 05122-51055

    • Part No. 05122-51050
    • 1 shown on diagram
    $0.00
