HST PEDAL GROUP - T2555-G410

Kioti TRACTOR | CS Series | CS2410 (MY5100001 to NY5100240)

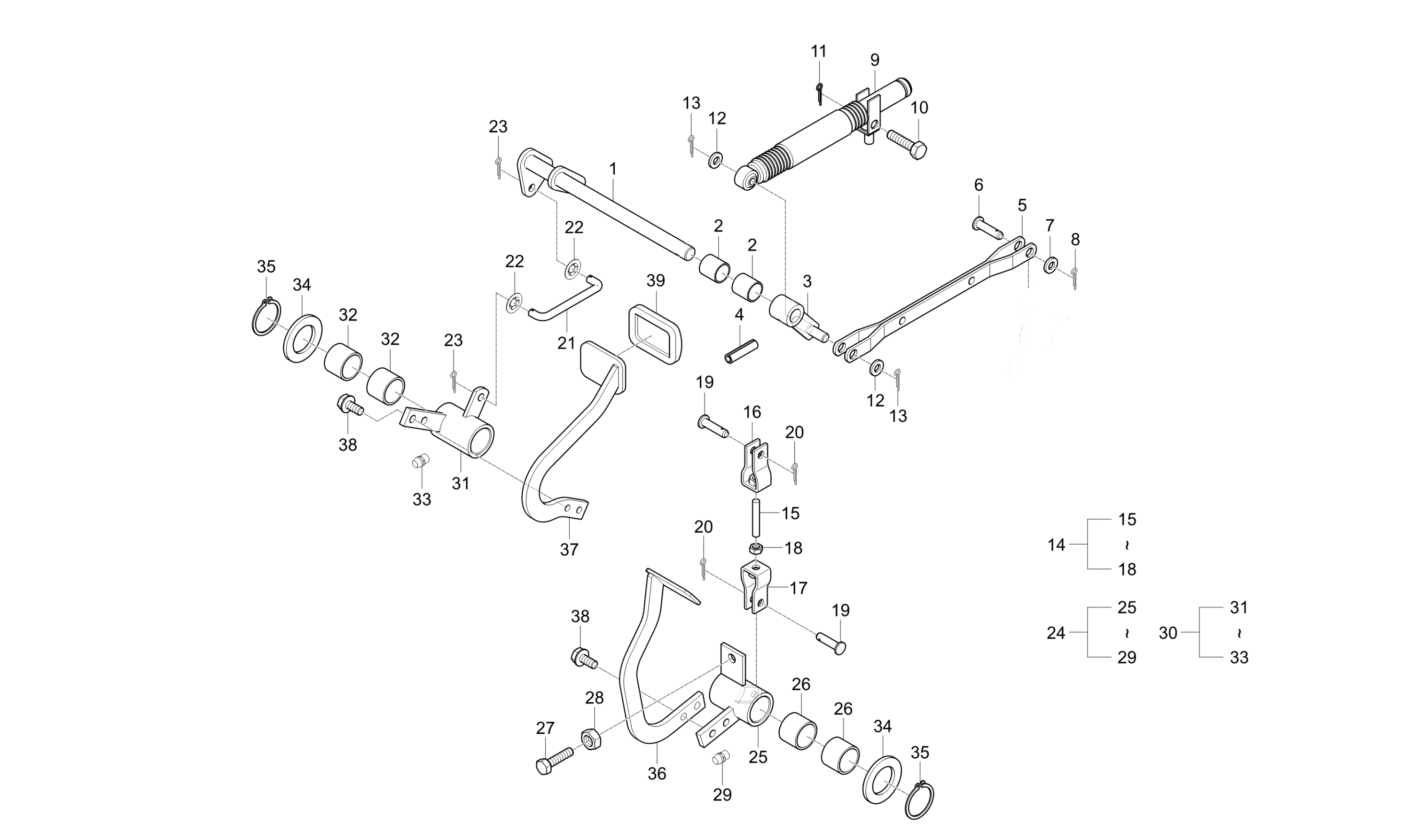

Diagram for HST PEDAL GROUP - T2555-G410
  • 1

    SHAFT, BRAKE PEDAL-HST dnr v

    • Part No. T2555-32241
    • 1 shown on diagram
    $36.99
  • 2

    BUSH

    • Part No. 08511-01515
    • MB1515DU
    • 2 shown on diagram
    $6.99
  • 3

    ARM 3, HST

    • Part No. T2555-32641
    • 1 shown on diagram
    $32.99
  • 4 PIN, SPRING

    PIN, SPRING

    • Part No. 05411-00625
    • DIA6.4XL25
    • 1 shown on diagram
    $1.09
  • 5

    SHIFT LINK, HST

    • Part No. T2555-32651
    • 1 shown on diagram
    $19.99
  • 6

    Pin, Joint M10x22mm

    • Part No. 05122-51022
    • 1 shown on diagram
    $3.49
  • 7

    Flat Washer M10

    • Part No. 04011-50100
    • M10
    • 2 shown on diagram
    $0.67
  • 8

    Split Pin (05511-50325)

    • Part No. 05511-50325
    • 2 shown on diagram
    $0.68
  • 9

    ASSY,DEMPER

    • Part No. T2555-32513
    • 1 shown on diagram
    $159.99
  • 10

    Bolt, M8 P1.25 x 65mm

    • Part No. 01153-50865
    • 1 shown on diagram
    $1.99
  • 11

    PIN, SPRING

    • Part No. 05411-50840
    • 2 shown on diagram
    $1.89
  • 12 Spring Lock Washer M8

    Spring Lock Washer M8

    • Part No. 04512-50080
    • M08
    • 2 shown on diagram
    $0.61
  • 13

    PIN,SPLIT

    • Part No. 05511-52525
    • 1 shown on diagram
    $0.34
  • 14

    ROD ASSY, HST

    • Part No. T2555-32541
    • 1 shown on diagram
    $25.99
  • 15 CONNECTING ROD

    CONNECTING ROD

    • Part No. T2555-32551
    • 1 shown on diagram
    $7.99
  • 16

    FORK JOINT, LH M8 P1.25

    • Part No. T2555-32561
    • 1 shown on diagram
    $8.99
  • 17 FORK JOINT, RH M8 P1.25

    FORK JOINT, RH M8 P1.25

    • Part No. T2555-32571
    • 1 shown on diagram
    $8.99
  • 18 Nut M8 P1.25

    Nut M8 P1.25

    • Part No. 02156-50080
    • M8XP1.25
    • 1 shown on diagram
    $0.85
  • 19

    Pin, Joint M8x22mm

    • Part No. 05122-50822
    • 2 shown on diagram
    $2.99
  • 20

    PIN,SPLIT

    • Part No. 05511-52525
    • 2 shown on diagram
    $0.34
  • 21

    ROD, HST PEDAL

    • Part No. T2555-32251
    • 1 shown on diagram
    $7.49
  • 22 NUT, PUSH 8 v

    NUT, PUSH 8 v

    • Part No. 52300-2622-1
    • T0.5
    • 2 shown on diagram
    $1.39
  • 23

    PIN, SPLIT

    • Part No. 05511-50220
    • DIA1.8XL20
    • 2 shown on diagram
    $0.56
  • 24

    ARM ASSY

    • Part No. T2555-31041
    • 1 shown on diagram
    $77.99
  • 25

    ARM 1, HST, Replaced by T2555-31041

    • Part No. T2555-31141
    • 1 shown on diagram
    $0.00
  • 26

    BUSH

    • Part No. T8105-75790
    • 2 shown on diagram
    $12.99
  • 27

    Bolt, M8 P1.25 x 32mm

    • Part No. 01153-50832
    • 1 shown on diagram
    $1.99
  • 28 Nut M8 P1.25

    Nut M8 P1.25

    • Part No. 02156-50080
    • M8XP1.25
    • 1 shown on diagram
    $0.85
  • 29 NIPPLE, GREASE M6 P1.0

    NIPPLE, GREASE M6 P1.0

    • Part No. 06611-15675
    • A-M6F
    • 1 shown on diagram
    $1.69
  • 30

    ARM ASSY

    • Part No. T2555-31051
    • 1 shown on diagram
    $65.99
  • 31

    ARM 2, HST (use T2555-31051 assy)

    • Part No. T2555-31151
    • 1 shown on diagram
    $62.99
  • 32

    BUSH v

    • Part No. 08511-02525
    • MB2525DU
    • 2 shown on diagram
    $11.99
  • 33 Grease Nipple M6 P0.75

    Grease Nipple M6 P0.75

    • Part No. 06613-10675
    • M6XP0.75
    • 1 shown on diagram
    $2.49
  • 34

    SPACER

    • Part No. T2555-66151
    • 2 shown on diagram
    $2.99
  • 35 CIR-CLIP

    CIR-CLIP

    • Part No. 04612-00250
    • DIA25
    • 3 shown on diagram
    $1.09
  • 36

    HST PEDAL, FORWARD

    • Part No. T2555-31112
    • 1 shown on diagram
    $47.99
  • 37

    HST PEDAL, BACKWARD

    • Part No. T2555-31121
    • 1 shown on diagram
    $46.99
  • 38 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 4 shown on diagram
    $1.79
  • 39

    RUBBER, PEDAL Orange

    • Part No. T2555-31131
    • * multiple options for #39
    • 2 shown on diagram
    $11.99
  • 39 RUBBER, PEDAL BLACK

    RUBBER, PEDAL BLACK

    • Part No. T2555-31132
    • Compatibility New repl old
    • * multiple options for #39
    • 2 shown on diagram
    $11.99
