DASH BOARD GROUP - T2555-G424

Kioti TRACTOR | CS Series | CS2410 (MY5100001 to NY5100240)

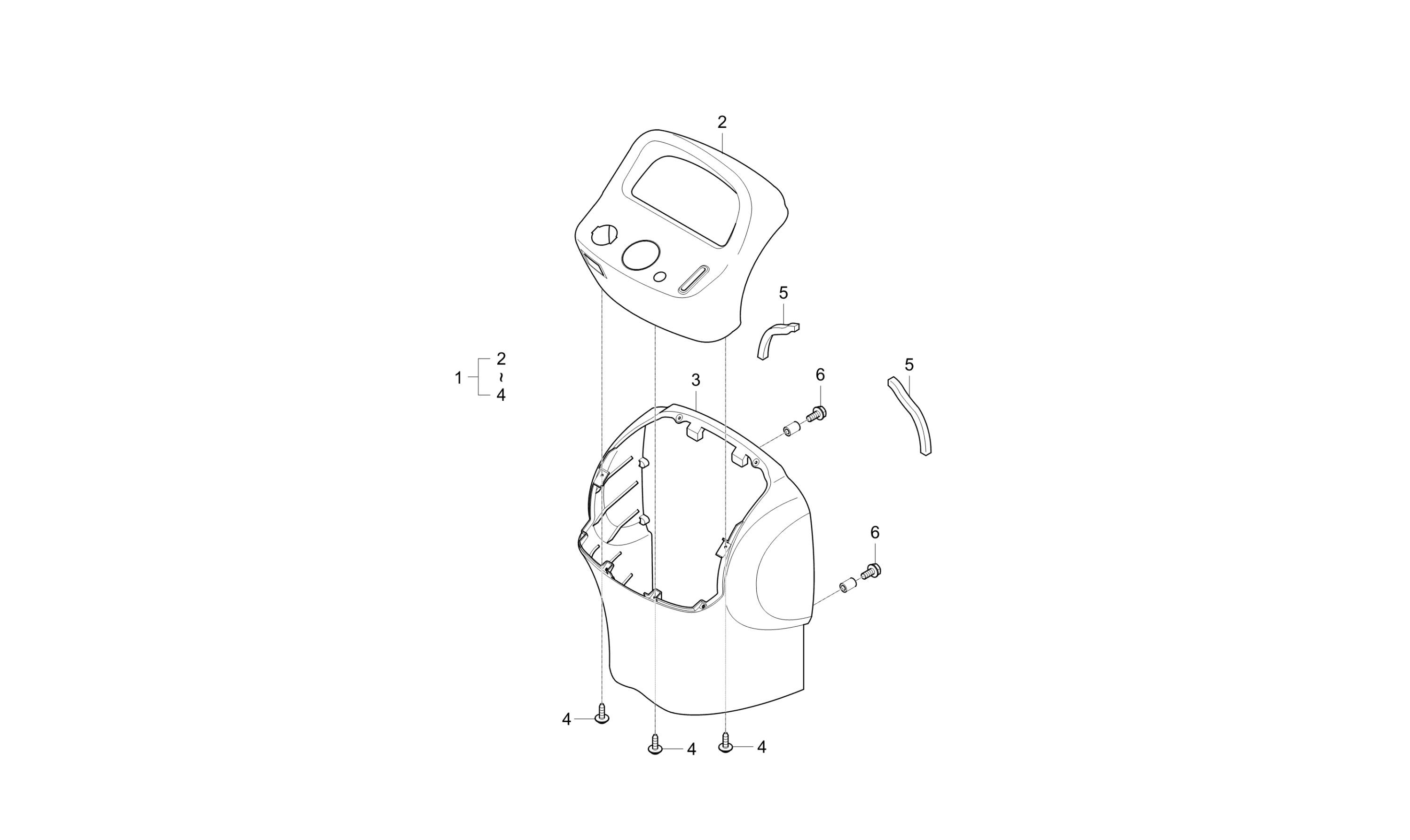

Diagram for DASH BOARD GROUP - T2555-G424
  • 1

    COVER, INSTRUMENT, Replaced by T2555-55352

    • Part No. T2555-55322
    • * multiple options for #1
    • 1 shown on diagram
    $0.00
  • 1

    COVER, INSTRUMENT

    • Part No. T2555-55323
    • Compatibility No interchange
    • * multiple options for #1
    • 1 shown on diagram
    $0.00
  • 1

    COVER, INSTRUMENT

    • Part No. T2555-55324
    • Compatibility No interchange
    • * multiple options for #1
    • 1 shown on diagram
    $309.99
  • 2

    DASH BOARD v

    • Part No. T2555-55342
    • * multiple options for #2
    • 1 shown on diagram
    $184.99

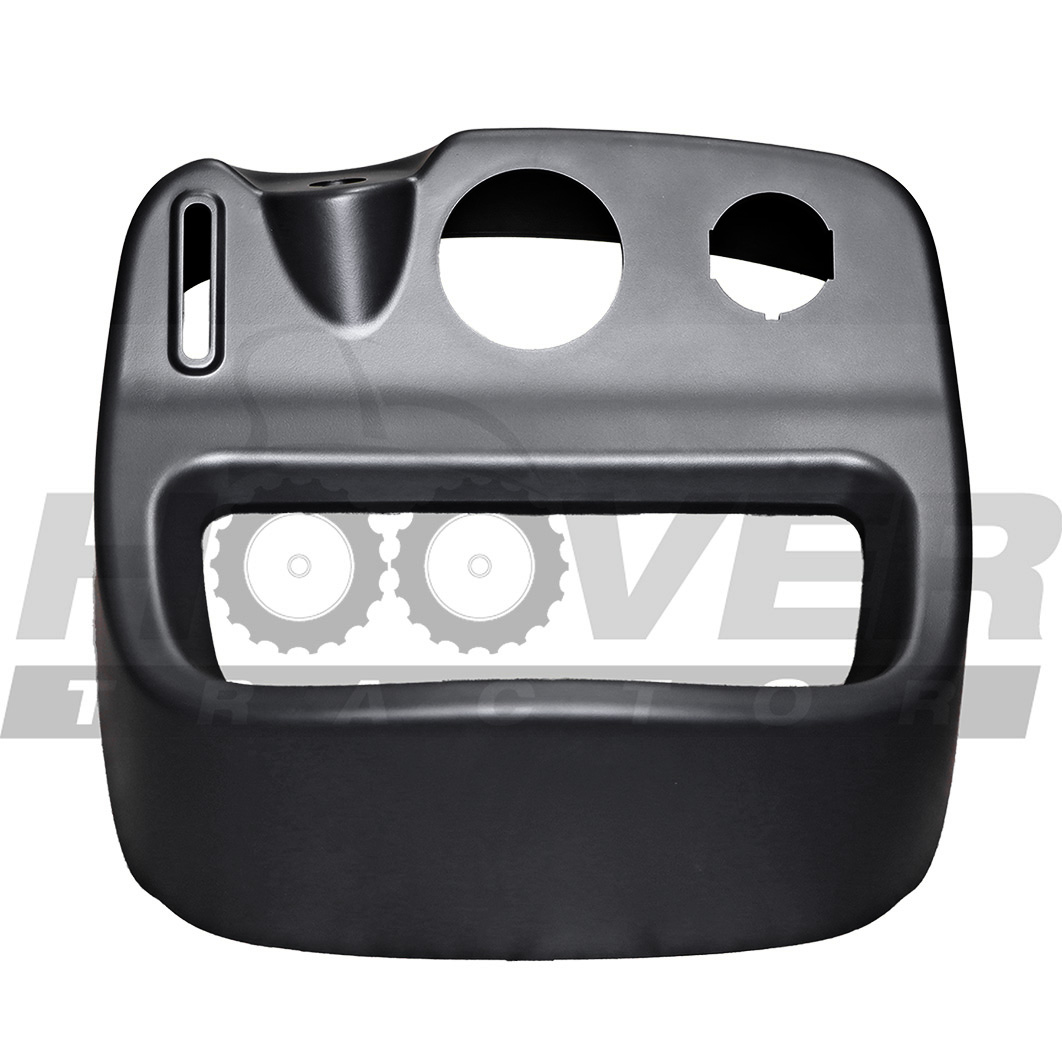

  • 2 DASH BOARD v

    DASH BOARD v

    • Part No. T2555-55343
    • Compatibility No interchange
    • * multiple options for #2
    • 1 shown on diagram
    $184.99
  • 2

    DASHBOARD, UPPER

    • Part No. T2555-55344
    • Compatibility No interchange
    • * multiple options for #2
    • 1 shown on diagram
    $184.99
  • 3

    DASH BOARD

    • Part No. T2555-55352
    • * multiple options for #3
    • 1 shown on diagram
    $264.99

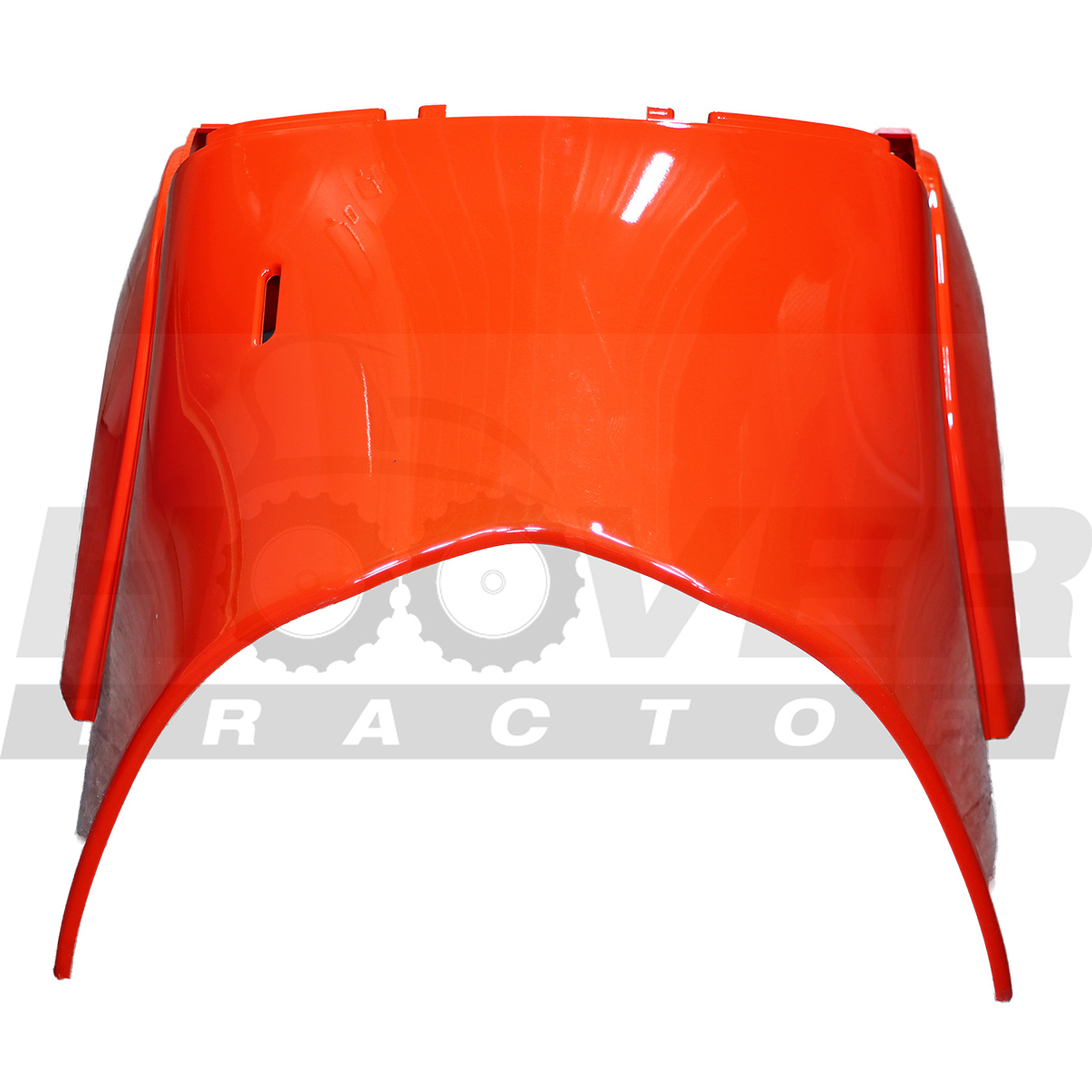

  • 3 DASH BOARD, LOWER

    DASH BOARD, LOWER

    • Part No. T2555-55352OE
    • Compatibility New repl old
    • * multiple options for #3
    • 1 shown on diagram
    $264.99
  • 4 TAPPING SCREW v

    TAPPING SCREW v

    • Part No. 38240-1883-1
    • M4X16
    • 6 shown on diagram
    $0.79
  • 5

    SPONGE, 3

    • Part No. T2555-72562
    • 2 shown on diagram
    $5.99
  • 6 BOLT, FLANGE M6 P1.00 x 16

    BOLT, FLANGE M6 P1.00 x 16

    • Part No. 01754-50616
    • M6XP1.0
    • 6 shown on diagram
    $1.89
