BONNET GROUP - TB2-G615503

Kioti TRACTOR | CS Series | CS2410 (MY5100001 to NY5100240)

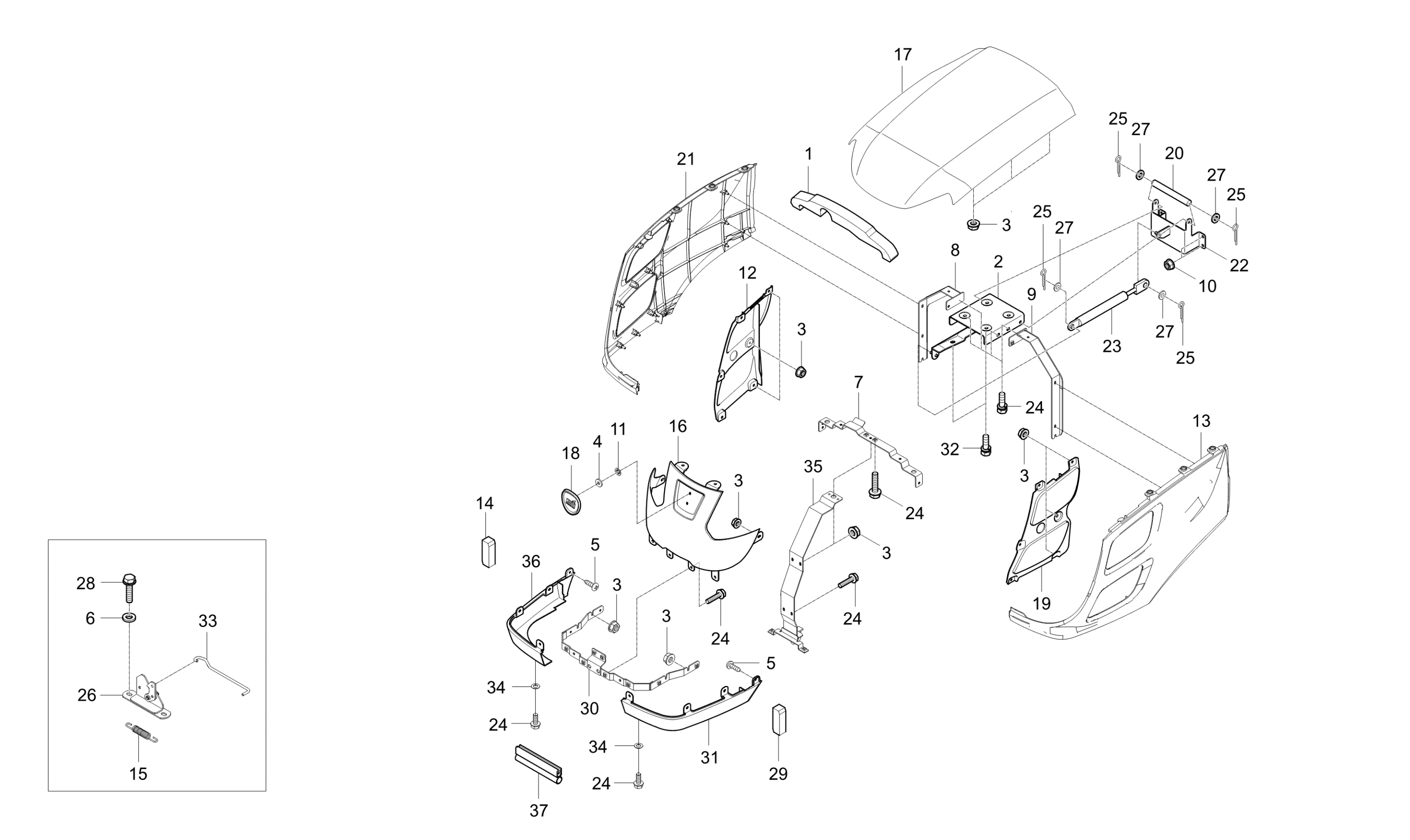

Diagram for BONNET GROUP - TB2-G615503
  • 1 SPONGE, BONNET

    SPONGE, BONNET

    • Part No. T2555-50771
    • 1 shown on diagram
    $63.99
  • 2

    HINGE BRACKET, BONNET

    • Part No. T2555-50671
    • 1 shown on diagram
    $75.99
  • 3 NUT, FLANGE

    NUT, FLANGE

    • Part No. 02761-50060
    • M6XP1.0
    • 1 shown on diagram
    $0.67
  • 4 Rubber Plate

    Rubber Plate

    • Part No. 82KC-0641
    • 1 shown on diagram
    $1.19
  • 5

    SCREW, BOLT

    • Part No. 03514-50410
    • 1 shown on diagram
    $0.17
  • 6 Flat Washer M6, Replaced by 04012-50060

    Flat Washer M6, Replaced by 04012-50060

    • Part No. 04015-50060
    • M6
    • 1 shown on diagram
    $0.00
  • 7

    PLATE, BONNET HOLDER-2 dnr v

    • Part No. T2555-50622
    • 1 shown on diagram
    $42.99
  • 8

    PLATE, BONNET HOLDER-5 dnr v

    • Part No. T2555-50961
    • 1 shown on diagram
    $57.99
  • 9

    PLATE, BONNET HOLDER-4 dnr v

    • Part No. T2555-50951
    • 1 shown on diagram
    $56.99
  • 10 Kioti Flange Nut, M8 P1.25

    Kioti Flange Nut, M8 P1.25

    • Part No. 02751-50080
    • M8XP1.25
    • 1 shown on diagram
    $0.67
  • 11 Plate, Fixed

    Plate, Fixed

    • Part No. T4620-50701
    • 1 shown on diagram
    $1.39
  • 12

    GRILL, SIDE RH v

    • Part No. T2555-50572
    • 1 shown on diagram
    $95.99
  • 13

    BONNET LH

    • Part No. T2555-50542
    • * multiple options for #13
    • 1 shown on diagram
    $264.99

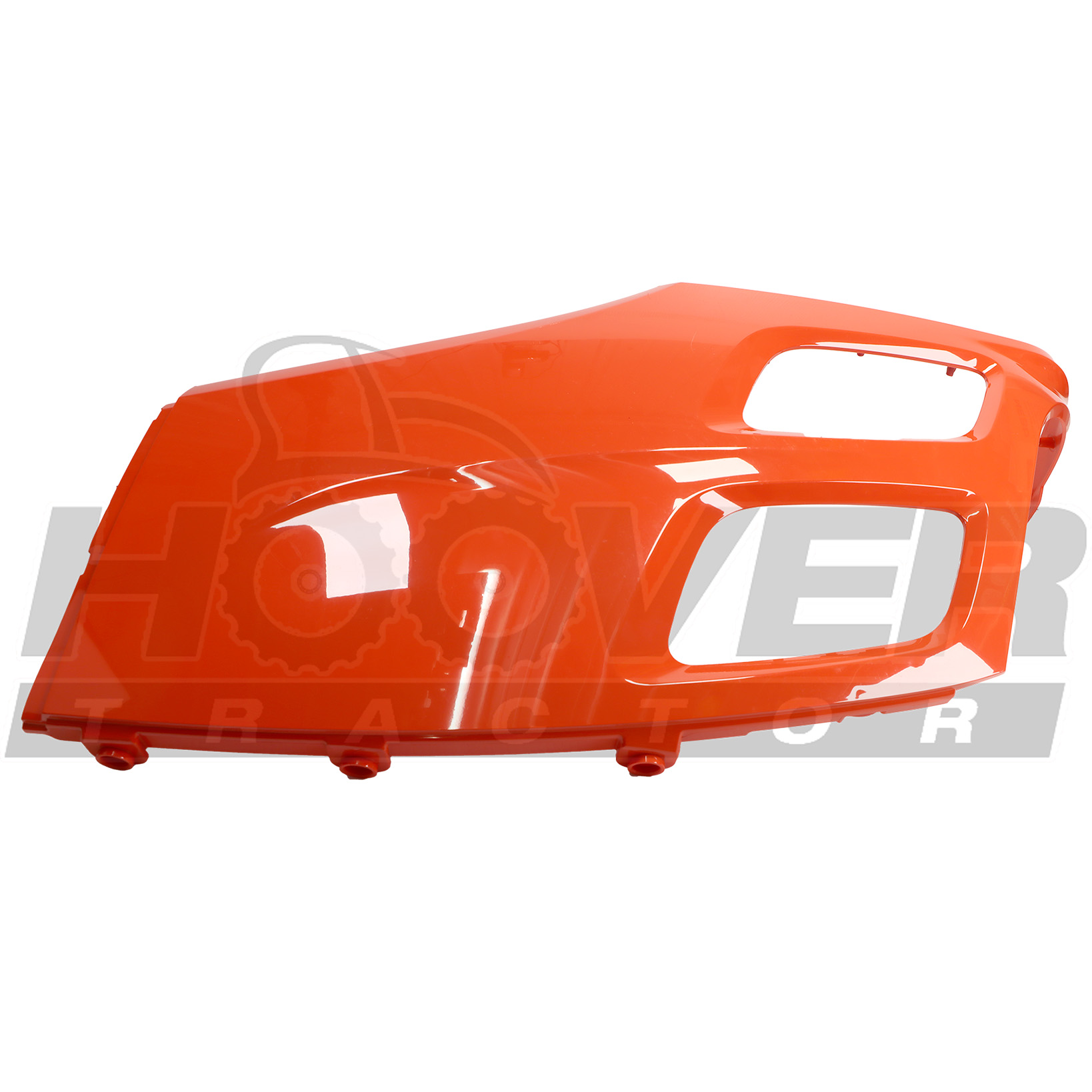

  • 13 TRK BONNET LH

    TRK BONNET LH

    • Part No. T2555-50542OE
    • Compatibility New repl old
    • * multiple options for #13
    • 1 shown on diagram
    $264.99
  • 14

    SPONGE

    • Part No. T2555-50791
    • 1 shown on diagram
    $3.99
  • 15

    FRICTION SPRING

    • Part No. 57781-5121-1
    • DIA1.2
    • 1 shown on diagram
    $3.49
  • 16 GRILL, FRONT, Replaced by T2555-50722FB

    GRILL, FRONT, Replaced by T2555-50722FB

    • Part No. T2555-50722
    • 1 shown on diagram
    $0.00
  • 17

    ASSY BONNET,UPPER

    • Part No. T2555-50712
    • * multiple options for #17
    • 1 shown on diagram
    $334.99
  • 17

    ASSY BONNET, UPPER v

    • Part No. T2555-50712OE
    • Compatibility New repl old
    • * multiple options for #17
    • 1 shown on diagram
    $334.99
  • 18 EMBLEM

    EMBLEM

    • Part No. T2185-51462
    • 1 shown on diagram
    $29.99
  • 19

    GRILL SIDE LH v

    • Part No. T2555-50562
    • 1 shown on diagram
    $79.99
  • 20

    PIN, BONNET

    • Part No. T2555-50751
    • 1 shown on diagram
    $11.99
  • 21

    BONNET RH

    • Part No. T2555-50553
    • * multiple options for #21
    • 1 shown on diagram
    $254.99
  • 21

    BONNET-RH

    • Part No. T2555-50553OE
    • Compatibility New repl old
    • * multiple options for #21
    • 1 shown on diagram
    $254.99
  • 22

    HINGE BRACKET, BONNET

    • Part No. T2555-50682
    • 1 shown on diagram
    $48.99
  • 23

    ASS’Y, AIR CYLINDER

    • Part No. T2555-50902
    • 1 shown on diagram
    $83.99
  • 24

    BOLT, FLANGE

    • Part No. 01754-50614
    • M6XP1.0
    • 1 shown on diagram
    $0.73
  • 25

    PIN, SPLIT

    • Part No. 05511-50220
    • DIA1.8XL20
    • 1 shown on diagram
    $0.56
  • 26

    LATCH

    • Part No. TB26-0191A
    • 1 shown on diagram
    $49.99
  • 27 Flat Washer M8

    Flat Washer M8

    • Part No. 04012-50080
    • M8
    • 1 shown on diagram
    $0.67
  • 28

    BOLT, FLANGE

    • Part No. 01754-50620
    • M6XP1.0
    • 1 shown on diagram
    $1.29
  • 29

    SPONGE, BONNET

    • Part No. T2555-50761
    • 1 shown on diagram
    $3.49
  • 30

    PLATE3, BONNET

    • Part No. T2555-50631
    • 1 shown on diagram
    $62.99
  • 31 LOWER GRILLE, LH v Replaced by TB26-0388A

    LOWER GRILLE, LH v Replaced by TB26-0388A

    • Part No. T2555-50582
    • * multiple options for #31
    • 1 shown on diagram
    $77.99
  • 31 GRILLE, BONNET-LWR LH

    GRILLE, BONNET-LWR LH

    • Part No. TB26-0388A
    • Compatibility Call for compat
    • * multiple options for #31
    • 1 shown on diagram
    $39.99
  • 32

    Bolt With Washers, M8 P1.25 x 20mm

    • Part No. 01125-50820
    • M8XP1.25
    • 1 shown on diagram
    $2.49
  • 33

    LATCH-ROD

    • Part No. TB26-0193A
    • 5.5
    • 1 shown on diagram
    $18.99
  • 34

    Flat Washer M8 Black

    • Part No. 04014-50080B
    • 1 shown on diagram
    $0.65
  • 35 PLATE, BONNET REINFMT-1

    PLATE, BONNET REINFMT-1

    • Part No. TB26-0194A
    • 1 shown on diagram
    $129.99
  • 36

    LOWER GRILLE, RH v

    • Part No. T2555-50592
    • * multiple options for #36
    • 1 shown on diagram
    $77.99
  • 36

    GRILLE, BONNET-LWR RH

    • Part No. TB26-0389A
    • Compatibility Call for compat
    • * multiple options for #36
    • 1 shown on diagram
    $0.00
  • 37 RUBBER

    RUBBER

    • Part No. T2555-50971
    • 1 shown on diagram
    $19.99
  • 38

    GRILLE, BONNET-LWR FR

    • Part No. TB26-0387A
    • 1 shown on diagram
    $0.00
  • 39 NUT, FLANGE

    NUT, FLANGE

    • Part No. 02761-50060
    • M6XP1.0
    • 4 shown on diagram
    $0.67
