AIR CLEANER/MUFFLER GROUP - T2555-G404

Kioti TRACTOR | CS Series | CS2410 (MY5100001 to NY5100240)

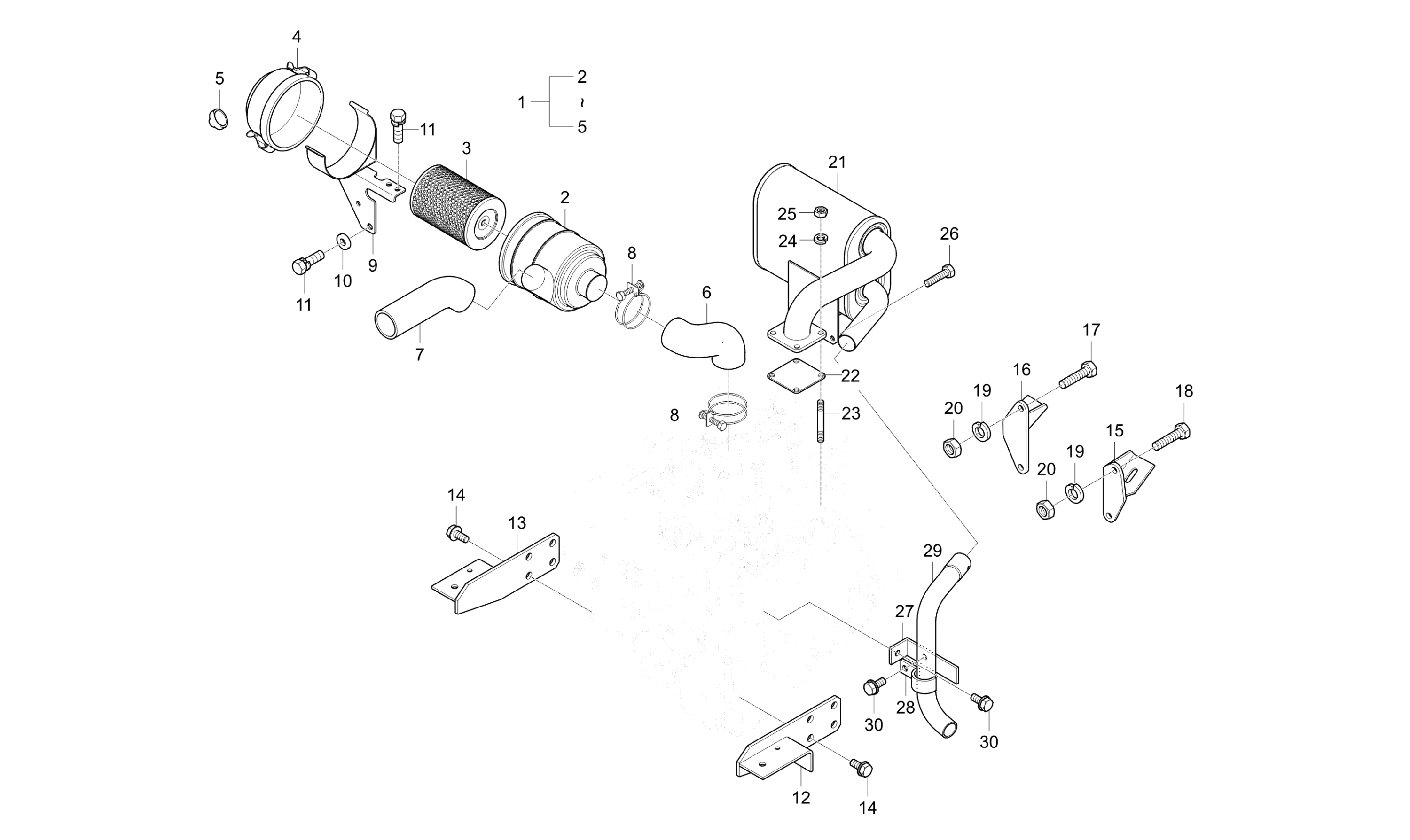

Diagram for AIR CLEANER/MUFFLER GROUP - T2555-G404
  • 1

    AIR CLEANER ASSY, Replaced by U3210-73102

    • Part No. T2350-11612
    • Applied Dates Up to 2012-11-09
    • * multiple options for #1
    • 1 shown on diagram
    $153.00
  • 1

    AIR CLEANER dnr v

    • Part No. U3210-73101
    • Compatibility Call for compat
    • * multiple options for #1
    • 1 shown on diagram
    $134.99
  • 2

    BODY, AIR CLEANER v

    • Part No. T2350-11631
    • 1 shown on diagram
    $144.99
  • 3 Air Filter, Primary RadialSeal

    Air Filter, Primary RadialSeal

    • Part No. T2350-11641
    • 1 shown on diagram
    $43.99
  • 4

    COVER, AIR CLEANER dnr v

    • Part No. T2350-11651
    • 1 shown on diagram
    $91.99
  • 5

    CAP

    • Part No. T2350-11661
    • 1 shown on diagram
    $13.99
  • 6

    INLET HOSE, 2

    • Part No. T2555-11232
    • 1 shown on diagram
    $34.99
  • 7

    INLET HOSE, 1

    • Part No. T2555-11222
    • 1 shown on diagram
    $27.99
  • 8

    HOSE

    • Part No. 09318-89055
    • 2 shown on diagram
    $2.99
  • 9

    HOLDER, AIR CLEANER

    • Part No. T2555-11022
    • 1 shown on diagram
    $49.99
  • 10 Flat Washer M6

    Flat Washer M6

    • Part No. 04013-50060
    • M6
    • 3 shown on diagram
    $0.73
  • 11 Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    • Part No. 01123-50816
    • M8XP1.25
    • 3 shown on diagram
    $1.09
  • 12

    ENGINE SUPPORT

    • Part No. T2555-12622
    • * multiple options for #12
    • 1 shown on diagram
    $49.99
  • 12

    ENGINE SUPPORT

    • Part No. T2555-12623
    • Compatibility Interchngable
    • * multiple options for #12
    • 1 shown on diagram
    $45.99
  • 12

    ENGINE SUPPORT

    • Part No. T2555-12633
    • Compatibility Interchngable
    • * multiple options for #12
    • 1 shown on diagram
    $35.99
  • 13

    BRACKET, ENGINE MOUNT-FR RH dnr v

    • Part No. T2555-12631
    • * multiple options for #13
    • 1 shown on diagram
    $35.99
  • 13

    ENGINE SUPPORT

    • Part No. T2555-12632
    • Compatibility Interchngable
    • * multiple options for #13
    • 1 shown on diagram
    $35.99
  • 14 BOLT, WASHER M12P1.25 X 25

    BOLT, WASHER M12P1.25 X 25

    • Part No. 01133-51225
    • M12XP1.25
    • 8 shown on diagram
    $3.49
  • 15

    ENGINE SUPPORT

    • Part No. T2555-12641
    • * multiple options for #15
    • 1 shown on diagram
    $17.99
  • 15

    ENGINE SUPPORT

    • Part No. T2555-12642
    • Compatibility Interchngable
    • * multiple options for #15
    • 1 shown on diagram
    $19.99
  • 16

    ENGINE SUPPORT

    • Part No. T2555-12651
    • * multiple options for #16
    • 1 shown on diagram
    $18.99
  • 16

    ENGINE SUPPORT

    • Part No. T2555-12652
    • Compatibility Interchngable
    • * multiple options for #16
    • 1 shown on diagram
    $19.99
  • 17 BOLT, WASHER

    BOLT, WASHER

    • Part No. 01133-51030
    • M10XP1.25
    • 3 shown on diagram
    $2.99
  • 18

    BOLT

    • Part No. 01173-51045
    • 1 shown on diagram
    $2.99
  • 19 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50100
    • M10
    • 4 shown on diagram
    $0.79
  • 20 Nut M10 P1.25

    Nut M10 P1.25

    • Part No. 02176-50100
    • M10XP1.25
    • 4 shown on diagram
    $0.98
  • 21

    ASSY MUFFLER dnr v

    • Part No. T2555-12111
    • * multiple options for #21
    • 1 shown on diagram
    $399.99
  • 21 Muffler Assy

    Muffler Assy

    • Part No. T2555-12112
    • Compatibility Interchngable
    • * multiple options for #21
    • 1 shown on diagram
    $449.99
  • 22 GASKET

    GASKET

    • Part No. T2555-12501
    • 1 shown on diagram
    $4.49
  • 23 STUD

    STUD

    • Part No. 01513-50825
    • M8*P1.25
    • 4 shown on diagram
    $3.99
  • 24 Spring Lock Washer M8

    Spring Lock Washer M8

    • Part No. 04512-50080
    • M08
    • 6 shown on diagram
    $0.61
  • 25 NUT obs

    NUT obs

    • Part No. 02176-50080
    • M8XP1.25
    • 4 shown on diagram
    $0.62
  • 26 FLANGE BOLT, HEX HEAD M8

    FLANGE BOLT, HEX HEAD M8

    • Part No. 01754-50820
    • M8XP1.25
    • 2 shown on diagram
    $1.19
  • 27

    HOLDER 2, MUFFLER

    • Part No. T2555-12491
    • 1 shown on diagram
    $8.49
  • 28

    HOLDER 1, MUFFLER

    • Part No. T2555-12481
    • 1 shown on diagram
    $5.99
  • 29

    TUBE, MUFFLER

    • Part No. T2555-12411
    • * multiple options for #29
    • 1 shown on diagram
    $57.99
  • 29

    PIPE, MUFFLER

    • Part No. TB26-0265B
    • Compatibility New repl old
    • * multiple options for #29
    • 1 shown on diagram
    $109.99
  • 30 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 2 shown on diagram
    $1.79
