STEERING & HAND ACCEL GROUP - T2555-G422

Kioti TRACTOR | CS Series | CS2410 (MY5100001 to NY5100240)

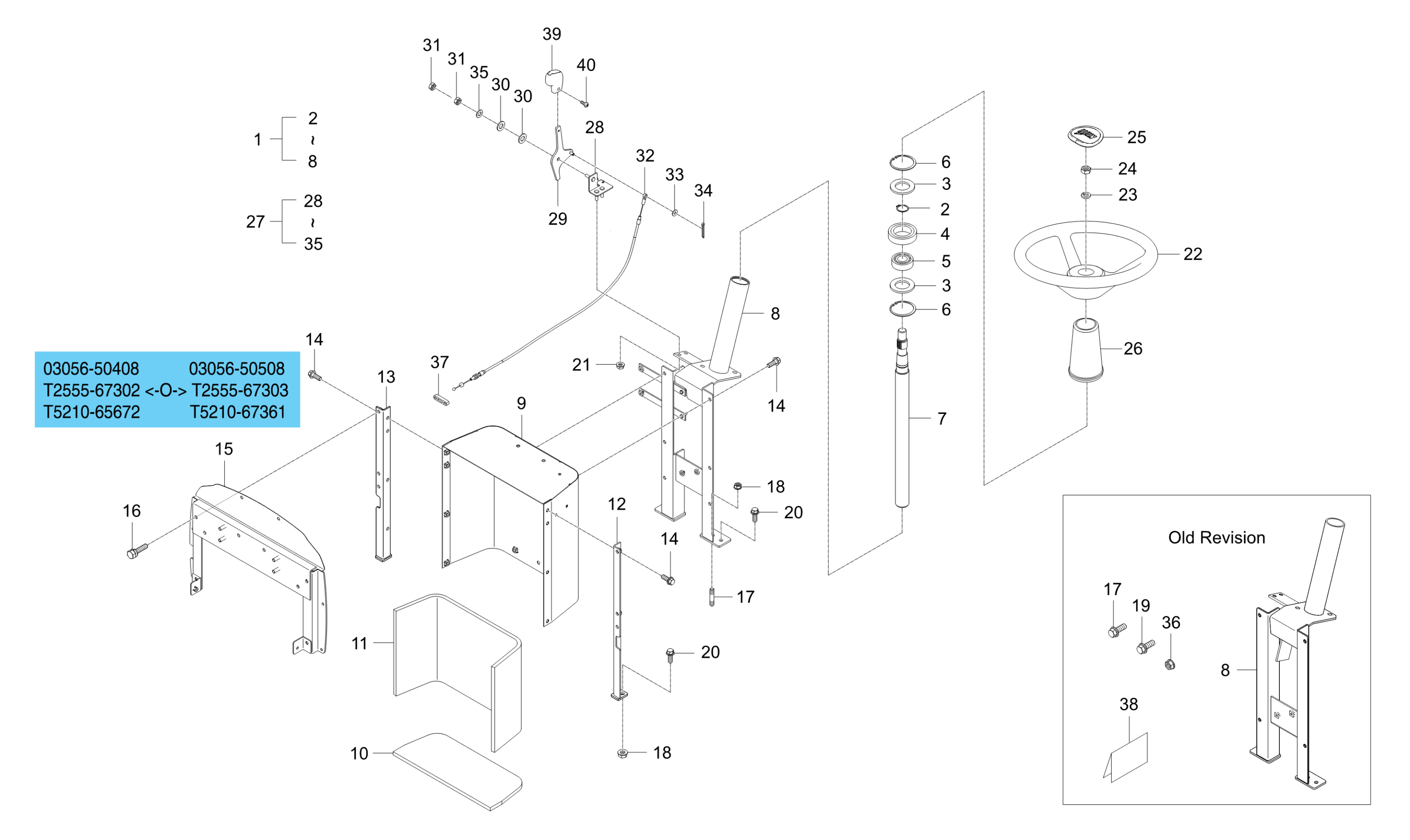

Diagram for STEERING & HAND ACCEL GROUP - T2555-G422
  • 1

    STEERING COULMN ASSY

    • Part No. T2555-66013
    • * multiple options for #1
    • 1 shown on diagram
    $264.99
  • 1

    STEERING COULMN ASSY

    • Part No. T2555-66014
    • Compatibility Old repl new
    • * multiple options for #1
    • 1 shown on diagram
    $0.00
  • 1

    STEERING COULMN ASSY

    • Part No. T2555-66015
    • Compatibility New repl old
    • * multiple options for #1
    • 1 shown on diagram
    $199.99
  • 1

    STEERING COULMN ASSY

    • Part No. T2555-66016
    • Compatibility New repl old
    • * multiple options for #1
    • 1 shown on diagram
    $199.99
  • 2 Snap Ring

    Snap Ring

    • Part No. 04612-00180
    • DIA18
    • 2 shown on diagram
    $1.09
  • 3

    SPACER

    • Part No. T2555-66151
    • 2 shown on diagram
    $2.99
  • 4

    RUBBER, STEERING WHEEL

    • Part No. T2555-66142
    • 1 shown on diagram
    $4.49
  • 5

    BEARING,BALL

    • Part No. 08141-06003
    • #6003DD
    • 1 shown on diagram
    $14.99
  • 6 SNAP RING

    SNAP RING

    • Part No. 04611-00420
    • 2 shown on diagram
    $1.99
  • 7

    STEERING SHAFT dnr v

    • Part No. T2555-66132
    • 1 shown on diagram
    $79.99
  • 8

    COLUMN, STEERING dnr v

    • Part No. T2555-66022
    • * multiple options for #8
    • 1 shown on diagram
    $259.99
  • 8

    COLUMN, STEERING

    • Part No. T2555-66023
    • Compatibility New repl old
    • * multiple options for #8
    • 1 shown on diagram
    $259.99
  • 8

    COLUMN, STEERING

    • Part No. T2555-66024
    • Compatibility New repl old
    • * multiple options for #8
    • 1 shown on diagram
    $169.99
  • 9

    Shutting Plate

    • Part No. T2555-50511
    • * multiple options for #9
    • 1 shown on diagram
    $129.99
  • 9

    PLATE, SHUTTING

    • Part No. T2555-50512
    • Compatibility New repl old
    • * multiple options for #9
    • 1 shown on diagram
    $99.99
  • 9

    PLATE,BLOCK dnr v

    • Part No. T2555-50513
    • Compatibility New repl old
    • * multiple options for #9
    • 1 shown on diagram
    $129.99
  • 10

    SPONGE

    • Part No. T2555-50841
    • 1 shown on diagram
    $35.99
  • 11

    SPONGE

    • Part No. T2555-50851
    • 1 shown on diagram
    $75.99
  • 12

    SUPPORT, BONNET LH

    • Part No. T2555-50821
    • 1 shown on diagram
    $32.99
  • 13

    SUPPORT, BONNET RH

    • Part No. T2555-50811
    • 1 shown on diagram
    $38.99
  • 14 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50812
    • M8XP1.25
    • 12 shown on diagram
    $1.79
  • 15

    BRACKET, BONNET

    • Part No. T2555-50801
    • 1 shown on diagram
    $114.99
  • 16 FLANGE BOLT, HEX HEAD M8

    FLANGE BOLT, HEX HEAD M8

    • Part No. 01754-50820
    • M8XP1.25
    • 4 shown on diagram
    $1.19
  • 17 Bolt With Washer, M8 P1.25 x 22mm

    Bolt With Washer, M8 P1.25 x 22mm

    • Part No. 01123-50822
    • M8XP1.25
    • 2 shown on diagram
    $2.49
  • 18 NUT, FLANGE

    NUT, FLANGE

    • Part No. 02763-50080
    • M8XP1.25
    • 2 shown on diagram
    $0.85
  • 19 Bolt With Washer, M8 P1.25 x 20mm

    Bolt With Washer, M8 P1.25 x 20mm

    • Part No. 01123-50820
    • M8XP1.25
    • 2 shown on diagram
    $2.49
  • 20 Bolt With Washer, M8 P1.25 x 25mm

    Bolt With Washer, M8 P1.25 x 25mm

    • Part No. 01123-50825
    • M8XP1.25
    • 2 shown on diagram
    $1.99
  • 21 Kioti Flange Nut, M8 P1.25

    Kioti Flange Nut, M8 P1.25

    • Part No. 02751-50080
    • M8XP1.25
    • 2 shown on diagram
    $0.67
  • 22

    STEERING dnr v

    • Part No. T2555-55461
    • * multiple options for #22
    • 1 shown on diagram
    $119.99
  • 22 Steering Wheel

    Steering Wheel

    • Part No. T2555-55462
    • Compatibility Interchngable
    • * multiple options for #22
    • 1 shown on diagram
    $129.99
  • 23 M12 Spring Washer (04512-50120)

    M12 Spring Washer (04512-50120)

    • Part No. 04512-50120
    • M12
    • 1 shown on diagram
    $0.95
  • 24 NUT M12 P1.25

    NUT M12 P1.25

    • Part No. 02176-50120
    • M12XP1.25
    • 1 shown on diagram
    $1.49
  • 25 CAP,HANDLE

    CAP,HANDLE

    • Part No. T5245-55461
    • * multiple options for #25
    • 1 shown on diagram
    $39.99
  • 25 CAP,HANDLE

    CAP,HANDLE

    • Part No. T5245-55462
    • Compatibility New repl old
    • * multiple options for #25
    • 1 shown on diagram
    $39.99
  • 26

    COVER, STEERING

    • Part No. T2555-55481
    • 1 shown on diagram
    $16.99
  • 27

    ACCEL ASSY

    • Part No. T2555-67302
    • * multiple options for #27
    • 1 shown on diagram
    $89.99
  • 27

    ACCEL ASSY

    • Part No. T2555-67303
    • Compatibility New repl old
    • * multiple options for #27
    • 1 shown on diagram
    $72.99
  • 27

    ACCEL ASSY

    • Part No. T2555-67304
    • Compatibility New repl old
    • * multiple options for #27
    • 1 shown on diagram
    $83.99
  • 28

    BRACKET-ACLTR dnr v

    • Part No. T2555-67331
    • * multiple options for #28
    • 1 shown on diagram
    $15.99
  • 28

    BRACKET, ACCEL

    • Part No. T2555-67332
    • Compatibility New repl old
    • * multiple options for #28
    • 1 shown on diagram
    $15.99
  • 29

    Lever, Hand Accelerator

    • Part No. T2555-67341
    • * multiple options for #29
    • 1 shown on diagram
    $24.99
  • 29

    Lever, Hand Accelerator

    • Part No. T2555-67342
    • Compatibility New repl old
    • * multiple options for #29
    • 1 shown on diagram
    $24.99
  • 30

    SPRING

    • Part No. T4157-56111
    • 2 shown on diagram
    $1.89
  • 31 Nut M8 P1.25

    Nut M8 P1.25

    • Part No. 02156-50080
    • M8XP1.25
    • 2 shown on diagram
    $0.85
  • 32

    Hand Accel Cable

    • Part No. T2555-67372
    • 1 shown on diagram
    $31.99
  • 33 Flat Washer M6

    Flat Washer M6

    • Part No. 04012-50060
    • M6
    • 1 shown on diagram
    $0.67
  • 34

    PIN, SPLIT

    • Part No. 05511-50220
    • DIA1.8XL20
    • * multiple options for #34
    • 1 shown on diagram
    $0.56
  • 34

    PIN,SPLIT

    • Part No. 05511-51620
    • Compatibility No interchange
    • DIA1.4XL20
    • * multiple options for #34
    • 1 shown on diagram
    $0.50
  • 35 Flat Washer M8

    Flat Washer M8

    • Part No. 04012-50080
    • M8
    • 1 shown on diagram
    $0.67
  • 36 Kioti Flange Nut, M8 P1.25

    Kioti Flange Nut, M8 P1.25

    • Part No. 02751-50080
    • M8XP1.25
    • 2 shown on diagram
    $0.67
  • 37

    Rubber Bushing

    • Part No. T2555-67441
    • 1 shown on diagram
    $2.99
  • 38

    COVER v

    • Part No. T2555-67361
    • 1 shown on diagram
    $5.49
  • 39

    THROTTLE GRIP, Replaced by T5210-65672

    • Part No. T5210-65671
    • * multiple options for #39
    • 1 shown on diagram
    $0.00
  • 39 GRIP

    GRIP

    • Part No. T5210-65672
    • Compatibility New repl old
    • * multiple options for #39
    • 1 shown on diagram
    $14.99
  • 39 GRIP, HAND ACCEL

    GRIP, HAND ACCEL

    • Part No. T5210-67361
    • Compatibility Interchngable
    • * multiple options for #39
    • 1 shown on diagram
    $16.99
  • 40 FLAT HEAD SCREW M4 P0.7

    FLAT HEAD SCREW M4 P0.7

    • Part No. 03056-50408
    • M4XP0.7
    • * multiple options for #40
    • 1 shown on diagram
    $0.46
  • 40 FLAT HEAD SCREW M5P0.8

    FLAT HEAD SCREW M5P0.8

    • Part No. 03056-50508
    • Compatibility New repl old
    • * multiple options for #40
    • 1 shown on diagram
    $0.68
