THREE POINT LINK SYSTEM 1GROUP - DK45CHSE-T795A

Kioti TRACTOR | DK Series | DK60CHSE

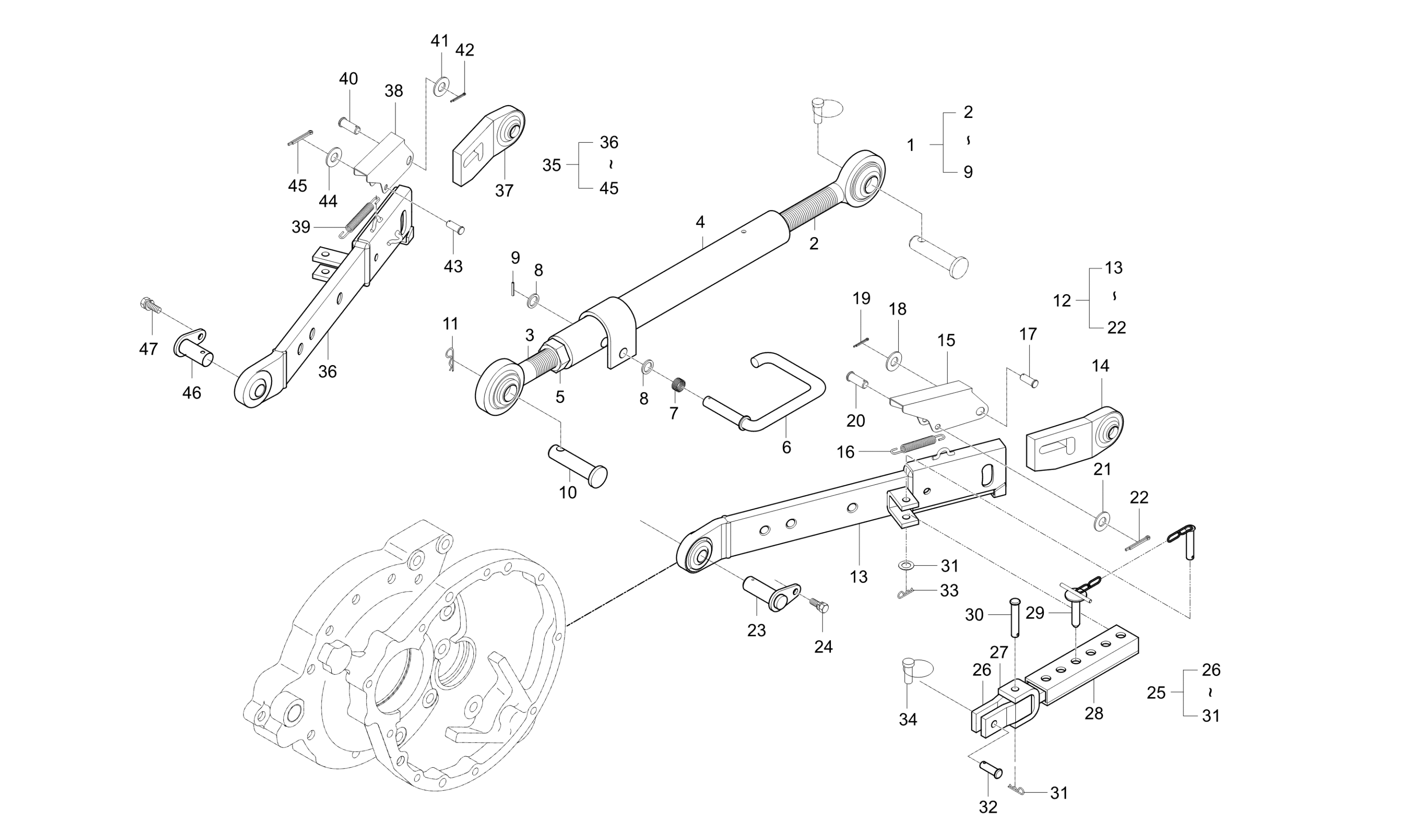

Diagram for THREE POINT LINK SYSTEM 1GROUP - DK45CHSE-T795A
  • 1

    TOP LINK ASSY v

    • Part No. T4681-85351BB
    • 1 shown on diagram
    $334.99
  • 2

    TOP LINK JOINT RH dnr v

    • Part No. 32240-7121-4
    • 1 shown on diagram
    $84.99
  • 3 JOINT, TOP LINK LH

    JOINT, TOP LINK LH

    • Part No. 32240-7122-4
    • 1 shown on diagram
    $85.99
  • 4

    TOP LINK ASSY v, Replaced by T2563-71111

    • Part No. T4620-85361BB
    • 1 shown on diagram
    $0.00
  • 5

    NUT, TOP LINK

    • Part No. 32244-7118-1
    • M24P3.0
    • 1 shown on diagram
    $15.99
  • 6

    CLIP,TOP LINK

    • Part No. T4681-85371BB
    • 1 shown on diagram
    $22.99
  • 7

    SPRING

    • Part No. T4620-85381
    • DIA2
    • 1 shown on diagram
    $5.49
  • 8

    Flat Washer M10

    • Part No. 04011-50100
    • M10
    • 2 shown on diagram
    $0.67
  • 9 PIN, SPRING

    PIN, SPRING

    • Part No. 05411-00425
    • 1 shown on diagram
    $0.68
  • 10

    PIN, TOP LINK, Replaced by T5410-85391

    • Part No. T4620-85392
    • DIA19
    • 1 shown on diagram
    $0.00
  • 11 Hair Pin

    Hair Pin

    • Part No. 05515-51600
    • DIA16
    • 1 shown on diagram
    $2.99
  • 12

    LOWER LINK ASSY (LH) v

    • Part No. T2615-94013
    • Applied Dates 2009-03-31 and up
    • 1 shown on diagram
    $664.99
  • 13 BODY, LOWER LINK ( LH) v

    BODY, LOWER LINK ( LH) v

    • Part No. T2615-94023
    • 1 shown on diagram
    $394.99
  • 14 HOUSING, LOWER LINK(LH) CAT I

    HOUSING, LOWER LINK(LH) CAT I

    • Part No. T2615-93031BB
    • 1 shown on diagram
    $199.99
  • 15 COVER, LWR

    COVER, LWR

    • Part No. T4680-93041BB
    • 1 shown on diagram
    $29.99
  • 16

    SPRING

    • Part No. T4850-93051
    • DIA2
    • 1 shown on diagram
    $3.99
  • 17 PIN

    PIN

    • Part No. T4680-93061
    • 1 shown on diagram
    $19.99
  • 18

    Flat Washer M22

    • Part No. 04011-50220
    • M22
    • 1 shown on diagram
    $1.69
  • 19

    PIN, SPLIT

    • Part No. 05511-50445
    • DIA3.6XL45
    • 1 shown on diagram
    $0.47
  • 20

    Pin, Joint M12x50mm

    • Part No. 05122-51250
    • DIA12XL50
    • 1 shown on diagram
    $2.99
  • 21

    Flat Washer M12

    • Part No. 04011-50120
    • M12
    • 1 shown on diagram
    $0.73
  • 22

    CARTER KEY v

    • Part No. 05511-50430
    • DIA3.6XL30
    • 1 shown on diagram
    $0.46
  • 23 PIN, LOWER LINK, Replaced by T4240-28533TP

    PIN, LOWER LINK, Replaced by T4240-28533TP

    • Part No. T4240-28533
    • 1 shown on diagram
    $0.00
  • 24 Flange Bolt M10 P1.25 x16 (01774-51016)

    Flange Bolt M10 P1.25 x16 (01774-51016)

    • Part No. 01774-51016
    • M10XP1.25
    • 1 shown on diagram
    $2.49
  • 25

    ASSY,CHECK LINK v, Replaced by T4125-91114

    • Part No. T4125-91113
    • Applied Dates 2008-02-04 and up
    • *multiple options for # 25
    • 1 shown on diagram
    $0.00
  • 25 ASSY, CHECK LINK v

    ASSY, CHECK LINK v

    • Part No. T4125-91114
    • Compatibility New Replaces Old
    • *multiple options for # 25
    • 1 shown on diagram
    $159.99
  • 26

    Checklink Clevis 4-5/8″ overall, Replaced by T2615-91123

    • Part No. T2615-91122
    • 1 shown on diagram
    $0.00
  • 27

    ASSY 2 BRACKET v, Replaced by T2615-91133

    • Part No. T4125-91131
    • 1 shown on diagram
    $0.00
  • 28 ASSY,HOUSING

    ASSY,HOUSING

    • Part No. T2615-91143
    • Applied Dates 2008-02-04 and up
    • 1 shown on diagram
    $39.99
  • 29 ASSY, HOLL

    ASSY, HOLL

    • Part No. T4125-91162
    • 1 shown on diagram
    $34.99
  • 30 Pin, Joint M12x65mm

    Pin, Joint M12x65mm

    • Part No. 05122-51265
    • DIA12*65
    • 1 shown on diagram
    $4.99
  • 31 PIN,SNAP

    PIN,SNAP

    • Part No. 05525-51200
    • 1 shown on diagram
    $1.29
  • 32 Pin 12x45mm, Replaced by 32353-7189-3TP

    Pin 12x45mm, Replaced by 32353-7189-3TP

    • Part No. 32353-7189-3
    • 1 shown on diagram
    $12.99
  • 33 Hair Pin

    Hair Pin

    • Part No. 05515-51200
    • DIA12
    • 2 shown on diagram
    $1.49
  • 34

    PIN, CLIP dnr v

    • Part No. 34150-3764-4
    • DIA10.0
    • 1 shown on diagram
    $5.99
  • 35

    ASSY LOWER LINK (RH) v

    • Part No. T2615-94113
    • Applied Dates 2009-03-31 and up
    • 1 shown on diagram
    $699.99
  • 36

    BODY LOWER LINK RH v

    • Part No. T2615-94123
    • Applied Dates 2009-03-31 and up
    • 1 shown on diagram
    $359.99
  • 37 HOUSING, LOWER LINK(RH) CAT I

    HOUSING, LOWER LINK(RH) CAT I

    • Part No. T2615-93131BB
    • 1 shown on diagram
    $199.99
  • 38 COVER, LWR

    COVER, LWR

    • Part No. T4680-93041BB
    • 1 shown on diagram
    $29.99
  • 39

    SPRING

    • Part No. T4850-93051
    • DIA2
    • 1 shown on diagram
    $3.99
  • 40 PIN

    PIN

    • Part No. T4680-93061
    • 1 shown on diagram
    $19.99
  • 41

    Flat Washer M22

    • Part No. 04011-50220
    • M22
    • 1 shown on diagram
    $1.69
  • 42

    PIN, SPLIT

    • Part No. 05511-50445
    • DIA3.6XL45
    • 1 shown on diagram
    $0.47
  • 43

    Pin, Joint M12x50mm

    • Part No. 05122-51250
    • DIA12XL50
    • 1 shown on diagram
    $2.99
  • 44

    Flat Washer M12

    • Part No. 04011-50120
    • M12
    • 1 shown on diagram
    $0.73
  • 45

    CARTER KEY v

    • Part No. 05511-50430
    • DIA3.6XL30
    • 1 shown on diagram
    $0.46
  • 46 PIN, LOWER LINK, Replaced by T4240-28533TP

    PIN, LOWER LINK, Replaced by T4240-28533TP

    • Part No. T4240-28533
    • 1 shown on diagram
    $0.00
  • 47 Flange Bolt M10 P1.25 x16 (01774-51016)

    Flange Bolt M10 P1.25 x16 (01774-51016)

    • Part No. 01774-51016
    • M10XP1.25
    • 1 shown on diagram
    $2.49
