HST PEDAL GROUP - DK55CHSE-T915A

Kioti TRACTOR | DK Series | DK60CHSE

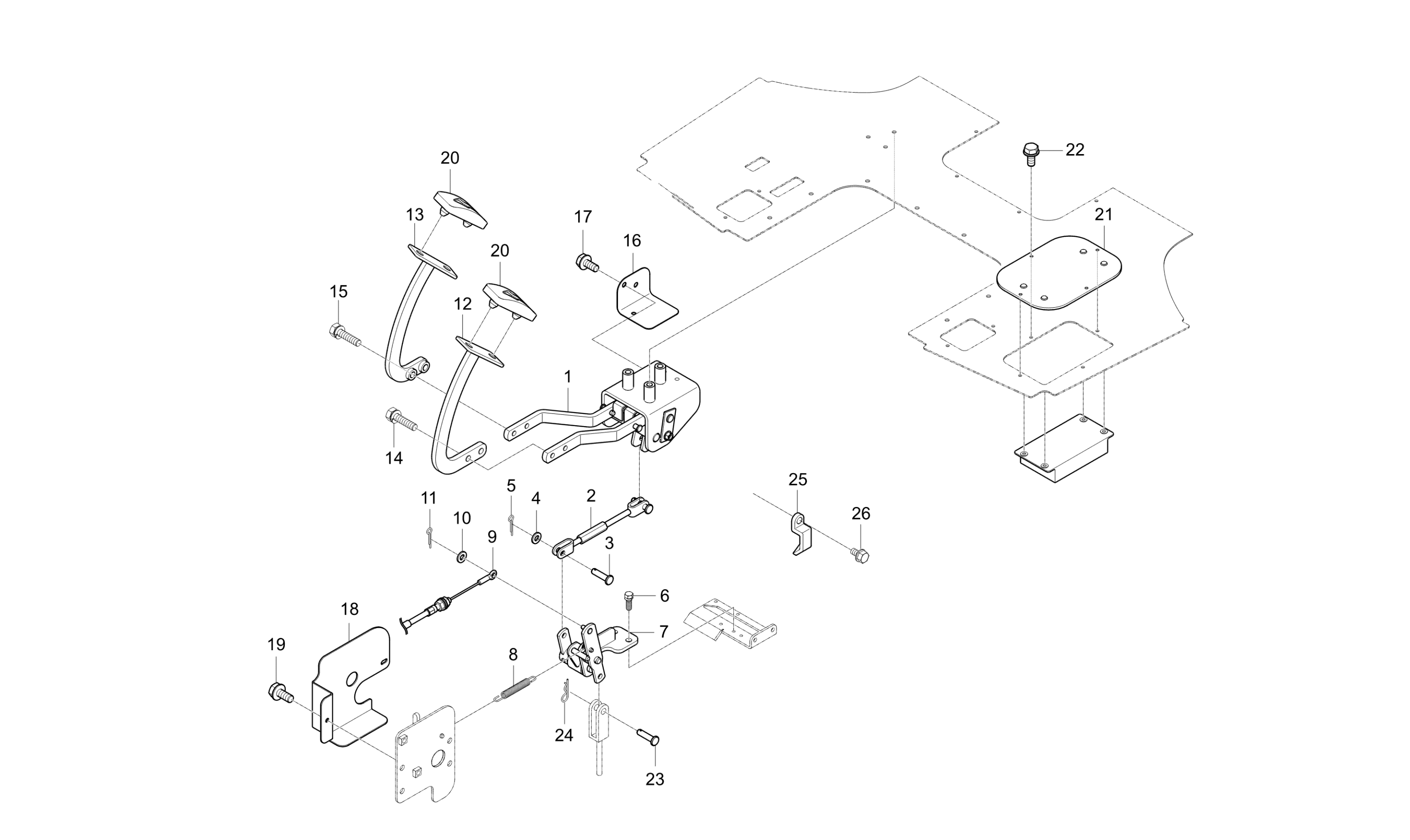

Diagram for HST PEDAL GROUP - DK55CHSE-T915A
  • 1

    PEDAL ASSY, 2

    • Part No. T5517-68412
    • 1 shown on diagram
    $264.99
  • 2

    CONNECTING ROD

    • Part No. T5515-68121
    • 1 shown on diagram
    $36.99
  • 3

    Pin, Joint M8x20mm

    • Part No. 05122-50820
    • 1 shown on diagram
    $2.49
  • 4 Flat Washer M8

    Flat Washer M8

    • Part No. 04012-50080
    • M8
    • 1 shown on diagram
    $0.67
  • 5 PIN, SPLIT

    PIN, SPLIT

    • Part No. 05511-50218
    • DIA1.8XL18
    • 1 shown on diagram
    $0.56
  • 6 Bolt With Washer, M8 P1.25 x 20mm

    Bolt With Washer, M8 P1.25 x 20mm

    • Part No. 01123-50820
    • M8XP1.25
    • 2 shown on diagram
    $2.49
  • 7

    ASSY LINK obs v

    • Part No. T5515-67702
    • 1 shown on diagram
    $82.99
  • 8

    SPRING, RETURN

    • Part No. T4157-51211
    • 1 shown on diagram
    $4.99
  • 9

    CABLE, ACCELERATOR

    • Part No. T5515-62222
    • 1 shown on diagram
    $33.99
  • 10 Flat Washer M6

    Flat Washer M6

    • Part No. 04013-50060
    • M6
    • 1 shown on diagram
    $0.73
  • 11

    PIN, SNAP

    • Part No. 05525-50600
    • DIA6
    • 1 shown on diagram
    $1.19
  • 12

    PEDAL 2, LH

    • Part No. T5517-33251
    • 1 shown on diagram
    $59.99
  • 13

    PEDAL 2, RH

    • Part No. T5517-33261
    • 1 shown on diagram
    $75.99
  • 14 Bolt w/Lock Washer M10 P1.25x22mm

    Bolt w/Lock Washer M10 P1.25x22mm

    • Part No. 01133-51022
    • M10XP1.25
    • 2 shown on diagram
    $2.99
  • 15

    Bolt w/Lock Washer M10 P1.25x32mm

    • Part No. 01133-51032
    • M10XP1.25
    • 2 shown on diagram
    $3.99
  • 16

    SENSOR COVER

    • Part No. T5515-68681
    • 1 shown on diagram
    $17.99
  • 17

    Bolt

    • Part No. T2185-70491
    • 2 shown on diagram
    $1.59
  • 18

    CABLE COVER obs v

    • Part No. T5515-68701
    • 1 shown on diagram
    $23.99
  • 19 Flange Bolt (T4625-55431)

    Flange Bolt (T4625-55431)

    • Part No. T4625-55431
    • 2 shown on diagram
    $1.09
  • 20

    RUBBER, PEDAL

    • Part No. T4125-31123
    • 2 shown on diagram
    $18.99
  • 21

    CONTROLLER BRACKET, 2 obs v

    • Part No. T5517-83222
    • 1 shown on diagram
    $14.99
  • 22 BOLT, FLANGE M6 P1.00 x 16

    BOLT, FLANGE M6 P1.00 x 16

    • Part No. 01754-50616
    • M6XP1.0
    • 4 shown on diagram
    $1.89
  • 23

    Pin, Joint M8x18mm

    • Part No. 05122-50818
    • 1 shown on diagram
    $2.99
  • 24 Hair Pin

    Hair Pin

    • Part No. 05525-50800
    • DIA8
    • 1 shown on diagram
    $1.29
  • 25

    BRACKET(HOSE), Replaced by T4686-47271ED

    • Part No. T4686-47271
    • T3.0 X 19
    • 1 shown on diagram
    $0.00
  • 26 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 1 shown on diagram
    $1.79
