BONNET 1 GROUP - DK45CHSE-T855A

Kioti TRACTOR | DK Series | DK60CHSE

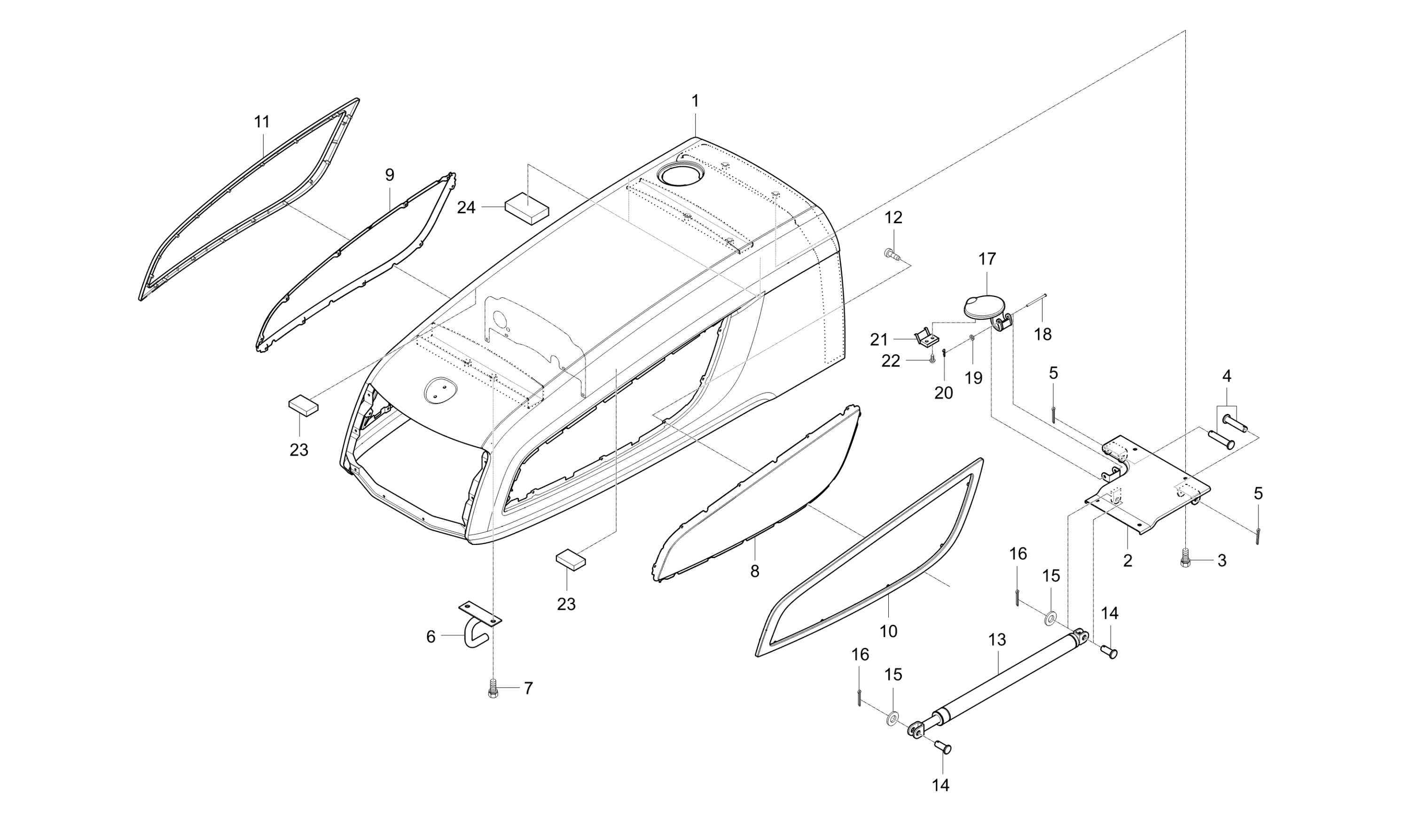

Diagram for BONNET 1 GROUP - DK45CHSE-T855A
  • 1

    TRK – ASSY BONNET dnr v

    • Part No. T4015-50704
    • 1 shown on diagram
    $1,549.99
  • 2

    HINGE,BONNETT

    • Part No. T4125-50794
    • 1 shown on diagram
    $95.99
  • 3 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 4 shown on diagram
    $1.79
  • 4

    Pin, Joint M10x60mm

    • Part No. 05122-51060
    • 2 shown on diagram
    $3.99
  • 5

    PIN, SNAP

    • Part No. 05515-51000
    • DIA10
    • 2 shown on diagram
    $1.29
  • 6

    HOLDER, BONNET v

    • Part No. T4145-50611
    • *multiple options for # 6
    • 1 shown on diagram
    $29.99
  • 6

    HOLDER, BONNET v

    • Part No. T4145-50612
    • Compatibility No Interchange
    • Applied Dates 2011-08-01 and up
    • Serial No. LA8600001 and up
    • *multiple options for # 6
    • 1 shown on diagram
    $26.99
  • 7

    BOLT, FLANGE

    • Part No. 01774-51020
    • M10P1.25
    • 2 shown on diagram
    $2.99
  • 8

    NET, 1

    • Part No. T4125-51111BB
    • 1 shown on diagram
    $169.99
  • 9

    NET 2

    • Part No. T4125-51121BB
    • 1 shown on diagram
    $169.99
  • 10

    GRILL, SIDE LH, Charcoal Gray, Replaced by T4125-51132FB

    • Part No. T4125-51131BB
    • 1 shown on diagram
    $0.00
  • 11

    GRILL SIDE RH dnr v

    • Part No. T4125-51141BB
    • 1 shown on diagram
    $209.99
  • 12

    SCREW

    • Part No. 38430-1827-1
    • *multiple options for # 12
    • 40 shown on diagram
    $0.46
  • 12

    SCREW

    • Part No. 38430-1827-1
    • Compatibility New Replaces Old
    • *multiple options for # 12
    • 40 shown on diagram
    $0.46
  • 13 ASS’Y, AIR CYLINDER

    ASS’Y, AIR CYLINDER

    • Part No. T4125-50911
    • 1 shown on diagram
    $94.99
  • 14

    Pin, Joint M10x25mm

    • Part No. 05122-51025
    • DIA10*25
    • 2 shown on diagram
    $2.99
  • 15 Flat Washer M10

    Flat Washer M10

    • Part No. 04013-50100
    • M10
    • 2 shown on diagram
    $0.73
  • 16

    PIN, SNAP

    • Part No. 05515-51000
    • DIA10
    • 2 shown on diagram
    $1.29
  • 17 COVER,FUEL

    COVER,FUEL

    • Part No. T2185-50641
    • 1 shown on diagram
    $43.99
  • 18

    Pin, Joint M6x45mm

    • Part No. 05122-50645
    • 1 shown on diagram
    $2.99
  • 19 Flat Washer M6

    Flat Washer M6

    • Part No. 04013-50060
    • M6
    • 1 shown on diagram
    $0.73
  • 20

    PIN, SNAP

    • Part No. 05525-50600
    • DIA6
    • 1 shown on diagram
    $1.19
  • 21

    CLIP

    • Part No. T2185-50651
    • T0.5
    • 1 shown on diagram
    $5.99
  • 22

    SCREW

    • Part No. 38430-1827-1
    • 2 shown on diagram
    $0.46
  • 23

    SPONGE

    • Part No. T2350-50391
    • T25
    • 2 shown on diagram
    $9.99
  • 24

    SPONGE

    • Part No. T4145-50401
    • 2 shown on diagram
    $29.99
