STEP GROUP - DK55CHSE-T865A

Kioti TRACTOR | DK Series | DK60CHSE

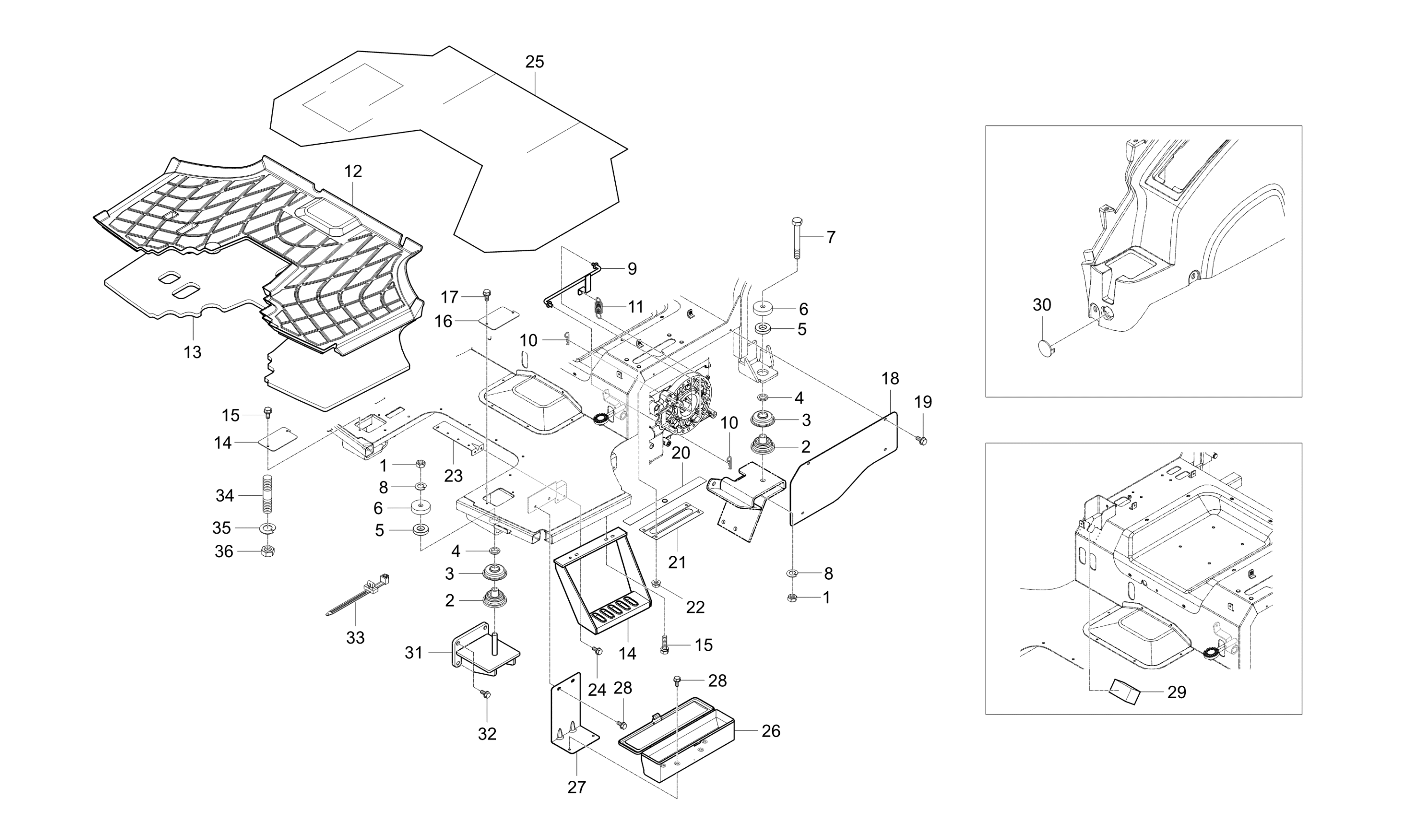

Diagram for STEP GROUP - DK55CHSE-T865A
  • 1 Nut M16 P1.50

    Nut M16 P1.50

    • Part No. 02176-50160
    • M16XP1.5
    • 4 shown on diagram
    $2.49
  • 2

    RUBBER

    • Part No. T2660-87811
    • 4 shown on diagram
    $44.99
  • 3

    COVER , RUBBER

    • Part No. T4920-87821
    • 4 shown on diagram
    $26.99
  • 4

    COLLAR RUBBBER

    • Part No. T4682-87831
    • 4 shown on diagram
    $12.99
  • 5

    RUBBER,DUST

    • Part No. T4145-88841
    • Hs 45
    • 4 shown on diagram
    $17.99
  • 6

    Collar, Replaced by T4920-87851BB

    • Part No. T4920-87851
    • 4 shown on diagram
    $0.00
  • 7

    Bolt M16 P1.50

    • Part No. 01173-51601
    • M16XP1.5
    • 2 shown on diagram
    $11.99
  • 8 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50160
    • M16
    • 4 shown on diagram
    $1.29
  • 9

    ROD,DIFF. SET

    • Part No. T4145-65011
    • 1 shown on diagram
    $29.99
  • 10

    PIN, SNAP

    • Part No. 05515-50800
    • DIA8
    • 2 shown on diagram
    $1.29
  • 11 FRICTION SPRING

    FRICTION SPRING

    • Part No. T4153-27831
    • 1 shown on diagram
    $4.49
  • 12

    MAT, STEP

    • Part No. T4145-85523
    • 1 shown on diagram
    $319.99
  • 13

    SPONGE(MAT)

    • Part No. T4145-70241
    • *multiple options for # 13
    • 1 shown on diagram
    $85.99
  • 13

    SPONGE, STEP MAT

    • Part No. T4144-70241
    • Compatibility Interchngable
    • Applied Dates 2011-10-30 and up
    • Serial No. LA8600001 and up
    • T10
    • *multiple options for # 13
    • 1 shown on diagram
    $85.99
  • 14

    STEP v

    • Part No. T4145-70221
    • 2 shown on diagram
    $159.99
  • 15 Bolt w/Lock Washer M10 P1.25x30mm

    Bolt w/Lock Washer M10 P1.25x30mm

    • Part No. 01133-51030
    • Applied Dates 2011-07-01 to 2011-06-30
    • Serial No. LA8600001 and up
    • M10XP1.25
    • *multiple options for # 15
    • 8 shown on diagram
    $2.99
  • 15 Bolt w/Lock Washer M10 P1.25x30mm

    Bolt w/Lock Washer M10 P1.25x30mm

    • Part No. 01133-51030
    • Compatibility Interchngable
    • M10XP1.25
    • *multiple options for # 15
    • 6 shown on diagram
    $2.99
  • 16

    COVER

    • Part No. T4145-87861
    • 2 shown on diagram
    $7.99
  • 17 Flange Bolt (T4625-55431)

    Flange Bolt (T4625-55431)

    • Part No. T4625-55431
    • 4 shown on diagram
    $1.09
  • 18

    COVER

    • Part No. T4145-92711
    • 2 shown on diagram
    $18.99
  • 19 Flange Bolt (T4625-55431)

    Flange Bolt (T4625-55431)

    • Part No. T4625-55431
    • 8 shown on diagram
    $1.09
  • 20

    MOUNTING PLATE obs v

    • Part No. T5517-60451
    • 1 shown on diagram
    $23.99
  • 21

    Skid Adjuster

    • Part No. T4145-60461
    • T0.8
    • 1 shown on diagram
    $6.49
  • 22 Kioti Flange Nut, M8 P1.25

    Kioti Flange Nut, M8 P1.25

    • Part No. 02751-50080
    • M8XP1.25
    • 4 shown on diagram
    $0.67
  • 23

    HARNESS PLATE

    • Part No. T4145-70271
    • 2 shown on diagram
    $9.99
  • 24 BOLT, FLANGE M6 P1.00 x 16

    BOLT, FLANGE M6 P1.00 x 16

    • Part No. 01754-50616
    • M6XP1.0
    • 4 shown on diagram
    $1.89
  • 25

    MAT

    • Part No. T4145-70262
    • t0.4 ? 0.5
    • 1 shown on diagram
    $12.99
  • 26

    TOOL BOX

    • Part No. T4930-70492
    • 1 shown on diagram
    $25.99
  • 27

    BRACKET, TOOL BOX dnr v

    • Part No. T4145-70551
    • 1 shown on diagram
    $32.99
  • 28 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 4 shown on diagram
    $1.79
  • 29

    SPONGE

    • Part No. T2350-50391
    • T25
    • 1 shown on diagram
    $9.99
  • 30

    CAP

    • Part No. T4145-93221
    • 1 shown on diagram
    $1.49
  • 31

    CABIN SUPPORT FRONT, LH obs v

    • Part No. T5517-33331
    • 1 shown on diagram
    $144.99
  • 32

    Bolt w/Lock Washer M12 P1.25x30mm

    • Part No. 01133-51230
    • M12XP1.25
    • 4 shown on diagram
    $5.49
  • 33

    BAND, CABLE

    • Part No. P5370-82551
    • 1 shown on diagram
    $1.89
  • 34 STUD

    STUD

    • Part No. 01517-51028
    • M10XP1.25
    • 2 shown on diagram
    $5.49
  • 35 Lock Washer M10

    Lock Washer M10

    • Part No. 04512-50100
    • M10
    • 2 shown on diagram
    $0.79
  • 36 Nut M10 P1.25

    Nut M10 P1.25

    • Part No. 02176-50100
    • M10XP1.25
    • 2 shown on diagram
    $0.98
