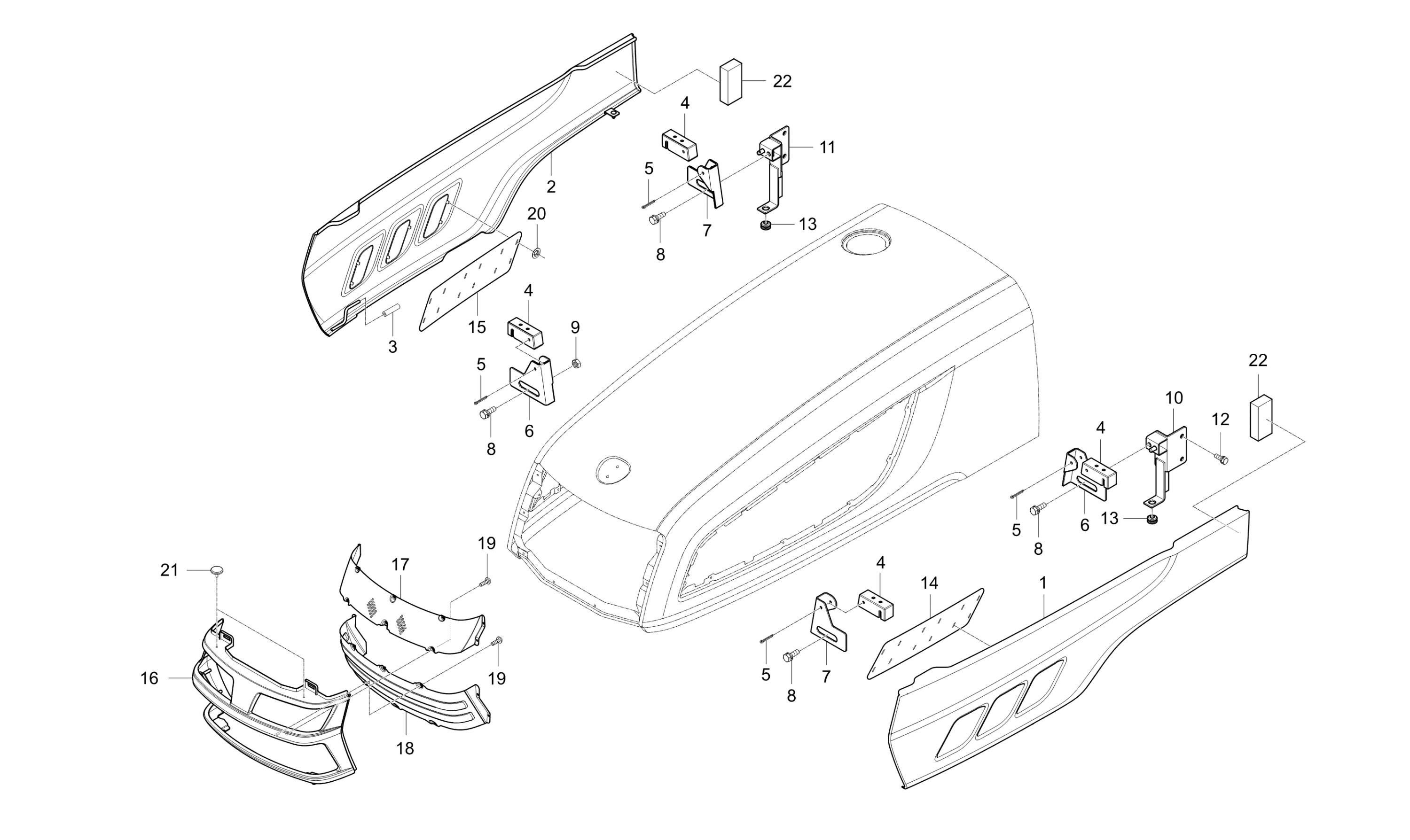

BONNET 2 GROUP - DK45CHSE-T860A

Kioti TRACTOR | DK Series | DK60CHSE

1
COVER SIDE LH, Replaced by TE16-0136A
- Part No. T4015-50824BB
- 1 shown on diagram
$0.00

COVER SIDE LH, Replaced by TE16-0136A quantity
2
Side Cover (RH) Replaced by T4015-50834-SP
- Part No. T4015-50834BB
- 1 shown on diagram
$0.00

Side Cover (RH) Replaced by T4015-50834-SP quantity
3
HOSE, FUEL obs v
- Part No. 09661-60030
- 2 shown on diagram
$1.89

HOSE, FUEL obs v quantity
4
HOOK(SIDE COVER)
- Part No. T2185-50842
- 4 shown on diagram
$11.99

HOOK(SIDE COVER) quantity
5
Split Pin (05511-50325)
- Part No. 05511-50325
- 4 shown on diagram
$0.68

Split Pin (05511-50325) quantity
6
Stay Plate 1
- Part No. T2185-50852
- T1.6
- 2 shown on diagram
$8.99

Stay Plate 1 quantity
7
PLATE, STAY 2
- Part No. T2185-50862
- T1.6
- 2 shown on diagram
$13.99

PLATE, STAY 2 quantity
8
Bolt With Washers, M8 P1.25 x 16mm (01125-50816)
- Part No. 01125-50816
- M8XP1.25
- 2 shown on diagram
$2.49

Bolt With Washers, M8 P1.25 x 16mm (01125-50816) quantity
9
Kioti Flange Nut, M8 P1.25
- Part No. 02751-50080
- M8XP1.25
- 2 shown on diagram
$0.67

Kioti Flange Nut, M8 P1.25 quantity
10
HOLDER, SIDE – COVER v
- Part No. T4125-50933ED
- 1 shown on diagram
$42.99

HOLDER, SIDE - COVER v quantity
11
HOLDER, SIDE-COVER
- Part No. T4125-50943ED
- 1 shown on diagram
$35.99

HOLDER, SIDE-COVER quantity
12
BOLT, FLANGE
- Part No. 01754-50816
- M8XP1.25
- 4 shown on diagram
$1.79

BOLT, FLANGE quantity
13
GROMMET
- Part No. T4682-50251
- 2 shown on diagram
$1.89

GROMMET quantity
14

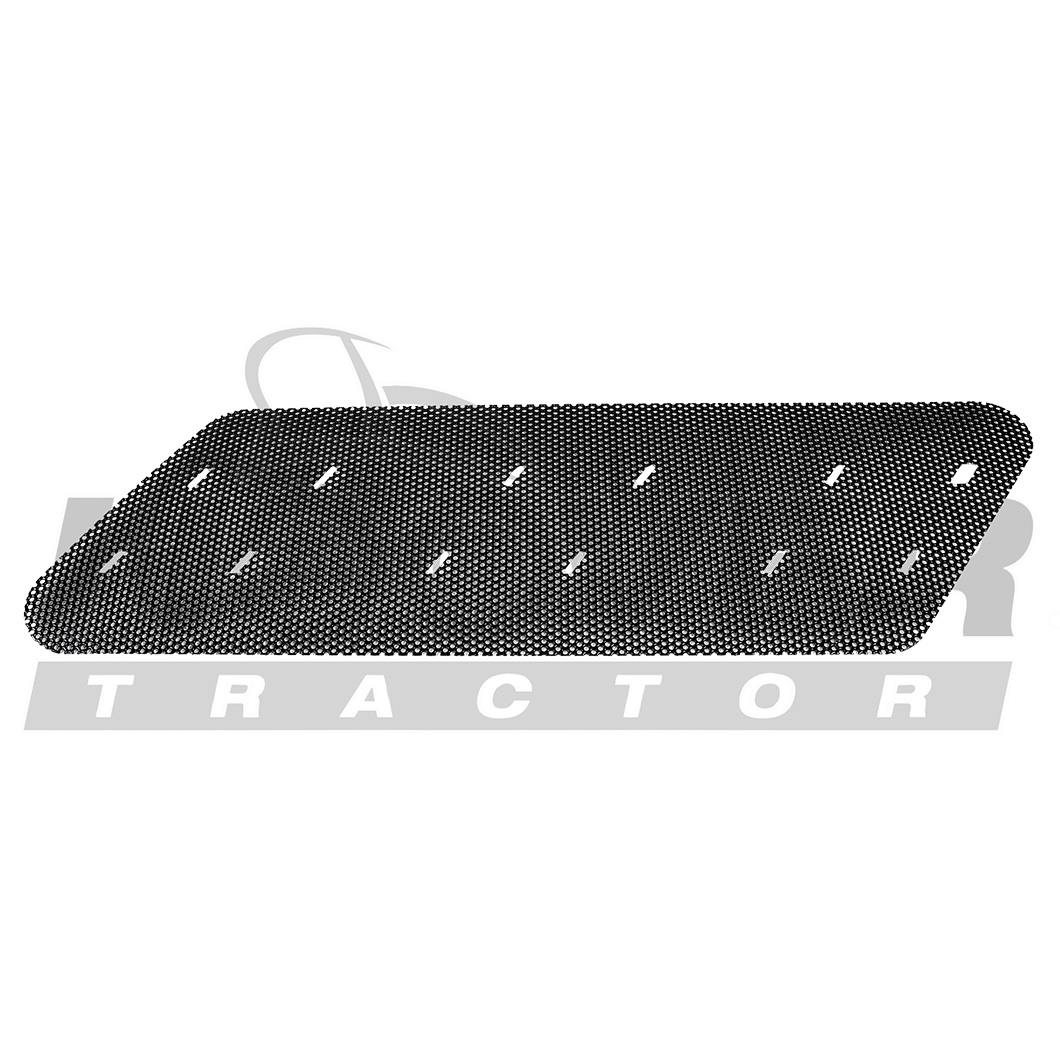

NET SIDE COVER, LH v
- Part No. T4125-50841BB
- 1 shown on diagram
$79.99

NET SIDE COVER, LH v quantity
15
COVER NET SIDE RH
- Part No. T4125-50851BB
- 1 shown on diagram
$69.99

COVER NET SIDE RH quantity
16
GRILLE, FRONT, Replaced by T4025-50813FB
- Part No. T4025-50812BB
- Applied Dates 2008-10-22 to 2015-09-30
- *multiple options for # 16
- 1 shown on diagram
$0.00

GRILLE, FRONT, Replaced by T4025-50813FB quantity
16
GRILL, FRONT v, Replaced by T4025-50813FB
- Part No. T4025-50813
- Compatibility No Interchange
- *multiple options for # 16
- 1 shown on diagram
$0.00

GRILL, FRONT v, Replaced by T4025-50813FB quantity
17
NET 2 FRONT GRILL
- Part No. T4025-50821BB
- 1 shown on diagram
$0.00

NET 2 FRONT GRILL quantity
18

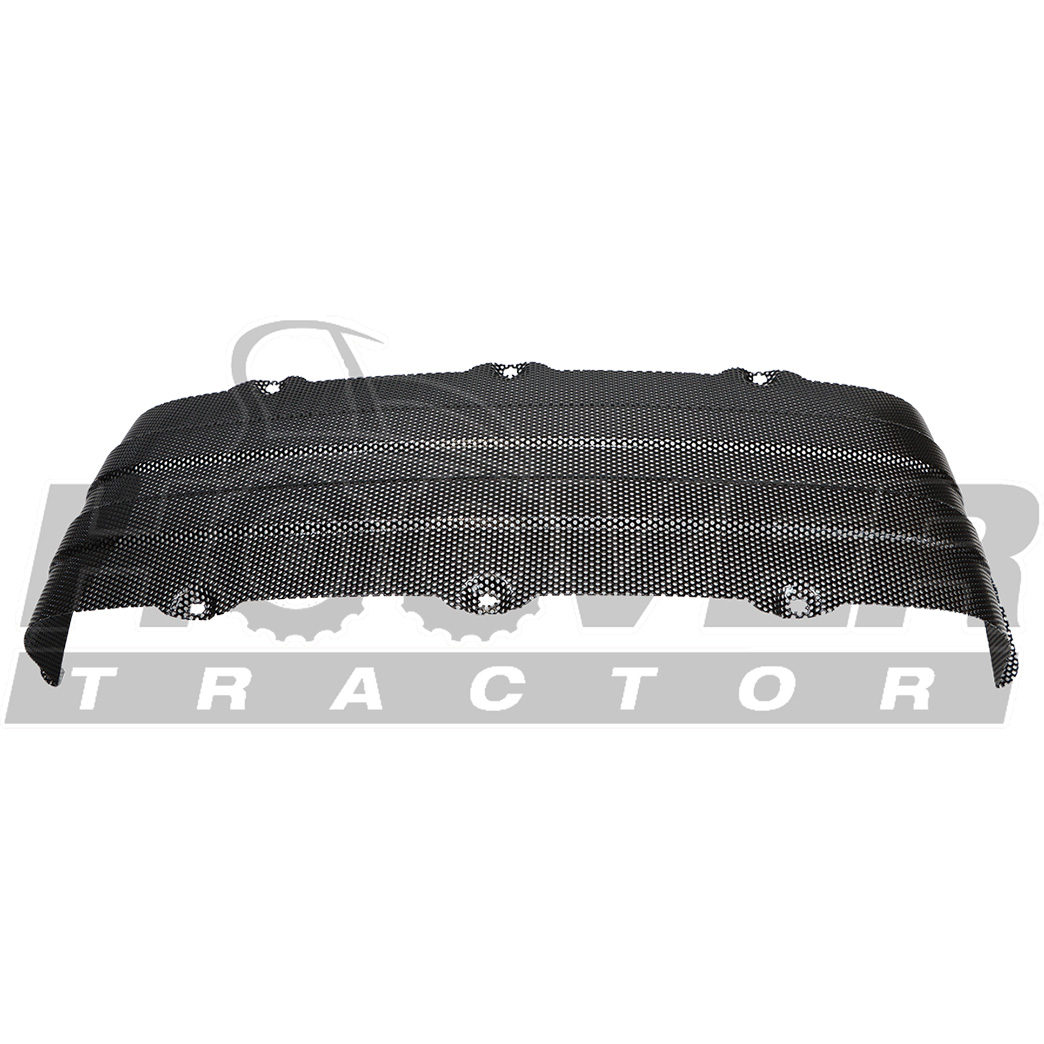

NET 1 FRONT GRILL
- Part No. T4025-50831BB
- 1 shown on diagram
$144.99

NET 1 FRONT GRILL quantity
19
SCREW
- Part No. 38430-1827-1
- 20 shown on diagram
$0.46

SCREW quantity
20
Plate, Fixed
- Part No. T4620-50701
- 12 shown on diagram
$1.39

Plate, Fixed quantity
21
CHSSING
- Part No. K9100-50241
- 2 shown on diagram
$1.89

CHSSING quantity
22
SPONGE
- Part No. T4145-50401
- 2 shown on diagram
$29.99

SPONGE quantity
