FUEL TANK GROUP - DK55CHSE-T845A

Kioti TRACTOR | DK Series | DK60CHSE

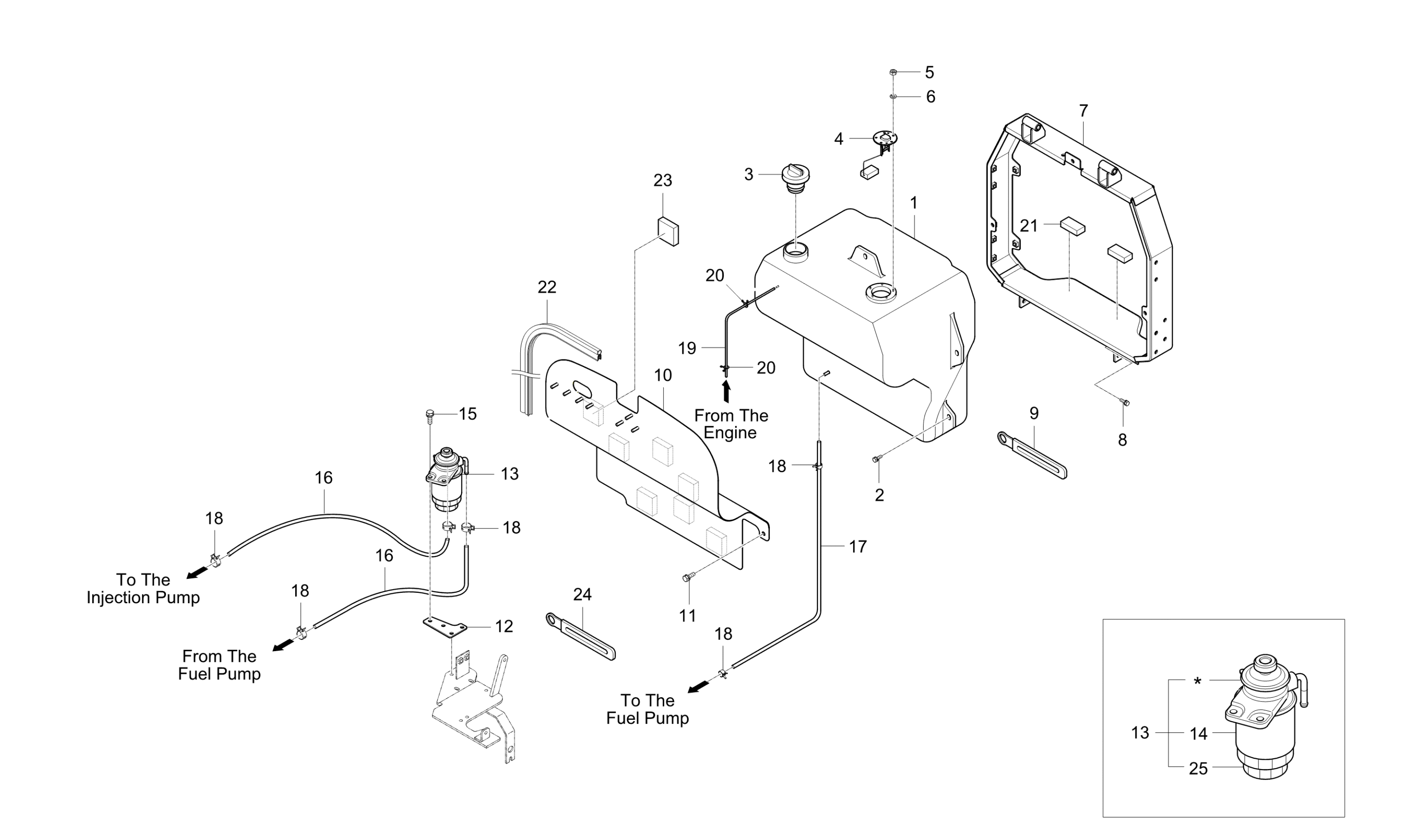

Diagram for FUEL TANK GROUP - DK55CHSE-T845A
  • 1

    Fuel Tank

    • Part No. T5515-81111
    • 1 shown on diagram
    $339.99
  • 2 BOLT, FLANGE, M8 P1.25

    BOLT, FLANGE, M8 P1.25

    • Part No. 01754-50825
    • M8XP1.25
    • 5 shown on diagram
    $2.49
  • 3

    FUEL CAP ASSY, Replaced by T2611-54825

    • Part No. T2611-54822
    • Applied Dates Up to 2013-04-14
    • *multiple options for # 3
    • 1 shown on diagram
    $41.83
  • 3

    Fuel Cap Assy Replaced by T2611-54825

    • Part No. T2611-54823
    • Compatibility New Replaces Old
    • Applied Dates 2013-04-15 and up
    • Serial No. NA8600001 and up
    • *multiple options for # 3
    • 1 shown on diagram
    $0.00
  • 4

    UNIT, FUEL dnr v

    • Part No. T4157-69211
    • 1 shown on diagram
    $67.99
  • 5

    Nut M4XP0.7 (02054-50040)

    • Part No. 02054-50040
    • M4XP0.7
    • 5 shown on diagram
    $0.61
  • 6

    WASHER, SPRING

    • Part No. 04512-50040
    • M04
    • 5 shown on diagram
    $0.55
  • 7

    SUPPORT, FUEL TANK

    • Part No. T4145-81123
    • *multiple options for # 7
    • 1 shown on diagram
    $224.99
  • 7

    SUPPORT, FUEL TANK

    • Part No. T4145-81124
    • Compatibility New Replaces Old
    • *multiple options for # 7
    • 1 shown on diagram
    $224.99
  • 8 Bolt w/Lock Washer M10 P1.25x22mm

    Bolt w/Lock Washer M10 P1.25x22mm

    • Part No. 01133-51022
    • M10XP1.25
    • 4 shown on diagram
    $2.99
  • 9

    CLAMP,CORD

    • Part No. 37155-3447-1
    • 1 shown on diagram
    $4.99
  • 10

    PLATE, INTERCEPTION

    • Part No. T4125-81198
    • 1 shown on diagram
    $84.99
  • 11 FLANGE BOLT, HEX HEAD M8

    FLANGE BOLT, HEX HEAD M8

    • Part No. 01754-50820
    • M8XP1.25
    • 2 shown on diagram
    $1.19
  • 12

    BRACKET,FILTER

    • Part No. T5515-72211
    • 1 shown on diagram
    $7.49
  • 13 Fuel Filter Assembly

    Fuel Filter Assembly

    • Part No. T4682-25732
    • 1 shown on diagram
    $54.99
  • 14 Spin-On Fuel Filter, Less Sensor

    Spin-On Fuel Filter, Less Sensor

    • Part No. T4682-43172
    • 1 shown on diagram
    $29.99
  • 15

    BOLT, FLANGE

    • Part No. 01754-50822
    • M8XP1.25
    • 4 shown on diagram
    $1.89
  • 16

    HOSE

    • Part No. 09661-80300
    • 2 shown on diagram
    $7.49
  • 17

    HOSE

    • Part No. 09661-80450
    • 1 shown on diagram
    $13.99
  • 18

    CLIP, TUBE

    • Part No. 14911-4275-1
    • T0.8*#12
    • 6 shown on diagram
    $1.49
  • 19

    FUEL HOSE v

    • Part No. 09661-40460
    • 1 shown on diagram
    $5.99
  • 20

    CLIP HOSE

    • Part No. 15271-4271-1
    • Applied Dates 2011-04-13 to 2011-04-12
    • DIA0.8*50
    • *multiple options for # 20
    • 2 shown on diagram
    $1.49
  • 20

    Hose Clamp (14971-4275-1)

    • Part No. 14971-4275-1
    • Compatibility Interchngable
    • Applied Dates 2011-07-01 and up
    • Serial No. LA8600001 and up
    • DIA1.0*ID7.8
    • *multiple options for # 20
    • 2 shown on diagram
    $1.59
  • 21

    SPONGE

    • Part No. T2350-37551
    • 2 shown on diagram
    $2.49
  • 22

    RUBBER

    • Part No. T4157-81171
    • 2 shown on diagram
    $19.99
  • 23

    SPONGE

    • Part No. T2350-37551
    • 7 shown on diagram
    $2.49
  • 24

    CLAMP,CORD

    • Part No. 37155-3447-1
    • 2 shown on diagram
    $4.99
  • 25 Filter Drain Plug W/Oring, For T4682-43172 Fuel Filter

    Filter Drain Plug W/Oring, For T4682-43172 Fuel Filter

    • Part No. T4682-25731002
    • 1 shown on diagram
    $12.99
