FRAME ELECTRICAL SYSTEM 2GROUP - DK55CHSE-T1045C

Kioti TRACTOR | DK Series | DK60CHSE

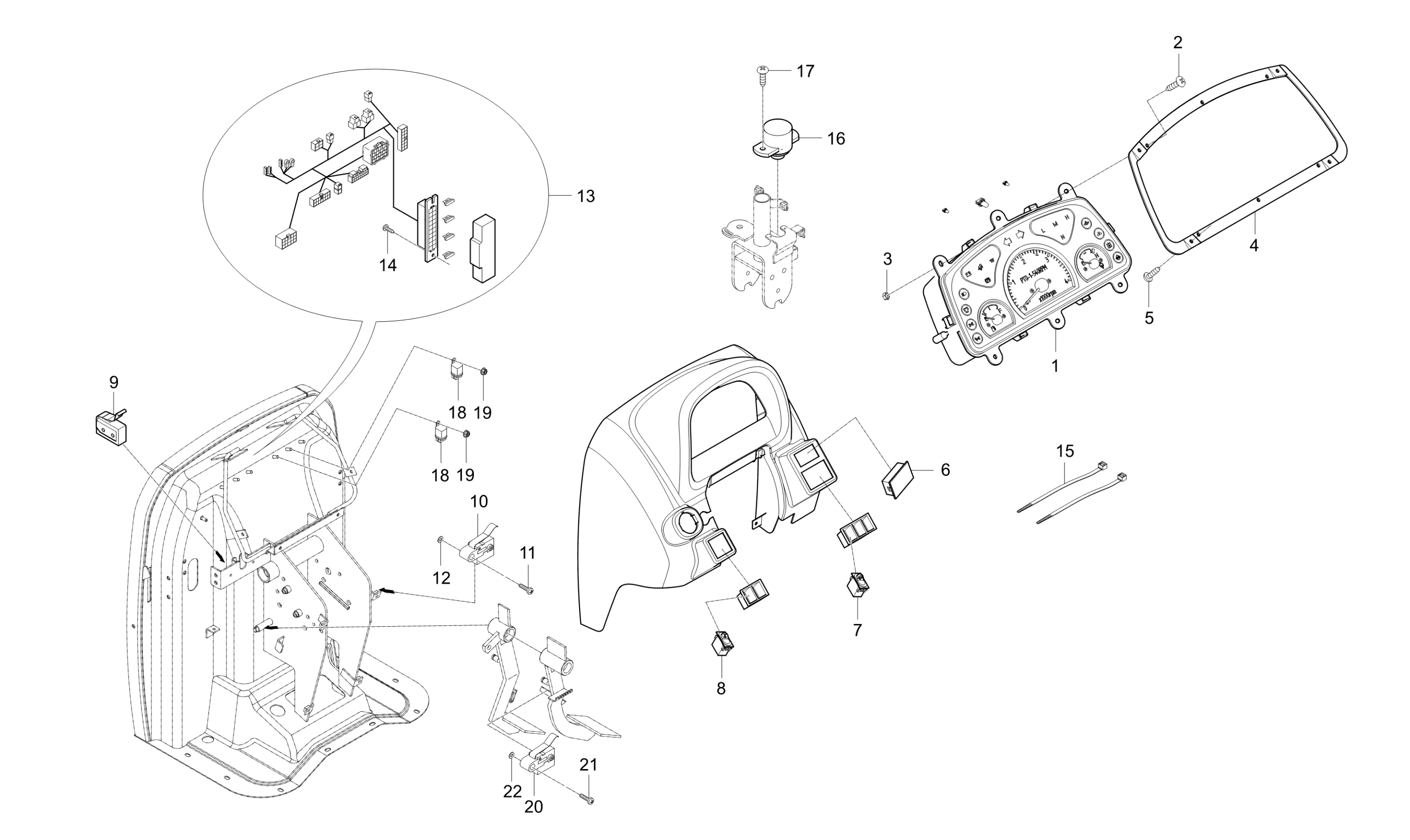

Diagram for FRAME ELECTRICAL SYSTEM 2GROUP - DK55CHSE-T1045C
  • 1 Instrument Assy

    Instrument Assy

    • Part No. T4025-69013
    • *multiple options for # 1
    • 1 shown on diagram
    $684.99
  • 1

    Instrument Assy

    • Part No. T4025-69014
    • Compatibility New Replaces Old
    • *multiple options for # 1
    • 1 shown on diagram
    $684.99
  • 2

    SCREW

    • Part No. 03024-50414
    • M4XP0.7
    • 6 shown on diagram
    $0.68
  • 3

    Nut M4XP0.7 (02054-50040)

    • Part No. 02054-50040
    • M4XP0.7
    • 6 shown on diagram
    $0.61
  • 4

    HOLDER, MATER v, Replaced by T4121-69611BB

    • Part No. T4121-69611
    • t1.6
    • 1 shown on diagram
    $0.00
  • 5 TAPPING SCREW v

    TAPPING SCREW v

    • Part No. 38240-1883-1
    • M4X16
    • 4 shown on diagram
    $0.79
  • 6

    COVER

    • Part No. T4025-68511
    • 1 shown on diagram
    $19.99
  • 7 SWITCH

    SWITCH

    • Part No. T4025-68311
    • 1 shown on diagram
    $81.99
  • 8

    SWITCH, 4WD

    • Part No. T4025-68291
    • 1 shown on diagram
    $84.99
  • 9 Micro Switch, Normally Closed

    Micro Switch, Normally Closed

    • Part No. T2198-68811
    • DC30V 3A
    • 1 shown on diagram
    $64.99
  • 10

    SWITCH, MICRO

    • Part No. T4125-69391
    • 1 shown on diagram
    $62.99
  • 11

    Screw Washer 03024-50420

    • Part No. 03024-50420
    • 1 shown on diagram
    $0.68
  • 12

    Flat Washer M4

    • Part No. 04013-50040
    • M4
    • 1 shown on diagram
    $0.79
  • 13

    ASSY HARNESS

    • Part No. T5515-69122
    • 1 shown on diagram
    $529.99
  • 14

    OB-BOLT

    • Part No. 03027-50516
    • M5XP0.8
    • 2 shown on diagram
    $1.09
  • 15

    BAND CORD

    • Part No. T2185-82551
    • L290
    • 2 shown on diagram
    $1.29
  • 16 POTENTIOMETER ASS’Y

    POTENTIOMETER ASS’Y

    • Part No. T4710-32231
    • 1 shown on diagram
    $254.99
  • 17

    BOLT,SCREW

    • Part No. 03054-50408
    • M4XP0.7
    • 2 shown on diagram
    $0.56
  • 18 RELAY 5P, Replaced by T5535-69961

    RELAY 5P, Replaced by T5535-69961

    • Part No. T4180-69961
    • *multiple options for # 18
    • 2 shown on diagram
    $0.00
  • 18 Relay, 5P, 30A 40A, with bracket

    Relay, 5P, 30A 40A, with bracket

    • Part No. T5535-69961
    • Compatibility Interchngable
    • Bracket
    • *multiple options for # 18
    • 2 shown on diagram
    $19.99
  • 19 Nut, Flange, M6 P1.00 02751-50060

    Nut, Flange, M6 P1.00 02751-50060

    • Part No. 02751-50060
    • M6XP1.0
    • 2 shown on diagram
    $0.73
  • 20

    SWTICH, MICRO

    • Part No. T4157-69281
    • 1 shown on diagram
    $61.99
  • 21

    Screw Washer 03024-50420

    • Part No. 03024-50420
    • 1 shown on diagram
    $0.68
  • 22

    Flat Washer M4

    • Part No. 04013-50040
    • M4
    • 1 shown on diagram
    $0.79
