THROTTLE GROUP - DK55CHSE-T1020C

Kioti TRACTOR | DK Series | DK60HSE

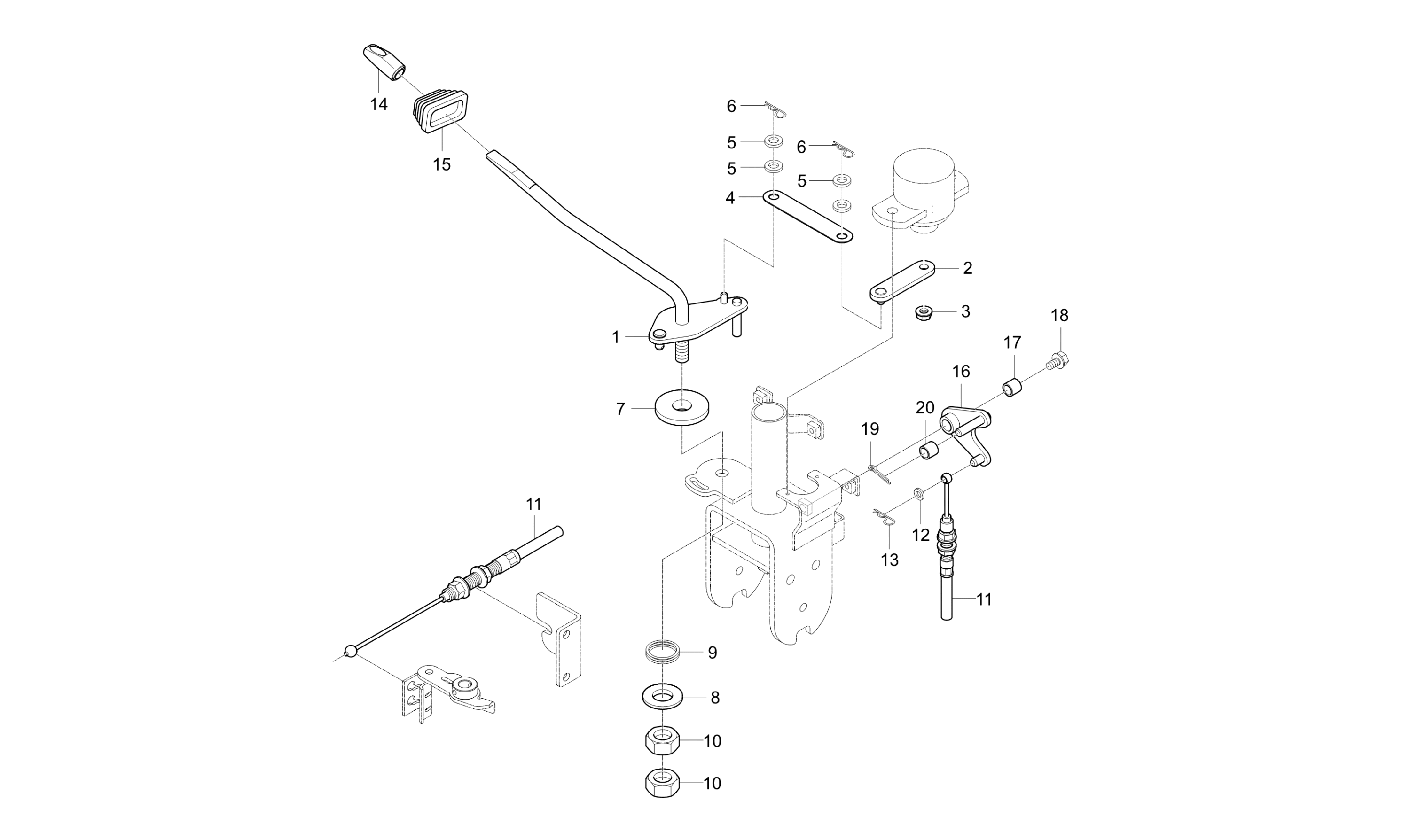

Diagram for THROTTLE GROUP - DK55CHSE-T1020C
  • 1

    LEVER, ACCEL. obs v

    • Part No. T5515-60081
    • 1 shown on diagram
    $27.99
  • 2

    BRACKET, SENSOR

    • Part No. T5515-60111
    • 1 shown on diagram
    $5.49
  • 3 Nut, Flange, M6 P1.00 02751-50060

    Nut, Flange, M6 P1.00 02751-50060

    • Part No. 02751-50060
    • M6XP1.0
    • 1 shown on diagram
    $0.73
  • 4

    BRACKET, CONNECTING

    • Part No. T5515-60121
    • 1 shown on diagram
    $2.99
  • 5

    WASHER 2

    • Part No. T4682-65301
    • 4 shown on diagram
    $0.73
  • 6

    PIN, SNAP

    • Part No. 05515-50600
    • 2 shown on diagram
    $1.19
  • 7

    LINING

    • Part No. T2670-60091
    • 1 shown on diagram
    $18.99
  • 8 Flat Washer M12

    Flat Washer M12

    • Part No. 04013-50120
    • M12
    • 1 shown on diagram
    $0.85
  • 9

    SPRING

    • Part No. T4835-17241
    • 2 shown on diagram
    $4.49
  • 10 Nut M12 P1.25

    Nut M12 P1.25

    • Part No. 02176-50120
    • M12XP1.25
    • 2 shown on diagram
    $1.49
  • 11 CABLE, HAND ACCEL

    CABLE, HAND ACCEL

    • Part No. T4145-60021
    • 1 shown on diagram
    $48.99
  • 12 Flat Washer M6

    Flat Washer M6

    • Part No. 04013-50060
    • M6
    • 1 shown on diagram
    $0.73
  • 13

    PIN, SNAP

    • Part No. 05525-50600
    • DIA6
    • 1 shown on diagram
    $1.19
  • 14

    GRIP

    • Part No. T4125-60141
    • 1 shown on diagram
    $27.99
  • 15

    BOOT

    • Part No. T4125-65571
    • T0.6
    • 1 shown on diagram
    $16.99
  • 16

    ARM, CONNECTING

    • Part No. T4125-66563
    • 1 shown on diagram
    $45.99
  • 17

    SPACER

    • Part No. T2350-55951
    • 1 shown on diagram
    $5.49
  • 18 BOLT, FLANGE, M8 P1.25

    BOLT, FLANGE, M8 P1.25

    • Part No. 01754-50825
    • M8XP1.25
    • 1 shown on diagram
    $2.49
  • 19 PIN, SPLIT

    PIN, SPLIT

    • Part No. 05511-50218
    • DIA1.8XL18
    • 1 shown on diagram
    $0.56
  • 20

    SPACER

    • Part No. T4157-66571
    • DIA 16
    • 1 shown on diagram
    $6.99
