FRAME GROUP - DK55HSE-T1005C

Kioti TRACTOR | DK Series | DK60HSE

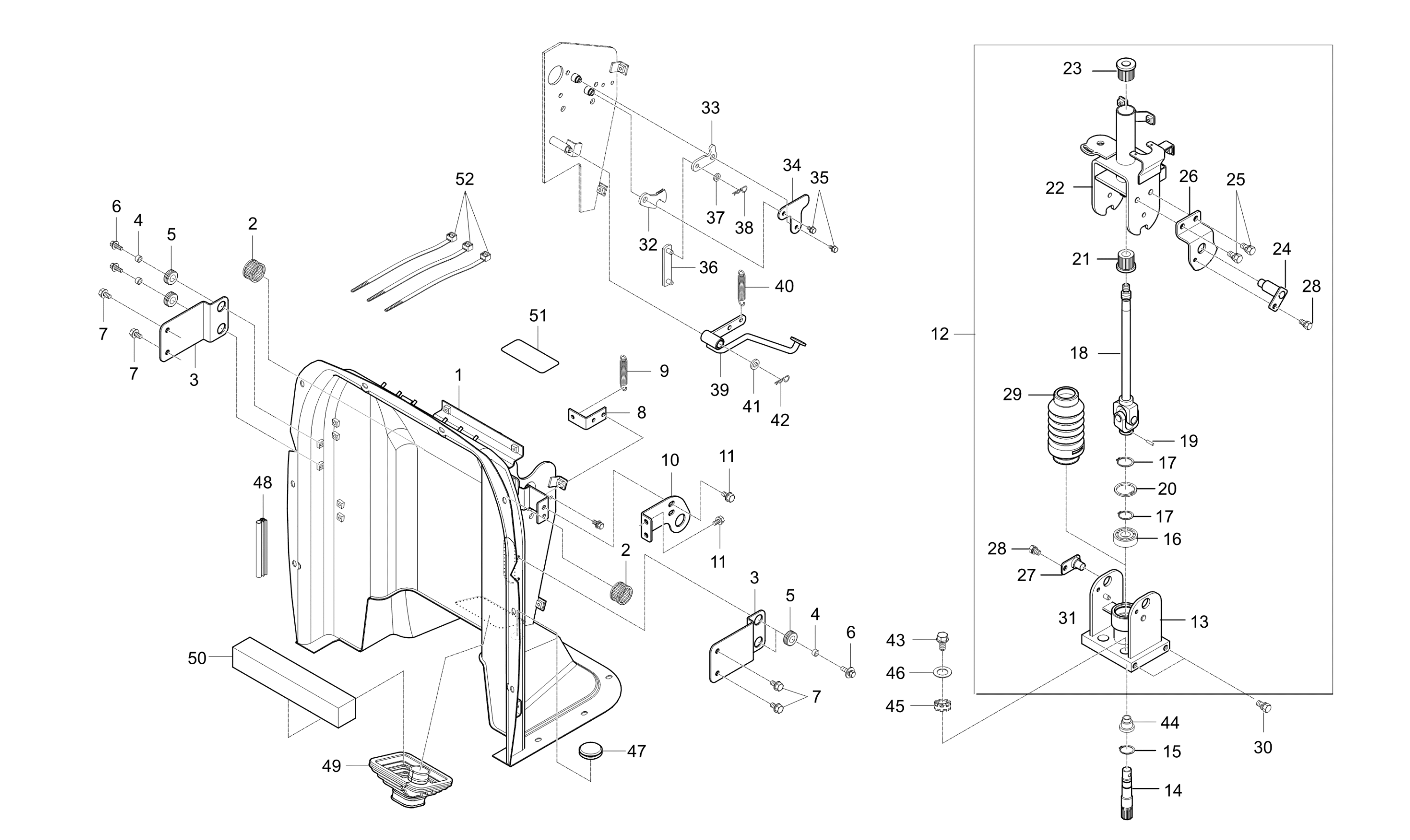

Diagram for FRAME GROUP - DK55HSE-T1005C
  • 1

    FRAME ASSY

    • Part No. T4125-55105
    • 1 shown on diagram
    $0.00
  • 2

    NEEDLE BEARING

    • Part No. 08822-53017
    • ??DIA25
    • 2 shown on diagram
    $19.99
  • 3

    SUPPORT

    • Part No. T4125-81232
    • T3.0
    • 2 shown on diagram
    $11.99
  • 4

    SPACER

    • Part No. T2350-50421
    • DIA13.8XT2.3
    • 4 shown on diagram
    $4.49
  • 5

    GROMMET

    • Part No. T2350-50431
    • 4 shown on diagram
    $4.99
  • 6

    BOLT

    • Part No. 01127-50825
    • M8XP1.25
    • 4 shown on diagram
    $2.49
  • 7 BOLT, FLANGE M6 P1.00 x 16

    BOLT, FLANGE M6 P1.00 x 16

    • Part No. 01754-50616
    • M6XP1.0
    • 4 shown on diagram
    $1.89
  • 8

    HOLDING, SPRING

    • Part No. T4125-66571
    • 1 shown on diagram
    $9.49
  • 9

    SPRING BRAKE

    • Part No. T2350-55961
    • DIA2.3
    • 1 shown on diagram
    $6.49
  • 10

    STAY,DYNAMO

    • Part No. T4125-56131
    • T3.2
    • 1 shown on diagram
    $14.99
  • 11 Bolt With Washers, M8 P1.25 x 16mm (01125-50816)

    Bolt With Washers, M8 P1.25 x 16mm (01125-50816)

    • Part No. 01125-50816
    • M8XP1.25
    • 4 shown on diagram
    $2.49
  • 12

    STEERING ASSY

    • Part No. T5517-66101
    • 1 shown on diagram
    $524.99
  • 13

    STEERING SUPPORT v

    • Part No. T4145-66111
    • 1 shown on diagram
    $229.99
  • 14

    SHAFT obs v

    • Part No. T2825-66141
    • 1 shown on diagram
    $41.99
  • 15 Snap Ring, External, 17mm

    Snap Ring, External, 17mm

    • Part No. 04612-00170
    • DIA17
    • 2 shown on diagram
    $0.98
  • 16

    BEARING, BALL

    • Part No. 08141-06203
    • DIA17
    • 1 shown on diagram
    $15.99
  • 17

    CIR CLIP, INTERNAL

    • Part No. 04611-00400
    • DIA40
    • 1 shown on diagram
    $2.49
  • 18

    ASSY, STEERING SHAFT v

    • Part No. T4125-48121
    • 1 shown on diagram
    $214.99
  • 19 PIN, STRAIGHT

    PIN, STRAIGHT

    • Part No. 66116-4135-3
    • 1 shown on diagram
    $9.99
  • 20 Snap Ring, External, 28mm

    Snap Ring, External, 28mm

    • Part No. 04612-00280
    • DIA28
    • 1 shown on diagram
    $1.19
  • 21

    RUBBER 2, CUSHION

    • Part No. T4520-62261
    • 1 shown on diagram
    $21.99
  • 22

    COLLUM

    • Part No. T5515-66121
    • 1 shown on diagram
    $74.99
  • 23

    RUBBER, CUSHION

    • Part No. T2185-62241
    • 1 shown on diagram
    $23.99
  • 24

    PLATE

    • Part No. T4682-48061
    • 1 shown on diagram
    $12.99
  • 25 Bolt With Washer, M8 P1.25 x 16mm

    Bolt With Washer, M8 P1.25 x 16mm

    • Part No. 01123-50816
    • M8XP1.25
    • 2 shown on diagram
    $1.09
  • 26 GEAR,SECTOR

    GEAR,SECTOR

    • Part No. T4125-66062
    • T4.5
    • 1 shown on diagram
    $114.99
  • 27

    SKID ADJUSTER

    • Part No. T4125-66261
    • DIA15
    • 1 shown on diagram
    $19.99
  • 28 Bolt w/Lock Washer M10 P1.25x25mm

    Bolt w/Lock Washer M10 P1.25x25mm

    • Part No. 01133-51025
    • M10XP1.25
    • 2 shown on diagram
    $3.49
  • 29

    BOOT

    • Part No. T4115-66151
    • 1 shown on diagram
    $16.99
  • 30

    Bolt w/Lock Washer M10 P1.25x20mm

    • Part No. 01133-51020
    • M10XP1.25
    • 4 shown on diagram
    $2.99
  • 31 Bolt w/Lock Washer M10 P1.25x25mm

    Bolt w/Lock Washer M10 P1.25x25mm

    • Part No. 01133-51025
    • M10XP1.25
    • 2 shown on diagram
    $3.49
  • 32 GEAR, LOCK

    GEAR, LOCK

    • Part No. T4682-66071
    • T4.5
    • 1 shown on diagram
    $28.99
  • 33

    LEVER, TILT

    • Part No. T4125-66033
    • T4.5
    • 1 shown on diagram
    $9.99
  • 34

    PLATE

    • Part No. T4125-66271
    • T3.0
    • 1 shown on diagram
    $7.99
  • 35

    WASHER BOLT

    • Part No. 01025-50612
    • M6XP1.0
    • 2 shown on diagram
    $2.49
  • 36

    LOD(TILT)

    • Part No. T2185-66041
    • 1 shown on diagram
    $17.99
  • 37 Flat Washer M8

    Flat Washer M8

    • Part No. 04013-50080
    • 2 shown on diagram
    $0.79
  • 38

    PIN, SNAP

    • Part No. 05515-50800
    • DIA8
    • 2 shown on diagram
    $1.29
  • 39

    PEDAL TILT, Replaced by T4125-66053BB

    • Part No. T4125-66053
    • 1 shown on diagram
    $0.00
  • 40 SPRING

    SPRING

    • Part No. T4520-27831
    • DIA2.0
    • 1 shown on diagram
    $6.49
  • 41 Flat Washer M10

    Flat Washer M10

    • Part No. 04013-50100
    • M10
    • 1 shown on diagram
    $0.73
  • 42

    PIN, SNAP

    • Part No. 05515-51000
    • DIA10
    • 1 shown on diagram
    $1.29
  • 43

    Bolt w/Lock Washer M10 P1.25x45mm

    • Part No. 01133-51045
    • 4 shown on diagram
    $3.99
  • 44

    RUBBER

    • Part No. T4145-66121
    • 4 shown on diagram
    $12.99
  • 45

    RUBBER

    • Part No. T4145-66131
    • 4 shown on diagram
    $7.49
  • 46

    WASHER

    • Part No. 62411-3313-1
    • 4 shown on diagram
    $4.49
  • 47

    COVER

    • Part No. T4680-54631
    • 1 shown on diagram
    $2.99
  • 48

    RUBBER

    • Part No. T4157-57772
    • 2 shown on diagram
    $4.49
  • 49

    BOOT

    • Part No. T4145-55412
    • T1.2
    • 1 shown on diagram
    $25.99
  • 50

    SPONG 2

    • Part No. T4850-50461
    • 1 shown on diagram
    $9.49
  • 51

    PLUG

    • Part No. T5515-87611
    • 1 shown on diagram
    $1.69
  • 52

    BAND CORD

    • Part No. T2185-82551
    • L290
    • 3 shown on diagram
    $1.29
