RADIATOR GROUP - DK60HSE-T035A

Kioti TRACTOR | DK Series | DK60HSE

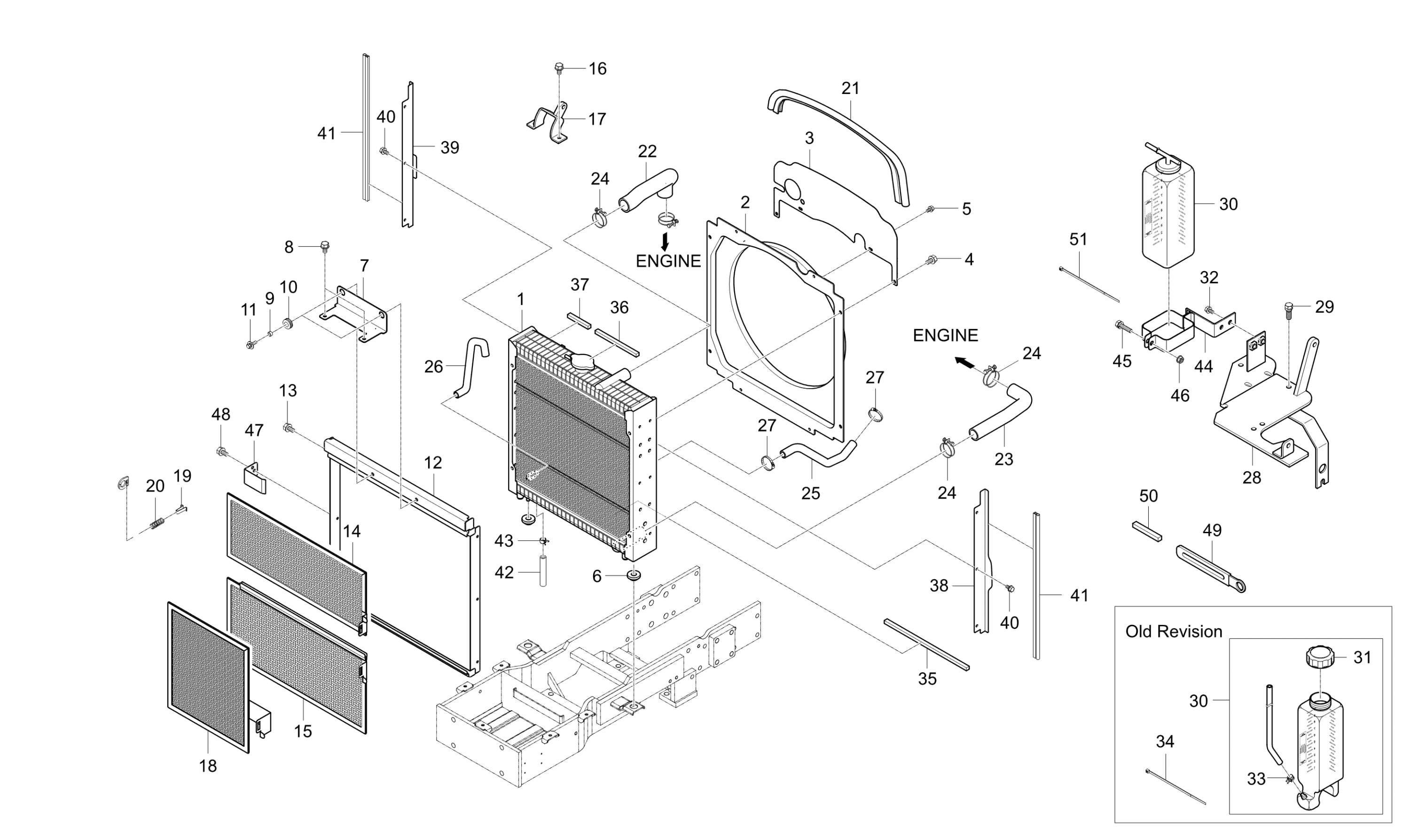

Diagram for RADIATOR GROUP - DK60HSE-T035A
  • 1 Radiator Assembly

    Radiator Assembly

    • Part No. T5410-72161
    • 1 shown on diagram
    $864.99
  • 2

    SHIRAOUD

    • Part No. T5515-72072
    • 1 shown on diagram
    $36.99
  • 3

    PLATE dnr v

    • Part No. T4125-13613
    • T1.6
    • 1 shown on diagram
    $53.99
  • 4 Flange Bolt (T4625-55431)

    Flange Bolt (T4625-55431)

    • Part No. T4625-55431
    • 4 shown on diagram
    $1.09
  • 5

    Bolt

    • Part No. T2185-70491
    • 4 shown on diagram
    $1.59
  • 6

    CUSHION

    • Part No. T4125-13561
    • 2 shown on diagram
    $5.99
  • 7

    BRACKET, RADIATOR-SUPPORT

    • Part No. T5515-50562
    • 1 shown on diagram
    $0.00
  • 8 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 2 shown on diagram
    $1.79
  • 9

    SPACER

    • Part No. T2350-50421
    • DIA13.8XT2.3
    • 2 shown on diagram
    $4.49
  • 10

    GROMMET

    • Part No. T2350-50431
    • 2 shown on diagram
    $4.99
  • 11

    BOLT

    • Part No. 01127-50825
    • M8XP1.25
    • 2 shown on diagram
    $2.49
  • 12

    GUIDE, WIRE-NET obs v

    • Part No. T5515-13531
    • 1 shown on diagram
    $67.99
  • 13 Flange Bolt (T4625-55431)

    Flange Bolt (T4625-55431)

    • Part No. T4625-55431
    • 6 shown on diagram
    $1.09
  • 14

    NET UPR, RADIATOR obs v

    • Part No. T5515-13112
    • 1 shown on diagram
    $56.99
  • 15

    net lwr , radiator obs v

    • Part No. T5515-13122
    • 1 shown on diagram
    $66.99
  • 16

    SUPPORT, CYLINDER

    • Part No. T4125-72091
    • 1 shown on diagram
    $23.99
  • 17 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 2 shown on diagram
    $1.79
  • 18

    NET, OIL COOLER

    • Part No. T5515-13142
    • 1 shown on diagram
    $47.99
  • 19 HANGER

    HANGER

    • Part No. T4125-50871
    • T2.0
    • 3 shown on diagram
    $3.49
  • 20 SPRING

    SPRING

    • Part No. T4125-50882
    • T1.0
    • 3 shown on diagram
    $2.99
  • 21

    RUBBER

    • Part No. T4125-13622
    • 1 shown on diagram
    $19.99
  • 22

    HOSE,WATER v

    • Part No. T4125-13572
    • 1 shown on diagram
    $29.99
  • 23 HOSE,WATER

    HOSE,WATER

    • Part No. T4125-13581
    • 1 shown on diagram
    $29.99
  • 24

    CLIP, HOSE

    • Part No. 09318-89048
    • ??#48
    • 4 shown on diagram
    $2.99
  • 25 HOSE 2, OIL COOLER

    HOSE 2, OIL COOLER

    • Part No. T4325-13531
    • 1 shown on diagram
    $15.99
  • 26

    HOSE, COOLING WATER RETURN

    • Part No. T5515-17481
    • 1 shown on diagram
    $17.99
  • 27

    BAND, HOSE

    • Part No. 66204-3623-1
    • *multiple options for # 27
    • 2 shown on diagram
    $3.99
  • 27

    BAND, HOSE

    • Part No. F6800-91831
    • Compatibility Interchngable
    • *multiple options for # 27
    • 2 shown on diagram
    $1.89
  • 28

    BRACKET ASSY

    • Part No. T5515-72081
    • 1 shown on diagram
    $0.00
  • 29 Bolt With Washer, M8 P1.25 x 20mm

    Bolt With Washer, M8 P1.25 x 20mm

    • Part No. 01123-50820
    • M8XP1.25
    • 5 shown on diagram
    $2.49
  • 30

    ASS’Y TANK,RESERVE v

    • Part No. T4125-12452
    • *multiple options for # 30
    • 1 shown on diagram
    $58.99
  • 30

    WATER TANK ASSY ( USE T4125-12454 ) dnr v

    • Part No. T4125-12453
    • Compatibility New Replaces Old
    • *multiple options for # 30
    • 1 shown on diagram
    $57.99
  • 31 TANK CAP ASSY

    TANK CAP ASSY

    • Part No. 76621-5482-0
    • 1 shown on diagram
    $22.99
  • 32 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 2 shown on diagram
    $1.79
  • 33

    CLIP, HOSE

    • Part No. 15301-7247-0
    • ??16#
    • 1 shown on diagram
    $2.49
  • 34

    BAND, CORD

    • Part No. T2185-82561
    • L200
    • 1 shown on diagram
    $0.49
  • 35

    SPONGE

    • Part No. T4125-13631
    • *multiple options for # 35
    • 1 shown on diagram
    $5.99
  • 35

    SPONGE

    • Part No. E7230-72081
    • Compatibility Call for compatibility
    • Serial No. PH0900001 and up
    • 10*10*510
    • *multiple options for # 35
    • 1 shown on diagram
    $3.99
  • 36

    SPONGE

    • Part No. T4125-13641
    • 1 shown on diagram
    $3.49
  • 37

    SPONGE

    • Part No. T4125-13651
    • 2 shown on diagram
    $1.49
  • 38

    PLATE, SIDE COVER(LH)

    • Part No. T4125-13662
    • t1.2
    • 1 shown on diagram
    $17.99
  • 39

    PLATE, SIDE COVER(RH)

    • Part No. T4125-13672
    • t1.2
    • 1 shown on diagram
    $16.99
  • 40 Flange Bolt (T4625-55431)

    Flange Bolt (T4625-55431)

    • Part No. T4625-55431
    • 6 shown on diagram
    $1.09
  • 41

    RUBBER

    • Part No. T4125-50891
    • 2 shown on diagram
    $15.99
  • 42

    HOSE 1, FUEL

    • Part No. 15371-4217-0
    • 1 shown on diagram
    $5.99
  • 43

    CLIP, TUBE

    • Part No. 14911-4275-1
    • T0.8*#12
    • 1 shown on diagram
    $1.49
  • 44

    BRACKET dnr v, Replaced by T4125-73012BB

    • Part No. T4125-73012
    • 1 shown on diagram
    $0.00
  • 45

    Bolt With Washers, M8 P1.25 x 25mm

    • Part No. 01125-50825
    • M8XP1.25
    • 1 shown on diagram
    $2.49
  • 46 NUT, FLANGE

    NUT, FLANGE

    • Part No. 02763-50080
    • M8XP1.25
    • 1 shown on diagram
    $0.85
  • 47

    BRACKET,GUIDE

    • Part No. T5515-13151
    • T1.0
    • 2 shown on diagram
    $14.99
  • 48 Flange Bolt (T4625-55431)

    Flange Bolt (T4625-55431)

    • Part No. T4625-55431
    • 2 shown on diagram
    $1.09
  • 49

    CLAMP

    • Part No. 37150-3447-1
    • T0.5
    • 1 shown on diagram
    $4.99
  • 50

    SPONGE

    • Part No. T5515-50241
    • 2 shown on diagram
    $5.49
  • 51

    BAND CORD

    • Part No. T2185-82551
    • L290
    • 1 shown on diagram
    $1.29
  • 52

    CAP v, Replaced by P15110900

    • Part No. T4686-72161010
    • 1 shown on diagram
    $0.00
