STEP GROUP - DK55HSE-T905A

Kioti TRACTOR | DK Series | DK60HSE

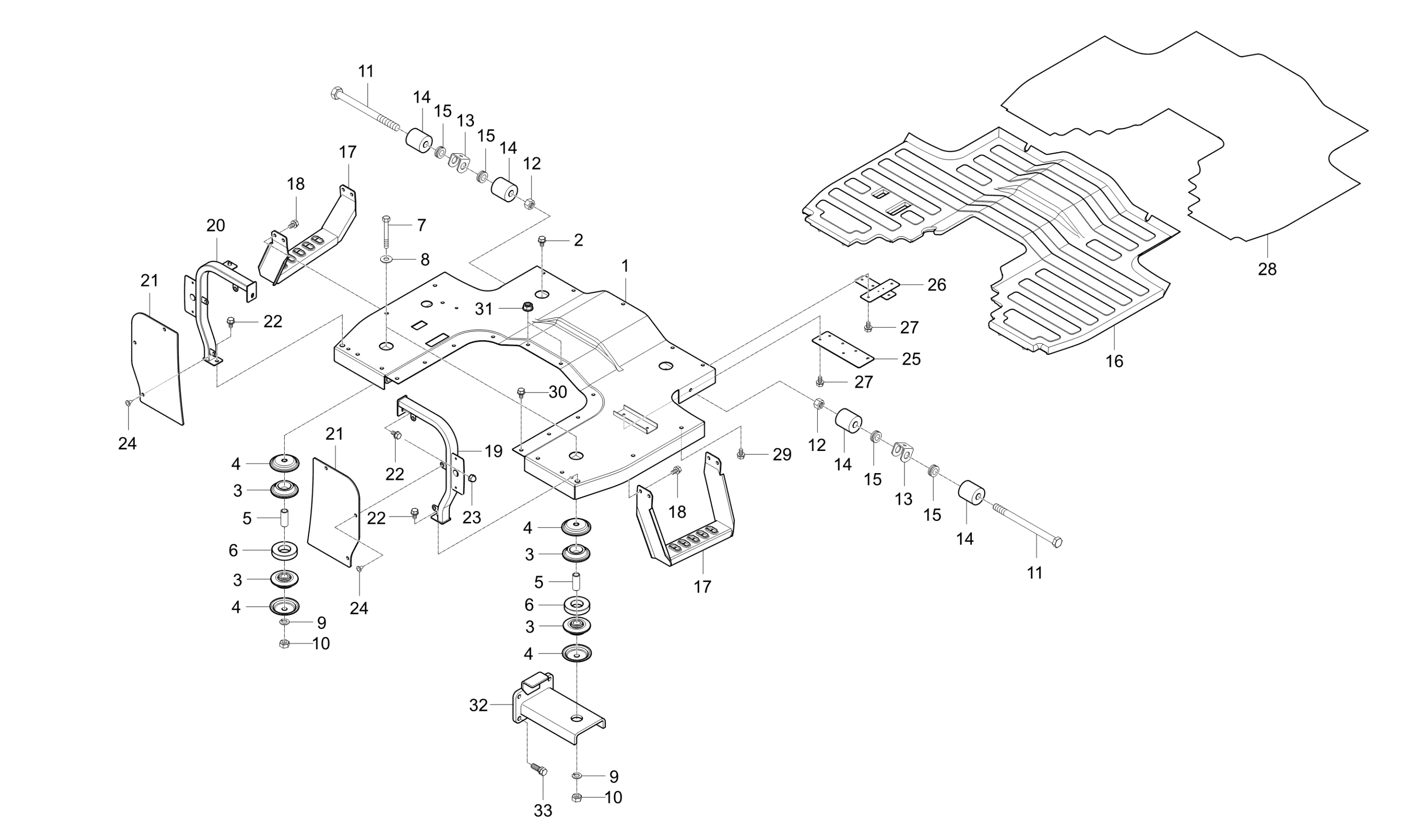

Diagram for STEP GROUP - DK55HSE-T905A
  • 1

    ASSY STEP

    • Part No. T4125-70117
    • 1 shown on diagram
    $399.99
  • 2 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 2 shown on diagram
    $1.79
  • 3

    DUSTPROOF RUBBER

    • Part No. T5410-70211
    • 2 shown on diagram
    $66.99
  • 4

    STOPPER dnr v T2350-85151

    • Part No. T2350-85151
    • T2.6
    • 4 shown on diagram
    $16.99
  • 5

    Spacer (T2350-85171)

    • Part No. T2350-85171
    • DIA22.4*T4.0
    • 2 shown on diagram
    $12.99
  • 6

    COLLAR

    • Part No. T4125-74451
    • T3.0
    • 2 shown on diagram
    $7.49
  • 7

    Bolt M14 P1.50x90mm

    • Part No. 01173-51490
    • M14XP1.5
    • 2 shown on diagram
    $9.99
  • 8

    Flat Washer M12

    • Part No. 04011-50120
    • M12
    • 4 shown on diagram
    $0.73
  • 9 M12 Spring Washer (04512-50120)

    M12 Spring Washer (04512-50120)

    • Part No. 04512-50120
    • M12
    • 4 shown on diagram
    $0.95
  • 10 NUT, M12 P1.25

    NUT, M12 P1.25

    • Part No. 02076-50120
    • 4 shown on diagram
    $1.19
  • 11

    BOLT (FRONT) v

    • Part No. T4157-70151
    • 2 shown on diagram
    $19.99
  • 12 Nut M16 P1.50

    Nut M16 P1.50

    • Part No. 02176-50160
    • M16XP1.5
    • 2 shown on diagram
    $2.49
  • 13

    BRACKET

    • Part No. T4125-70161
    • 2 shown on diagram
    $9.99
  • 14

    CUSHION V

    • Part No. T2350-70182
    • 4 shown on diagram
    $13.99
  • 15 GROMMET

    GROMMET

    • Part No. T4682-50251
    • 2 shown on diagram
    $1.89
  • 16

    MAT, STEP

    • Part No. T4125-70234
    • 1 shown on diagram
    $434.99
  • 17

    STEP v dnr v

    • Part No. T4121-70221
    • *multiple options for # 17
    • 2 shown on diagram
    $92.99
  • 17

    STEP

    • Part No. T2185-70223
    • Compatibility Interchngable
    • *multiple options for # 17
    • 1 shown on diagram
    $109.99
  • 18 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 8 shown on diagram
    $1.79
  • 19

    FENDER LH dnr v

    • Part No. T4025-70311
    • 1 shown on diagram
    $59.99
  • 20

    FENDER RH dnr v

    • Part No. T4025-70321
    • 1 shown on diagram
    $39.99
  • 21

    PLATE

    • Part No. T4125-70332
    • T4.0
    • 2 shown on diagram
    $48.99
  • 22 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 4 shown on diagram
    $1.79
  • 23 Cap Nut, M8 T4815-93211

    Cap Nut, M8 T4815-93211

    • Part No. T4815-93211
    • M8
    • 2 shown on diagram
    $1.49
  • 24

    RIVET, BOLT, Replaced by 53650-61271

    • Part No. 53650-6127-1
    • 6 shown on diagram
    $0.00
  • 25

    PLATE 1, WIRE HARNESS

    • Part No. T4157-70271
    • 1 shown on diagram
    $7.99
  • 26

    PLATE 2, WIRE HARNESS

    • Part No. T4157-70281
    • 1 shown on diagram
    $11.99
  • 27 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50612
    • M6XP1.0
    • 4 shown on diagram
    $1.39
  • 28

    MAT

    • Part No. T4125-70261
    • T0.4-0.5
    • 1 shown on diagram
    $17.99
  • 29 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50812
    • M8XP1.25
    • 4 shown on diagram
    $1.79
  • 30 FLANGE BOLT, HEX HEAD M8

    FLANGE BOLT, HEX HEAD M8

    • Part No. 01754-50820
    • M8XP1.25
    • 8 shown on diagram
    $1.19
  • 31 Kioti Flange Nut, M8 P1.25

    Kioti Flange Nut, M8 P1.25

    • Part No. 02751-50080
    • M8XP1.25
    • 2 shown on diagram
    $0.67
  • 32

    FLOOR SUPPORT, LH

    • Part No. T5515-33311
    • 1 shown on diagram
    $0.00
  • 33

    Bolt w/Lock Washer M12 P1.25x30mm

    • Part No. 01133-51230
    • M12XP1.25
    • 4 shown on diagram
    $5.49
