BRAKE PEDAL GROUP - DK55HSE-T1015C

Kioti TRACTOR | DK Series | DK60HSE

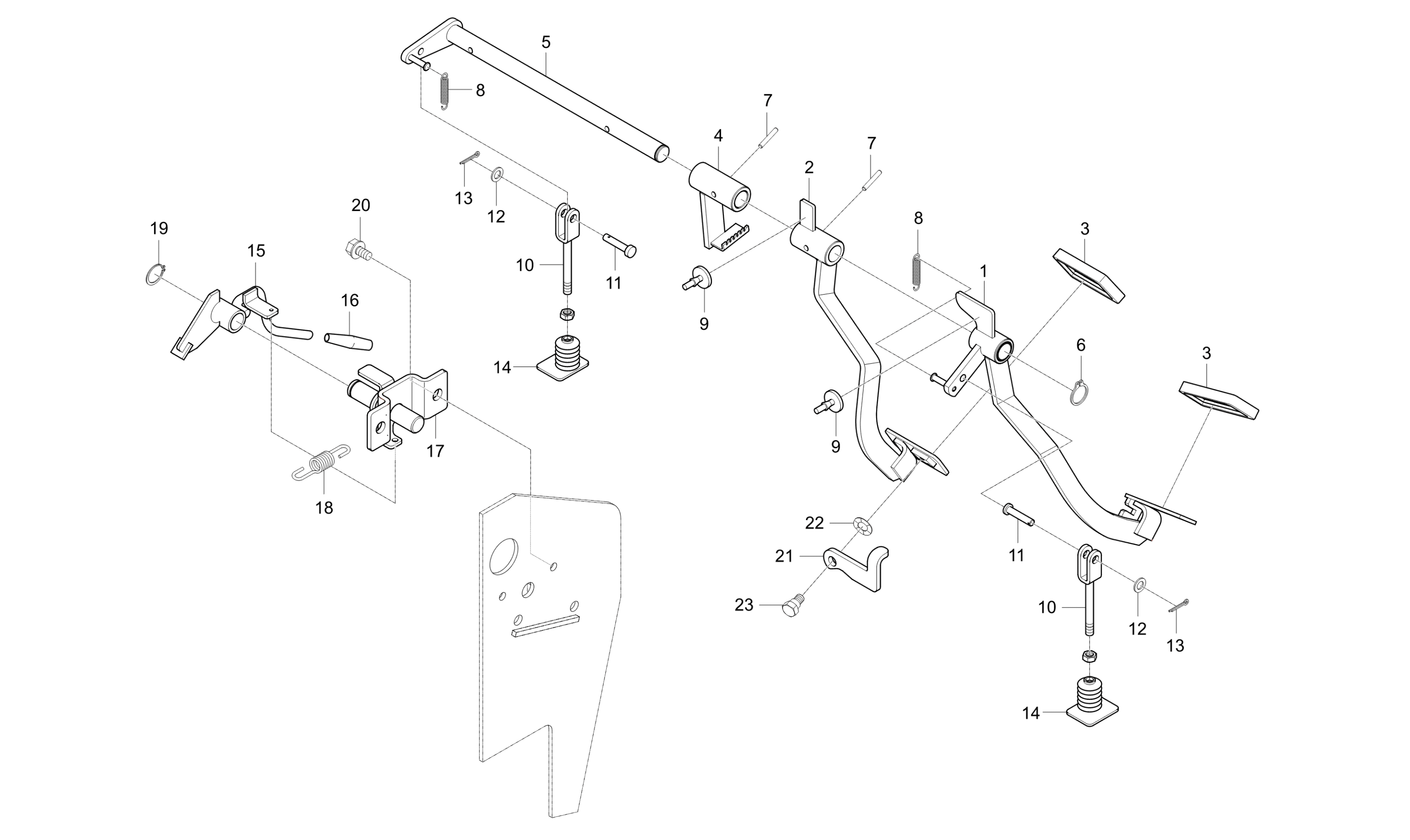

Diagram for BRAKE PEDAL GROUP - DK55HSE-T1015C
  • 1

    PEDAL BRAKE

    • Part No. T4125-55714
    • 1 shown on diagram
    $144.99
  • 2

    PEDAL,BRAKE(RH)

    • Part No. T4125-55723
    • 1 shown on diagram
    $82.99
  • 3 COVER,PEDAL

    COVER,PEDAL

    • Part No. T2670-55531
    • 2 shown on diagram
    $23.99
  • 4

    HOLDER, PEDAL, Replaced by T4125-55754BB

    • Part No. T4125-55752
    • 1 shown on diagram
    $0.00
  • 5

    SHAFT,STAY PEDAL

    • Part No. T4125-55731
    • 1 shown on diagram
    $45.99
  • 6 Snap Ring, External, 25mm

    Snap Ring, External, 25mm

    • Part No. 04612-00250
    • DIA25
    • 1 shown on diagram
    $1.09
  • 7 PIN, SPRING

    PIN, SPRING

    • Part No. 05411-00840
    • DIA8.6XL40
    • 2 shown on diagram
    $1.49
  • 8

    SPRING BRAKE

    • Part No. T2350-55961
    • DIA2.3
    • 2 shown on diagram
    $6.49
  • 9

    CUSHION v

    • Part No. T4520-26931
    • 2 shown on diagram
    $6.49
  • 10

    ROD, BRAKE 1 dnr v

    • Part No. T4125-55851
    • 2 shown on diagram
    $19.99
  • 11

    Pin, Joint M10x28mm

    • Part No. 05122-51028
    • DIA10XL28
    • 2 shown on diagram
    $3.49
  • 12 Flat Washer M10

    Flat Washer M10

    • Part No. 04013-50100
    • M10
    • 2 shown on diagram
    $0.73
  • 13

    Split Pin (05511-50318)

    • Part No. 05511-50318
    • DIA2.7XL18
    • 2 shown on diagram
    $0.40
  • 14

    JABARA

    • Part No. T4620-55821
    • 2 shown on diagram
    $16.99
  • 15

    Set Lever

    • Part No. T4125-55911
    • 1 shown on diagram
    $44.99
  • 16

    GRIP

    • Part No. T2350-55922
    • 1 shown on diagram
    $5.49
  • 17

    SHAFT, PARKING BRAKE obs v

    • Part No. T4125-55923
    • 1 shown on diagram
    $27.99
  • 18

    FRICTION SPRING

    • Part No. 57781-5121-1
    • DIA1.2
    • 1 shown on diagram
    $3.49
  • 19

    Snap Ring, External, 16mm

    • Part No. 04612-50160
    • DIA16
    • 1 shown on diagram
    $0.73
  • 20

    Bolt With Washer, M10 P1.50 x 16mm (01123-51016)

    • Part No. 01123-51016
    • M10XP1.5
    • 2 shown on diagram
    $2.99
  • 21

    CONNECTING LEVER

    • Part No. T4157-55811
    • T6.0
    • 1 shown on diagram
    $9.99
  • 22

    SPRING

    • Part No. T4157-56111
    • 1 shown on diagram
    $1.89
  • 23

    BOLT, BRAKE

    • Part No. T4157-56121
    • 1 shown on diagram
    $8.99
