BRAKE ROD 2 GROUP - DK55HSE-T690A

Kioti TRACTOR | DK Series | DK60HSE

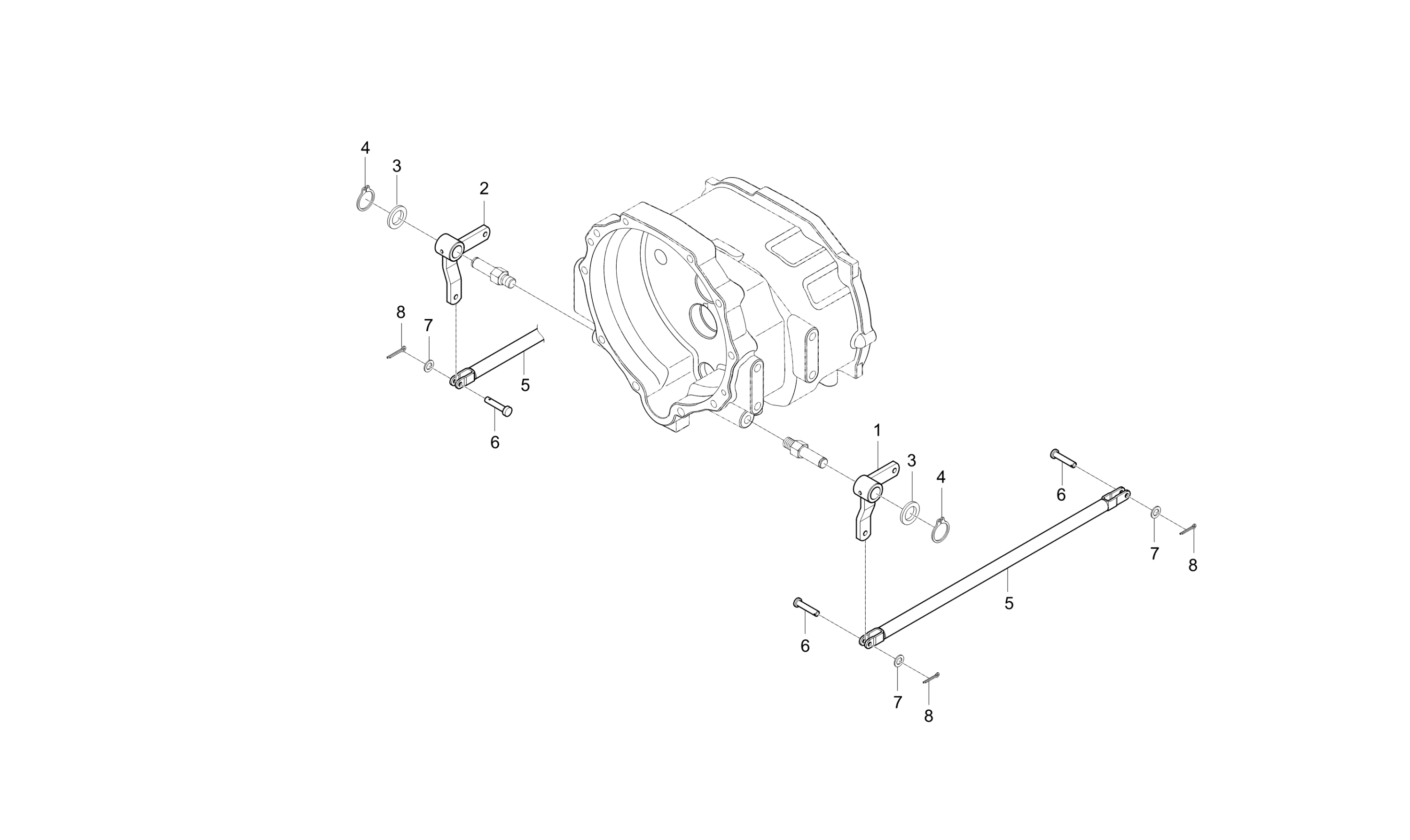

Diagram for BRAKE ROD 2 GROUP - DK55HSE-T690A

1
LEVER, BRAKE (LH), Replaced by T4125-55782BB
- Part No. T4125-55782
- 1 shown on diagram
$68.99

LEVER, BRAKE (LH), Replaced by T4125-55782BB quantity
2
LEVER(R), BRAKE, Replaced by T4125-55792BB
- Part No. T4125-55792
- 1 shown on diagram
$0.00

LEVER(R), BRAKE, Replaced by T4125-55792BB quantity
3
Flat Washer M20
- Part No. 04011-50200
- M20
- 2 shown on diagram
$1.59

Flat Washer M20 quantity
4
Snap Ring, External, 20mm
- Part No. 04612-00200
- DIA20
- 2 shown on diagram
$1.09

Snap Ring, External, 20mm quantity
5
ROD 3, BRAKE, Replaced by T4125-55771BB
- Part No. T4125-55771
- Applied Dates Up to 2009-12-31
- 2 shown on diagram
$0.00

ROD 3, BRAKE, Replaced by T4125-55771BB quantity
6
Pin, Joint M8x28mm
- Part No. 05122-50828
- Applied Dates Up to 2009-12-31
- DIA8XL28
- 4 shown on diagram
$3.49

Pin, Joint M8x28mm quantity
7
Flat Washer M8
- Part No. 04013-50080
- Applied Dates Up to 2009-12-31
- 4 shown on diagram
$0.79

Flat Washer M8 quantity
8
PIN, SPLIT
- Part No. 05511-50218
- Applied Dates Up to 2009-12-31
- DIA1.8XL18
- 4 shown on diagram
$0.56

PIN, SPLIT quantity
